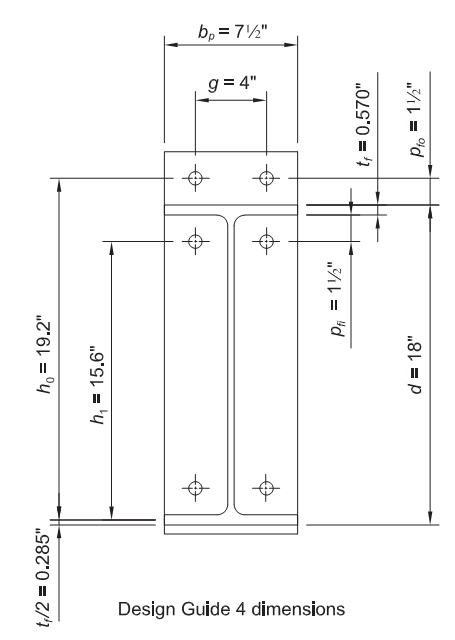

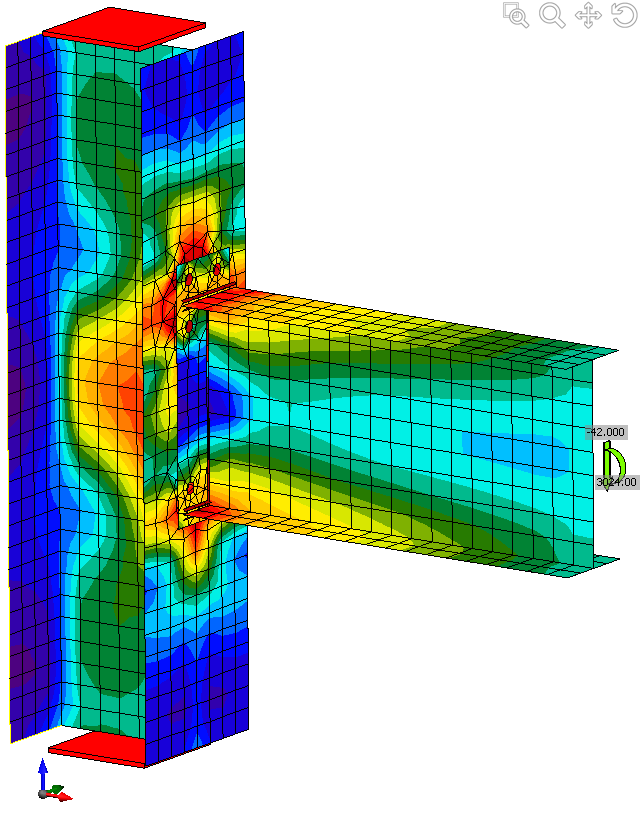

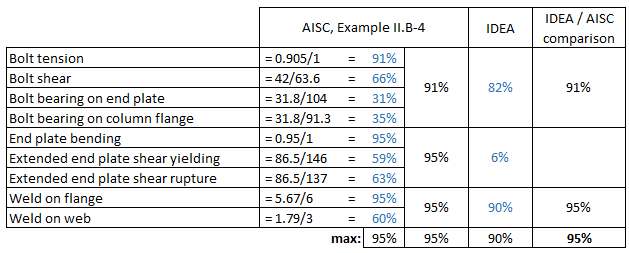

See AISC design examples, version 14.1, example II.B-4, page IIB-22
New project

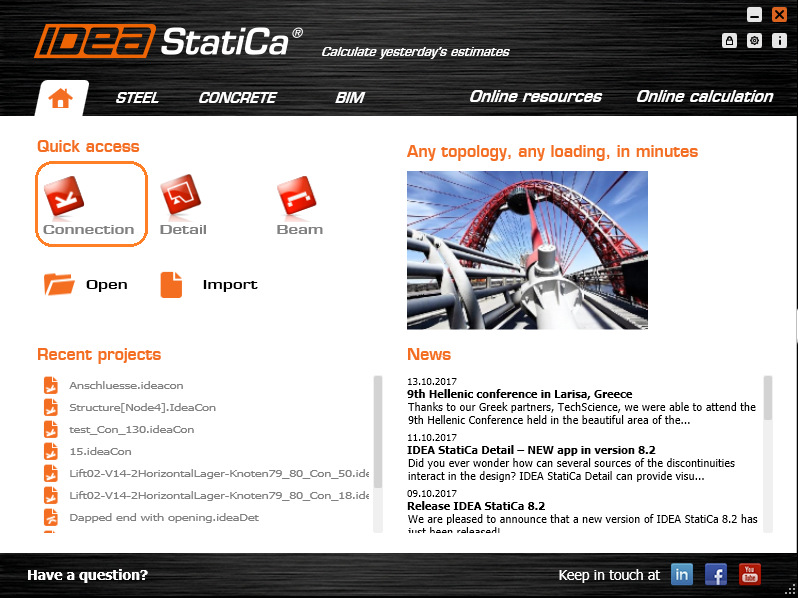

Open IDEA software, select “Connection” to open steel CONNECTION design module
On “IDEA StatiCa CONNECTION” window, Select New to create New Project
On “New joint wizard” window, Select Frame 2D connection picture on the left
##MISSING IMAGE##
On “Select connection topology” window, Select connection in top row, second from the left
##MISSING IMAGE##
Geometry

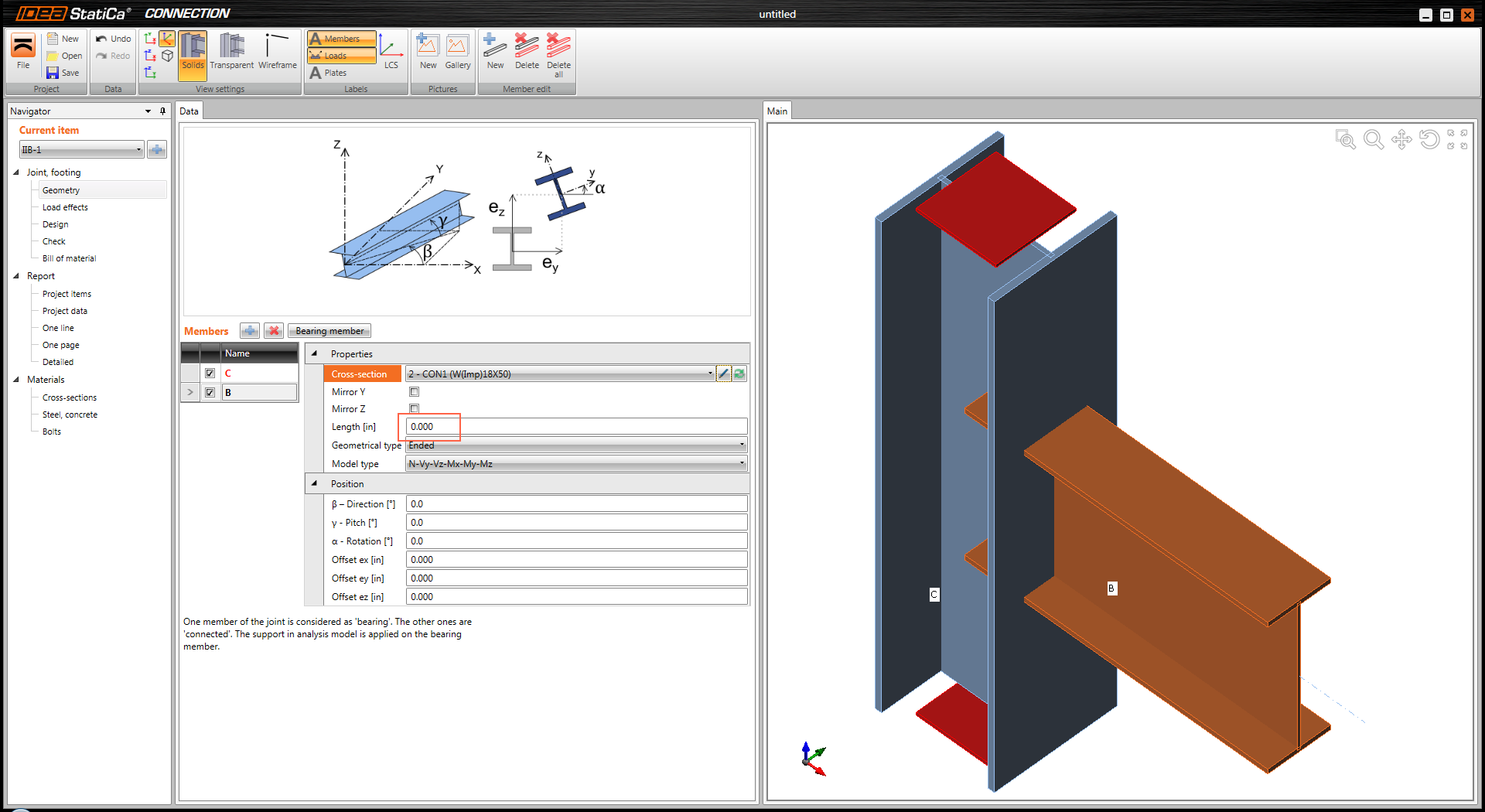

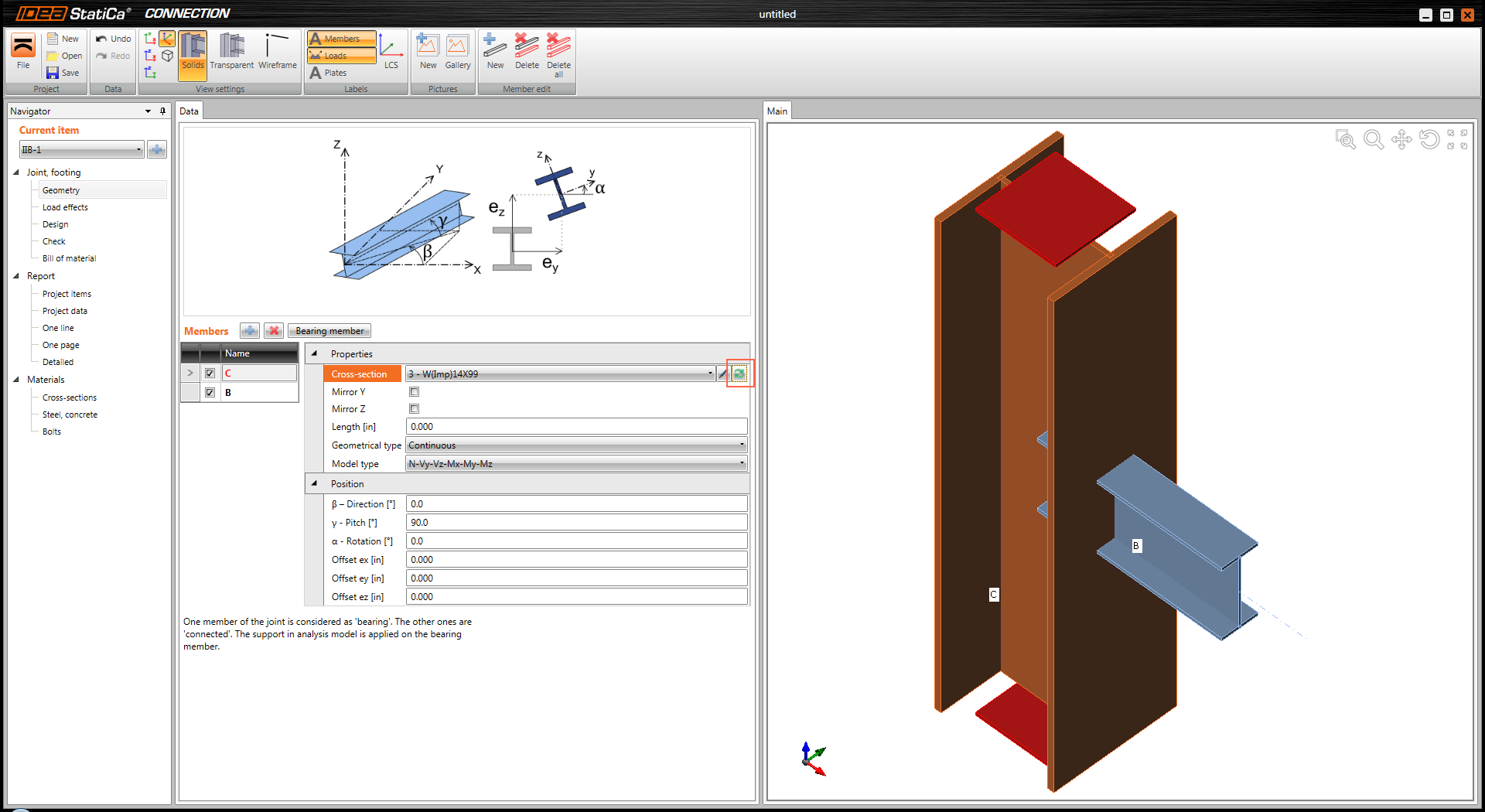

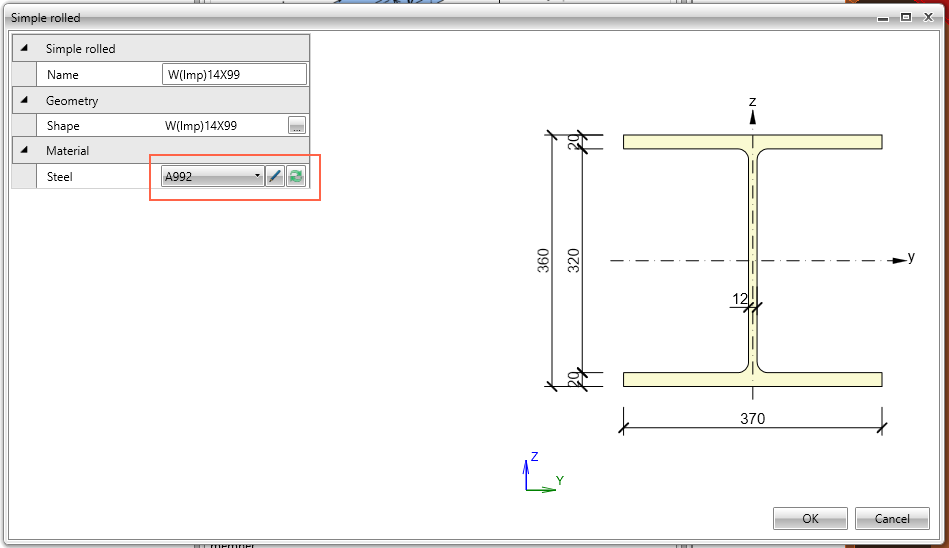

On “IDEA StatiCa CONNECTION” window,
- Under Navigator, select Geometry to start the connection geometry input

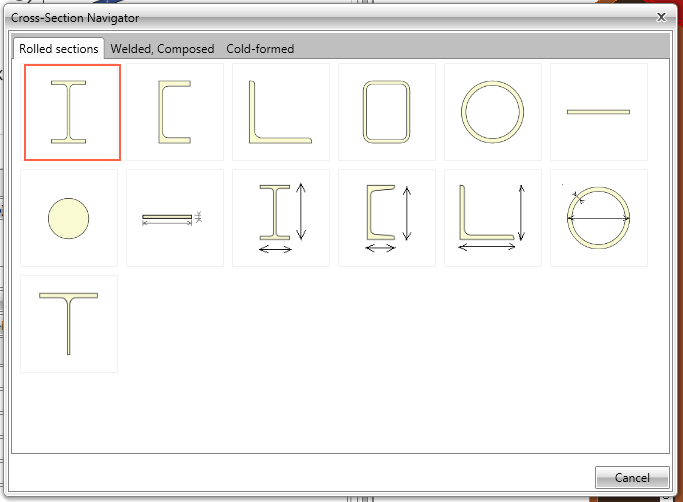

- Under Name, select C for column (you can rename the column)
