1 New project

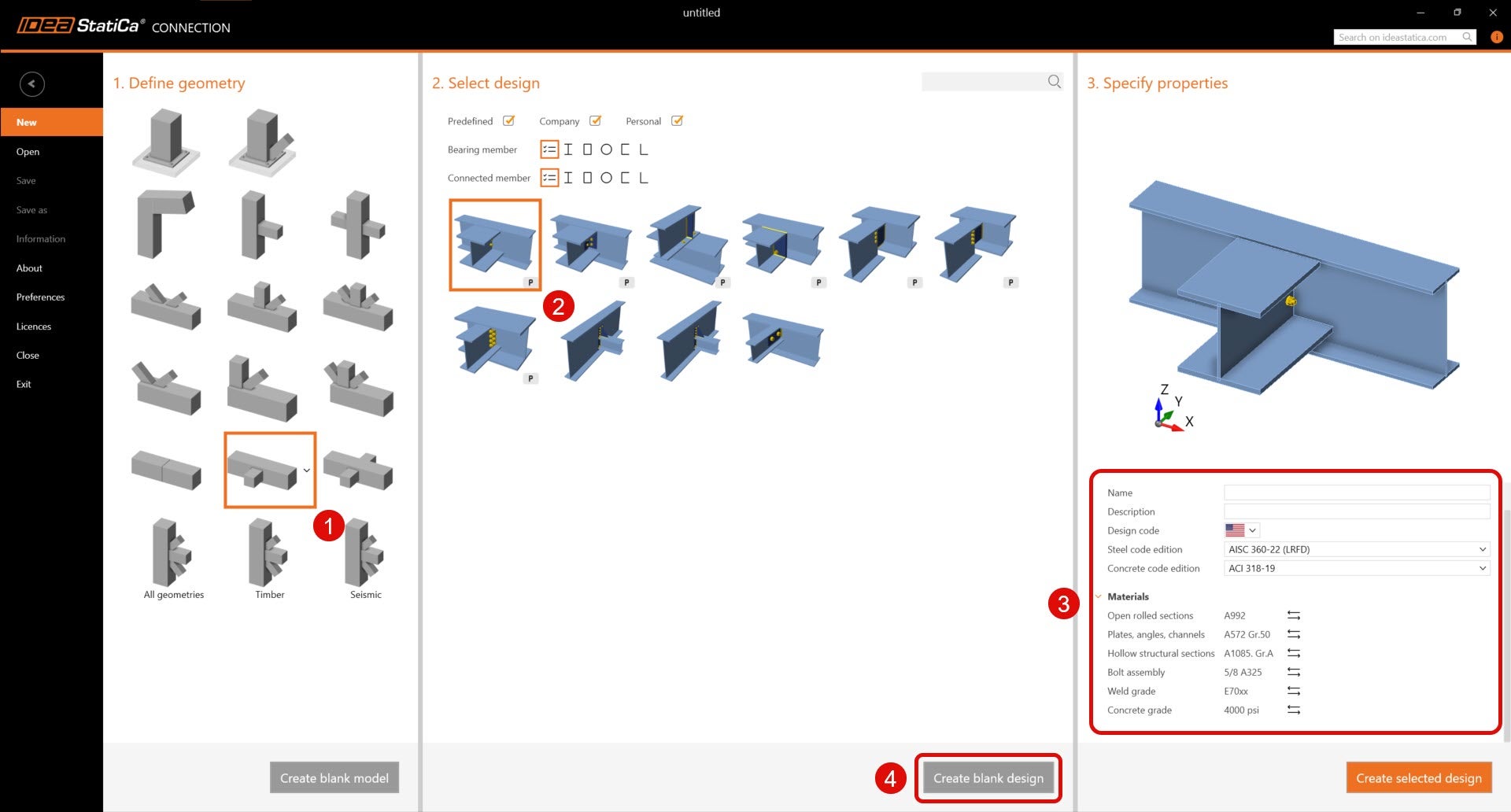

Let’s launch the IDEA StatiCa Connection application (download the newest version). Create a new project by selecting a template closest to the required design and fill the name and the description of the project. After choosing the required properties, confirm by Create project.
Since we are using the AISC code, set the imperial units (see How to change the system of units).
2 Geometry

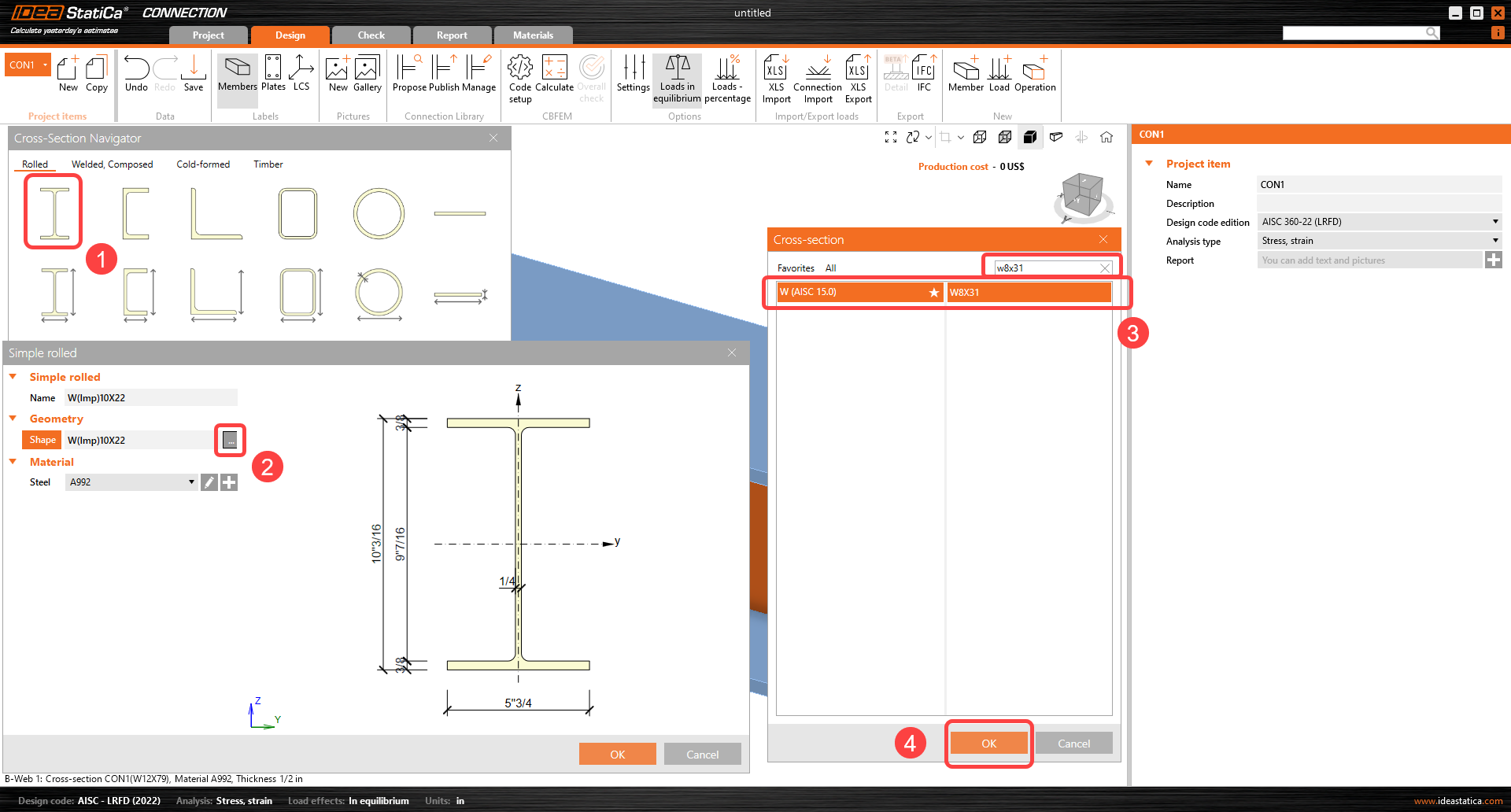

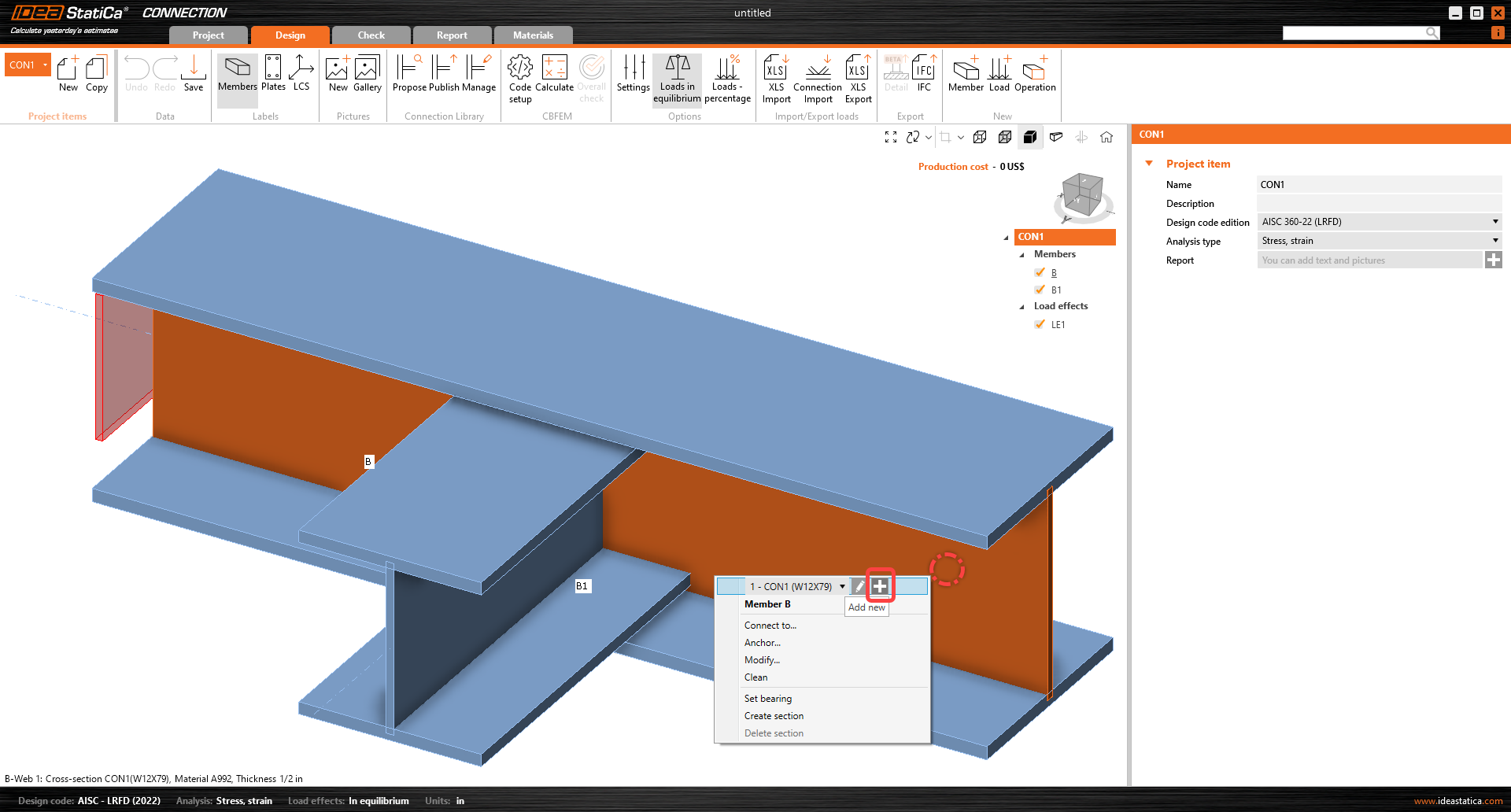

Start with the modification of the joint geometry. Right-click on the web of the continuous beam opens the context menu with all available actions for the beams. Use the Plus button to add a new cross-section.
Choose the I profile, the W(AISC 15.0) category, and W8X31 cross-section.

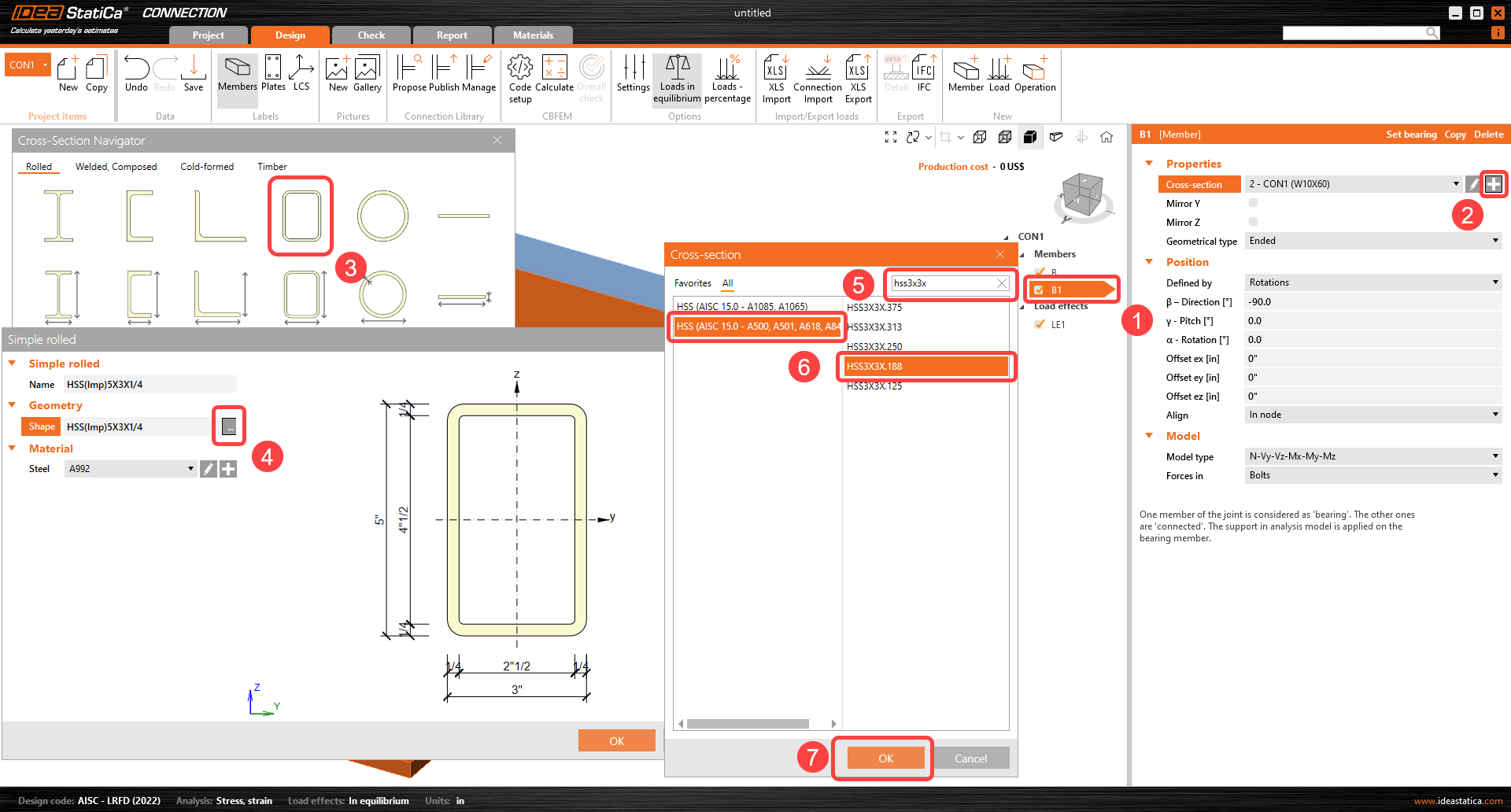

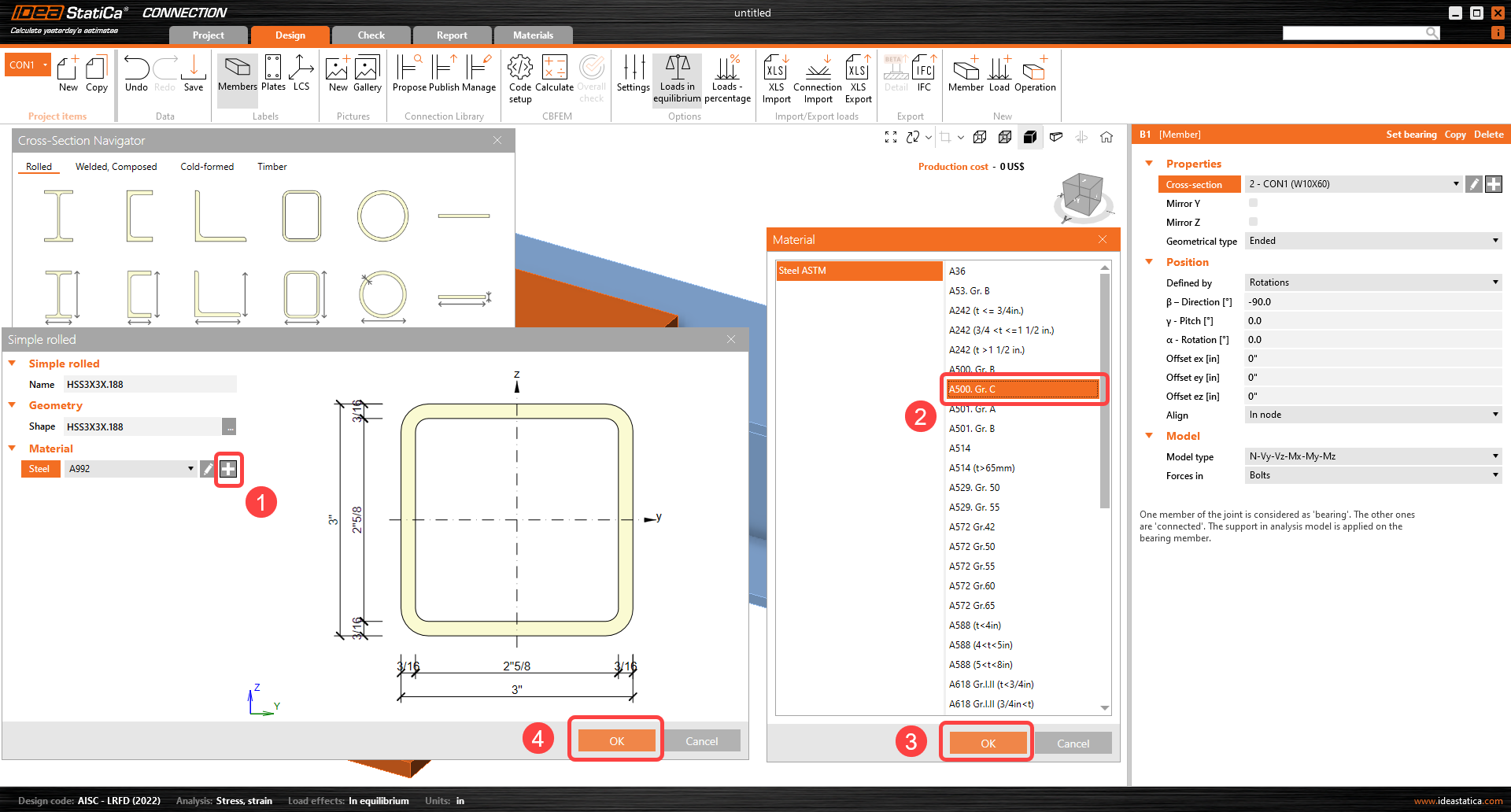

Proceed with the change of cross-section on the perpendicular member. Select member B1 under the tree of entities and click on the plus icon for the cross-section. Select the HSS3X3X.188 cross-section with the correct library shown below. Ensure that the new HSS cross-section also has the correct material selected.

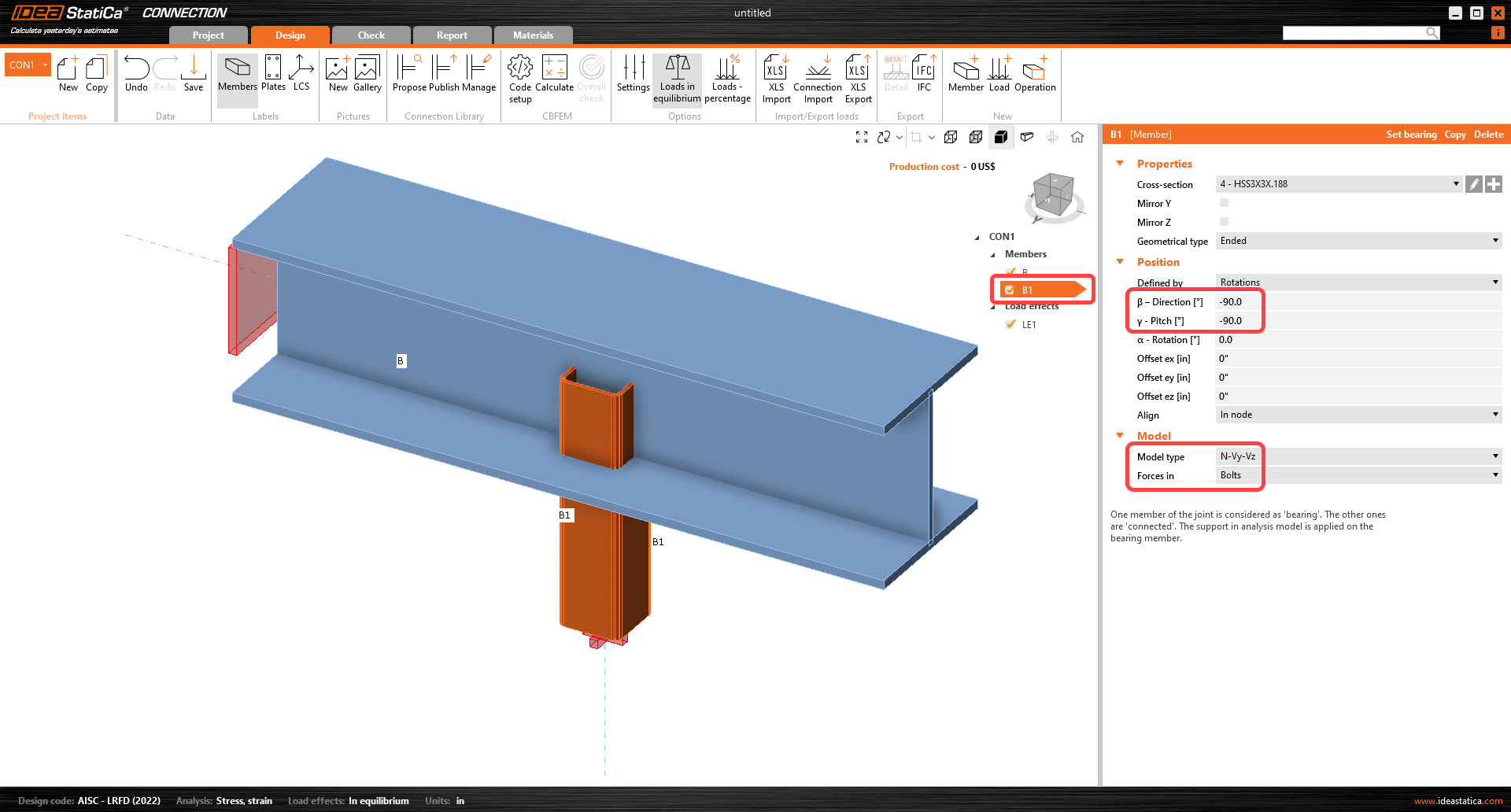

Now you can adjust the properties of the beam B1 with a squared cross-section. Follow the picture below.
Read more about the Model type and Forces in parameters in How to model a single bolt connection (Model type) and How to define correct load position (Forces in) articles.
3 Load effects

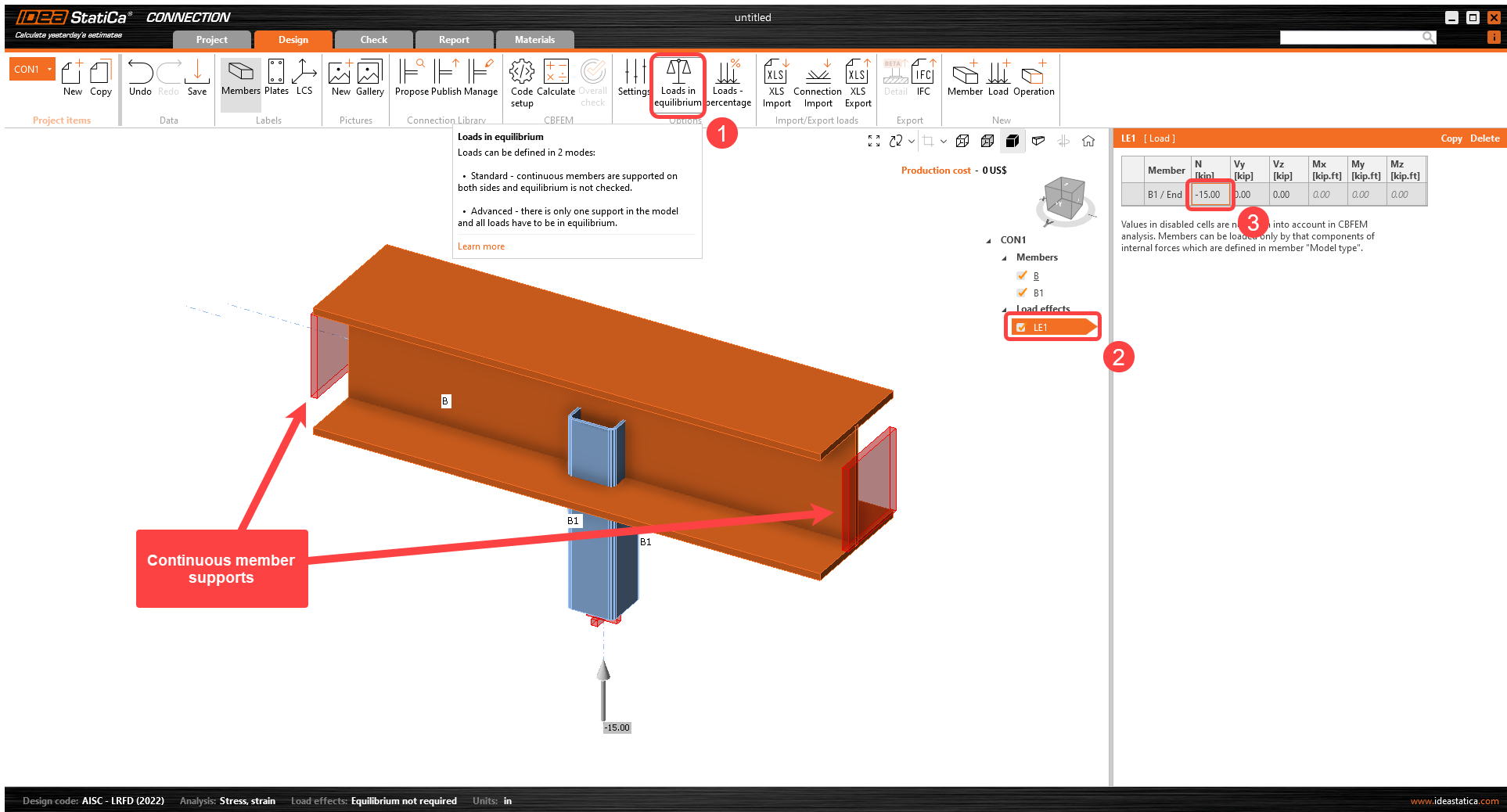

Let’s continue with the Load effects. Turn off Loads in equilibrium in the upper ribbon. By turning Loads in equilibrium off, the continuous bearing member B is supported on both ends and loads are not defined on the bearing member (unbalanced forces table is removed and not checked). Input the –15 kip normal force in the tab for member B1.
4 Design

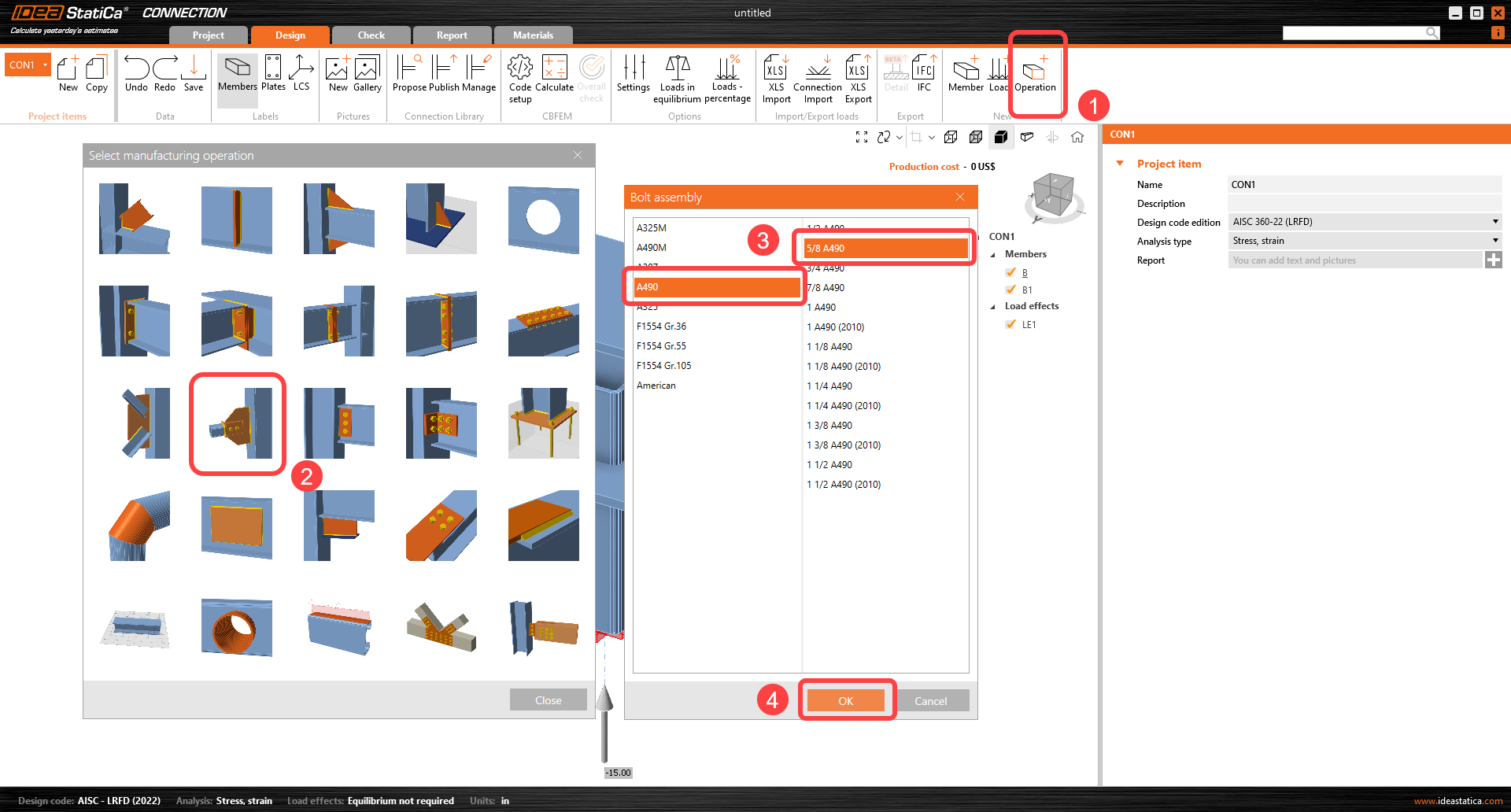

Now define the manufacturing operation. Click on the Operation icon on the upper ribbon to open the manufacturing operations window. From the available operations, choose the Connecting plate operation and proceed with choosing the desired bolt assembly, A490 5/8.

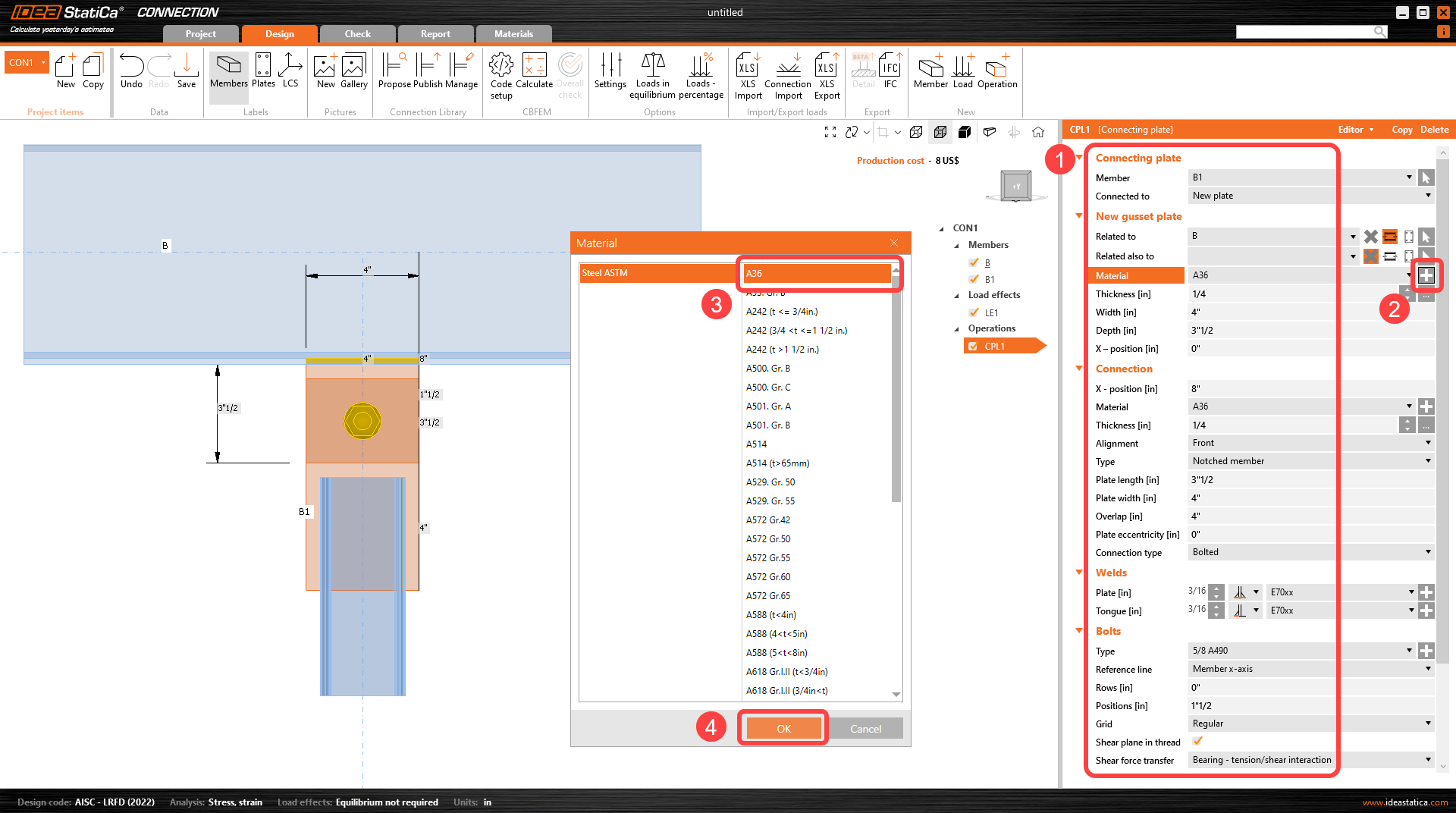

Now define the properties of the connecting plate. Follow the values in the picture below.
5 Calculation and Check

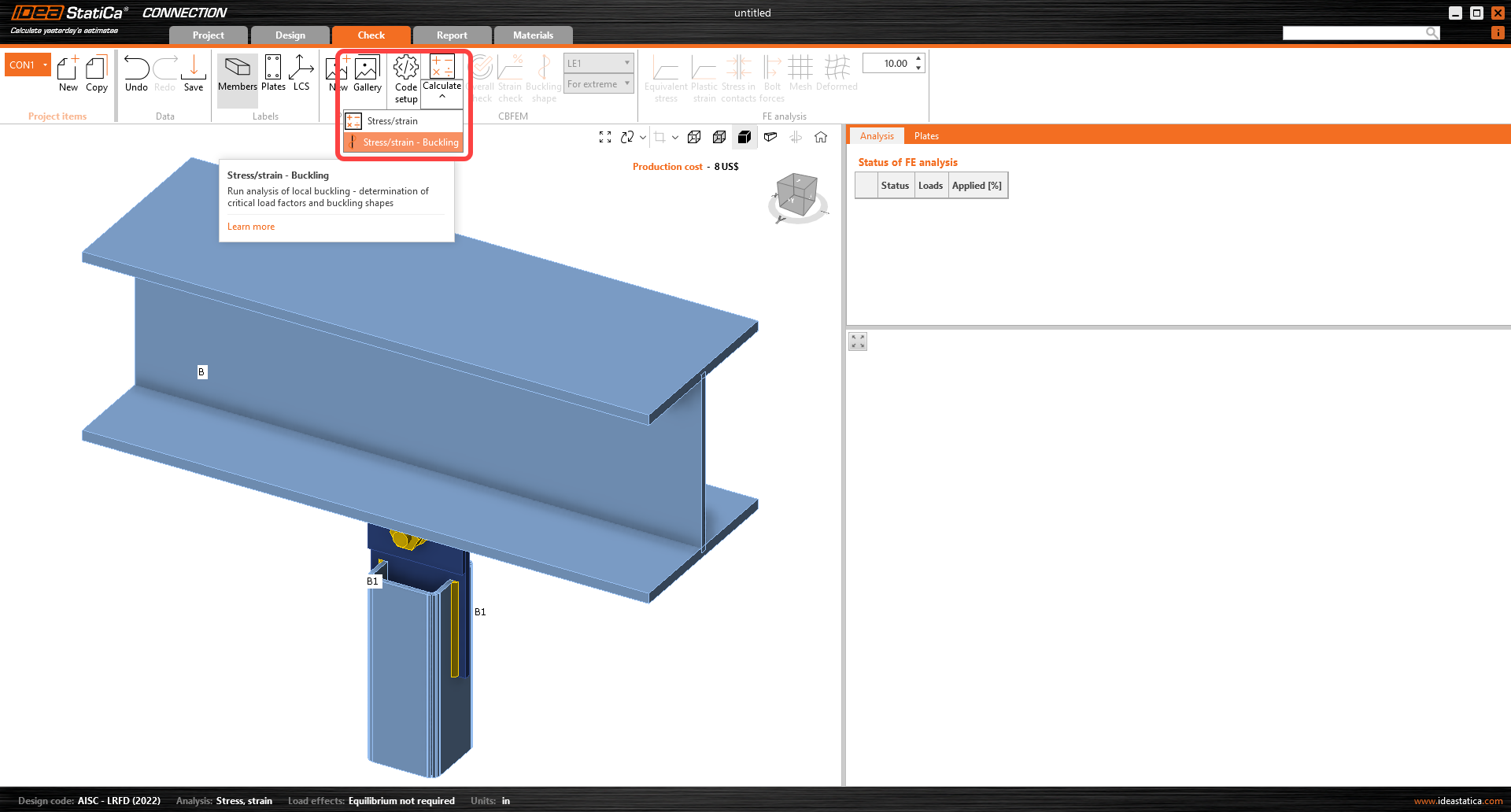

Now you can switch to the Check tab at the top of the ribbon and then start the calculation of Buckling analysis under the Calculation command button.

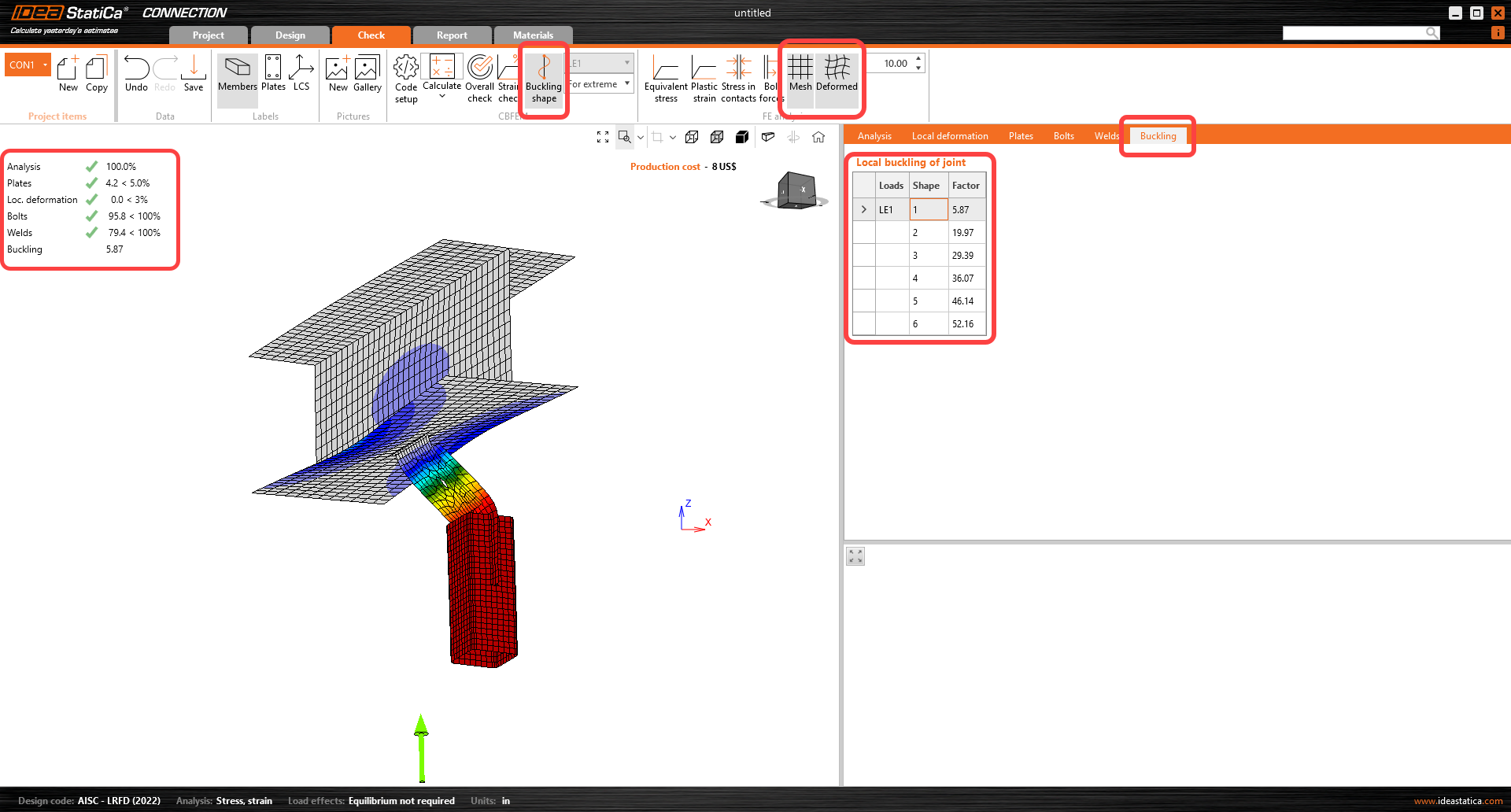

When the analysis is finished, turn on the Buckling shape, Mesh, and Deformed view. A table of critical buckling factors is provided in the tab Buckling.
By clicking on each row in the tab of critical buckling factors, you can browse the deformed shapes in the 3D window and analyze them visually. The critical buckling factor can be compared with the code requirements.
How to read buckling results?
To understand the results of the analysis, please read the recommended documents, such as the Theoretical Background or Buckling analysis according to AISC article.
When observing the deformed shape and buckling factors, identify where the buckling is happening:
- Global buckling: affecting the stability of the joint
- Local buckling: not affecting the stability of the joint but influencing the plates in other parts of the connection
Usually, buckling can be considered safe in case of critical buckling factor values greater than 13 for global buckling and 3 for local buckling. Since this is a case of global buckling and the buckling factor is lower than 13, the recommendations are next:
- Strengthen the connection and recalculate the buckling analysis to ensure the critical buckling factor is higher than 13,
- or use a different analysis or approach to ensure the buckling is not dangerous for the designed connection.
6 Strengthen the connection

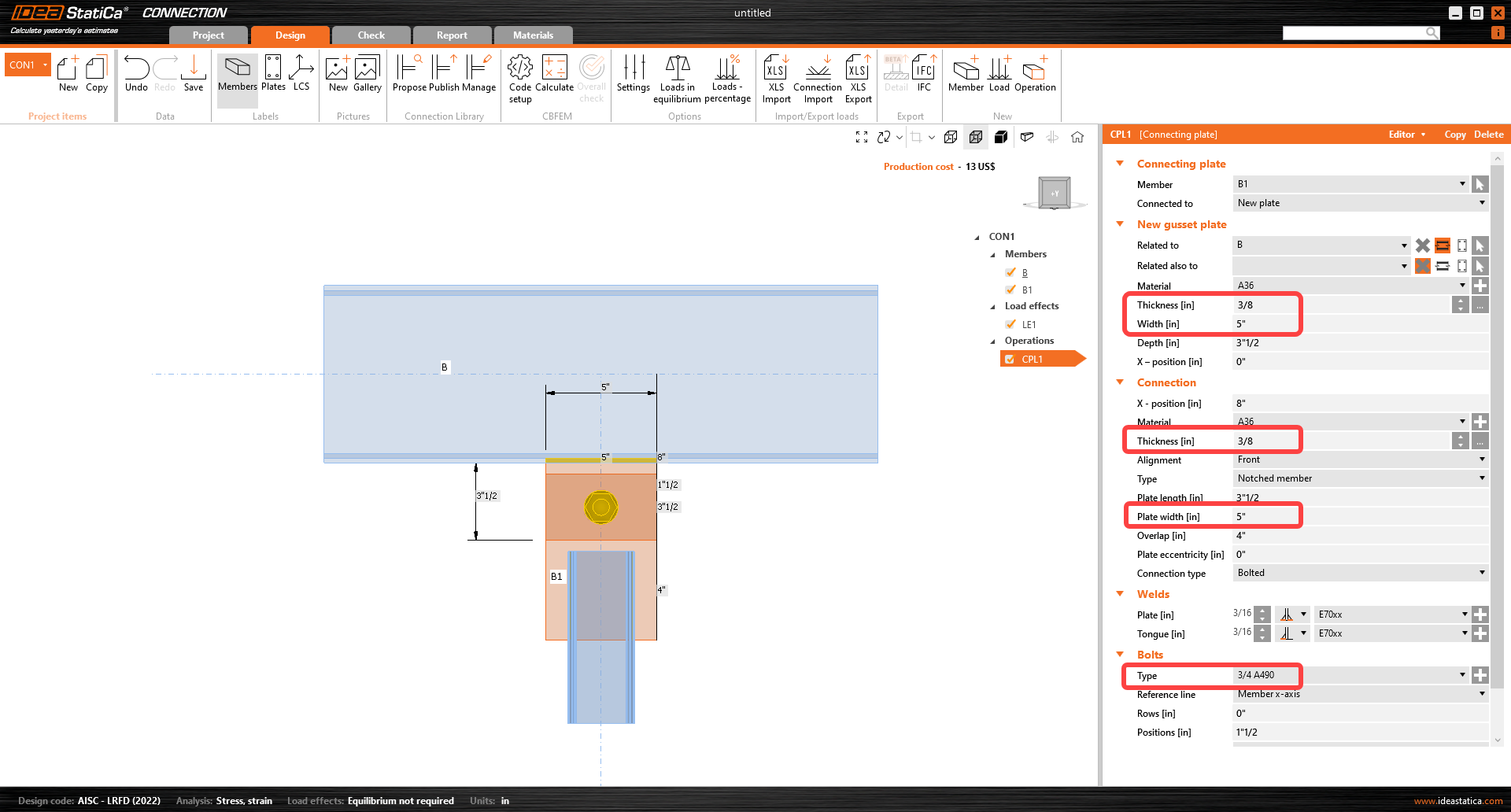

Go back to the Design tab and change the following inputs in CPL1 Operation:

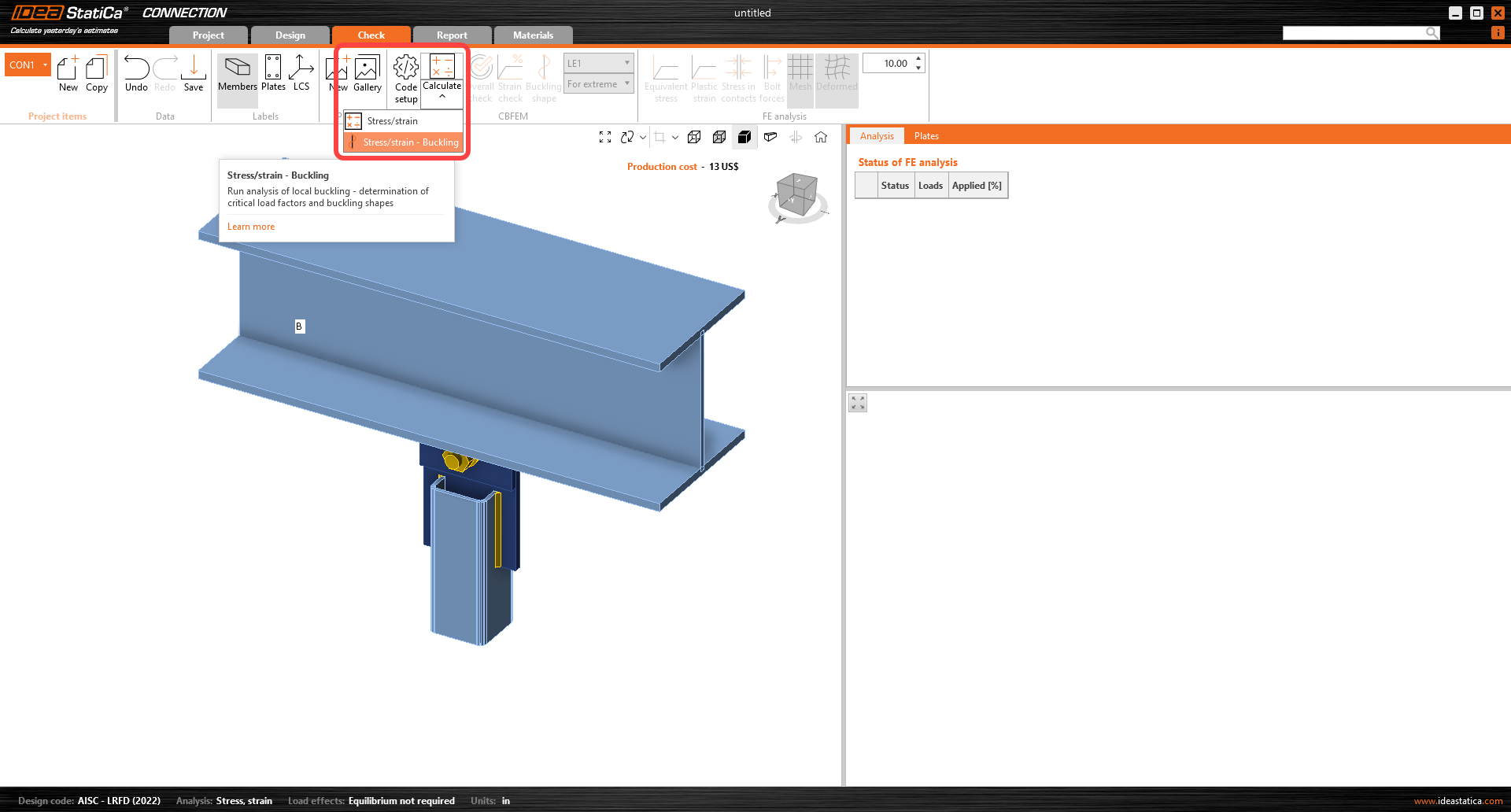

Go to the Check tab and click on Calculate dropdown menu and select Stress/strain - Buckling.

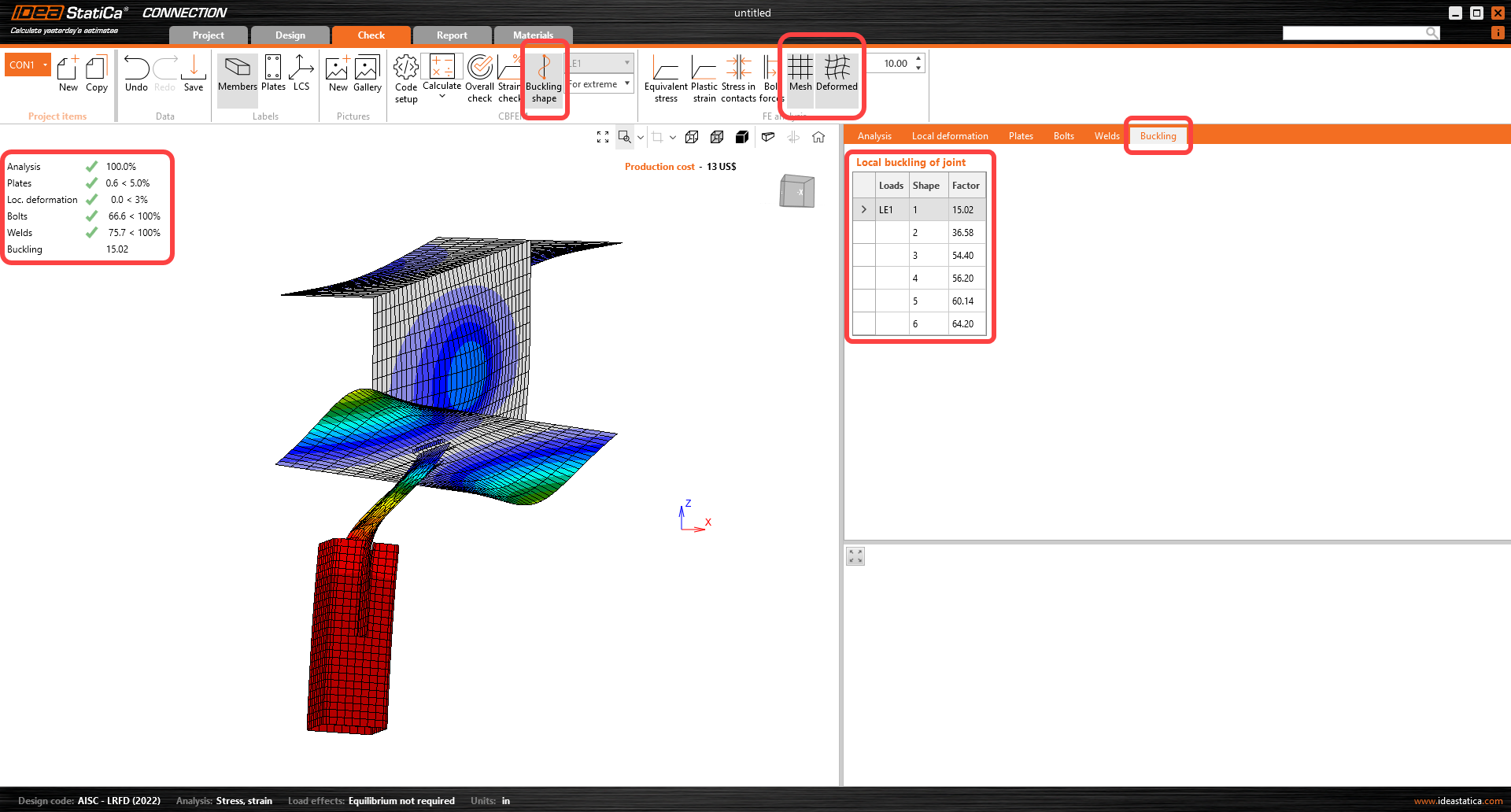

Review buckling shapes and factors. The first buckling mode factor is now higher than the minimum code requirements.
7 Report

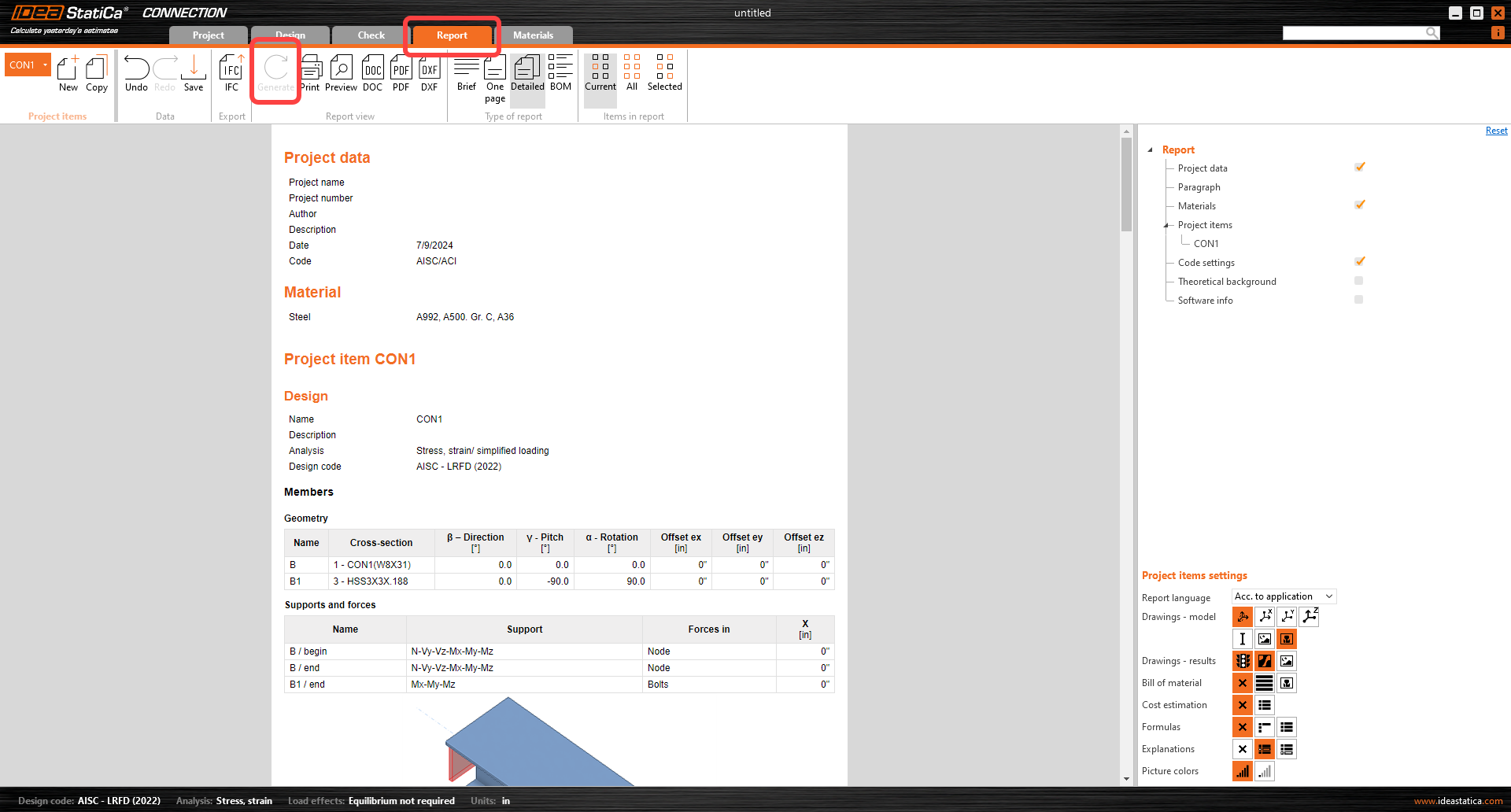

At last, go to the Report tab. IDEA StatiCa offers a fully customizable report to print out or save in an editable format.
You have designed, optimized, and code-checked a structural steel joint according to AISC.
