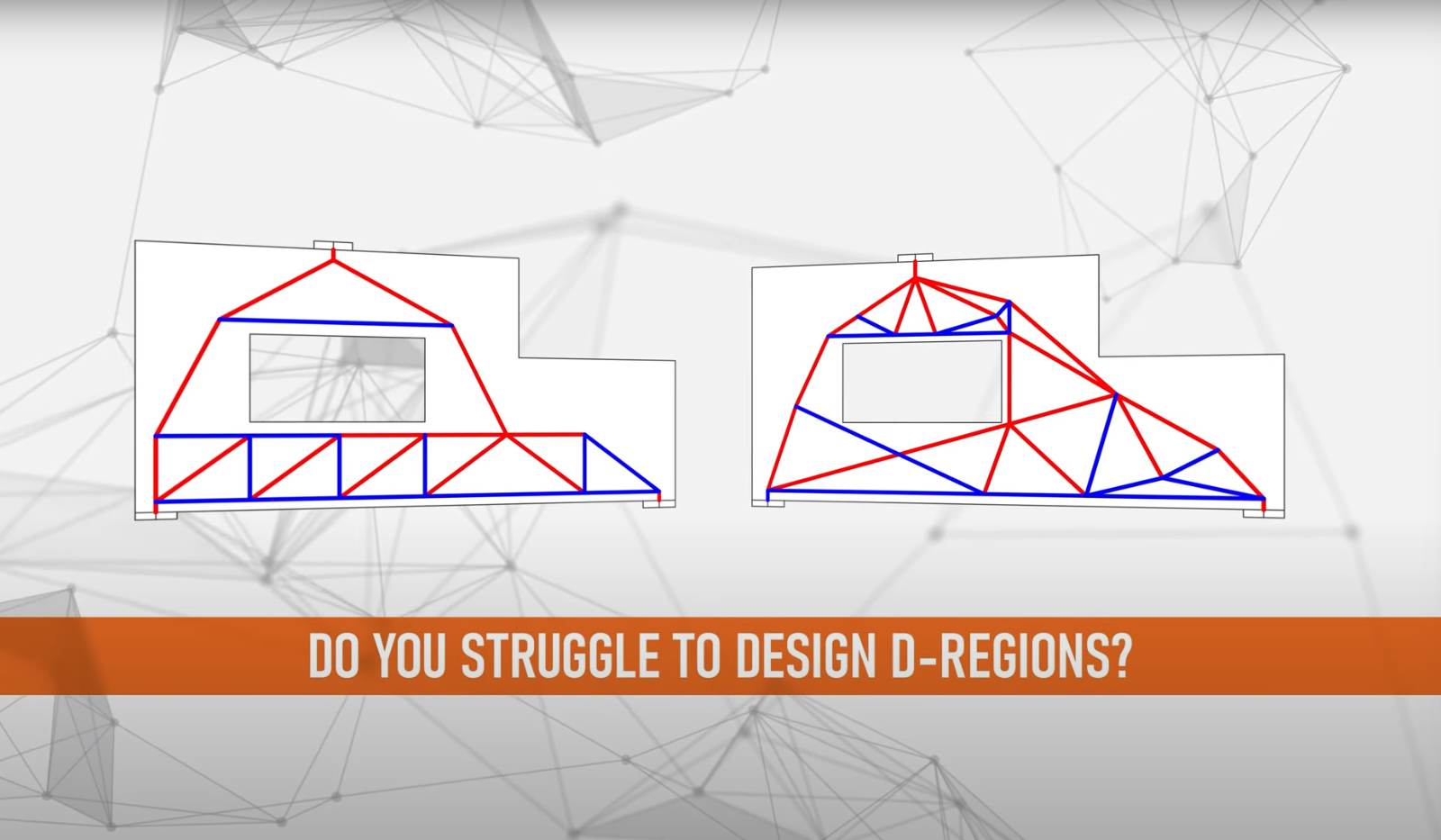

DESIGN AND CODE-CHECK ANY SHAPE
Go beyond traditional methods for calculating concrete elements and see their real structural behavior. Design and analyze members, walls, and D-regions in your concrete structures and get:
- Both reinforced and prestressed concrete
- Ready-made templates, import from DXF
- Strength of concrete and reinforcement, anchoring checks
- Nonlinear deflections
- Clear pass/fail results for any geometry
- Serviceability checks - Crack width checks, Stress limitation checks
MOST COMMON *USE CASES*
IDEA StatiCa allows you to design and code-check any member or discontinuity of your structure, including:

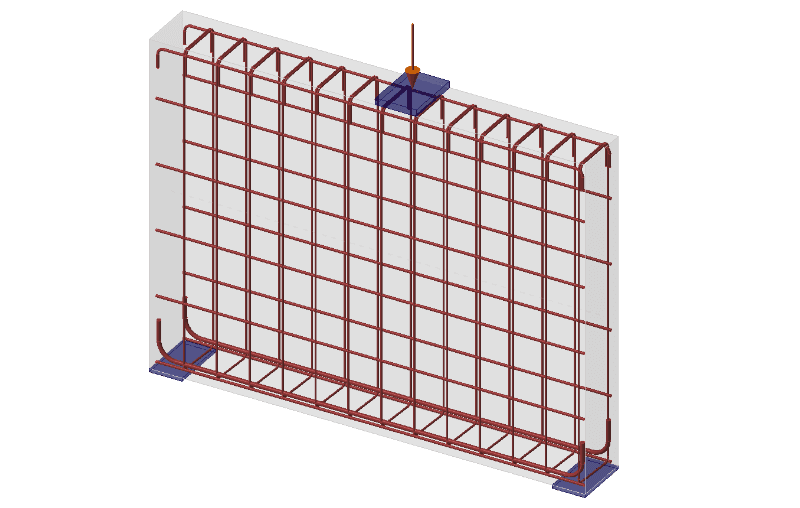

Deep beams

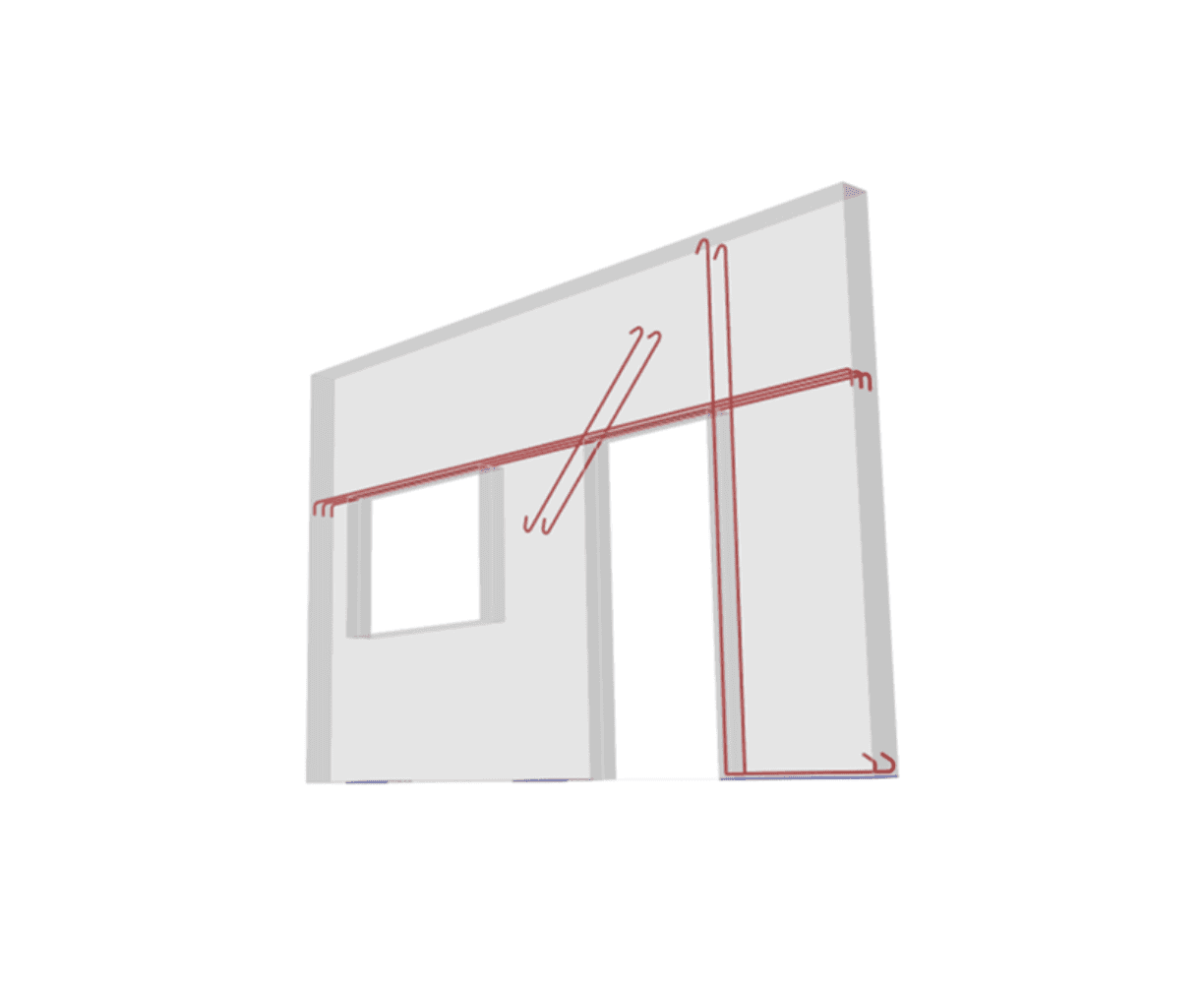

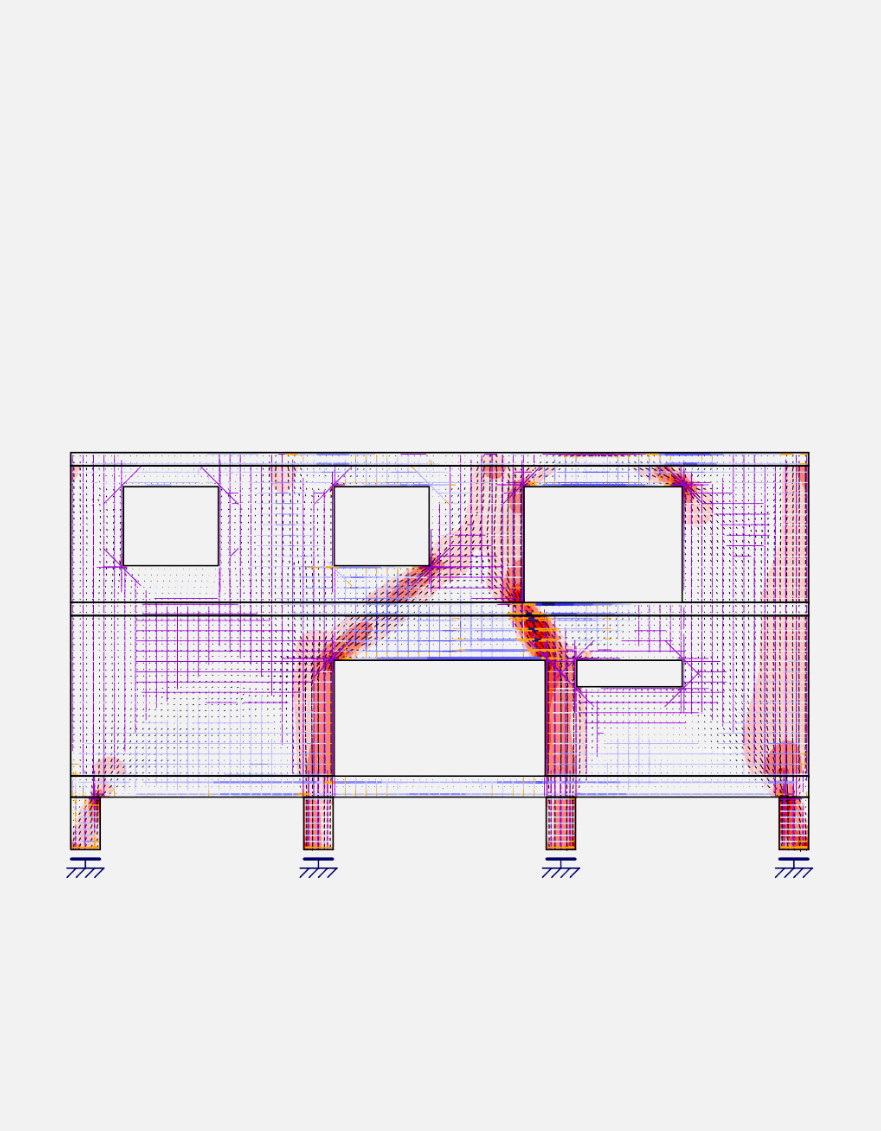

Precast and cast in situ walls

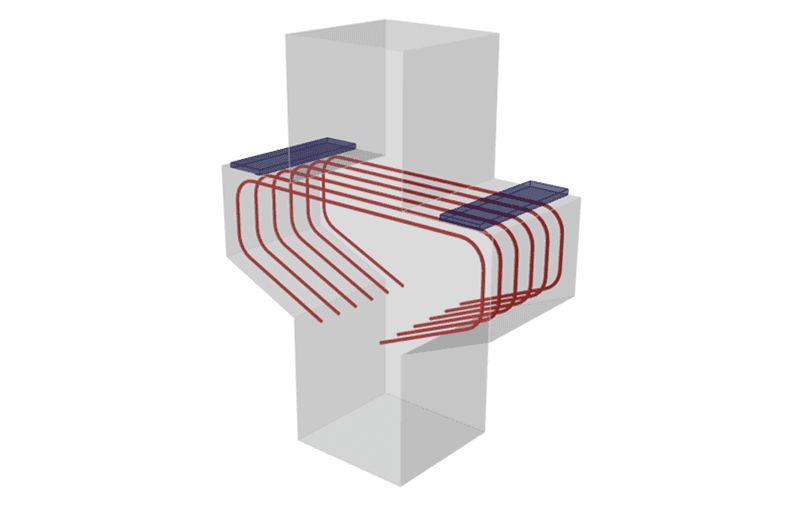

Corbels/Brackets

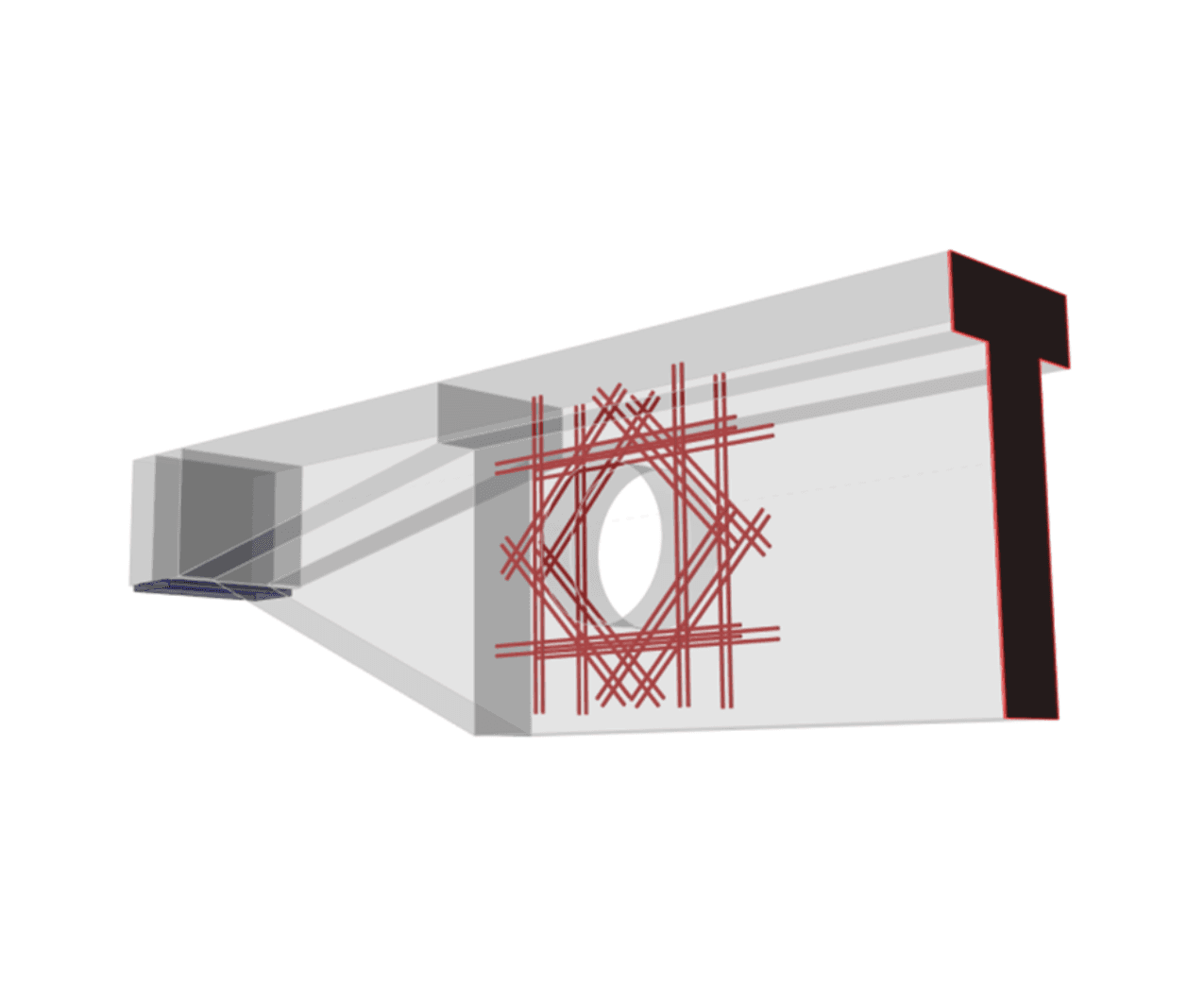

Dapped ends

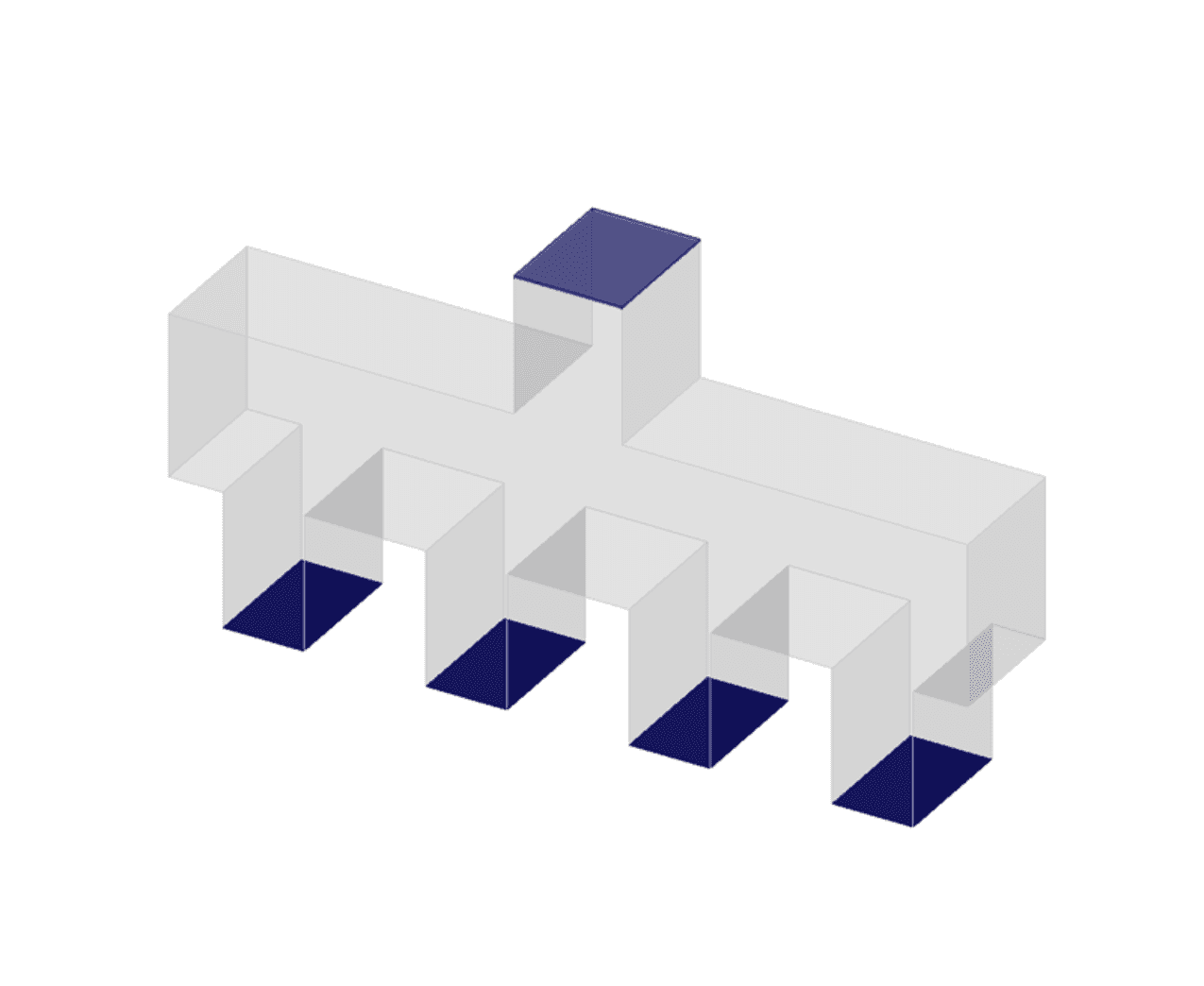

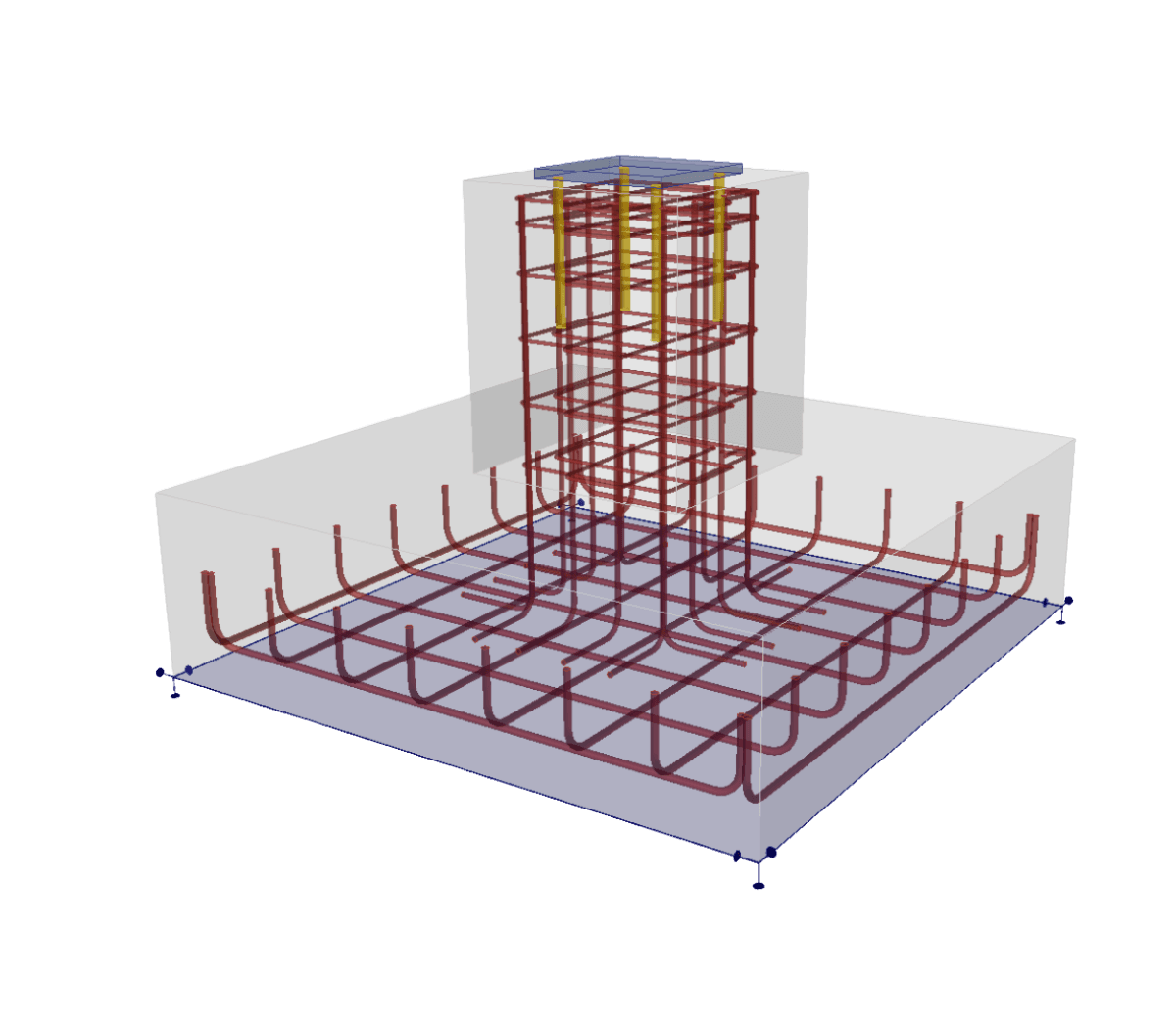

Pile caps

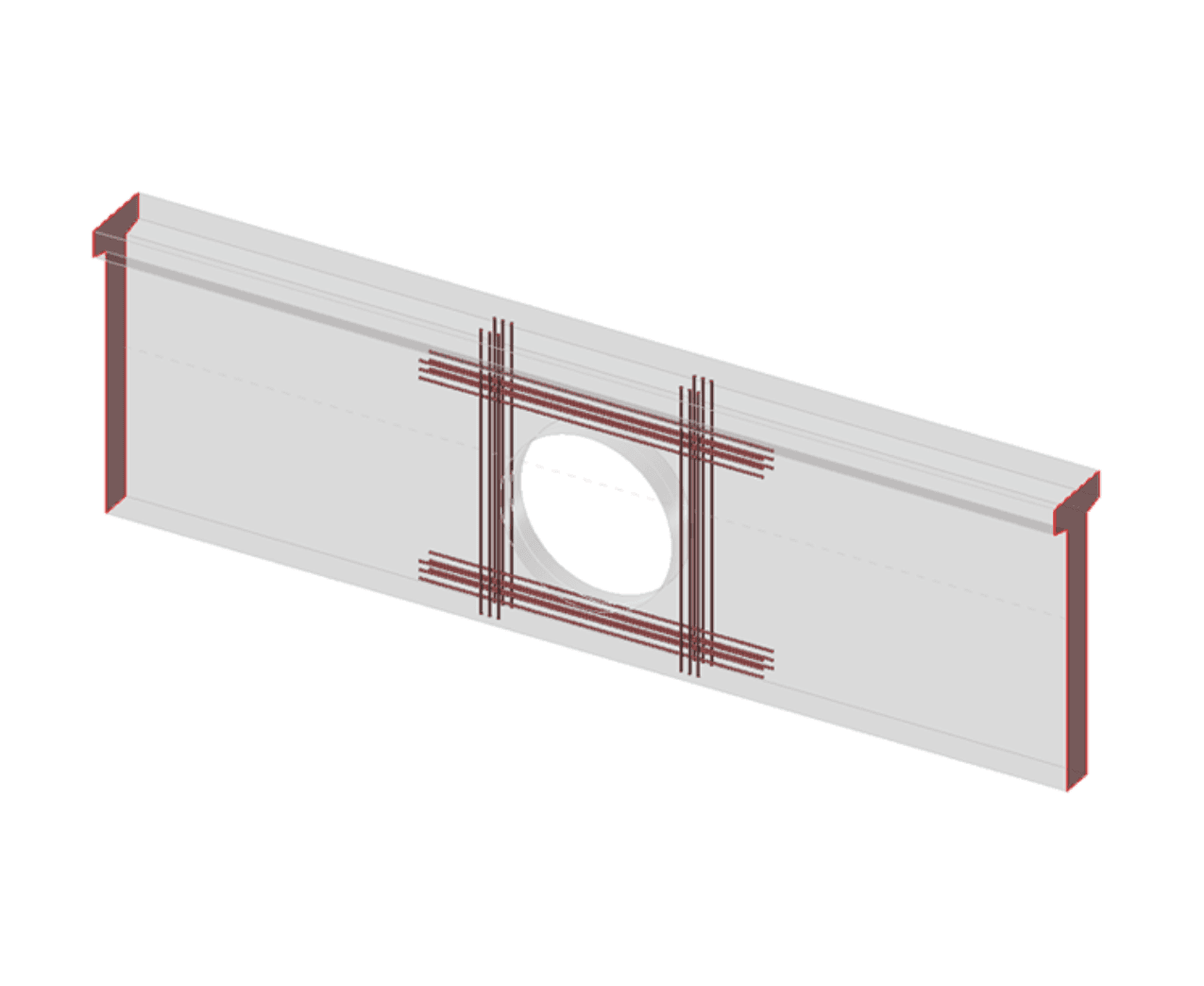

Openings

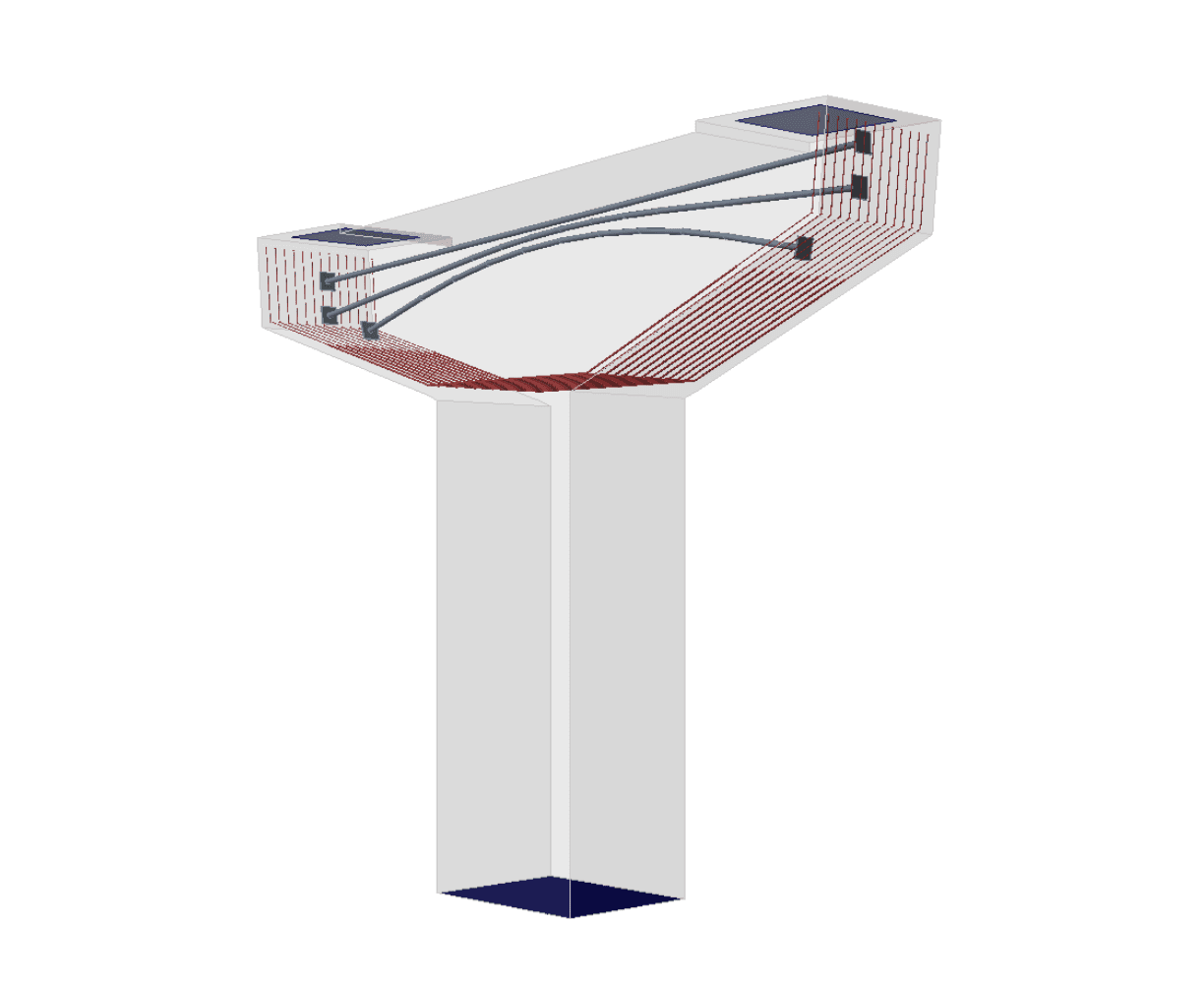

Pier caps

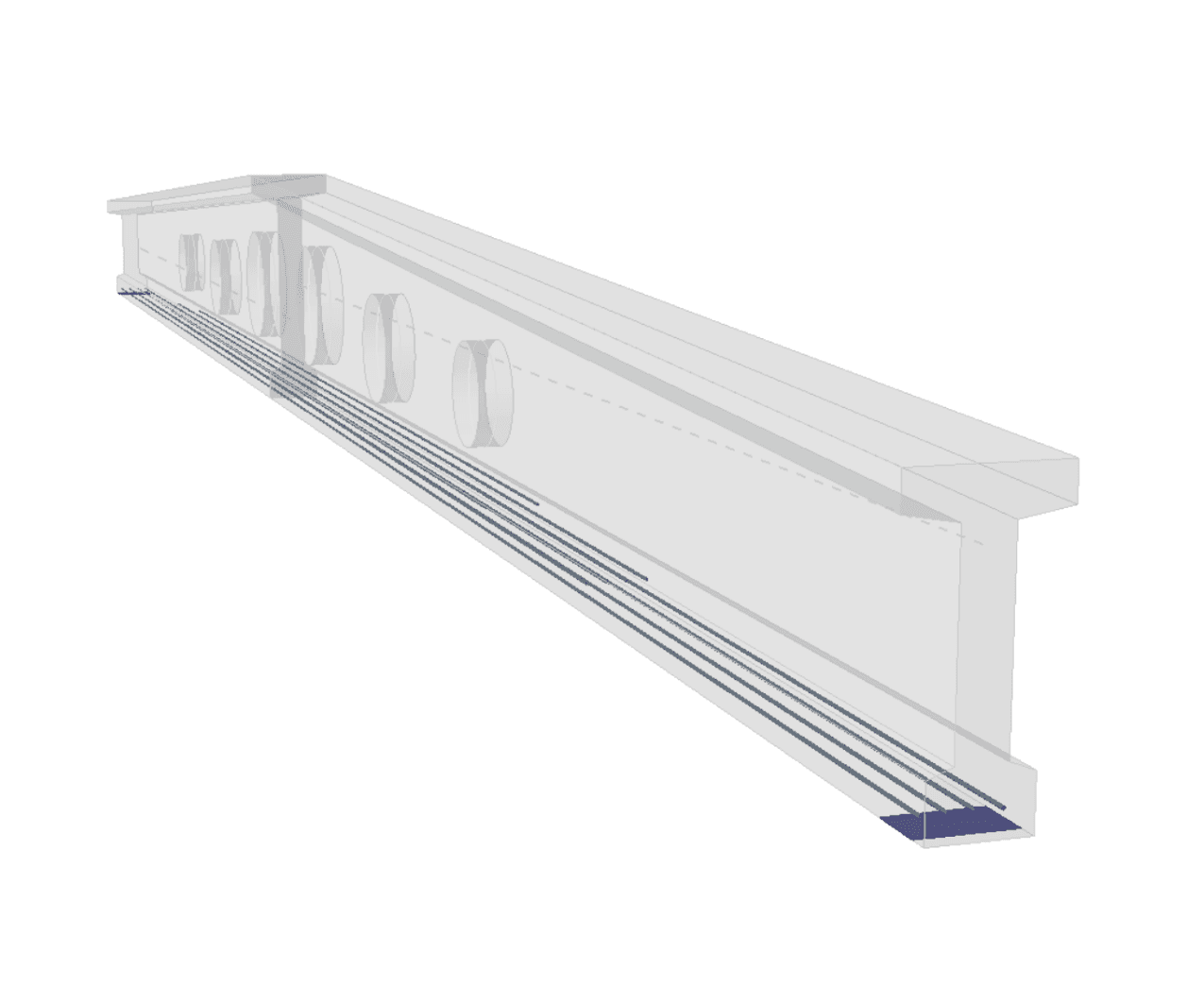

Prestressed members with openings
HOW DOES IT WORK?
Get your report in minutes in three simple steps.
- Create any shape you need
- Import from DXF
- Import reinforcements and pre-stressing from the Beam app
- Add openings, hangers, supports
- Model real reinforcement
- Define loads and combinations

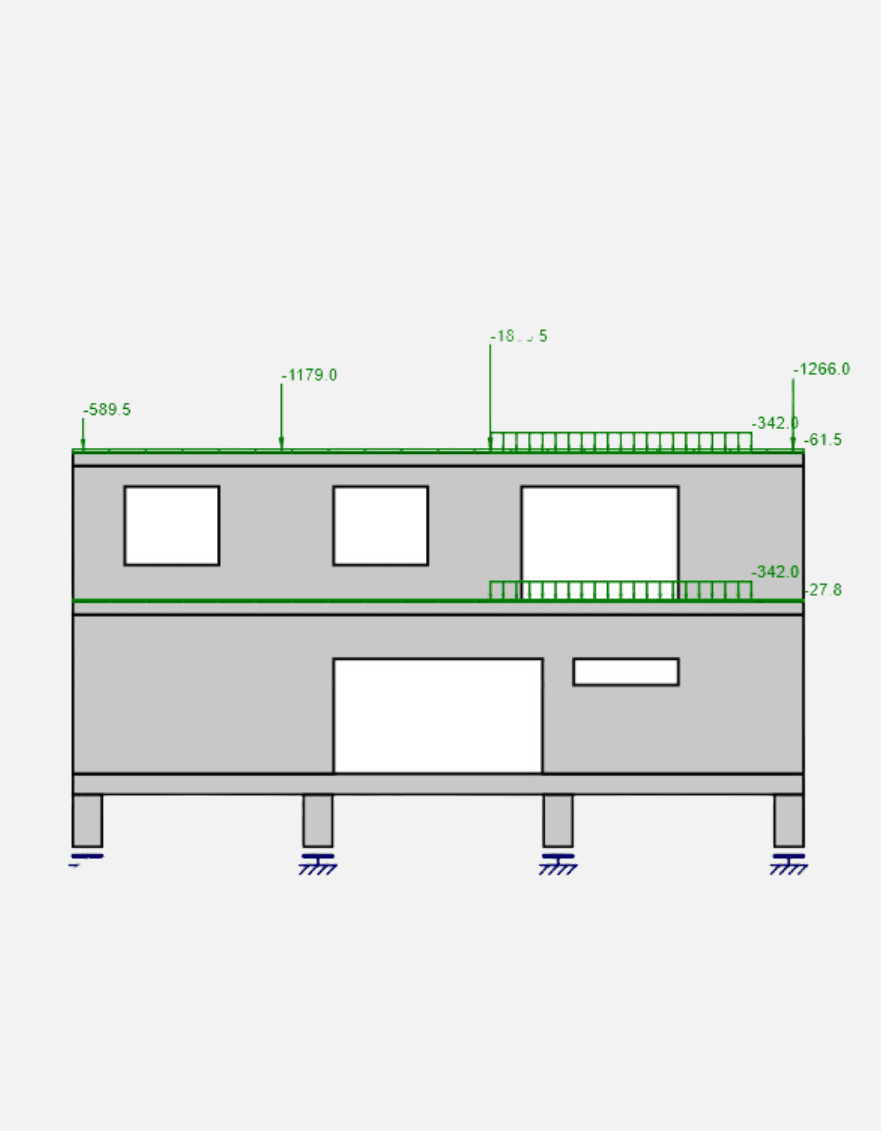

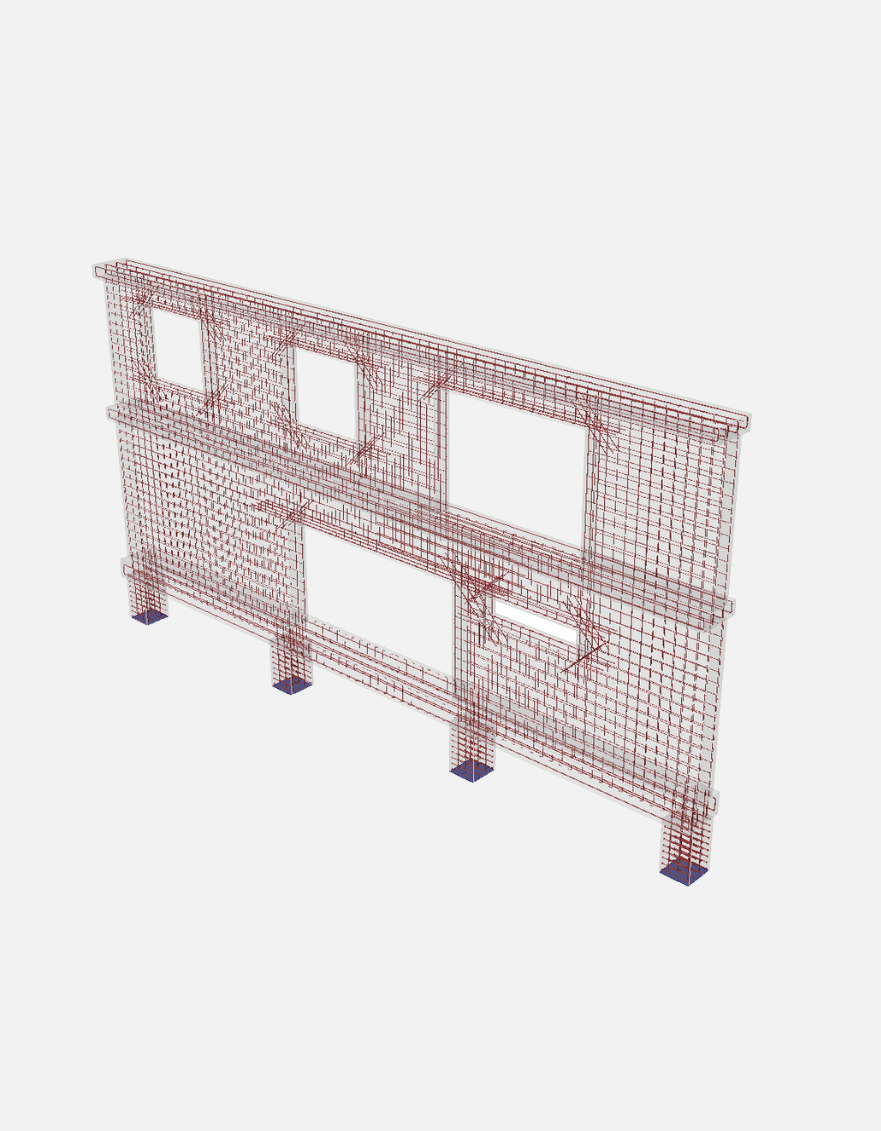

DESIGN *WALLS AND DETAILS*, ANALYZE, AND REPORT
Model
Load
Calculate

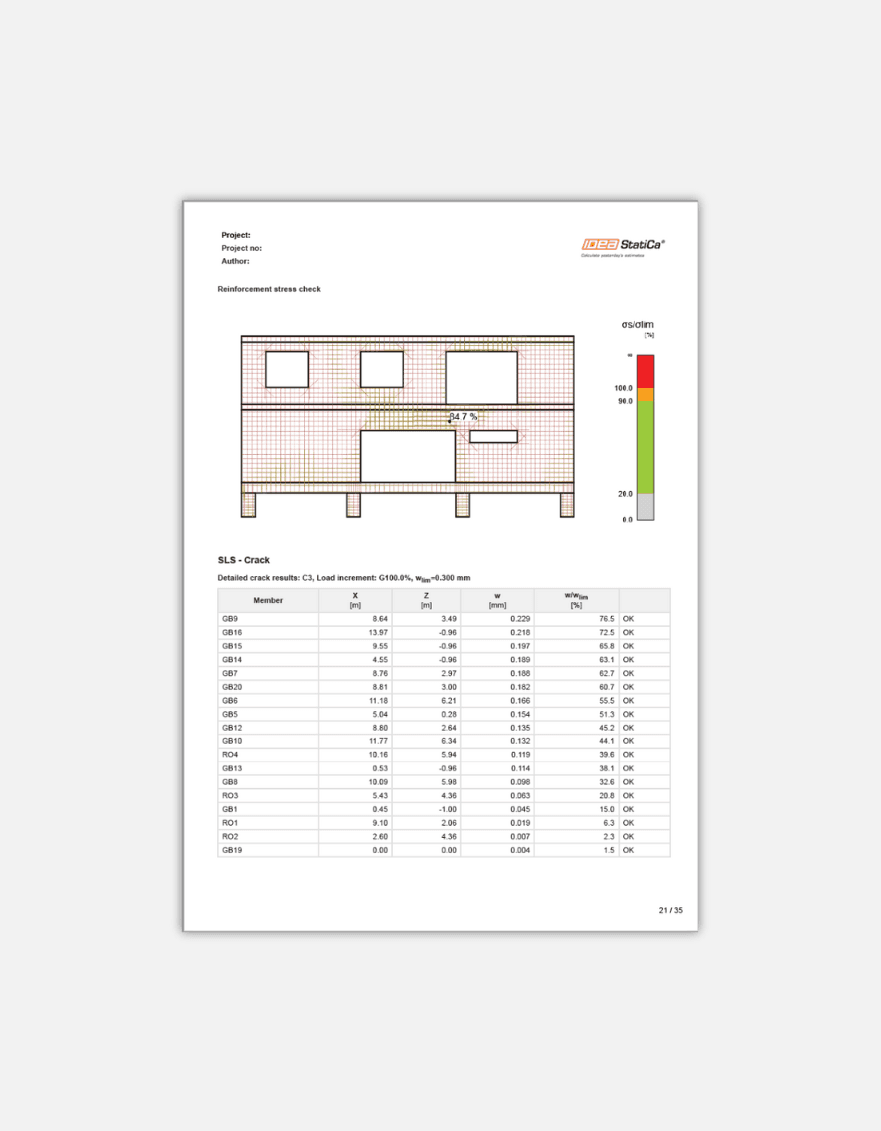

Report
Model
Load
Calculate
Report
Design *RESULTS*
Compared to traditional methods, IDEA StatiCa will execute all required serviceability checks, including:

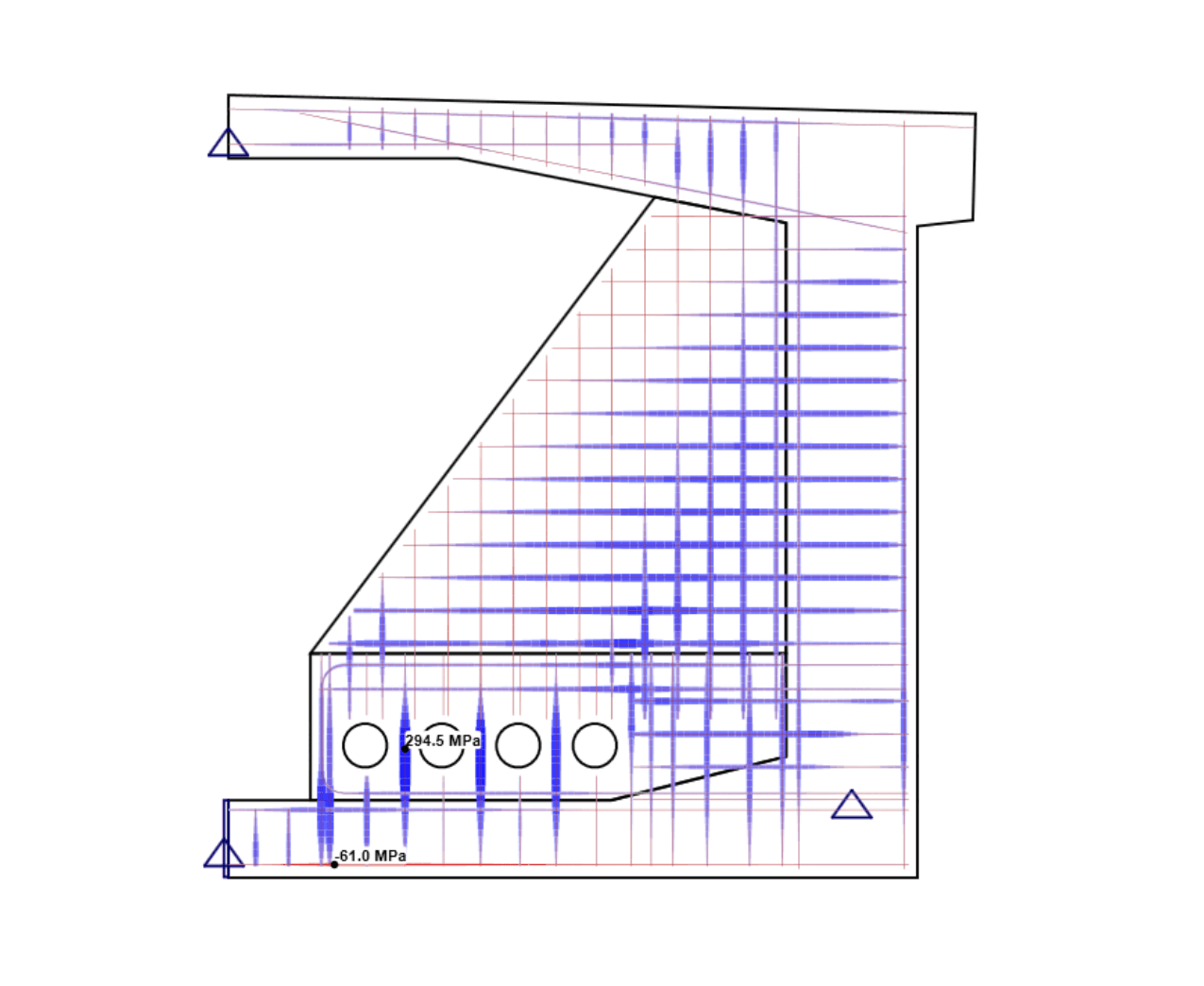

Steel reinforcement tension check

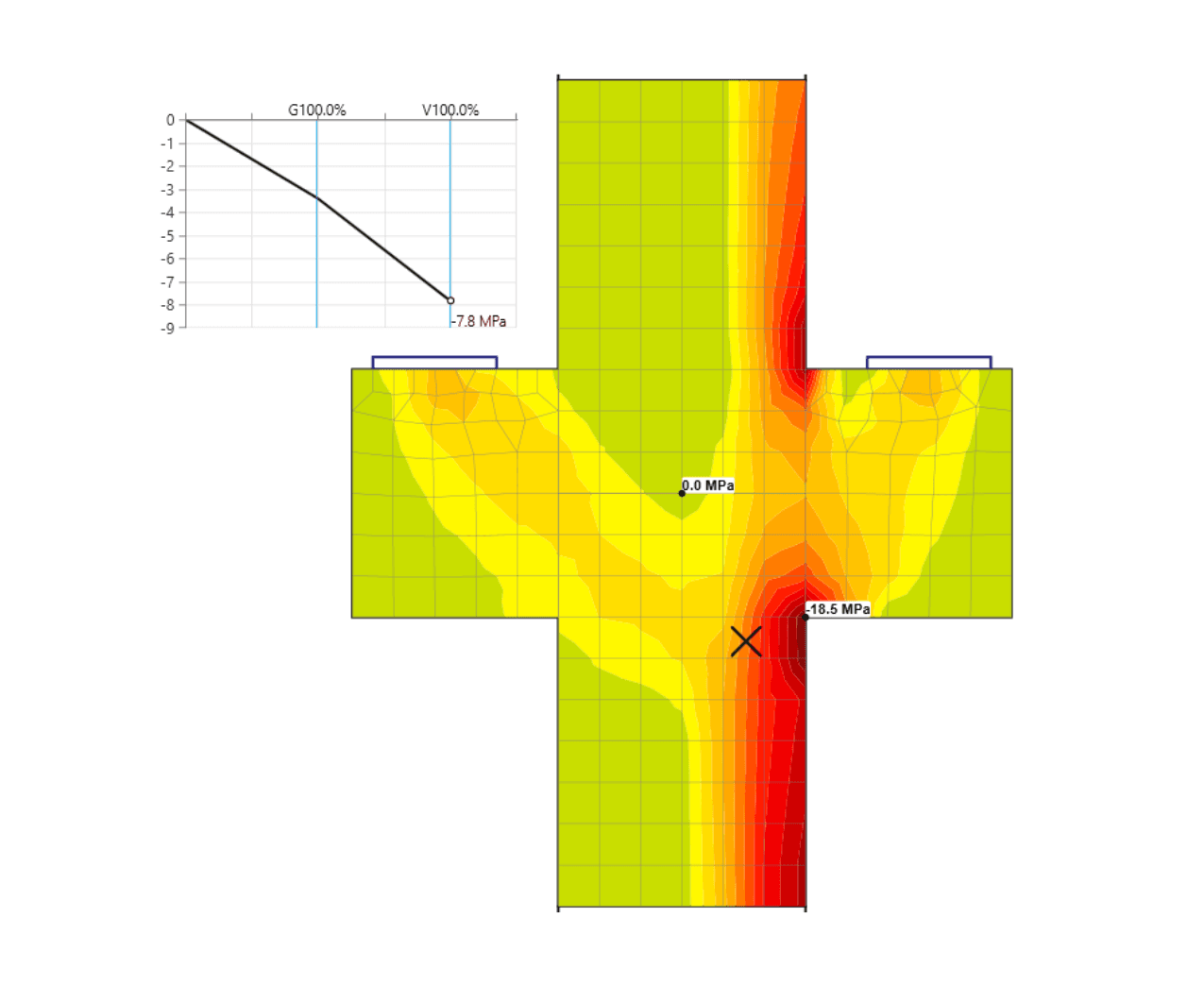

Concrete strength check

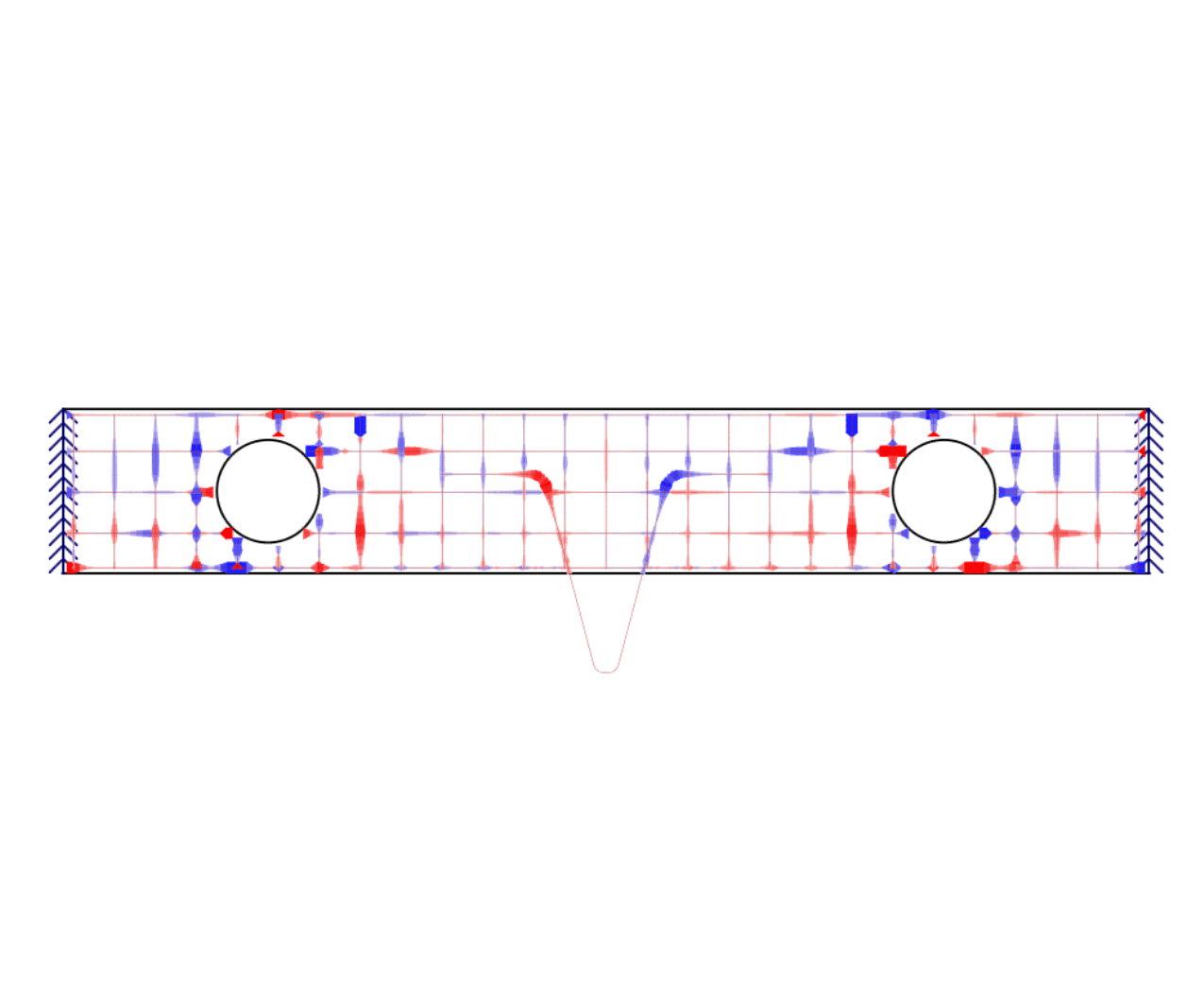

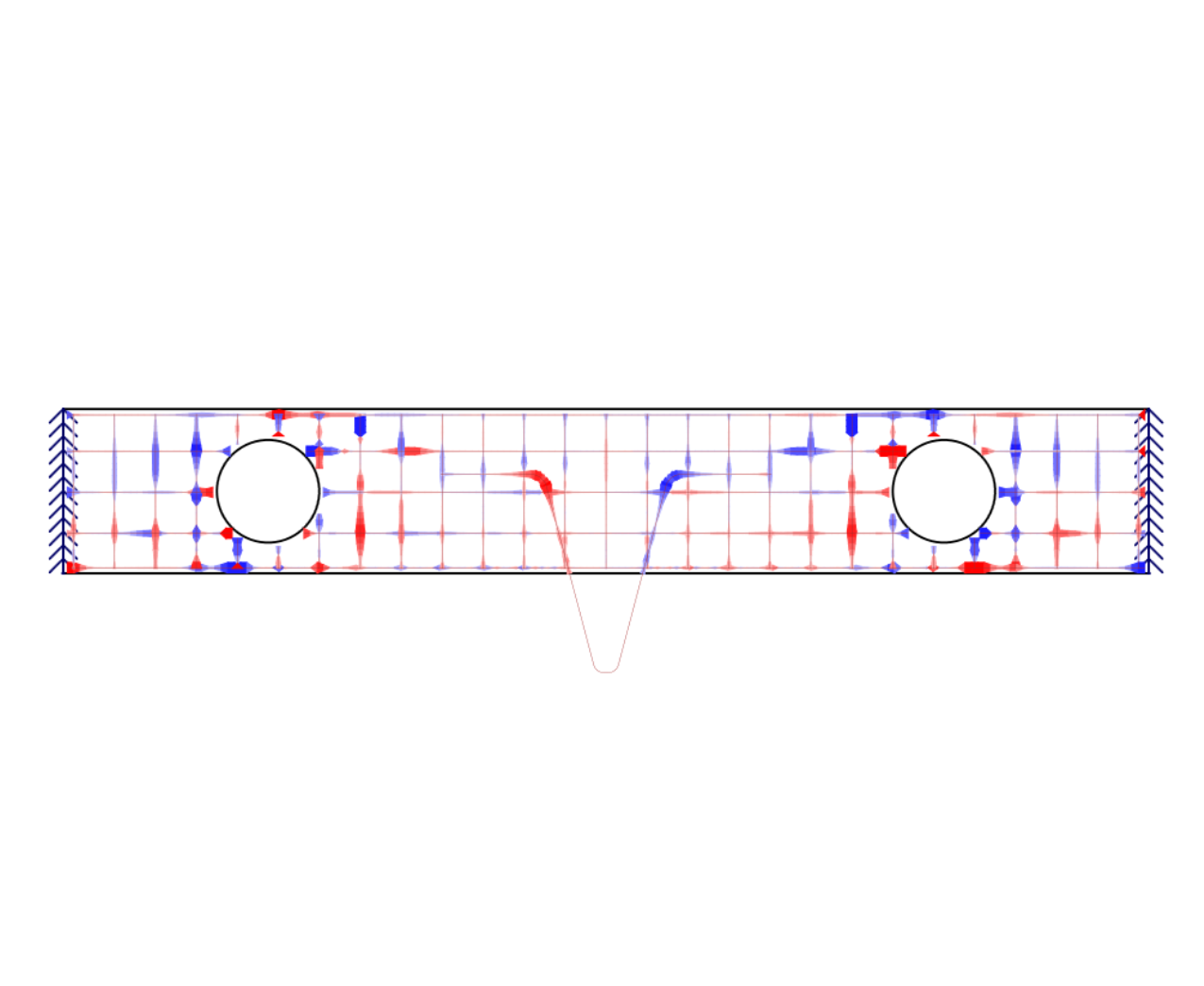

Reinforcement anchorage check

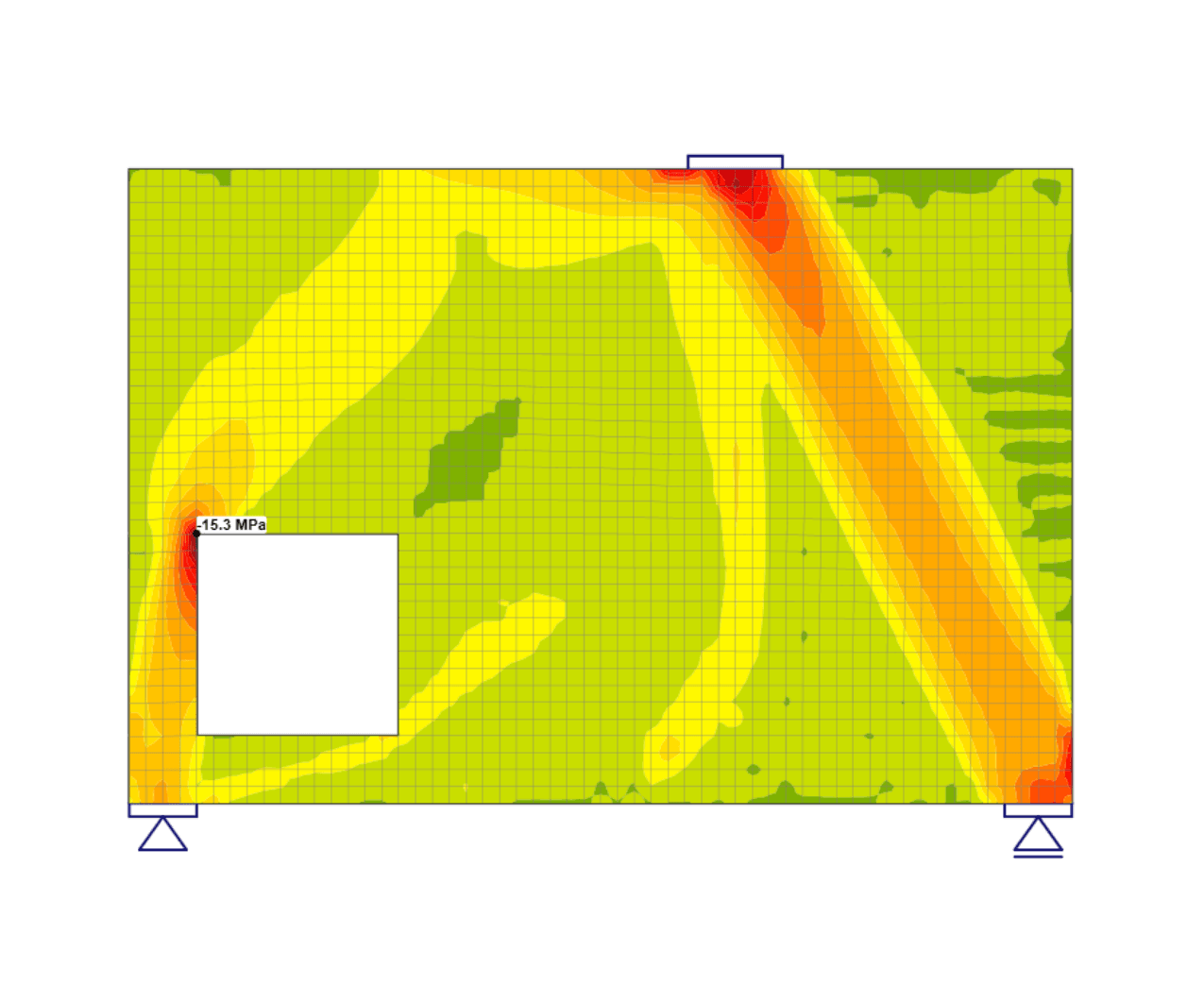

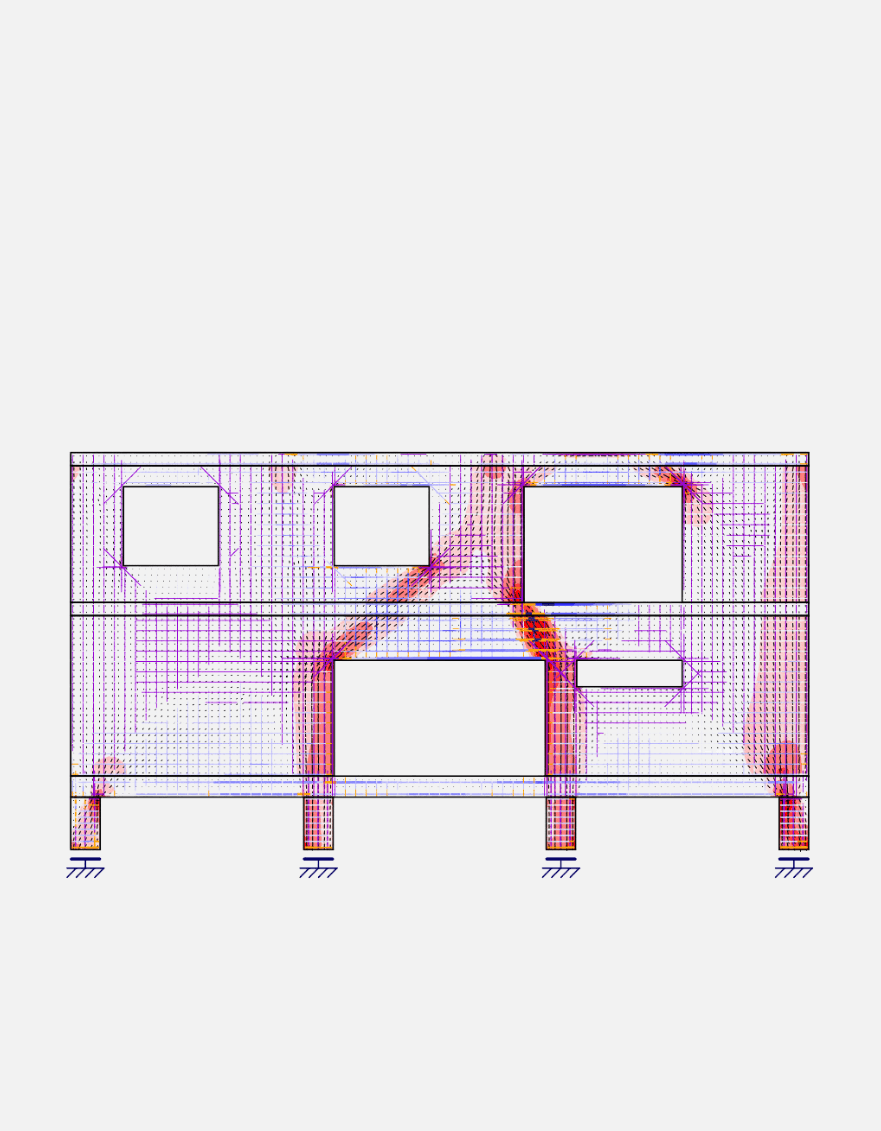

Force vector paths

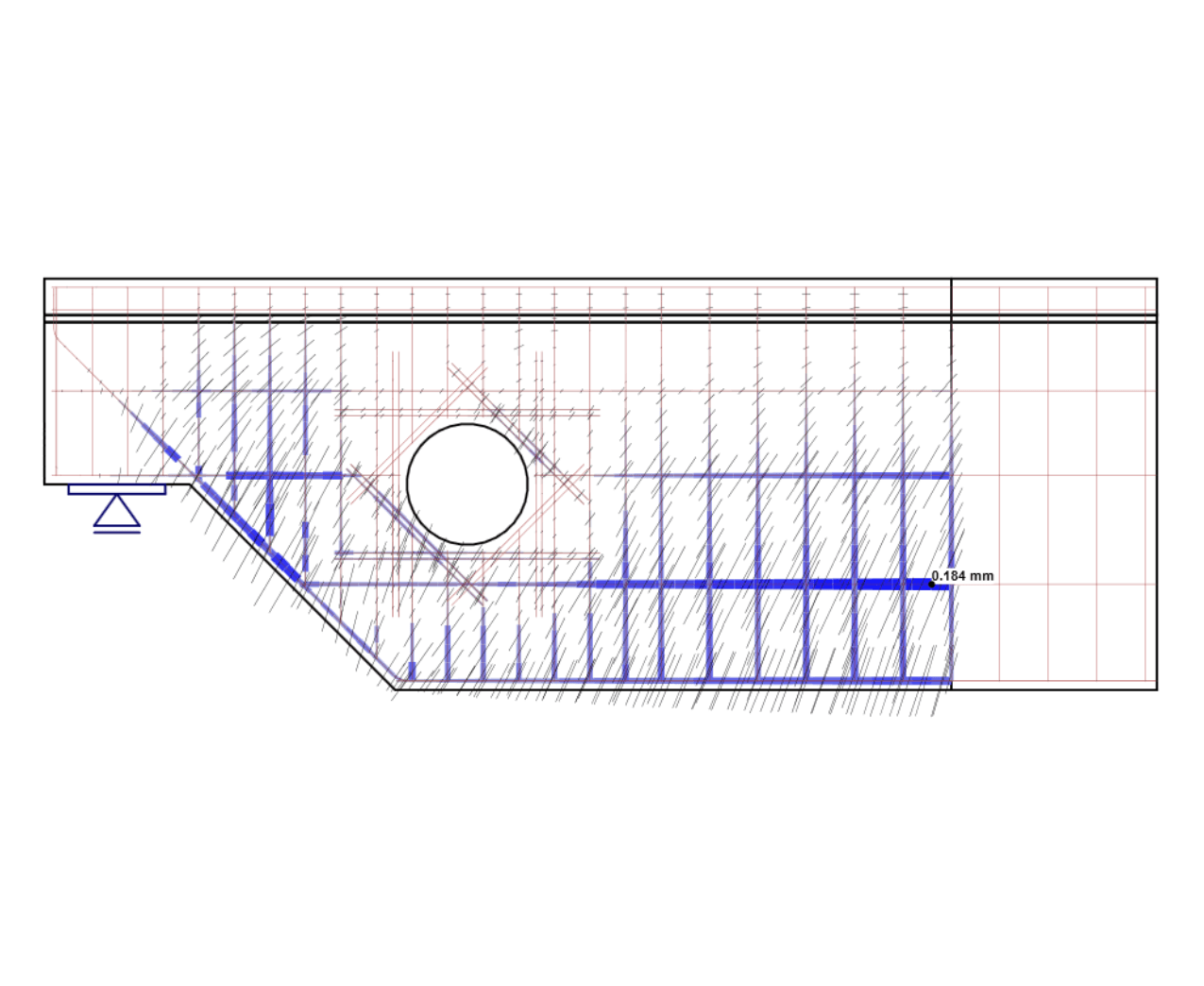

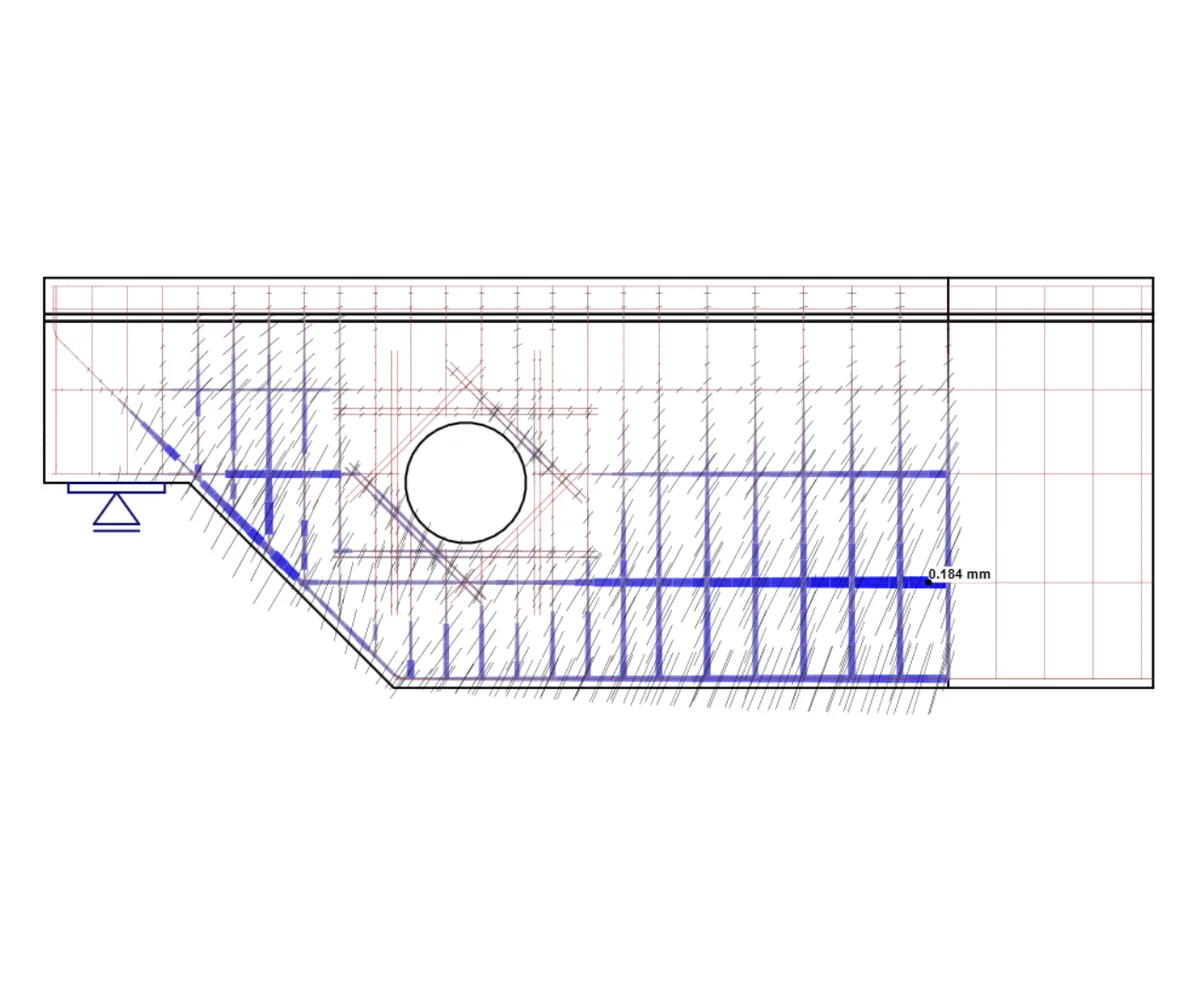

Crack width check

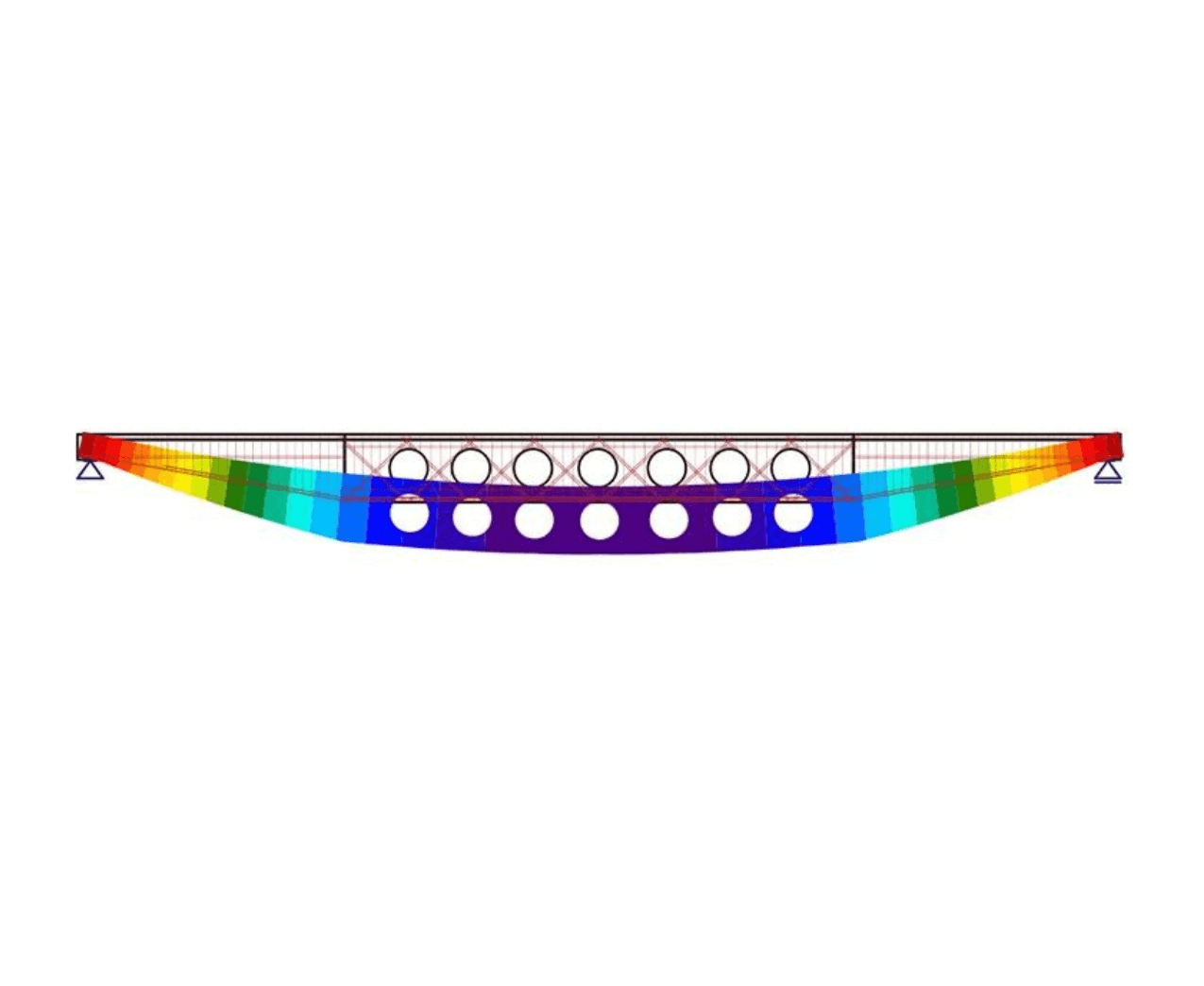

Deflection check
Our Customers
Verified design method
The Ohio State University research confirms the Compatible Stress Field Method to validate reinforced concrete design, where traditional methods such as the Strut-and-Tie Model fall short.
Four concrete members with discontinuities were created and examined against baseline calculations and experimental data.
- Deep beam
- Shear wall with openings
- Corbel
- Walking column
How IDEA StatiCa Detail helps you

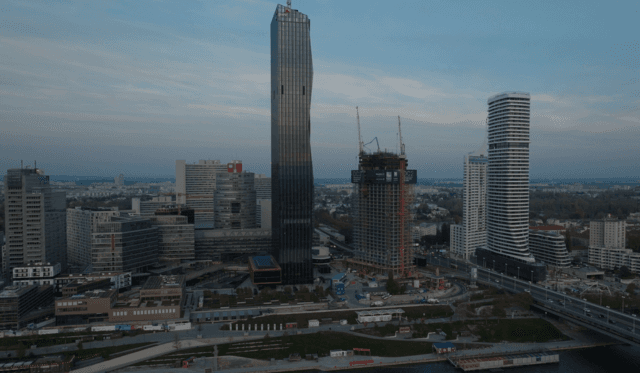

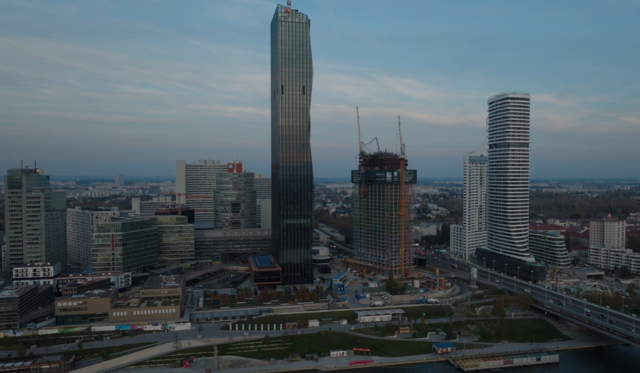

Martin Haferl, co-founder of Gmeiner Haferl & Partner ZT GmbH, shares how IDEA StatiCa Detail streamlined the design of walls, coupling beams, and steel columns in Austria’s second-tallest building.
The software enabled fast and precise verification of highly stressed elements, ensuring structural rigidity and load-bearing capacity. In a dynamic BIM environment, IDEA StatiCa helped him handle design changes efficiently, reducing manual calculations and optimizing the overall workflow.
