Walls and discontinuity regions
Design concrete walls, D-regions, and whole members with ease, backed up by code-checks and reporting

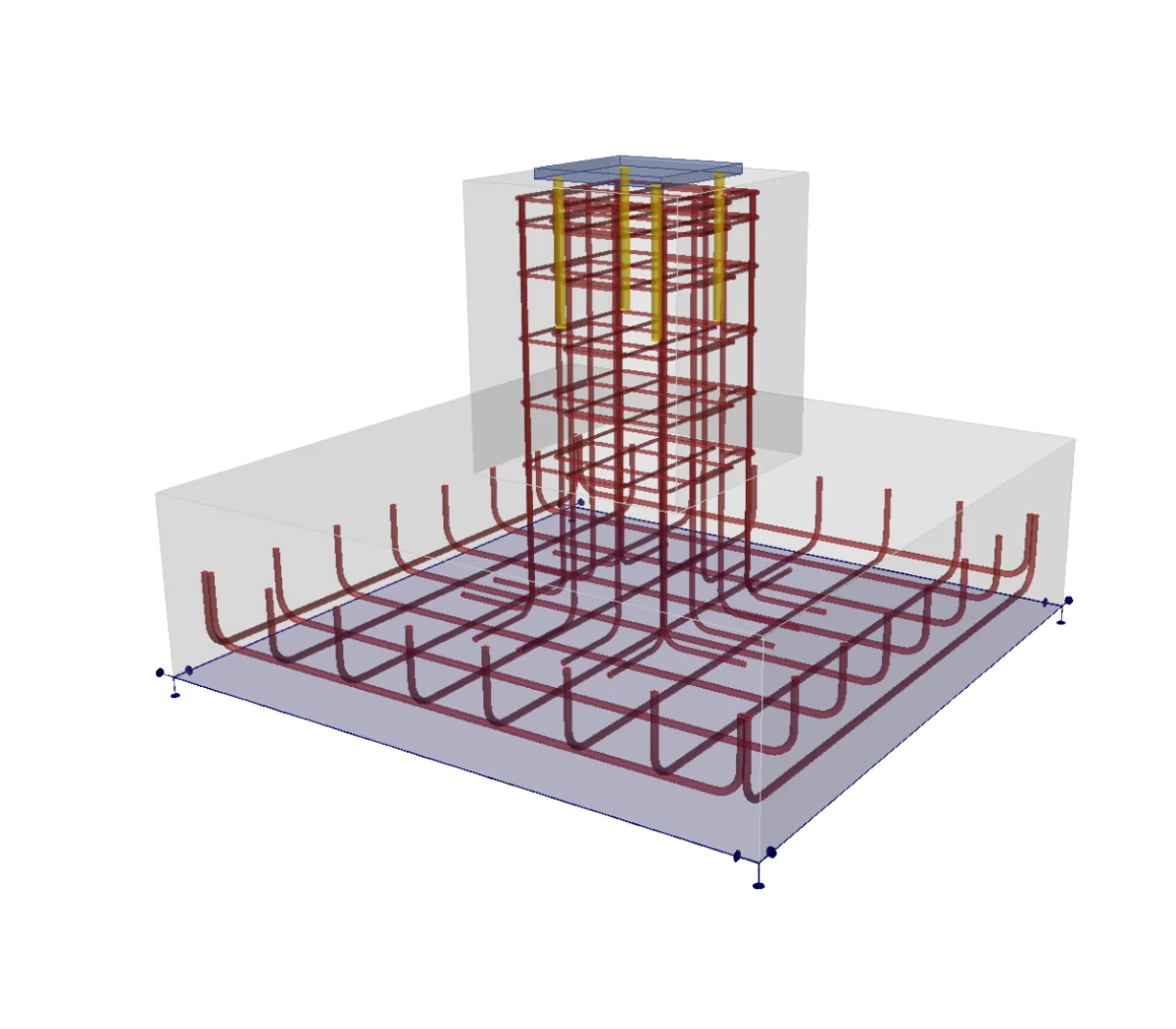

Anchoring to concrete blocks
Design anchoring to reinforced concrete with cast-in plates, column pedestals, and more

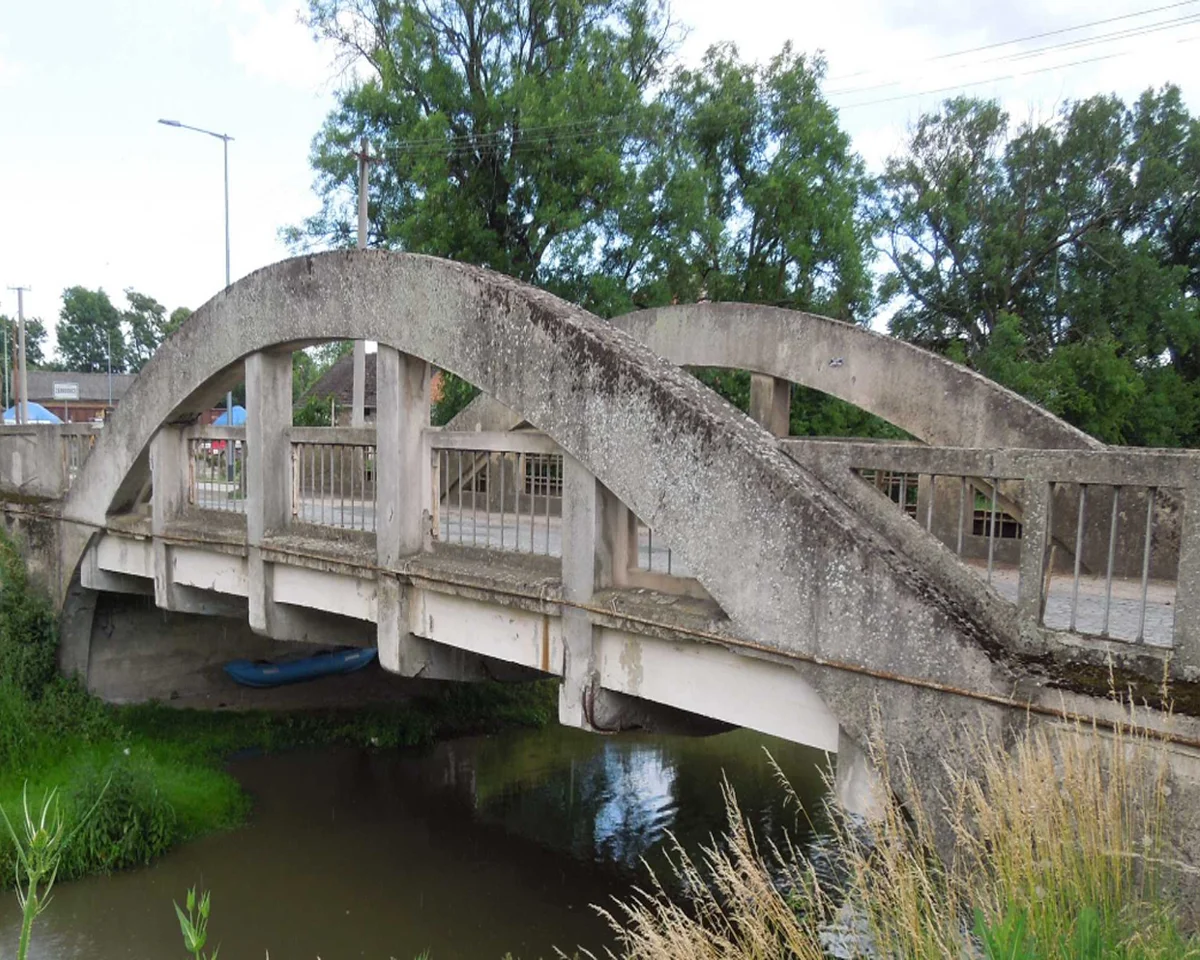

Concrete case studies
See how engineers are using IDEA StatiCa to deliver faster checks on walls, slabs, beams, and D-regions
WALL AND DETAIL DESIGN

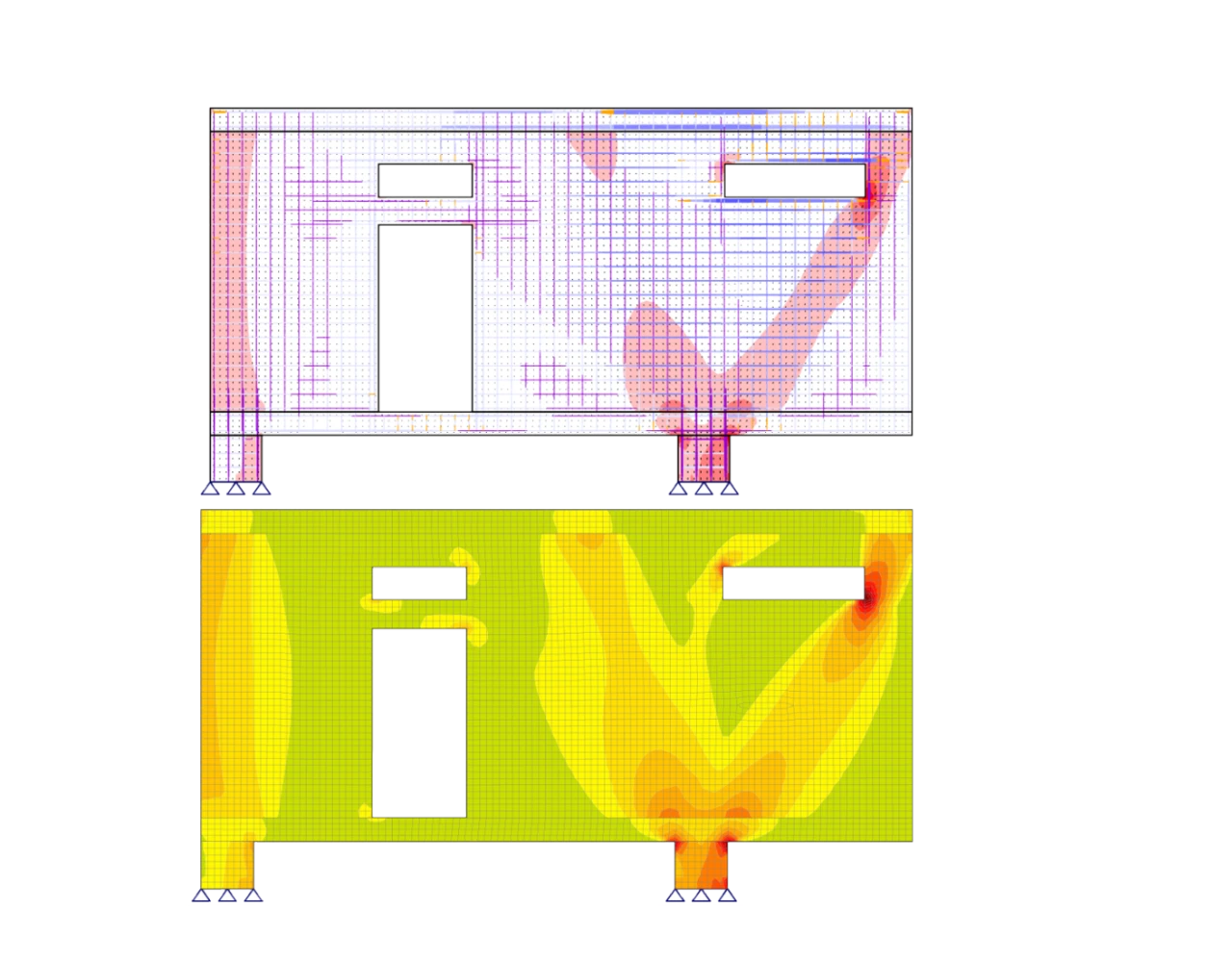

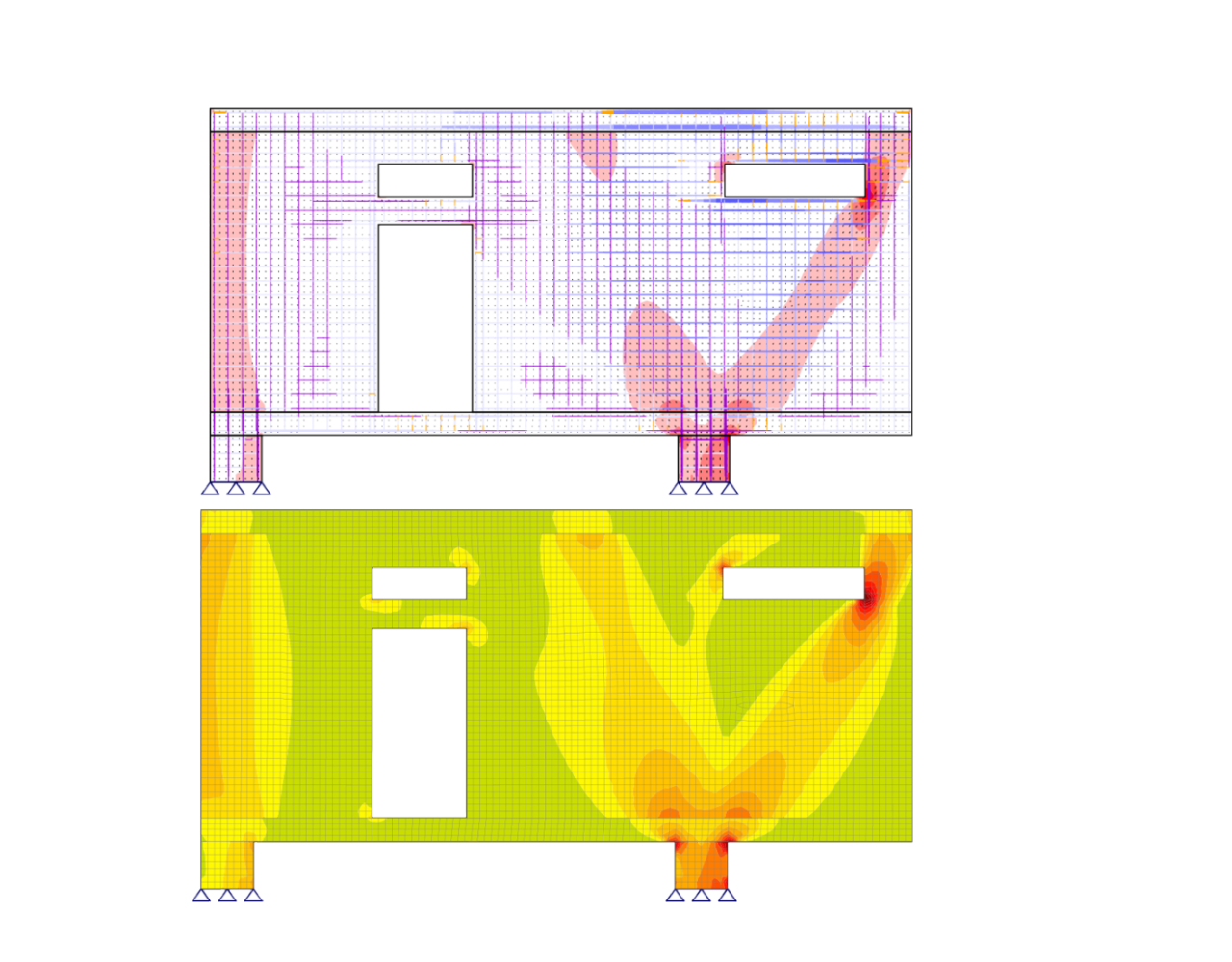

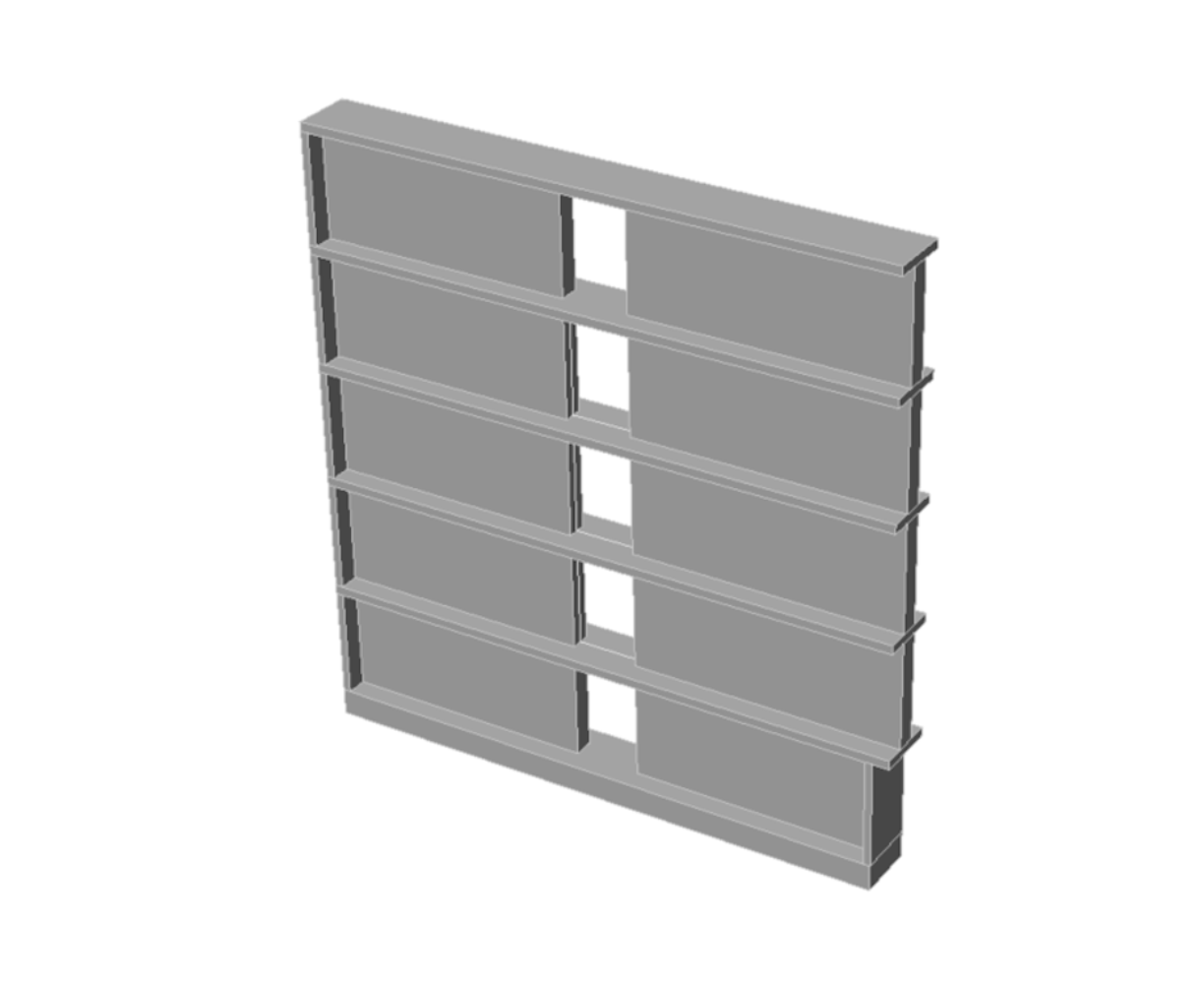

Accurately and safely design concrete walls, D-regions, or whole members. IDEA StatiCa Detail gives you a complete design report with all serviceability checks for:

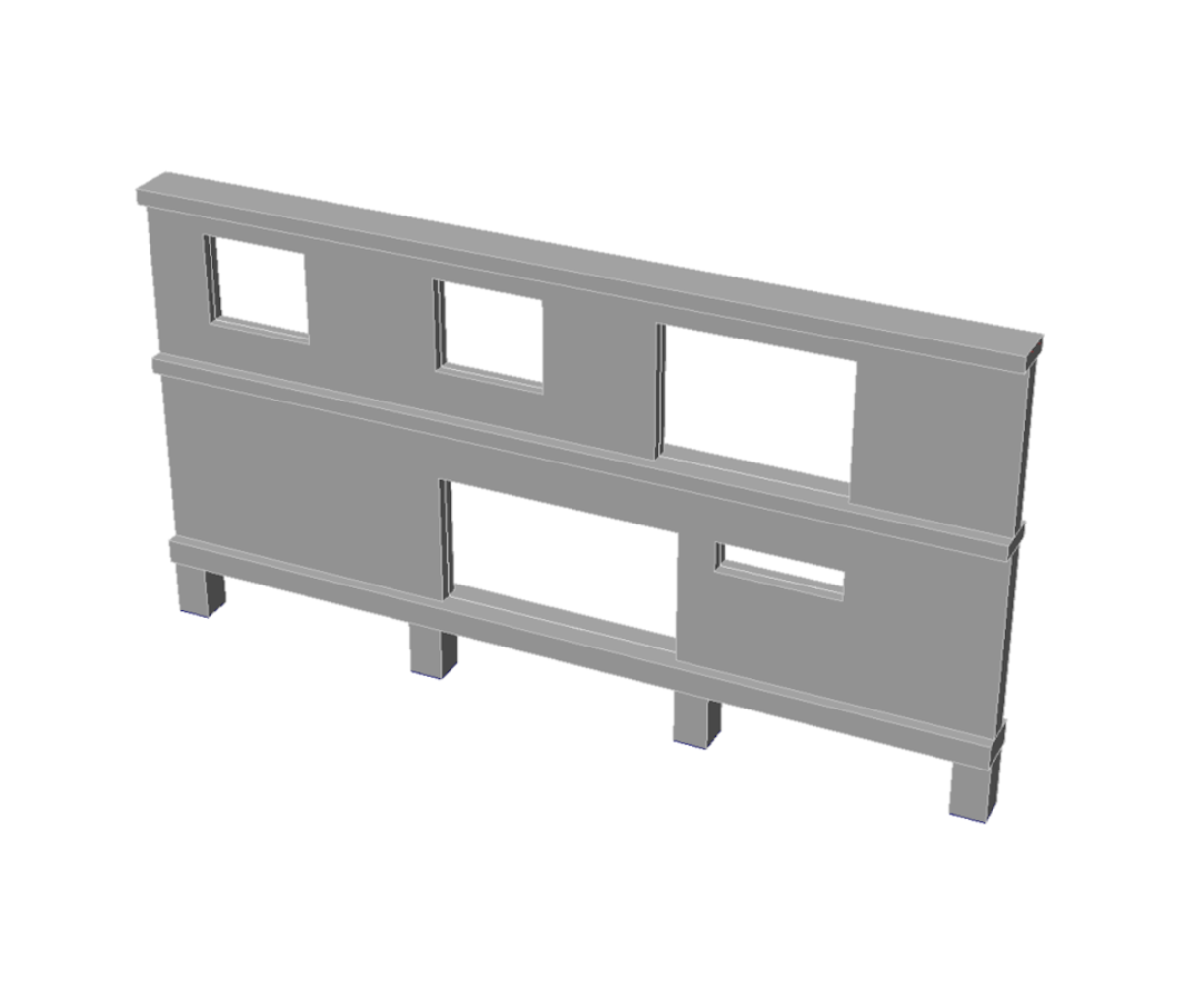

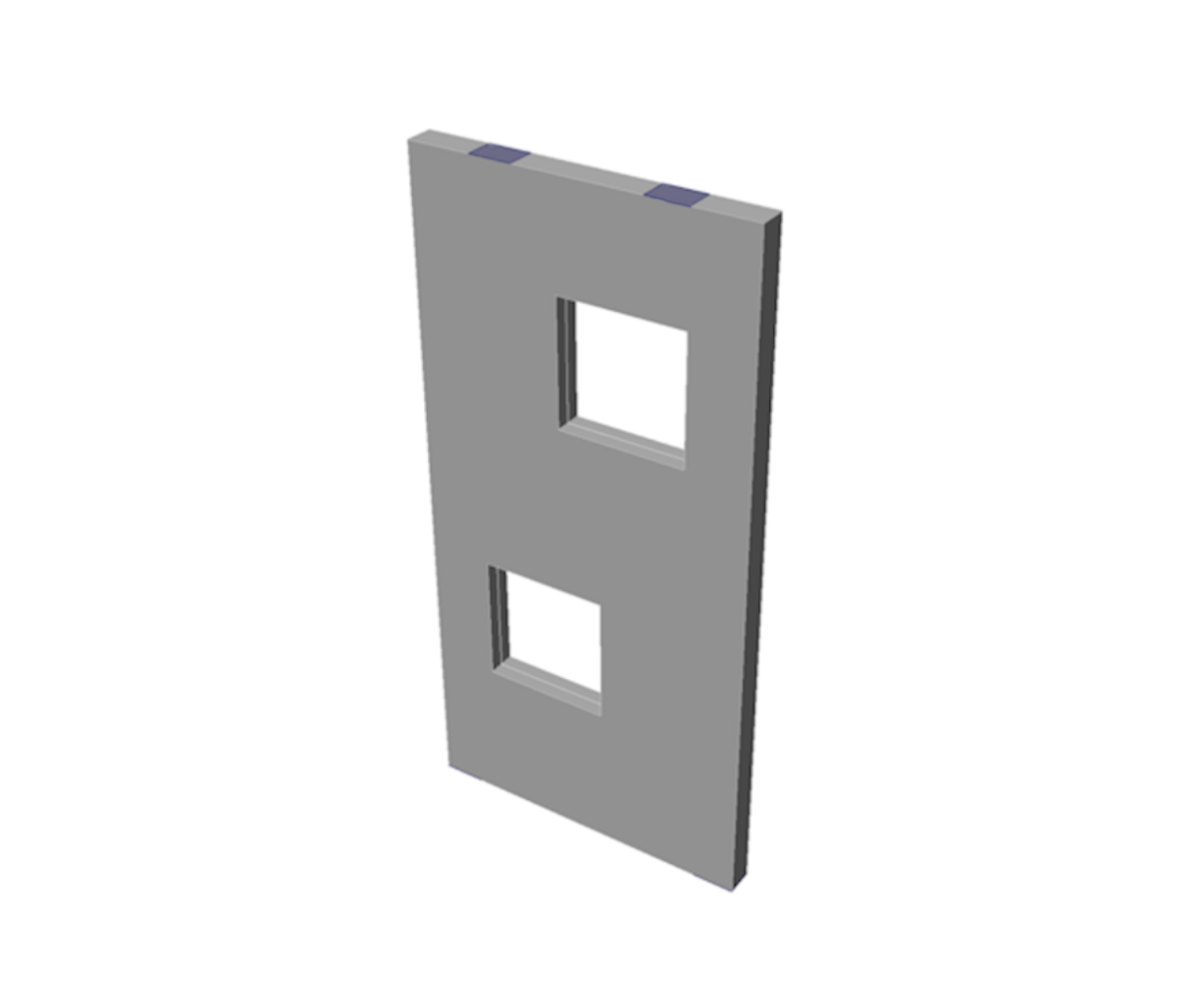

- Concrete walls

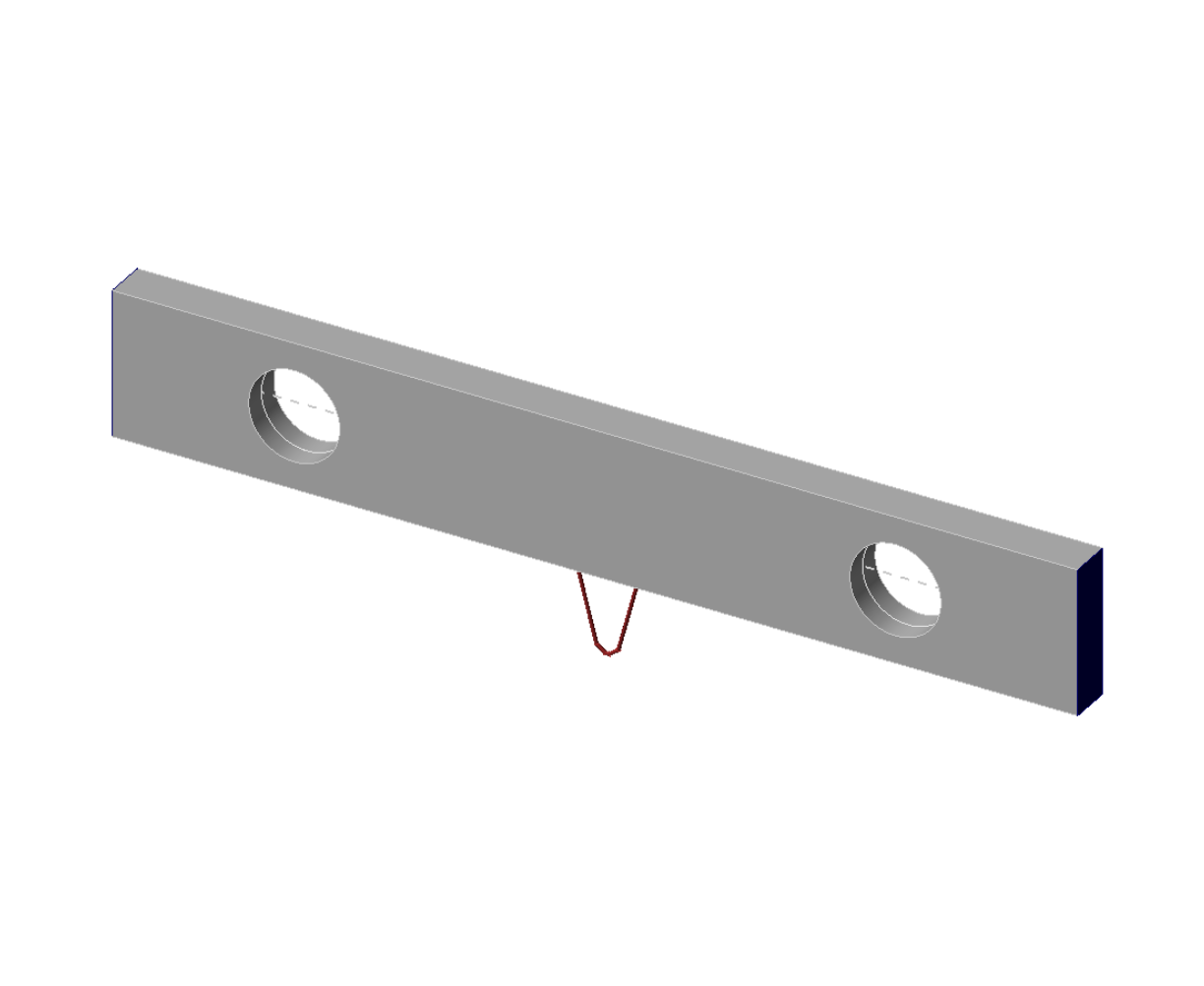

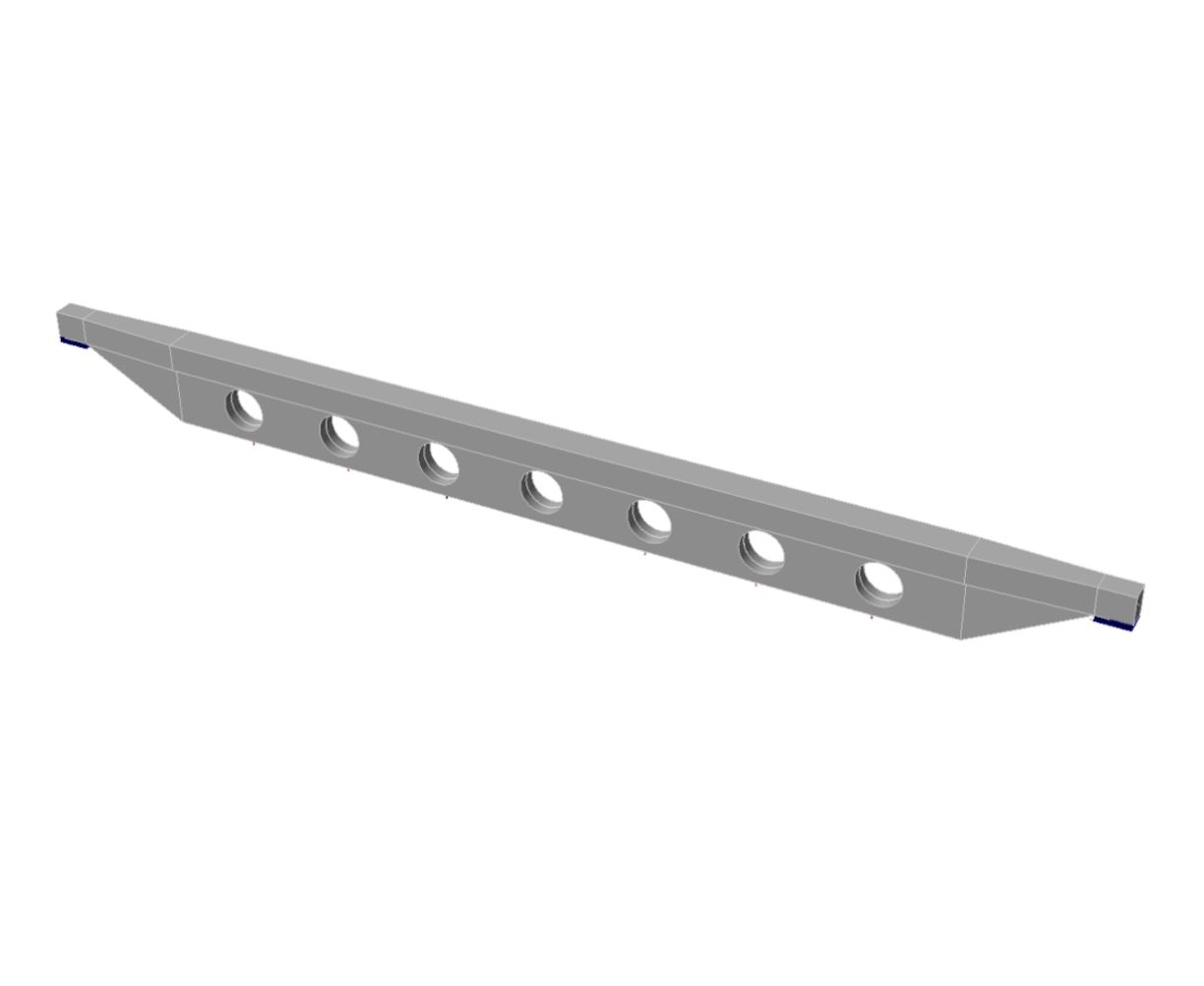

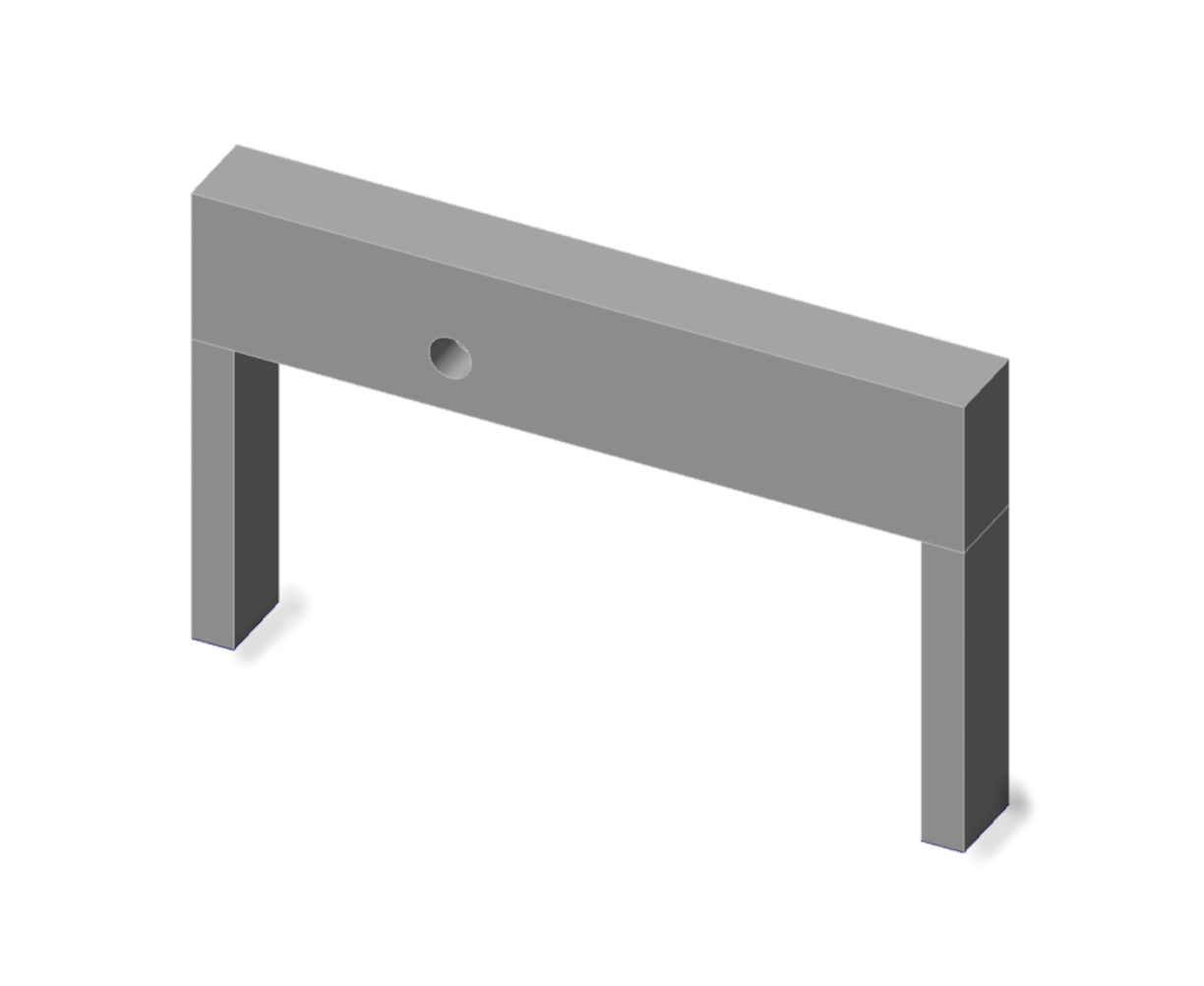

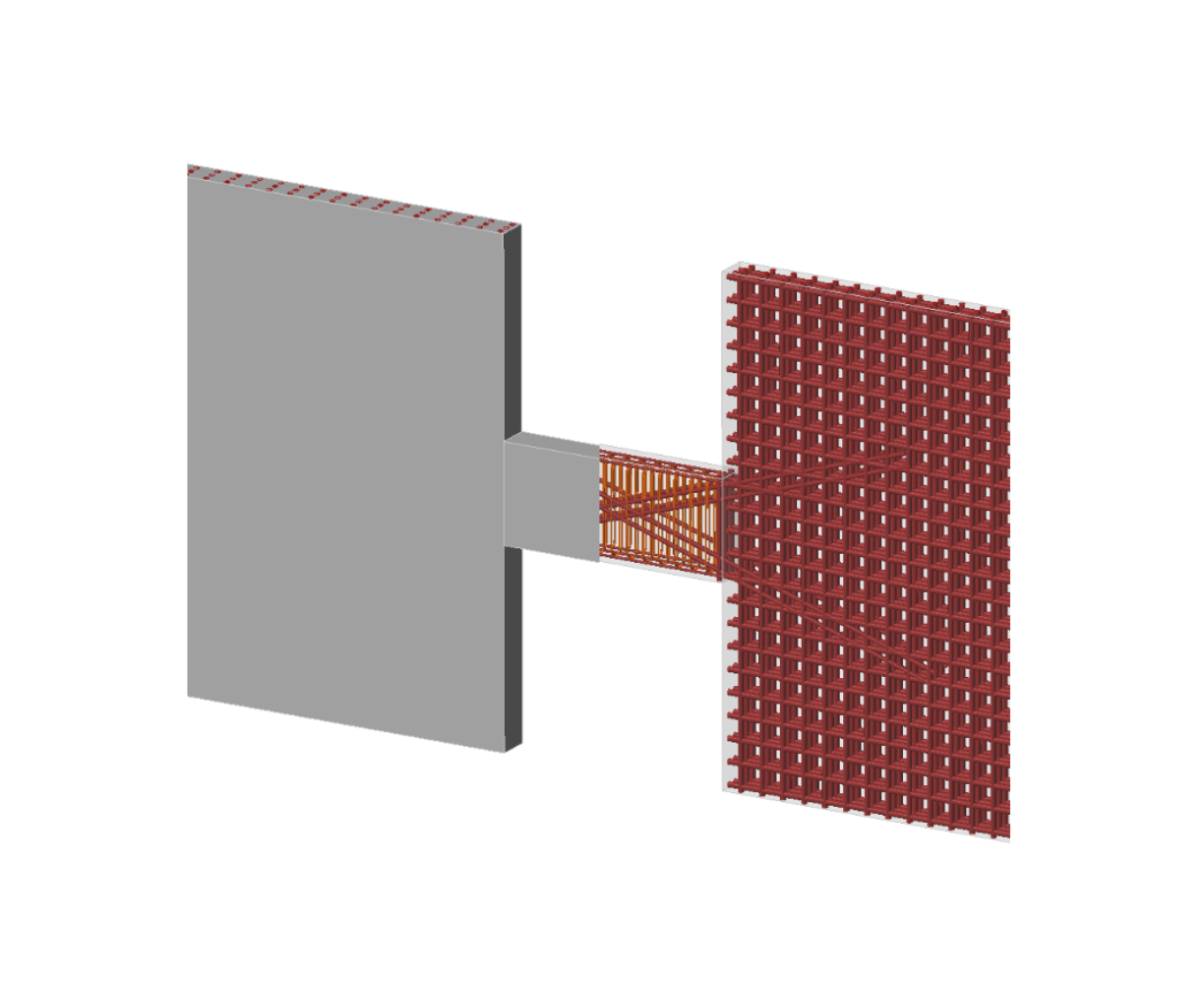

- Beams with openings, dapped ends, etc.
- Pile caps and pier caps

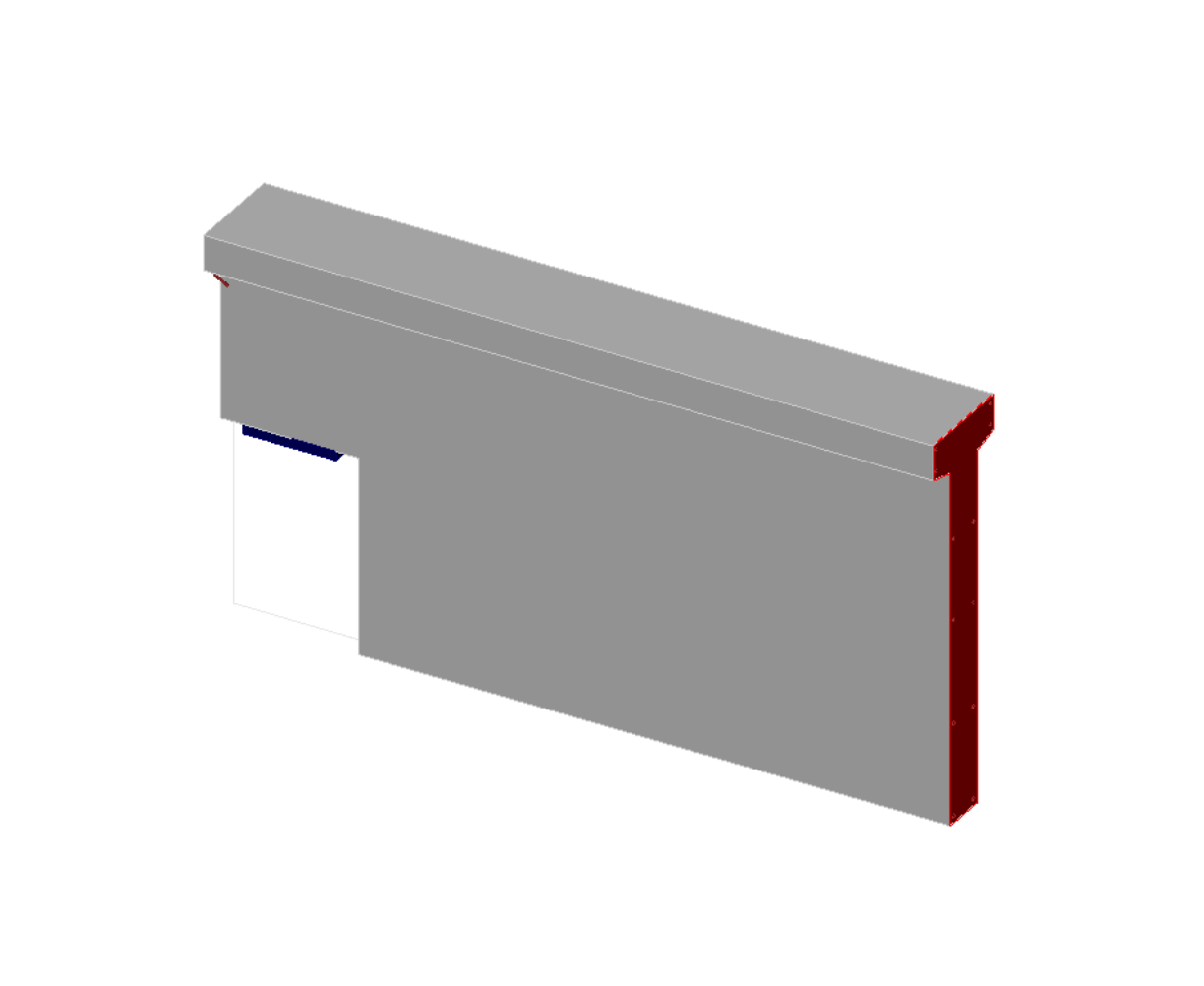

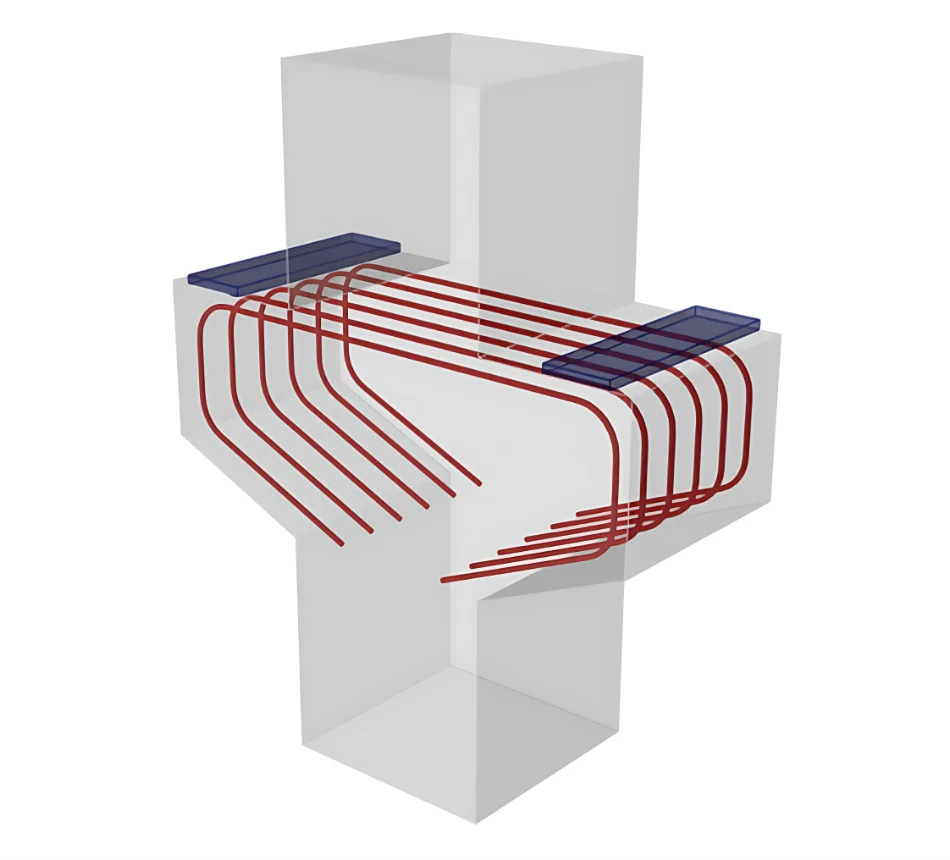

- General shape D-regions
Concrete

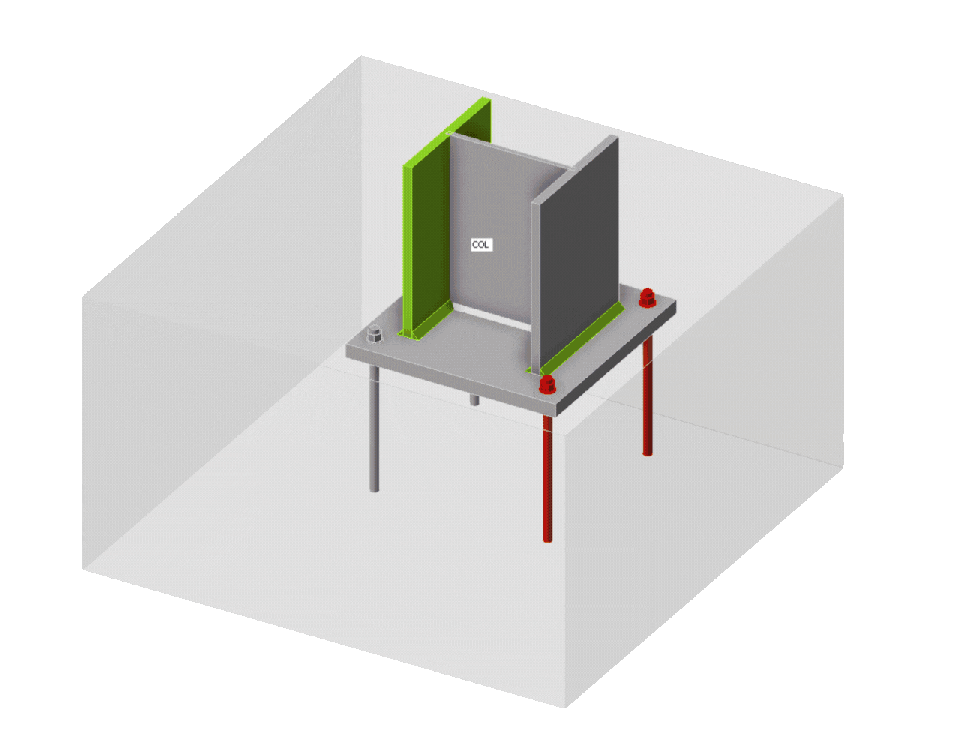

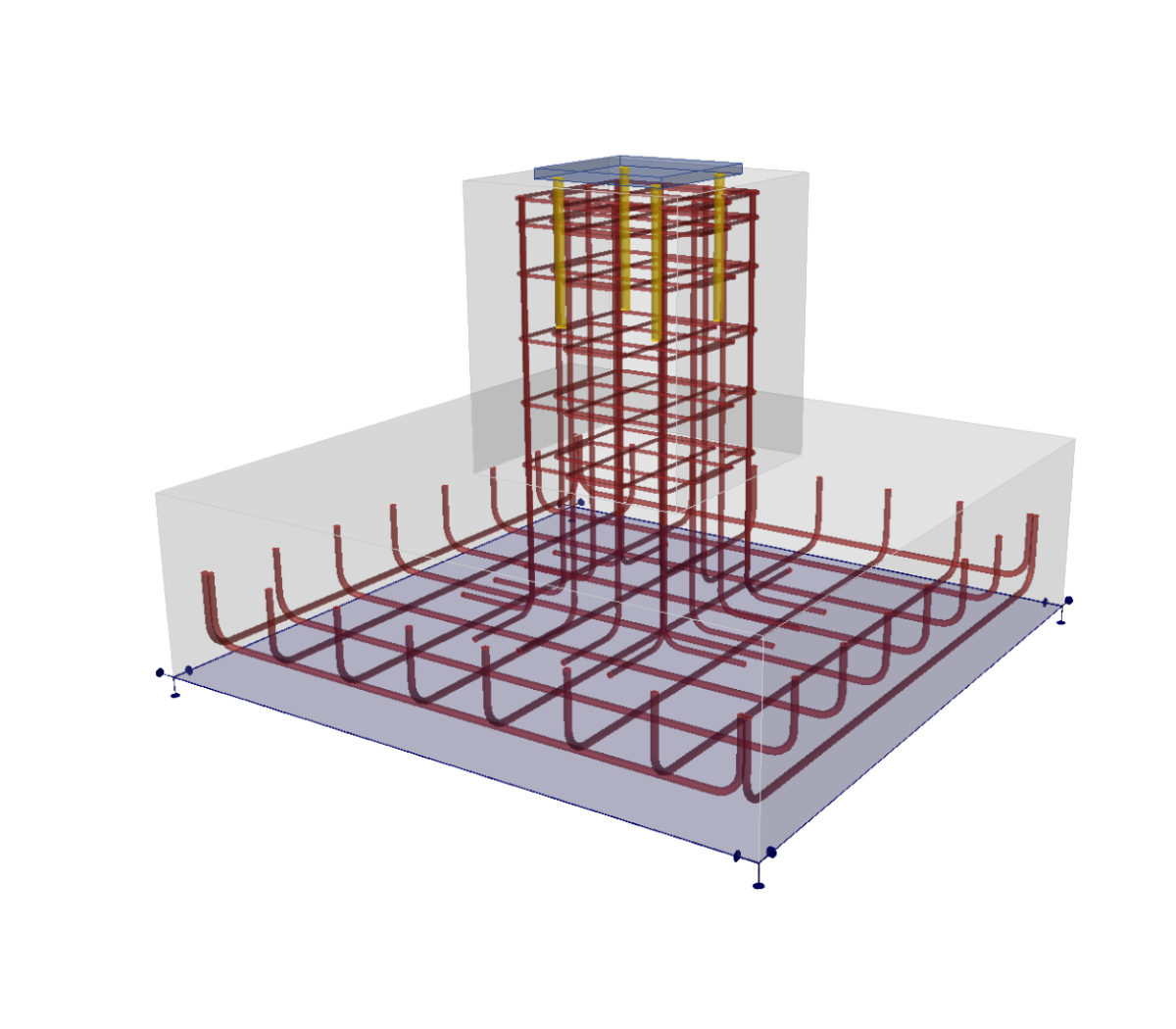

Prevent critical failures in anchoring design
Apply concrete reinforcement, including near-edge situations, cast-in plates, column pedestals, and non-standard foundation shapes.
- Use single workflow for importing the base plate, anchors, and loads from Connection, designing the anchoring, and generating a report
- Create accurate outputs using real reinforcement, stiffness, and shear transfer through anchors, shear lugs, and friction
- Use visual results to identify critical checks, design reinforcement, and calculate stress and strain
Concrete

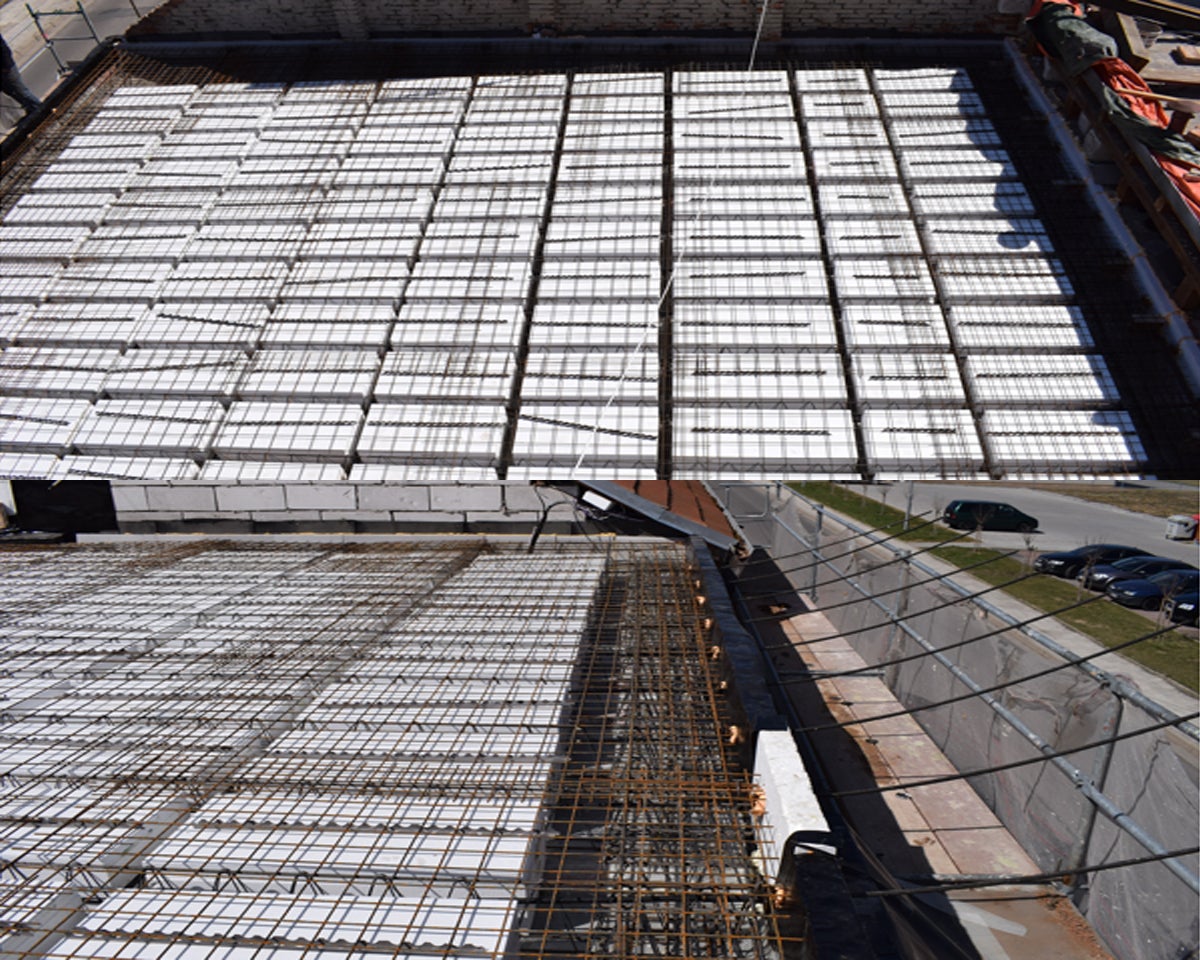

Challenges other engineers solve with IDEA StatiCa
Find out how real structures all around the world got safer – and were built more quickly – thanks to IDEA StatiCa.
