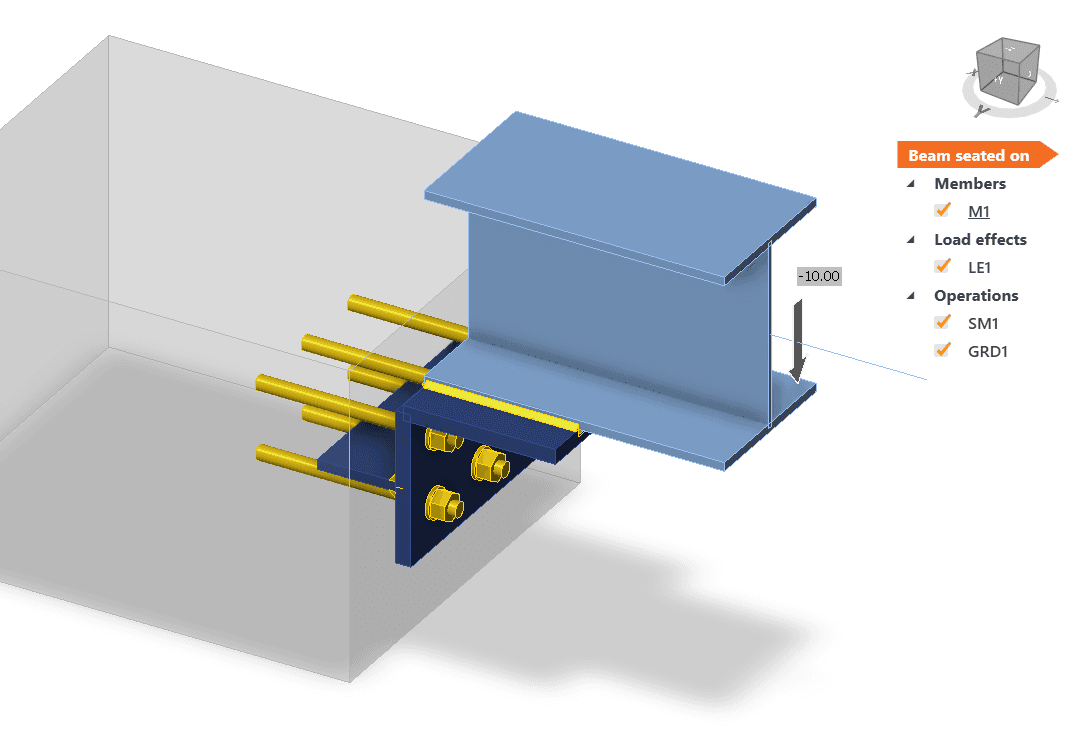

This is a beam seated on an angle member. The angle is anchored to a lateral concrete block. The concrete block has a shear lug to take the shear forces.
SteelConnection designSample projectsConnectionAISC (USA)
This is a beam seated on an angle member. The angle is anchored to a lateral concrete block. The concrete block has a shear lug to take the shear forces.
