Sub-code: LRFD
Type of connection: simple welded connections
Unit system: Metric
Designed acc. to: AISC 360-16
Investigated: Welds
Plate Materials: Plate and column – ASTM A572 – Gr. 50
Welds: Leg size = 3 mm, electrode E70XX
Applied forces:
Simple welded connections are loaded by tension, compression, bending moment or shear to be utilized at 100 %.
Procedure:

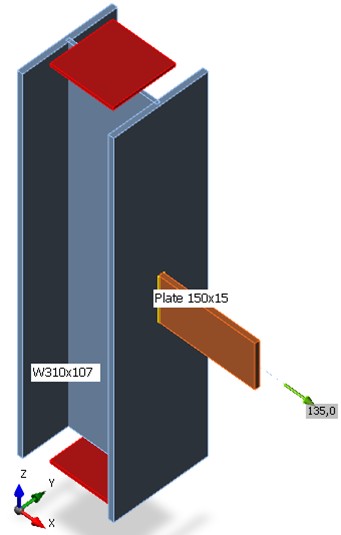

Simple welded connections of a plate to a beam are designed so that welds will fail first. The plate is loaded by only one component at a time – tension, compression, bending or shear. The joint is loaded for weld to be utilized at 100 % and the load is compared to the weld resistance according to AISC 360-16.
Manual calculation
In the case of bending, both elastic and plastic stress distribution were calculated. Usually, the more conservative elastic stress distribution is assumed although tensile strength of welds is used in formulas.
| a) elastic stress distribution | b) plastic stress distribution |
Base metal strength does not have to be evaluated in case of use of matching electrodes but it is shown here for verification.

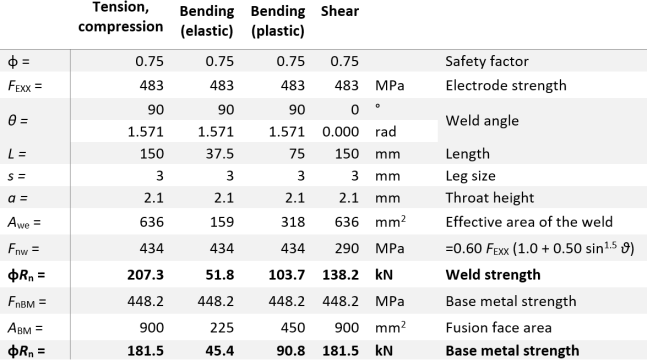

Manual check is performed according to AISC 360-16 – J.2.4.

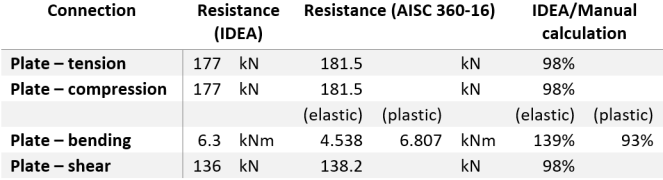

Comparison:

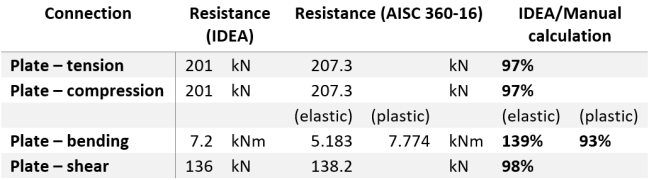

Weld strength without base metal check
