The objective

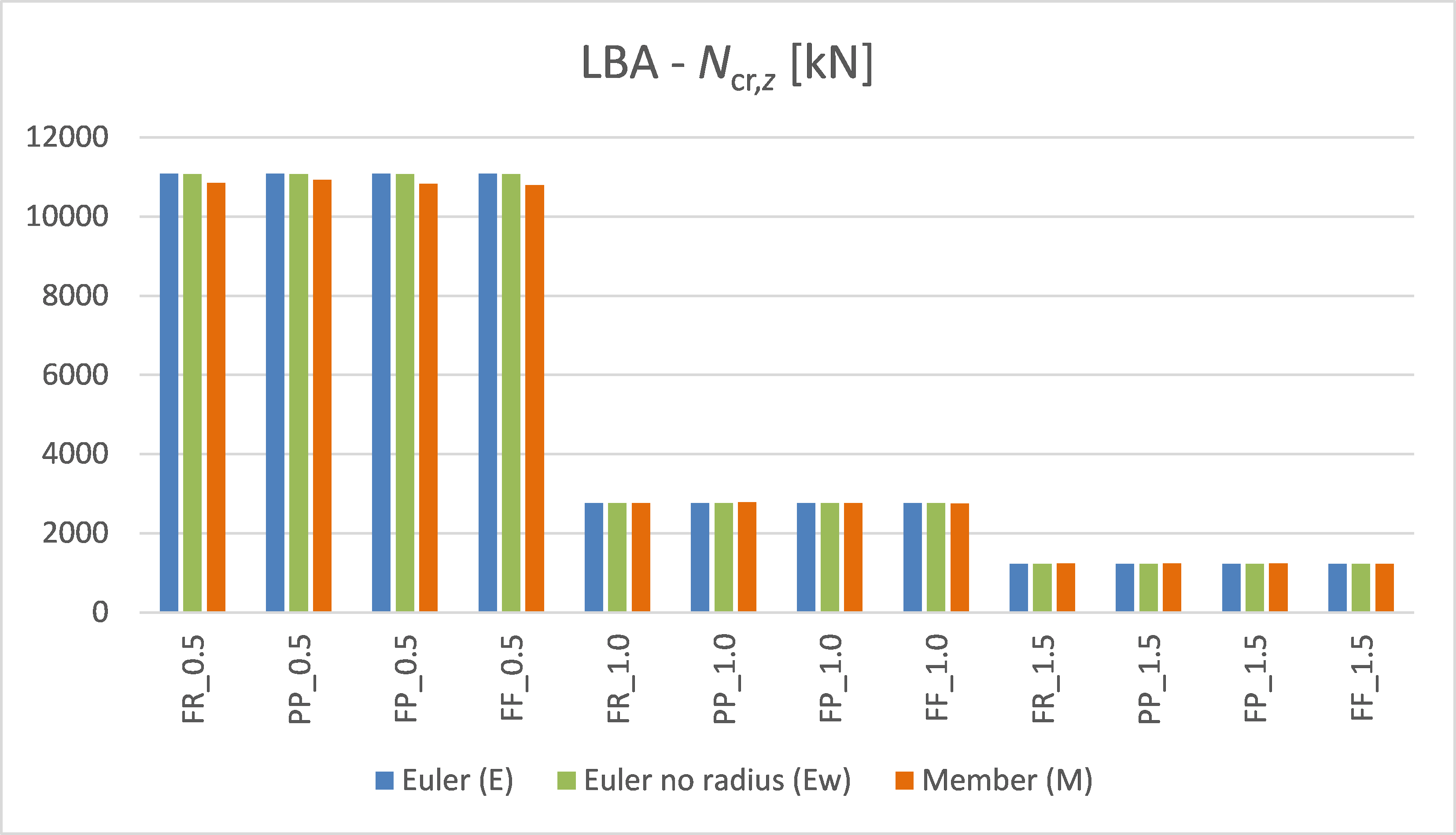

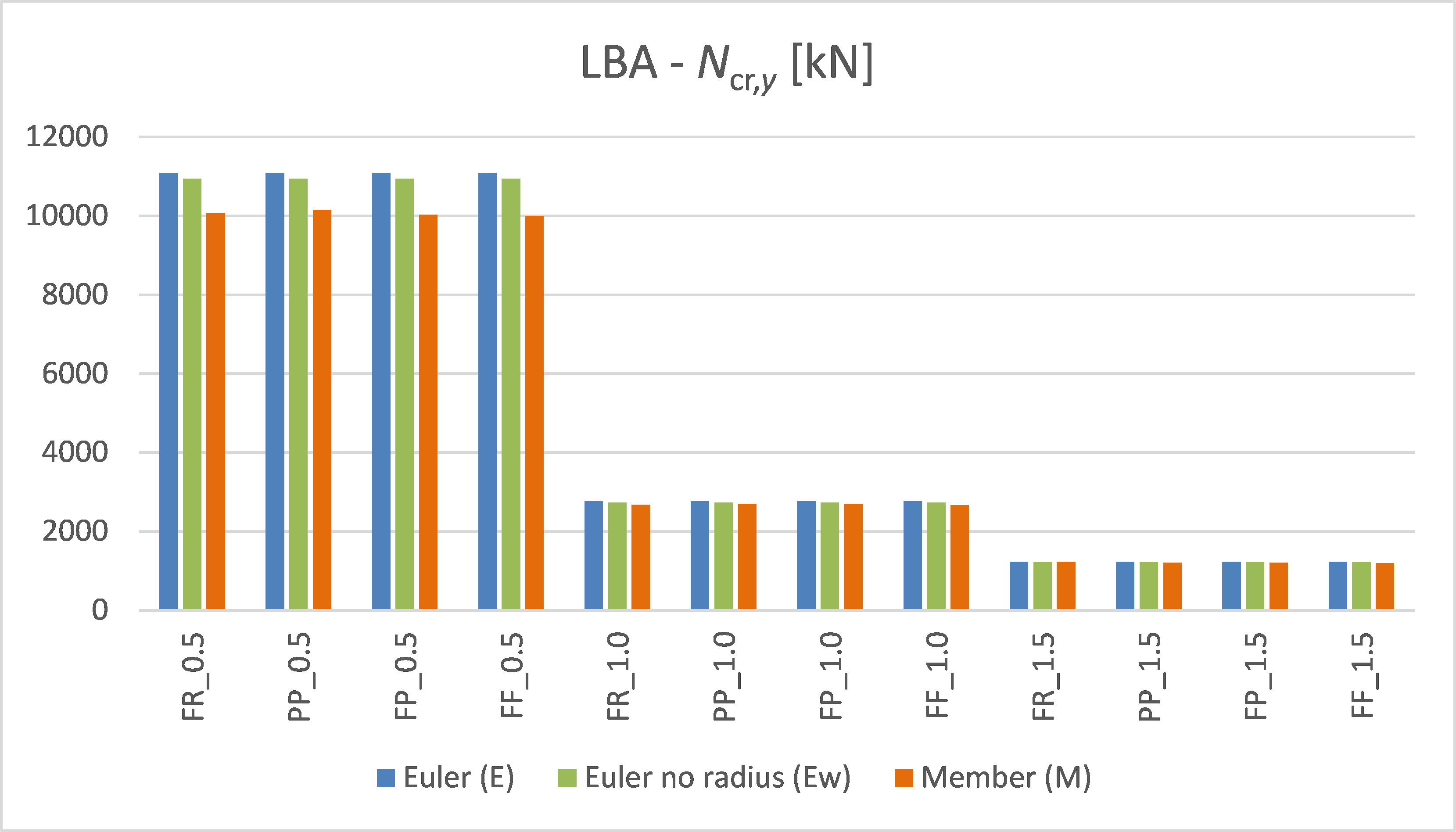

The objective of this article is the verification of the LBA (linear bifurcation analysis) module of the IDEA Member application. The resulting critical loads from IDEA Member are compared to Euler’s critical loads for columns in compression.

Model description

A total of 24 individual cases were analyzed to verify the LBA module. All of them share the same cross-section HEB 200 and the same steel grade S 355. Four different boundary conditions were investigated (FF; PP; FP; FF), each with varying values of columns relative slenderness (0.5; 1.0; 1.5). Buckling in direction of both principal axes is verified.

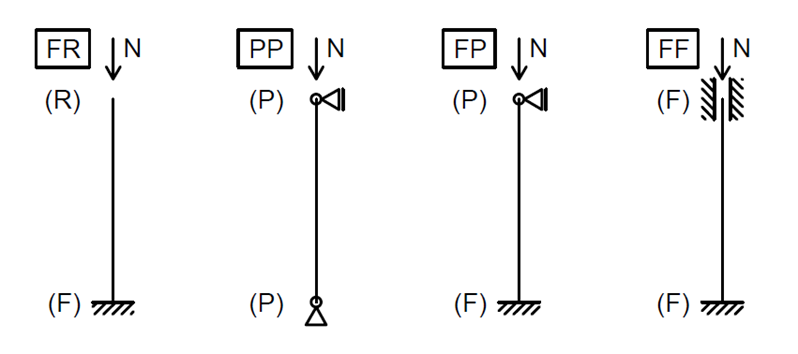

Fig. 1: Various boundary conditions used for verification

All cases are designated in the following manner: “FR_0.5_Y”, where “FR” indicates boundary conditions, “0.5” the relative slenderness and “Y” the buckling axis.

Cross-section description

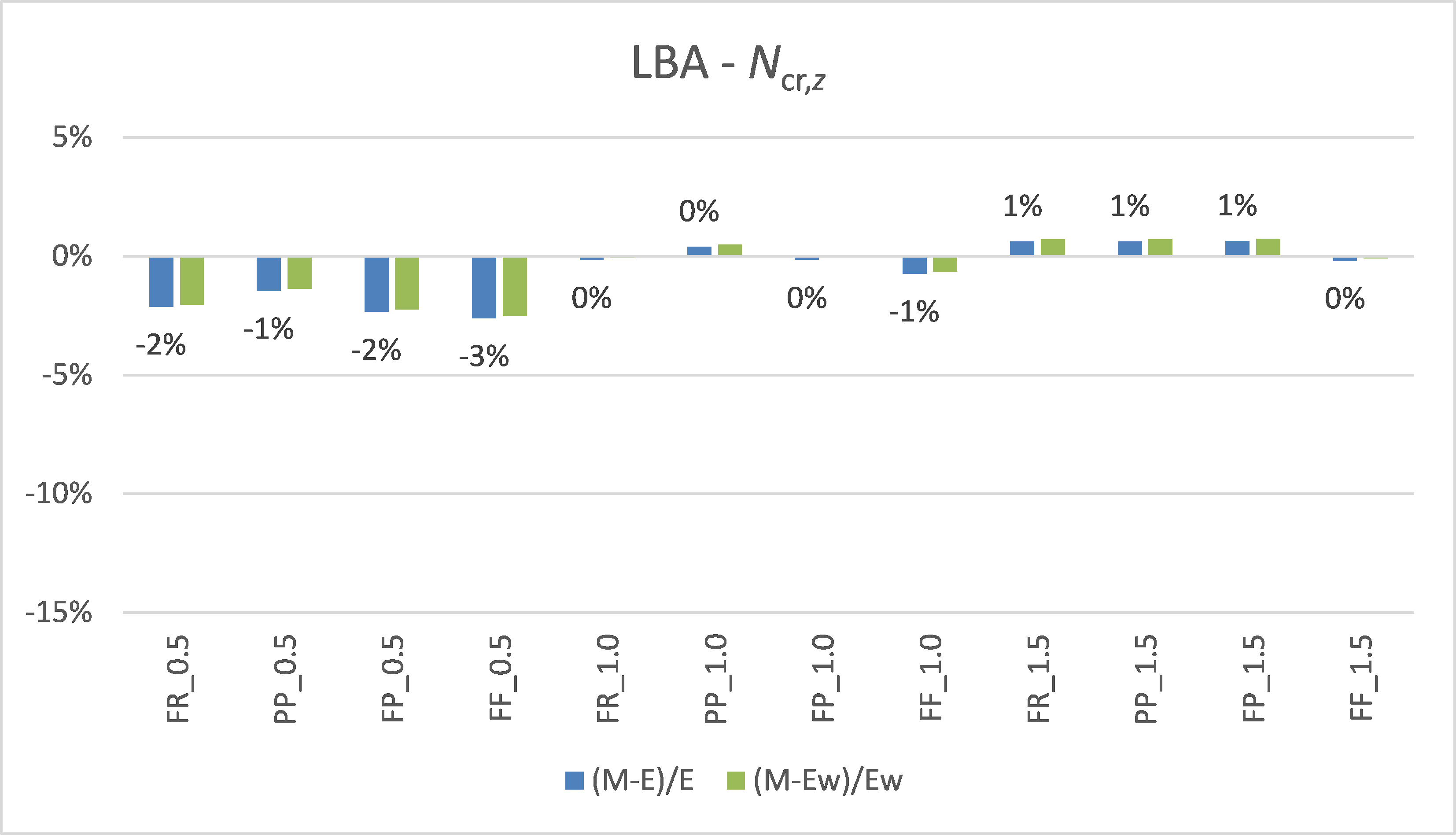

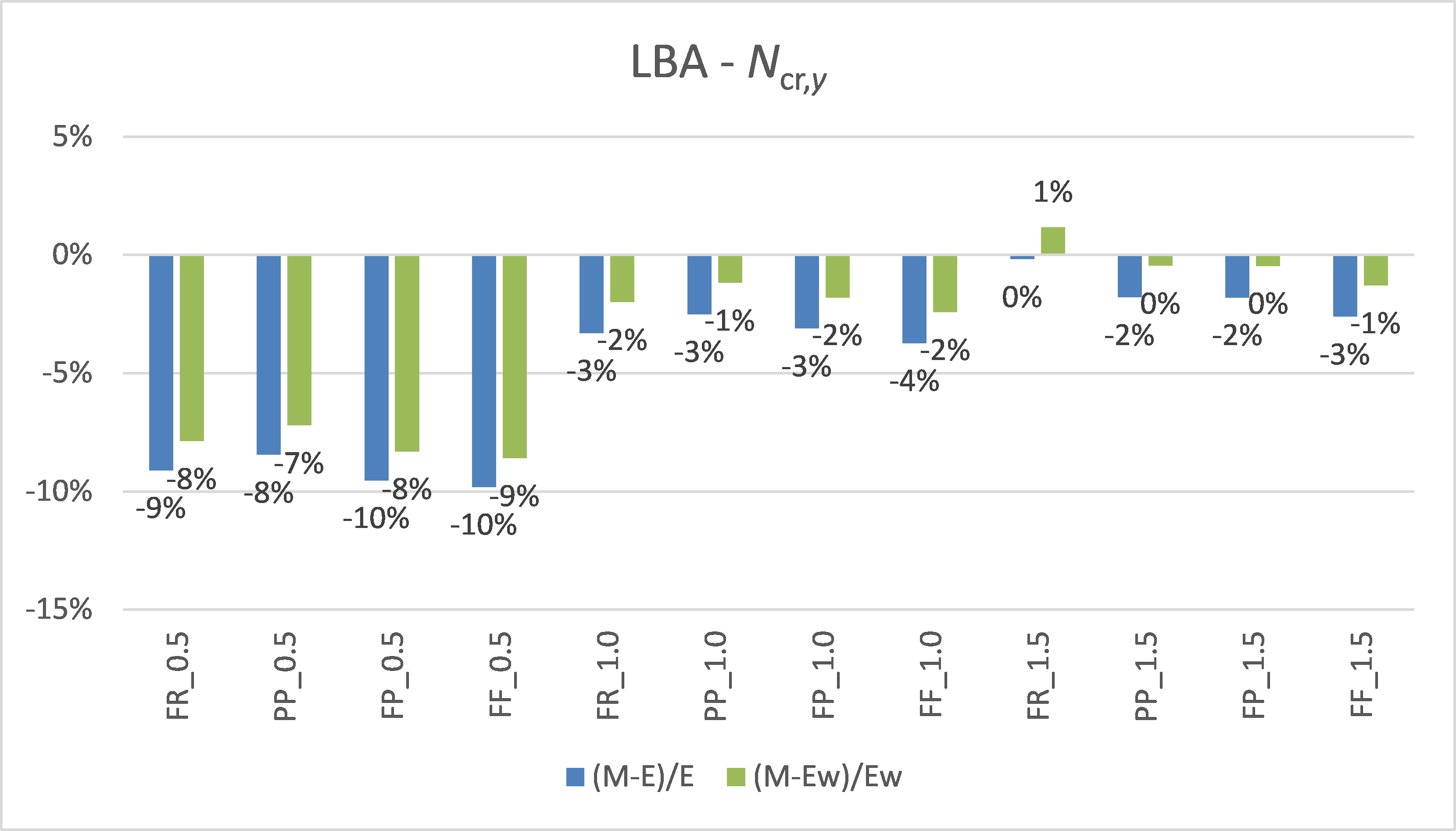

There is a slight difference in characteristics of a rolled HEB 200 cross-section and its shell representation in IDEA Member. Its influence on the critical load is later shown to be under 2 % for strong axis buckling and under 1 % for weak axis buckling.

Fig. 2: Rolled cross-section and its shell representation

Analytical solution

The following formula is used to calculate the Euler’s critical load for strong and weak axis buckling:

\[ N_{cr,y(z)} = \frac{\pi^2EI_{y(z)}}{L_{cr,y(z)}^2} \]

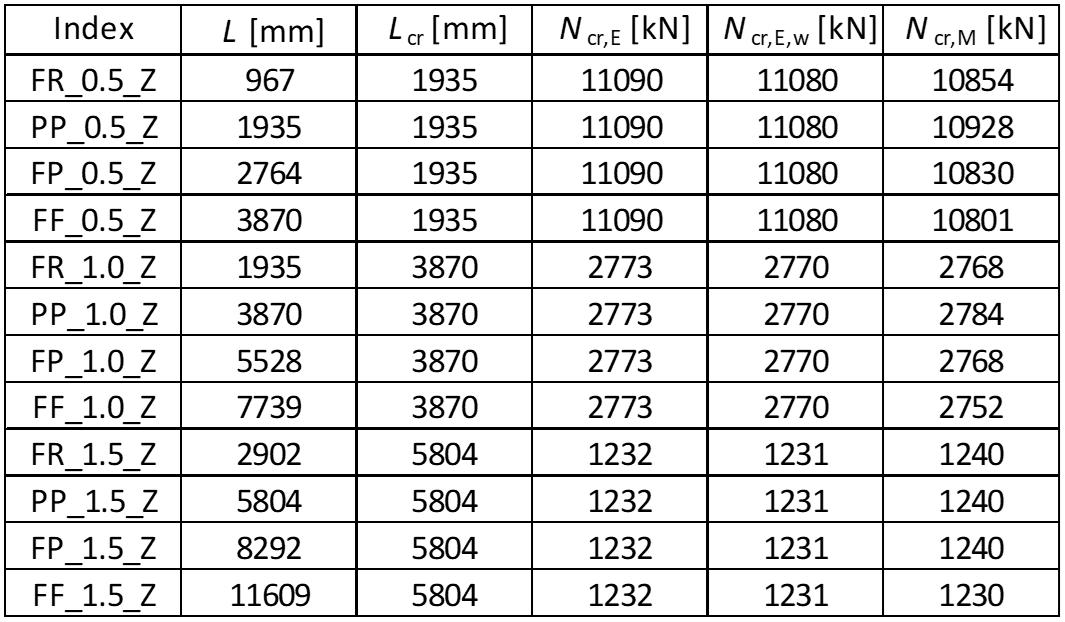

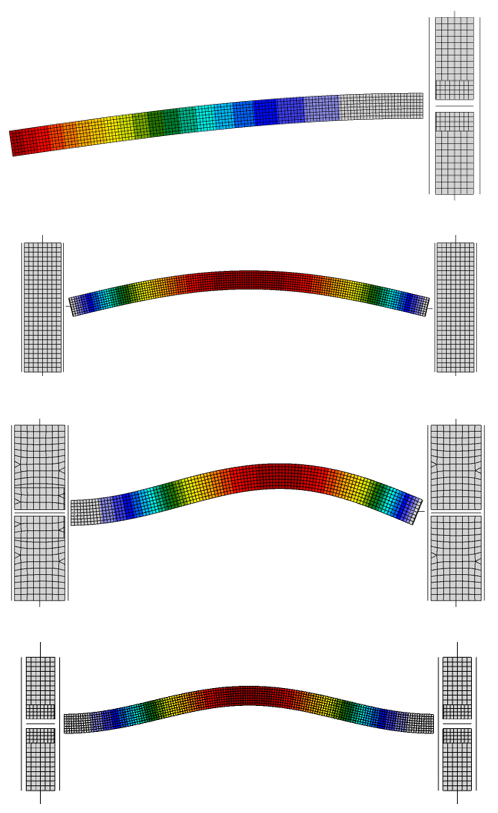

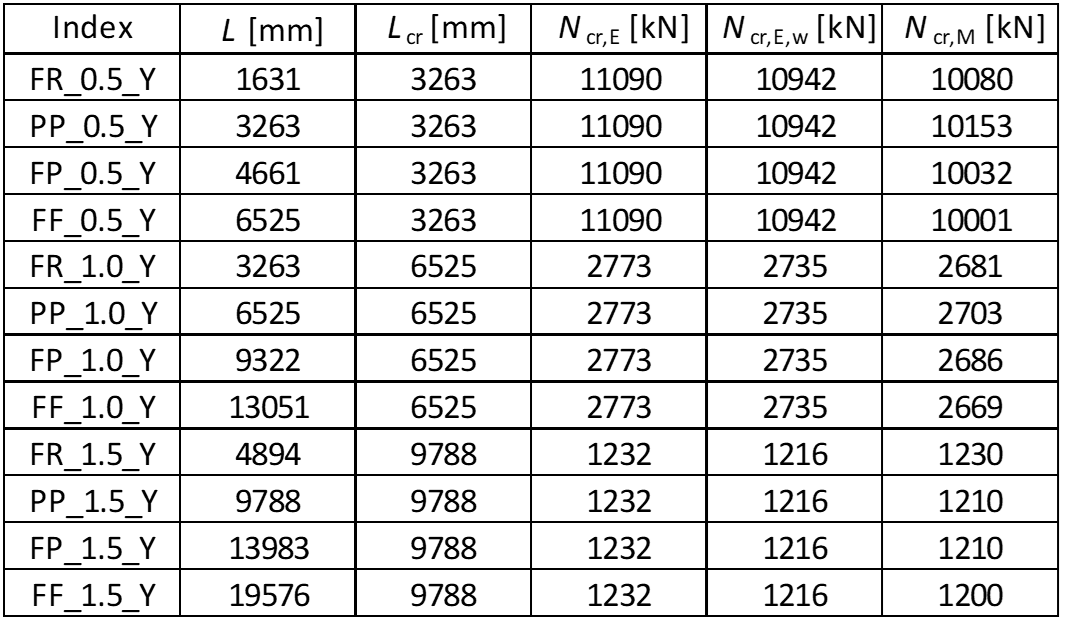

The buckling length for individual cases relative to the system length is:

FR (Fixed – Free)              \(L_{cr,y(z)} = 2.0 \cdot L \)
PP (Pinned – Pinned)        \(L_{cr,y(z)} = 1.0 \cdot L \)
FP (Fixed – Pinned)          \(L_{cr,y(z)} = 0.7 \cdot L \)
FF (Fixed – Fixed)           \(L_{cr,y(z)} = 0.5 \cdot L \)
