1. The objective
The objective of this article is the verification of the LBA (linear bifurcation analysis) module of the IDEA Member application. Beams in bending are analyzed and the influence of different boundary conditions and load positions is investigated. The resulting elastic critical moments from IDEA Member are compared to the elastic critical moments based on Annex I of EN 1999-1-1 [1]. Numerical solution from LTBeam software [2] is also presented.
2. Model description
A total of 18 individual cases was analyzed to verify the LBA module. All of them share the same cross-section IPE 300 and the same steel grade S 355. Three different boundary conditions were investigated (S โ simple, F โ fixed, C โ cantilever), each with two load cases (F โ force; C โ continuous). Three load positions in relation to the shear center are verified (T โ top, N โ neutral, B โ bottom).

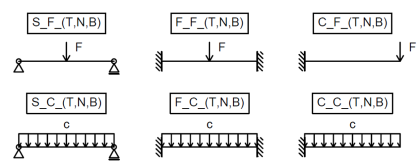

Fig. 1: Various boundary conditions and load cases used for verification
All cases are designated in the following manner: โC_F_Tโ, where โCโ indicates boundary conditions, โFโ the load case and โTโ the load position relative to the shear center.
3. Analytical solution
The three-factor formula found in Annex I of EN 1999-1-1 [1] is used to calculate the elastic critical moment for lateral-torsional buckling of the beams:
\[ M_{cr} = \mu_{cr} \frac{\pi \sqrt{E I_z G I_t}}{L} \]
\[ \mu_{cr} = \frac{c_1}{k_z} \left [ \sqrt{1+\kappa_{wt}^2 + (C_2 \zeta_g - C_3 \zeta_j)^2} - (C_2 \zeta_g - C_3 \zeta_j) \right ] \]
The Annex B of ECCS - Nยฐ 119 [3] is used to calculate the coefficients C1 and C2 for the cantilever.

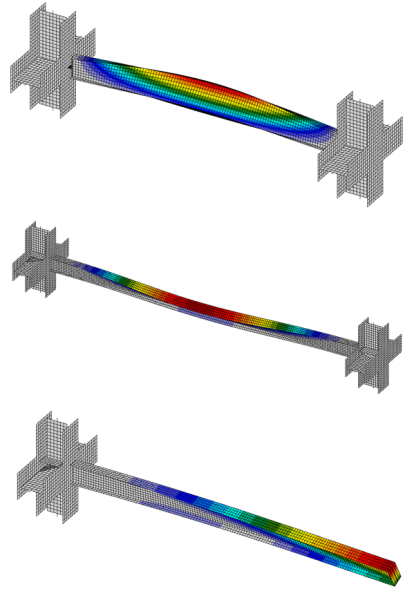

Fig. 2: Buckling modes for the three different boundary conditions

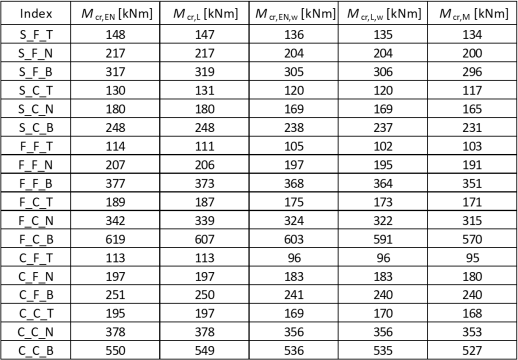

4. Results

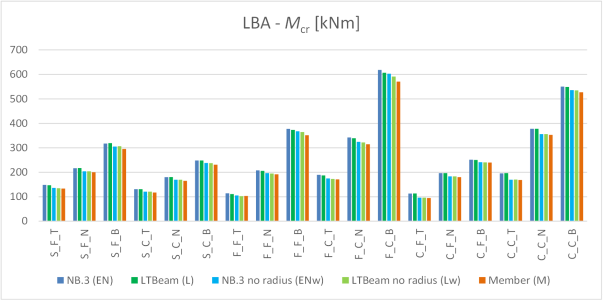

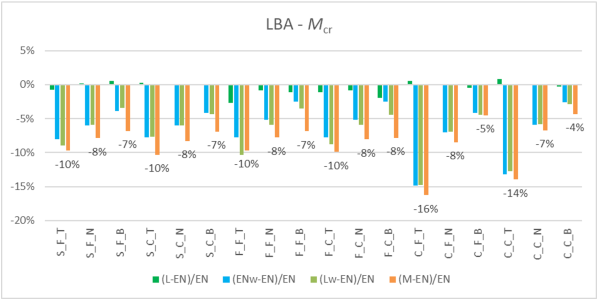

The elastic critical moment from IDEA Member (M) is compared to an analytical value for a rolled cross-section (EN) and for its representation without the web-flange radii (ENw). Furthermore, the same two sets of values are presented as an output from the LTBeam software (L, Lw).
