Type of connection: All welded double-angle connection
Unit system: Imperial
Designed acc. to: AISC Steel Construction Manual
Investigated: Welds, base material
Plate Materials: Beam and column – ASTM A992, angles – ASTM A36
Welds: Leg size = 3/16 and 1/4 in, electrode E70XX
Geometry:
Applied forces:
The maximum shear forces are applied for the connection to be utilized at 100Â % in IDEAÂ StatiCa Connection.
LRFD: Vz = −228 kN at position 7.5 in
ASD: Vz = −158 kN at position 7.5 in
Procedure:

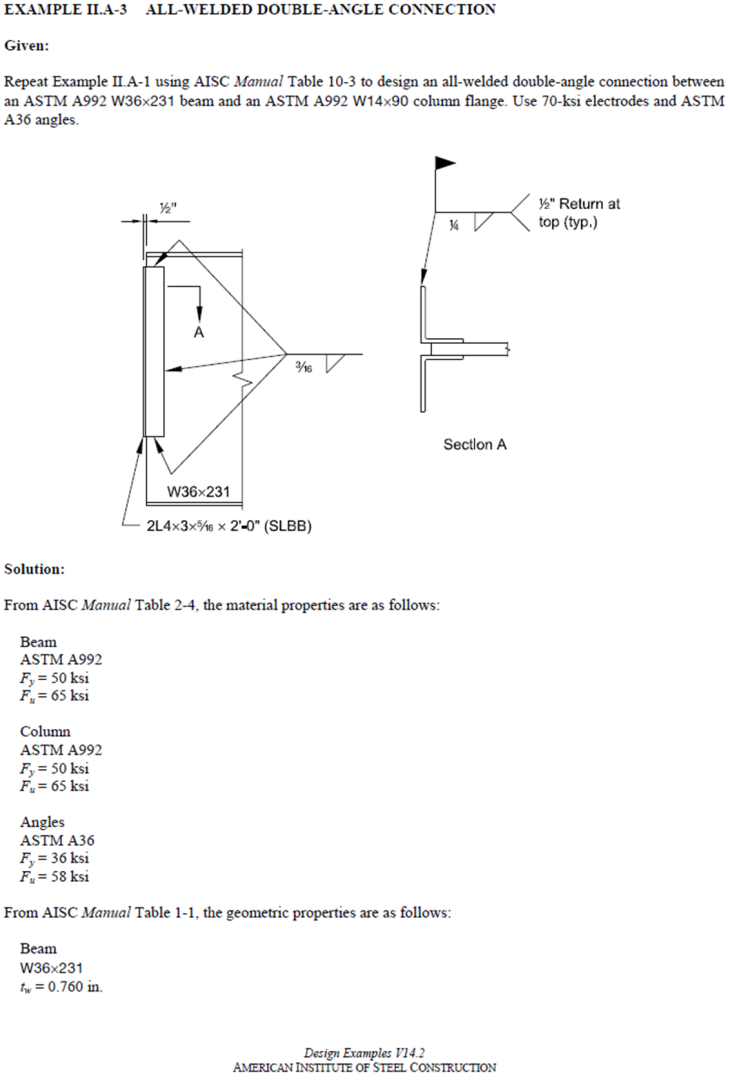

The example is taken from AISC Design examples (Version 14.2, revised in April 2016) – Example II.A 3 All welded double-angle connection.

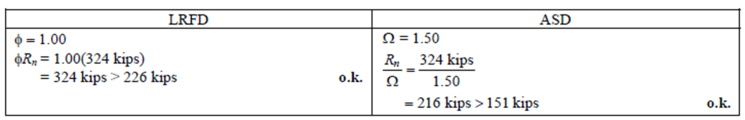

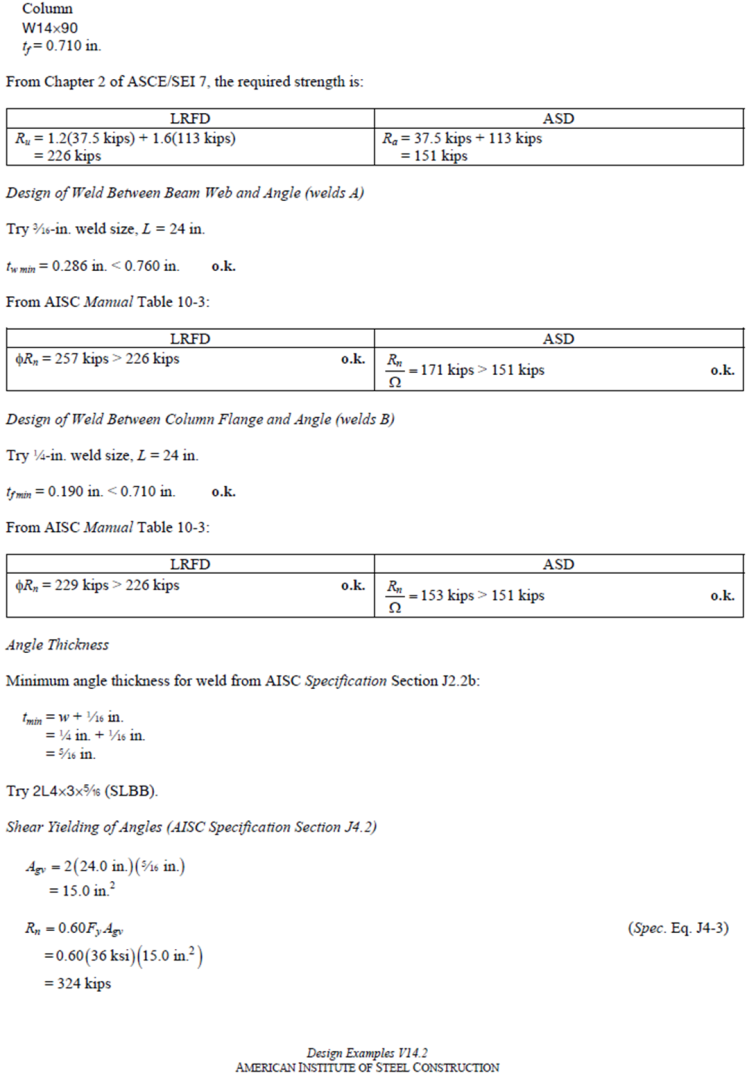

The minimum resistance of the welded double-angle connection is that of the weld between column flange and angle – 229 kips (LRFD) and 153 kips (ASD).

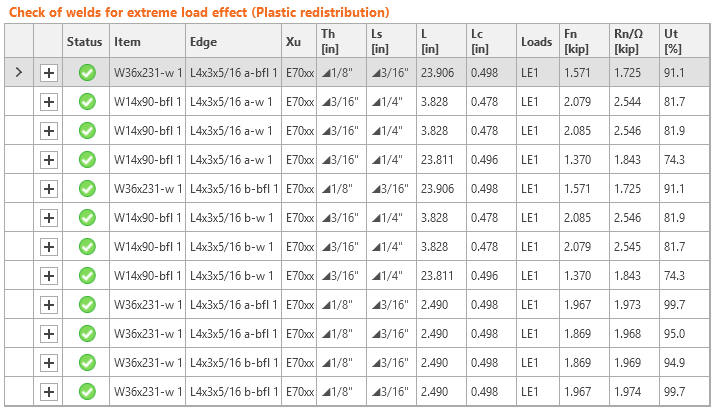

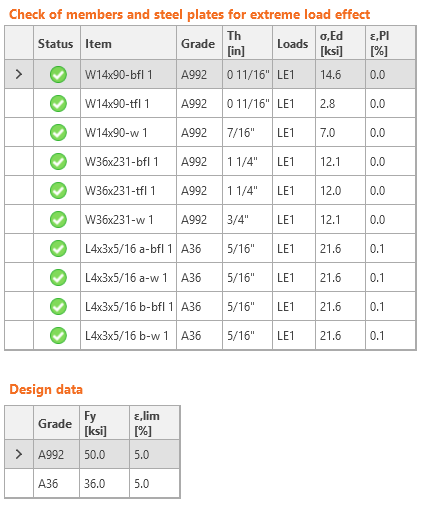

IDEA StatiCa Connection
The results of ASD is shown

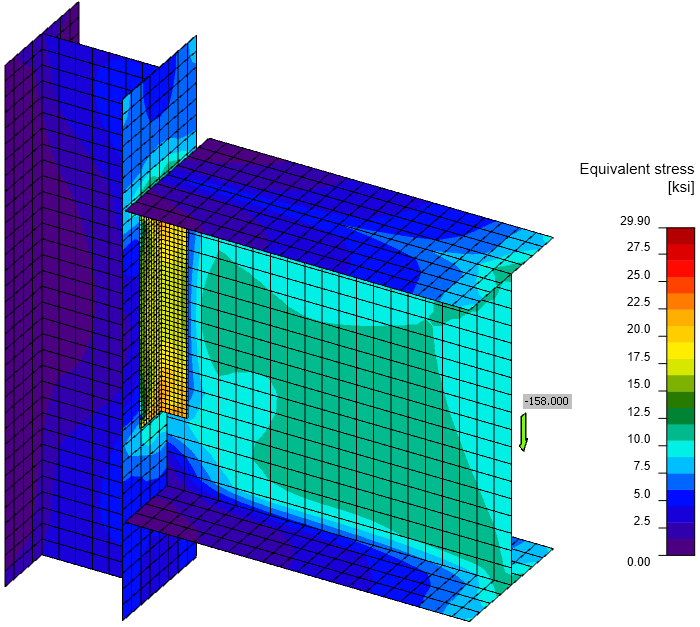

Von Mises stress [MPa]
Comparison:
The results of both IDEA StatiCa and calculation according to AISC Design examples gives nearly identical values: 228Â kips (LRFD) and 158Â kips (ASD) in IDEA StatiCa and 229Â kips (LRFD) and 153Â kips (ASD) in AISCÂ Design Example. The assessment in IDEA StatiCa slightly depends on the position of the shear force. The position near the center of gravity of the angle cross-section was selected.
