}How to use the link

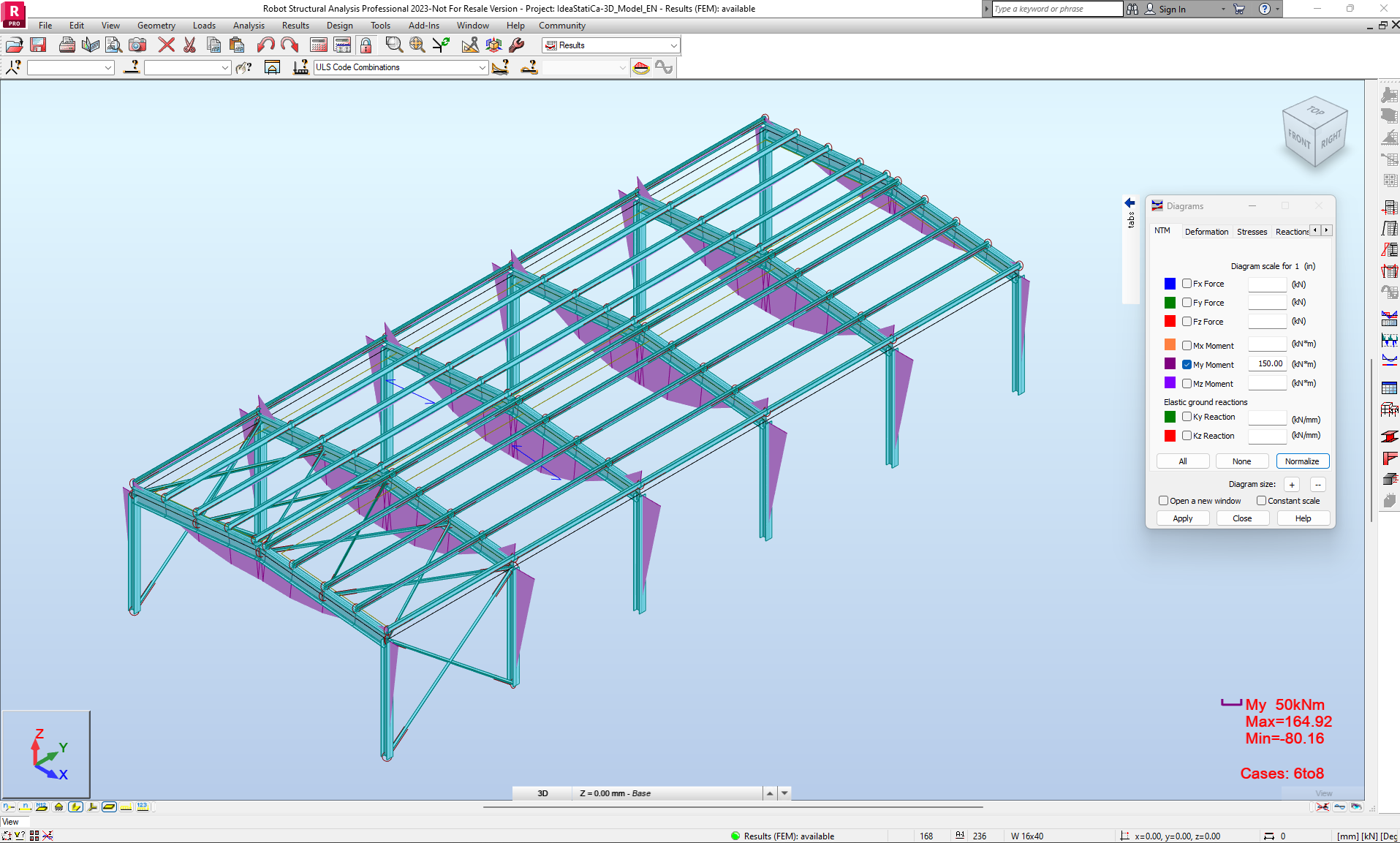

Download the attached project, open it in Robot Structural Analysis, and run the calculation to get the internal forces over the structure.

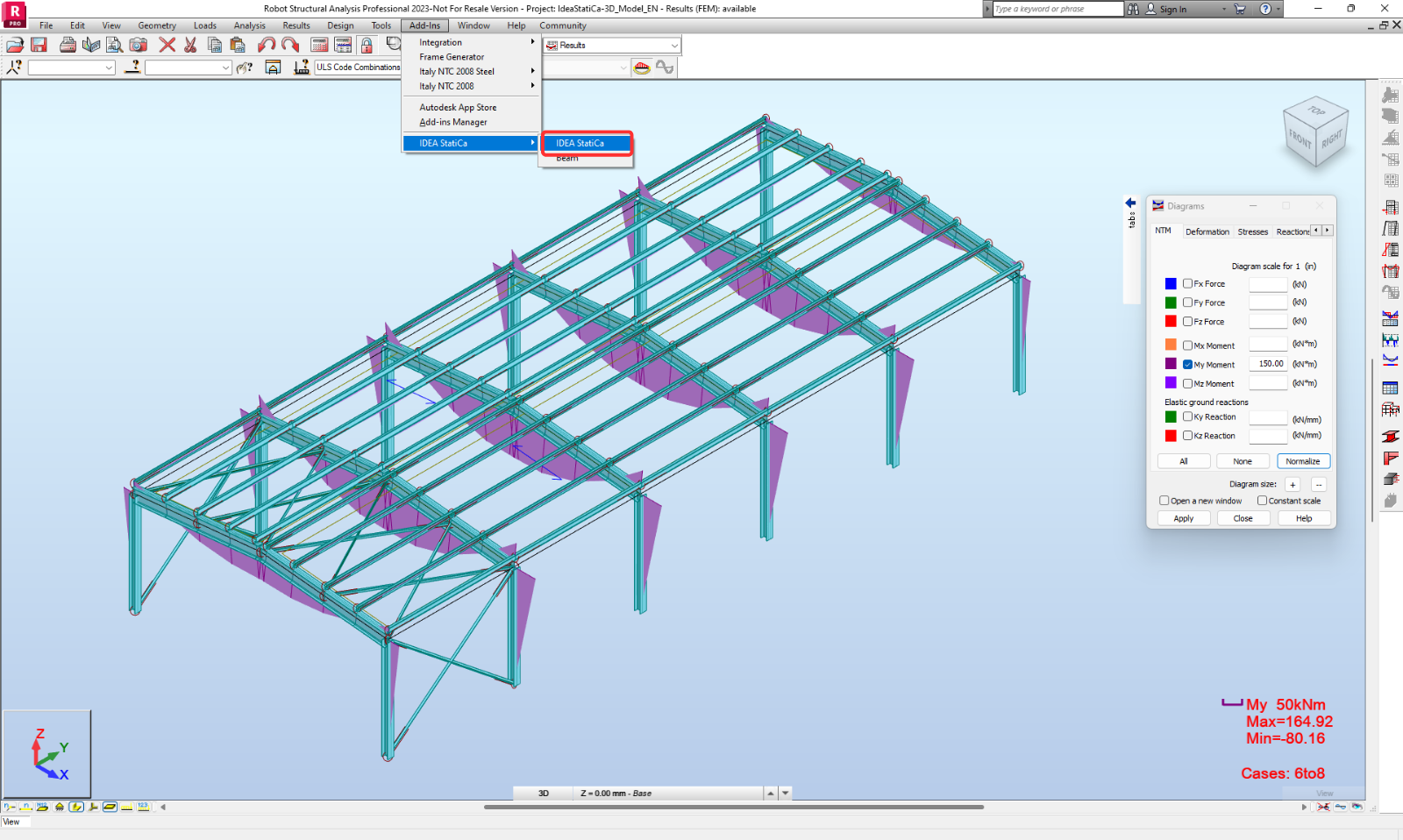

To run the Checkbot, use the Add-Ins button. And find the IDEA StatiCa icon.

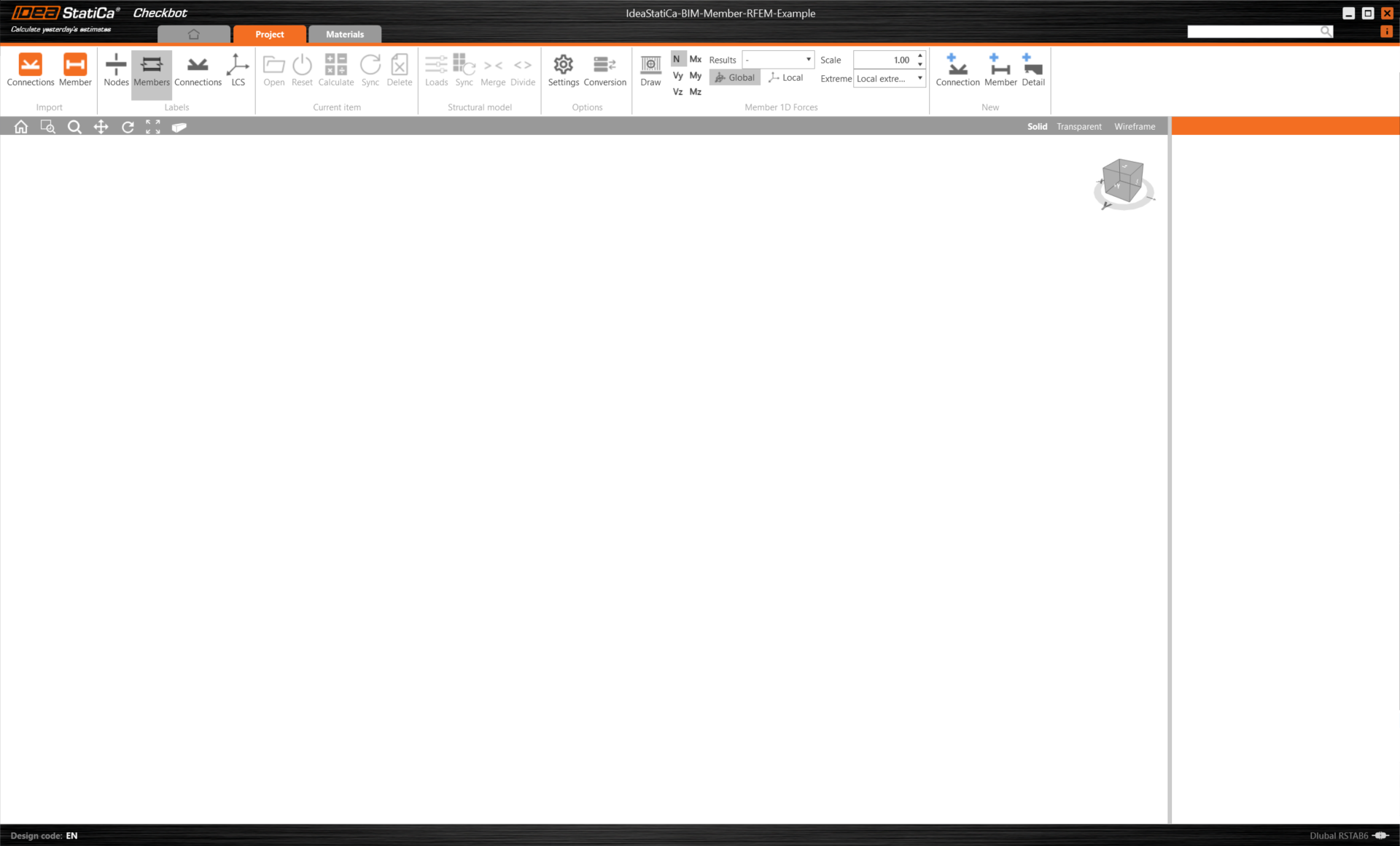

After launching the Checkbot app select New with project type Steel and design code EN. Then select Create Project.
Import
The new Checkbot project is ready to import connections and members from Robot Structural Analysis.

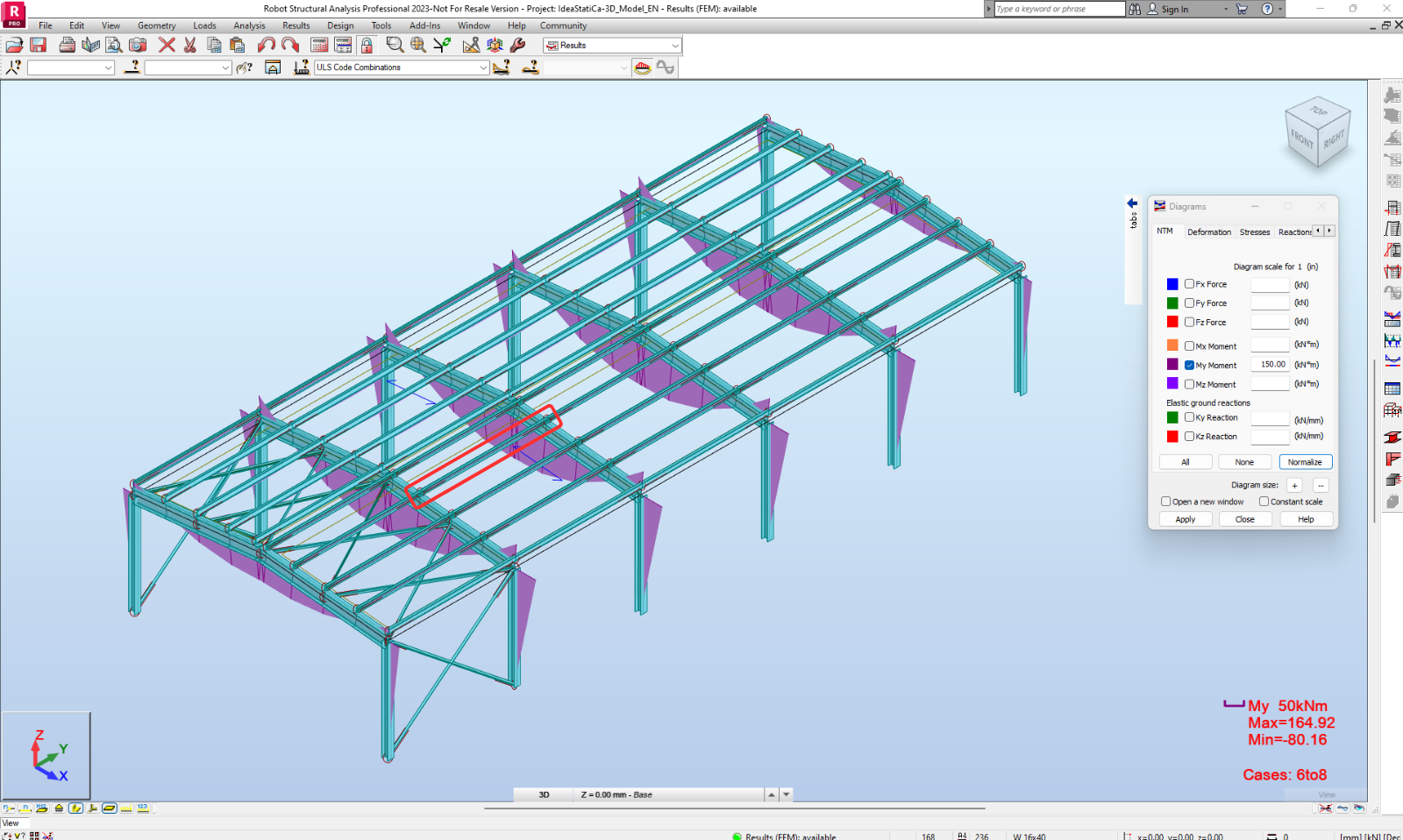

In Robot Structural Analysis, select one of the inside members, as shown in the following picture.
Geometry

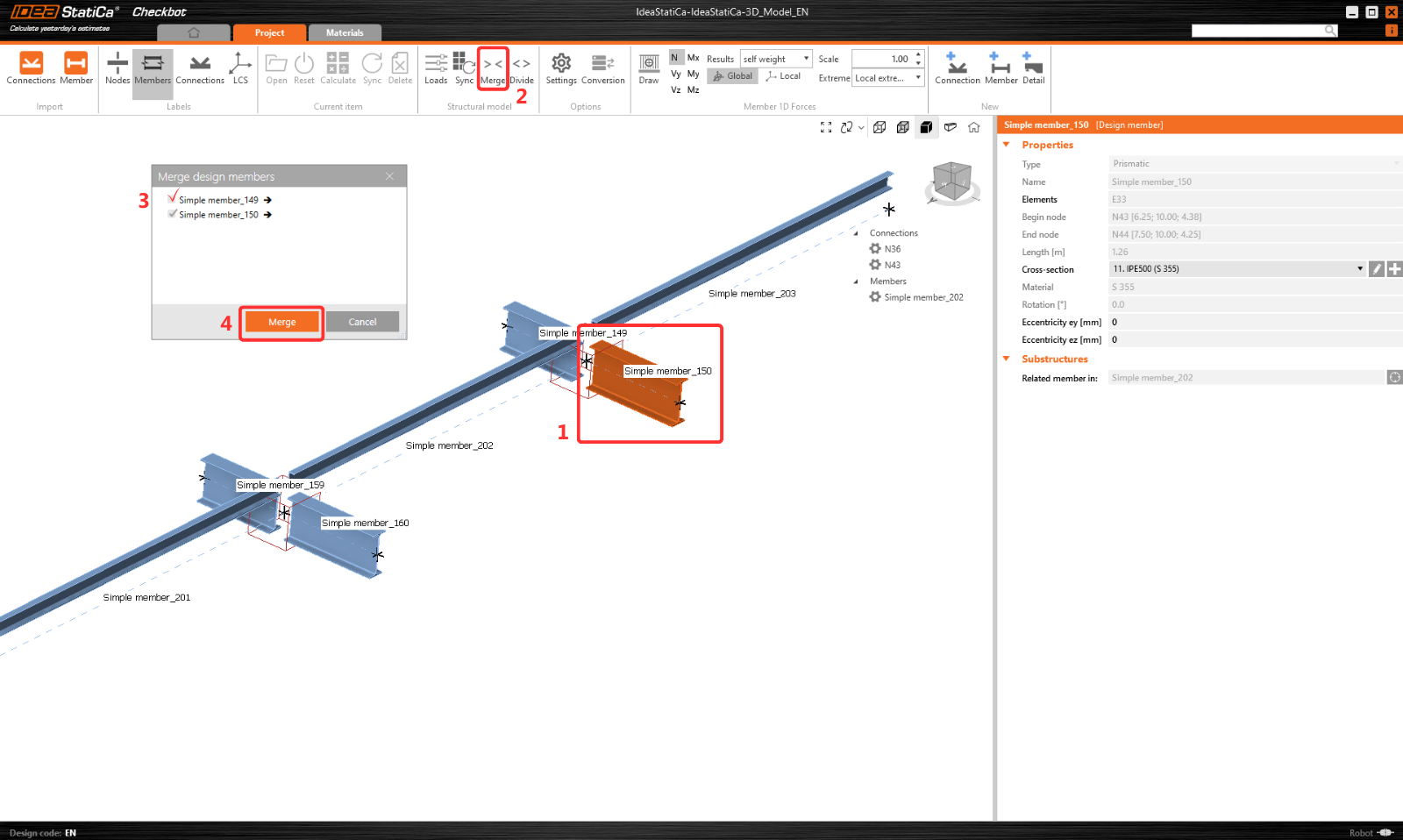

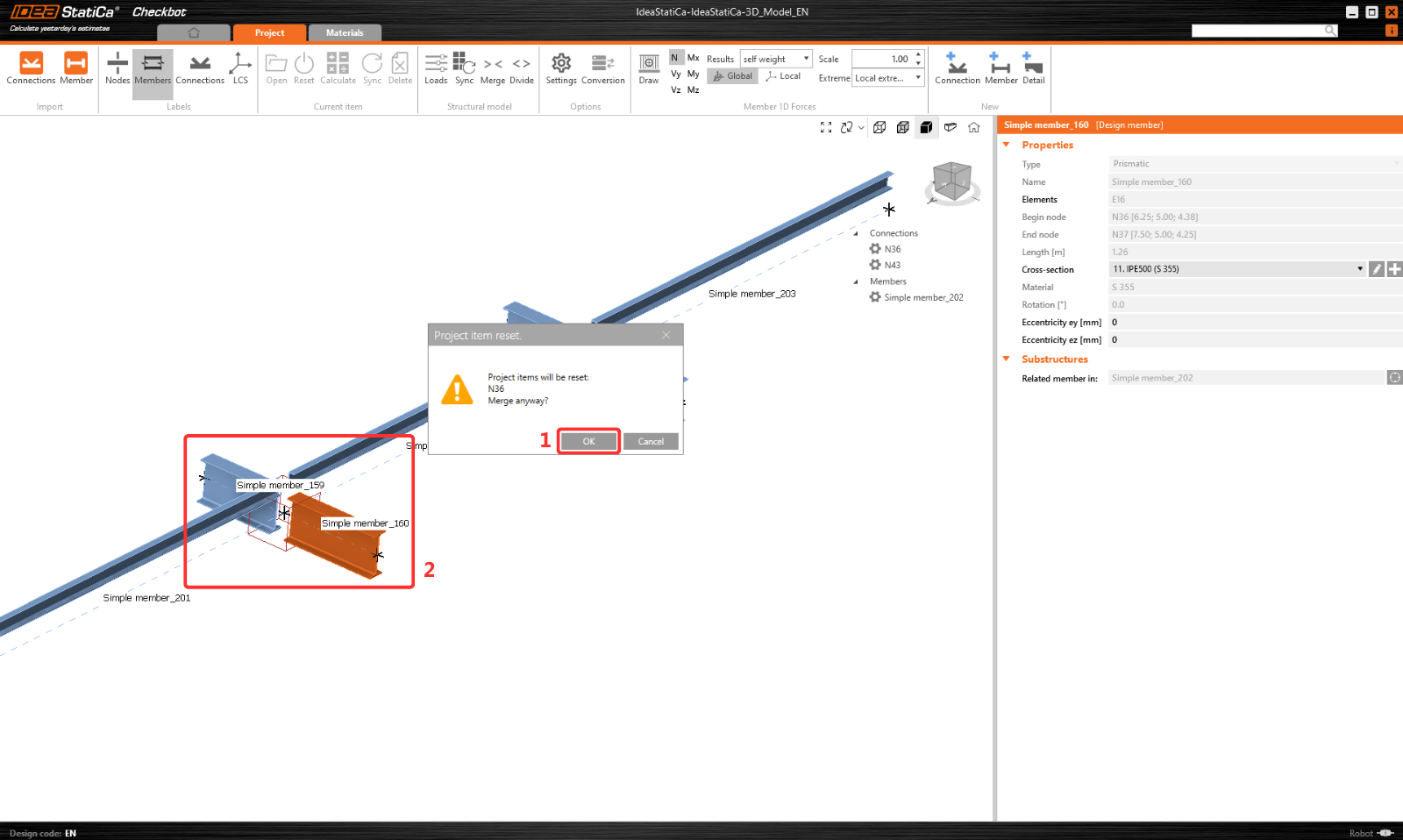

In Checkbot you can merge separated members into a continuous one. Merge both supporting beams. Select the related member 150, click the Merge command.
Same merging operation as previous for related member 160.

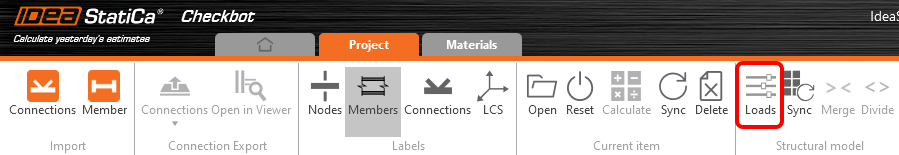

You can control which load cases and combinations will be used for the analysis in the Checkbot application by clicking on Loads and managing the Result classes for checks column.

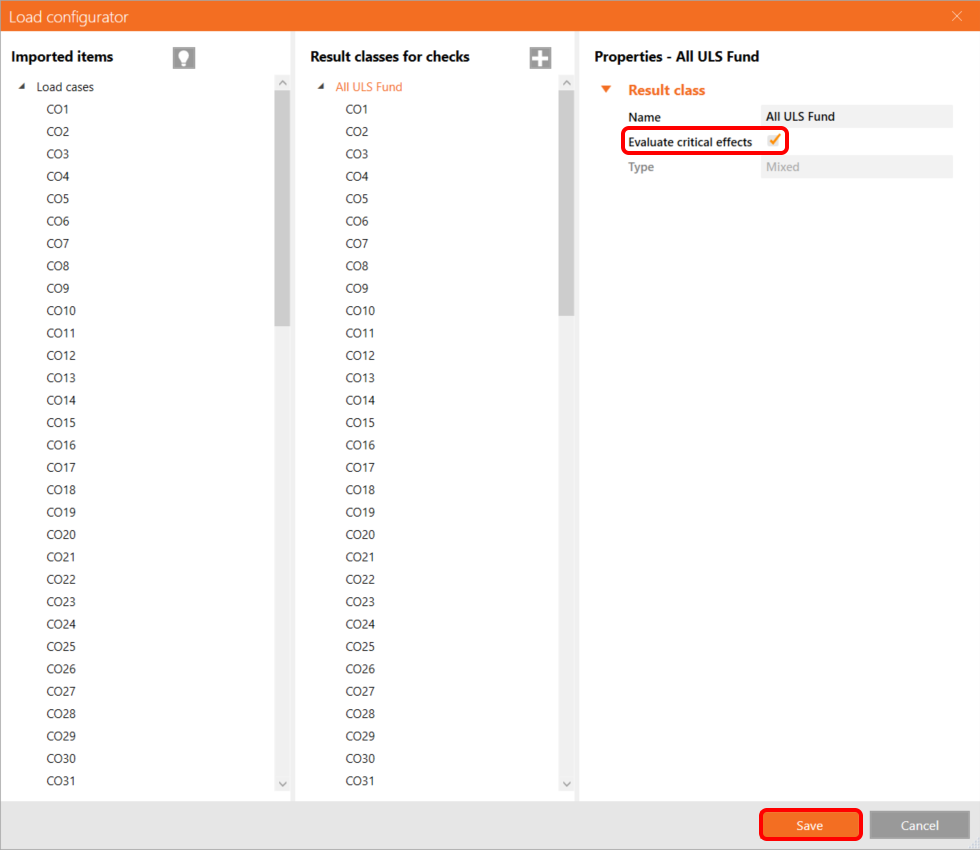

Note: By default, the Evaluate critical results function is enabled, which filters out the non-dangerous load cases and combinations to speed up the calculation. You can turn it off, and all combinations will be included in the calculation. You can delete or add items via right-click or drag and drop between the columns.
Read more about this feature and algorithm behind it.
For applying changes you also need to click on Load Update button.
Design

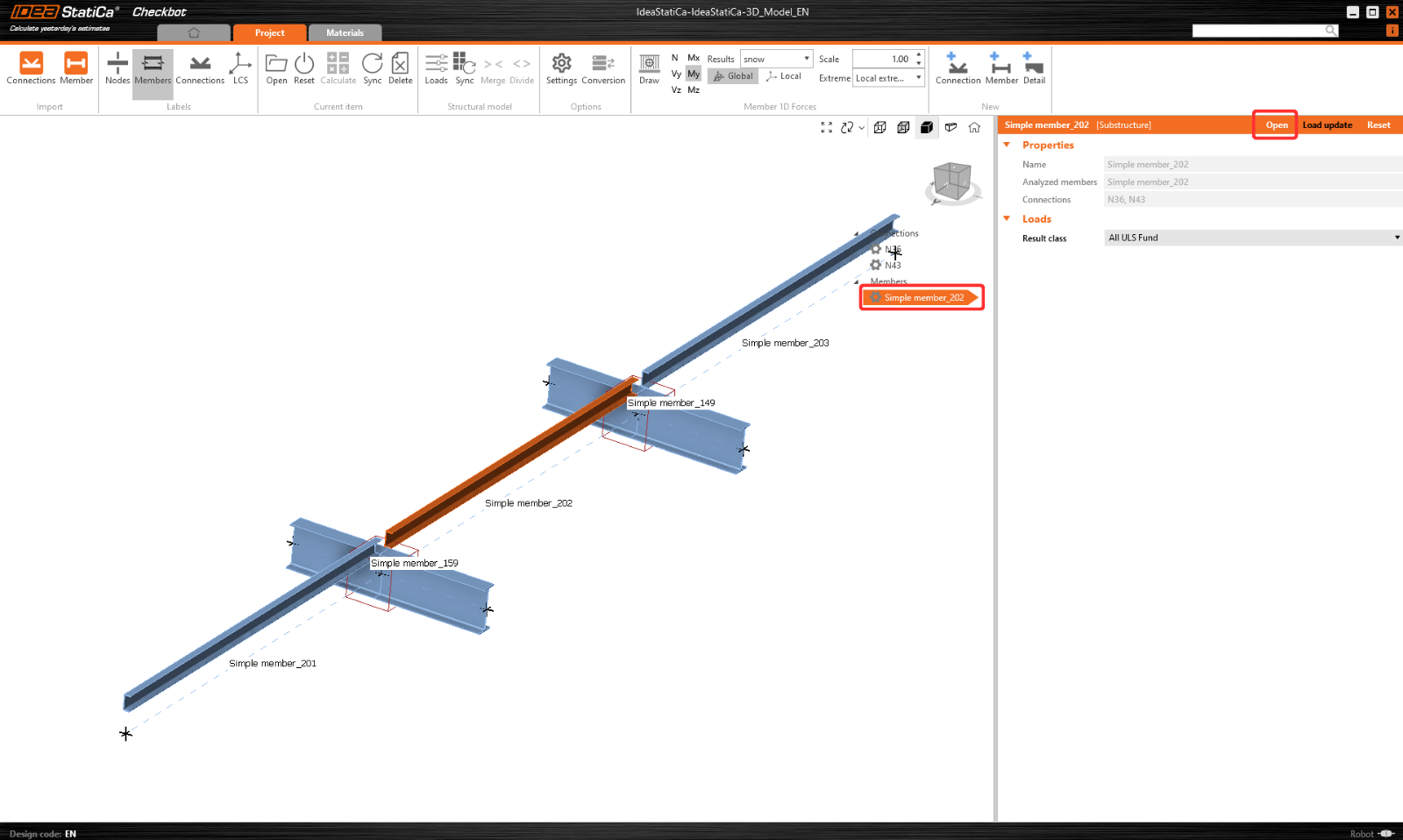

Now, select member 202 and click Open to start the design.

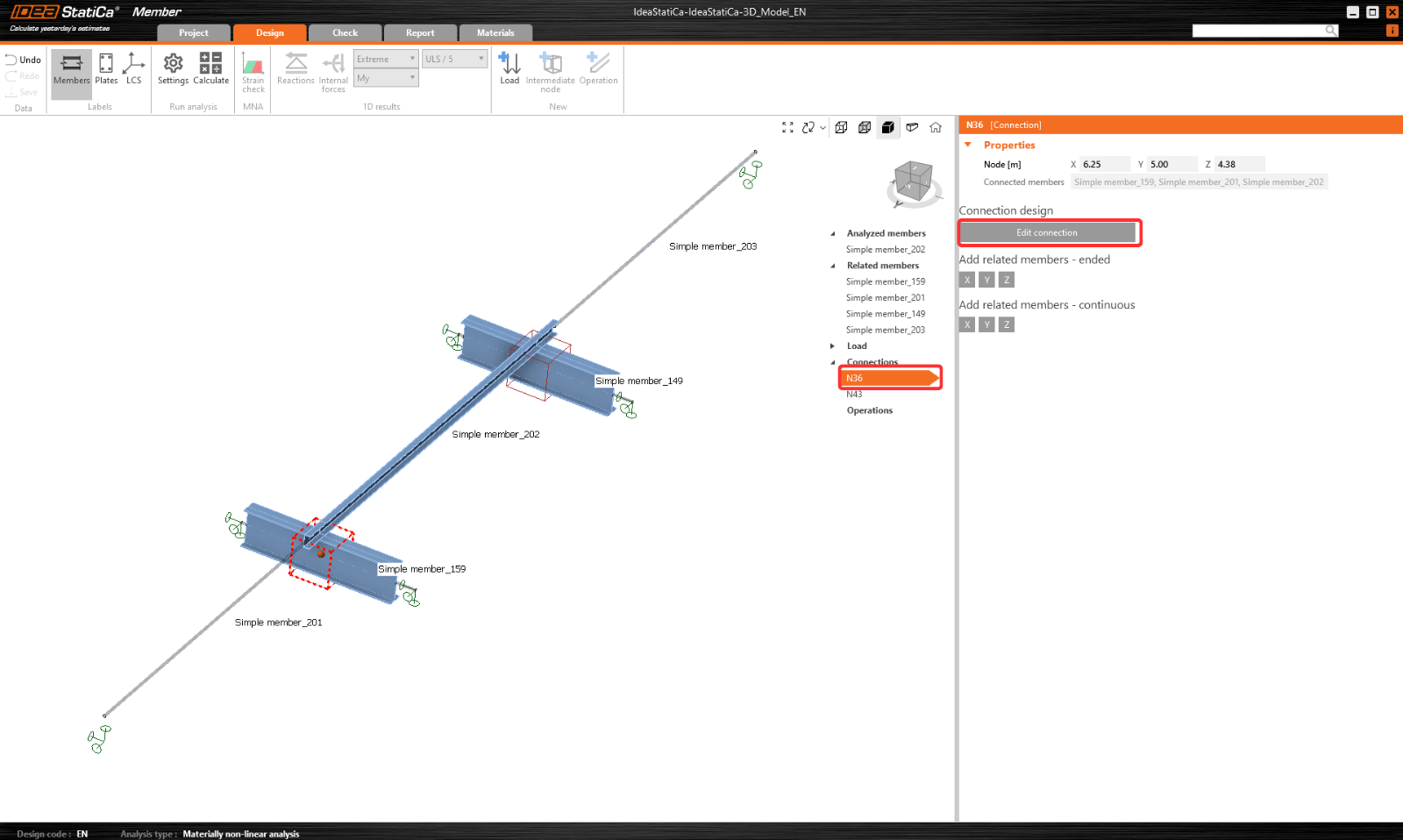

First, design connection N36. Select it, and click Edit connection to open the application Connection.

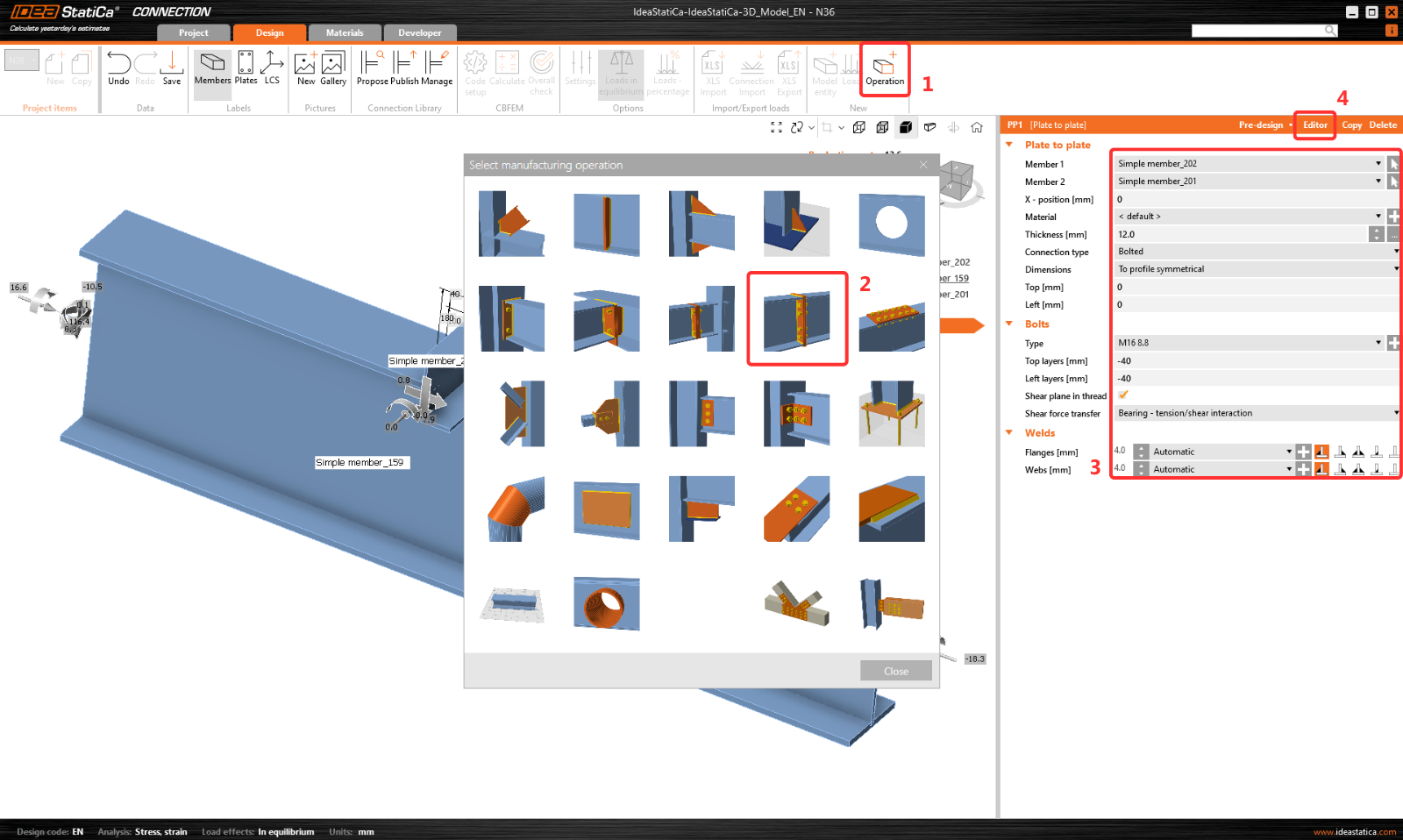

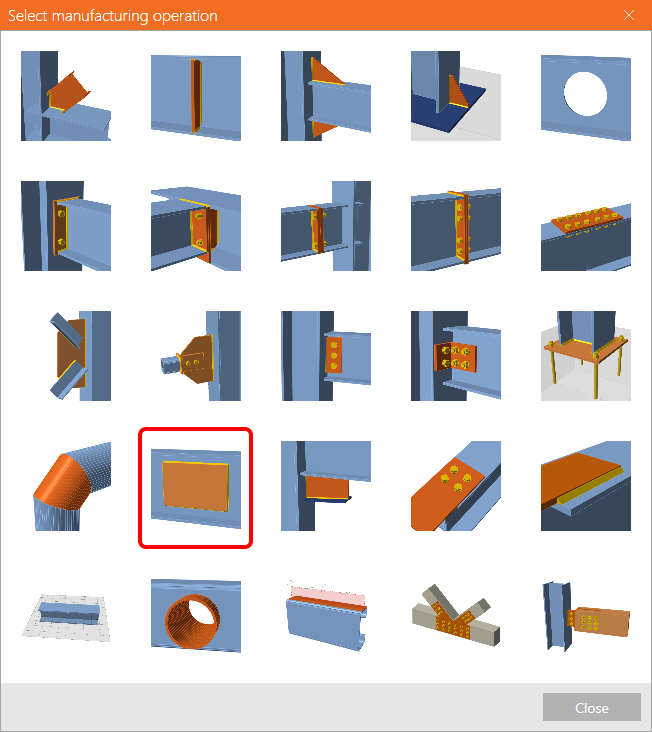

Click on Operation and select Plate to plate. Set the values according to the picture. Then click on Editor.

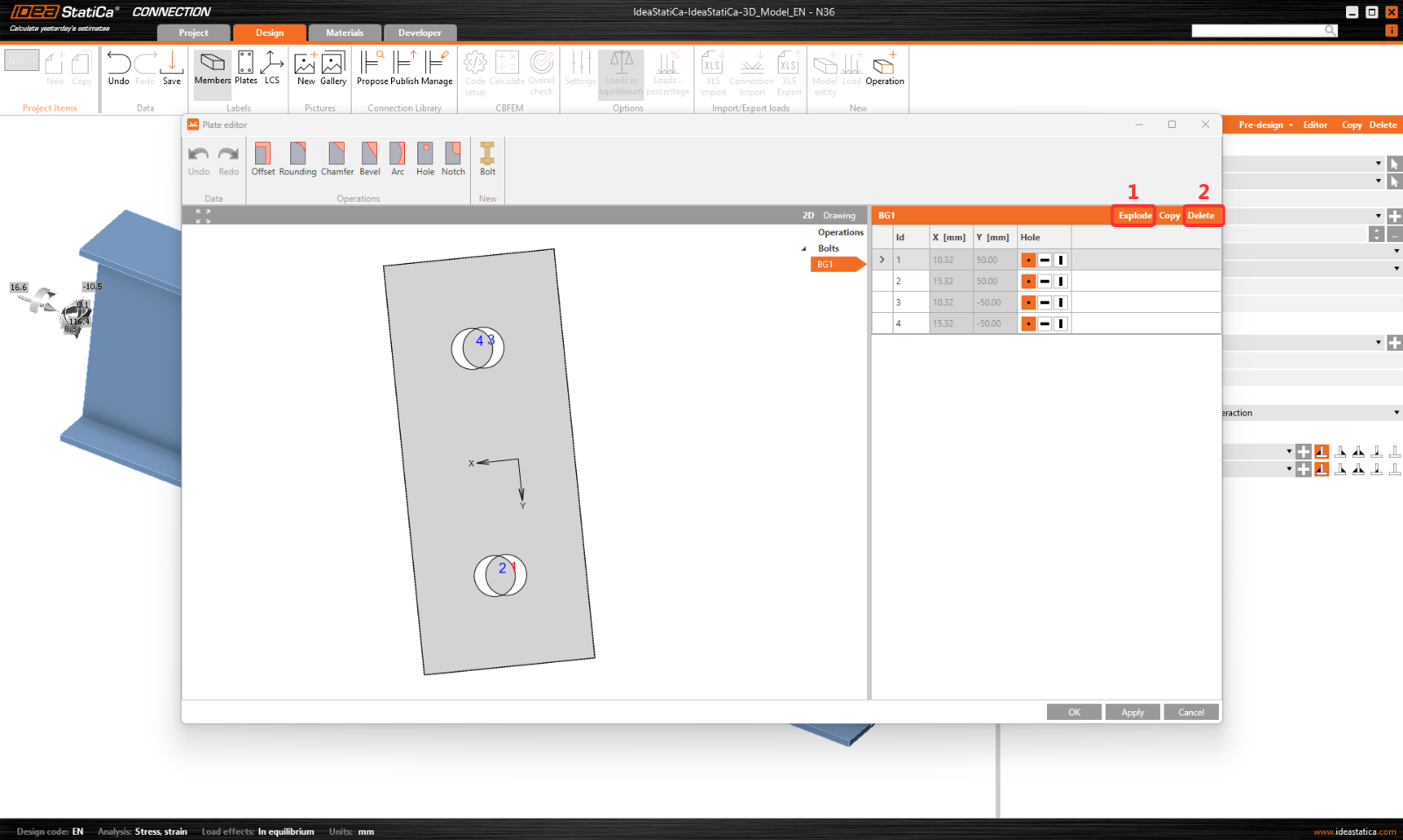

Click on Explode and delete bolts 1 and 3.

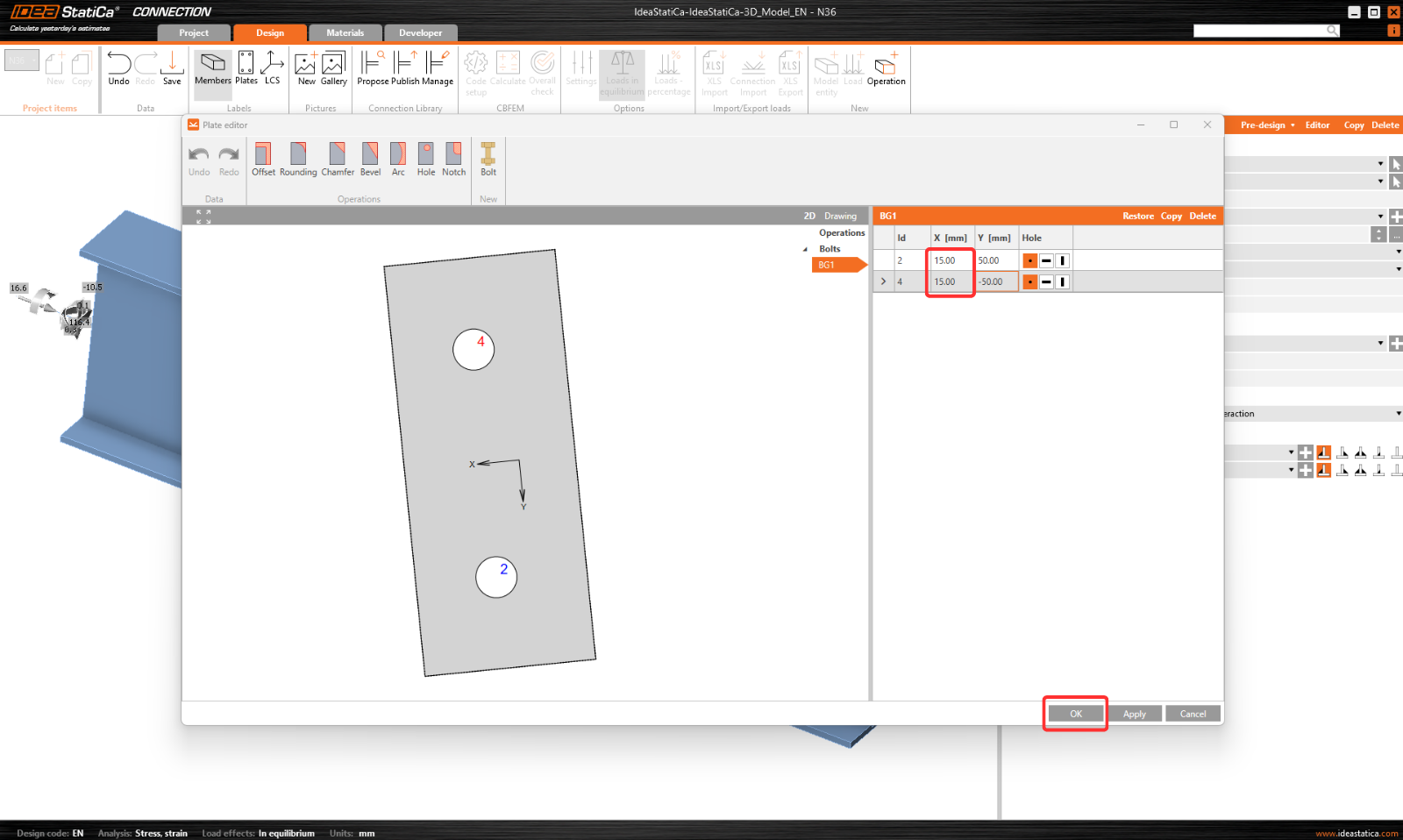

And set coordinates for bolts 2 and 4 according to the picture. Confirm changes by clicking OK.

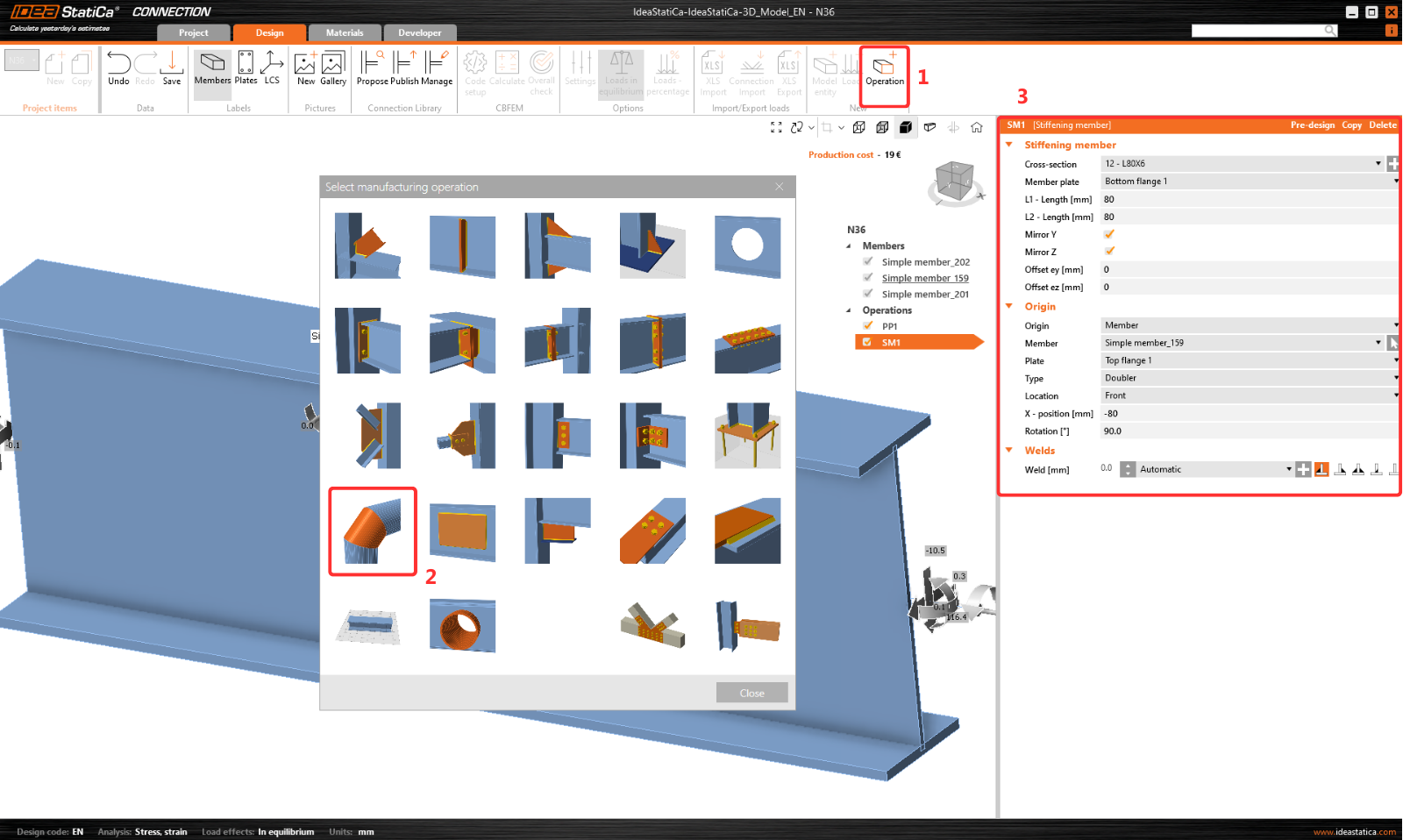

The next operation is the Stiffening member, set L-profile L80x6 with the following values.

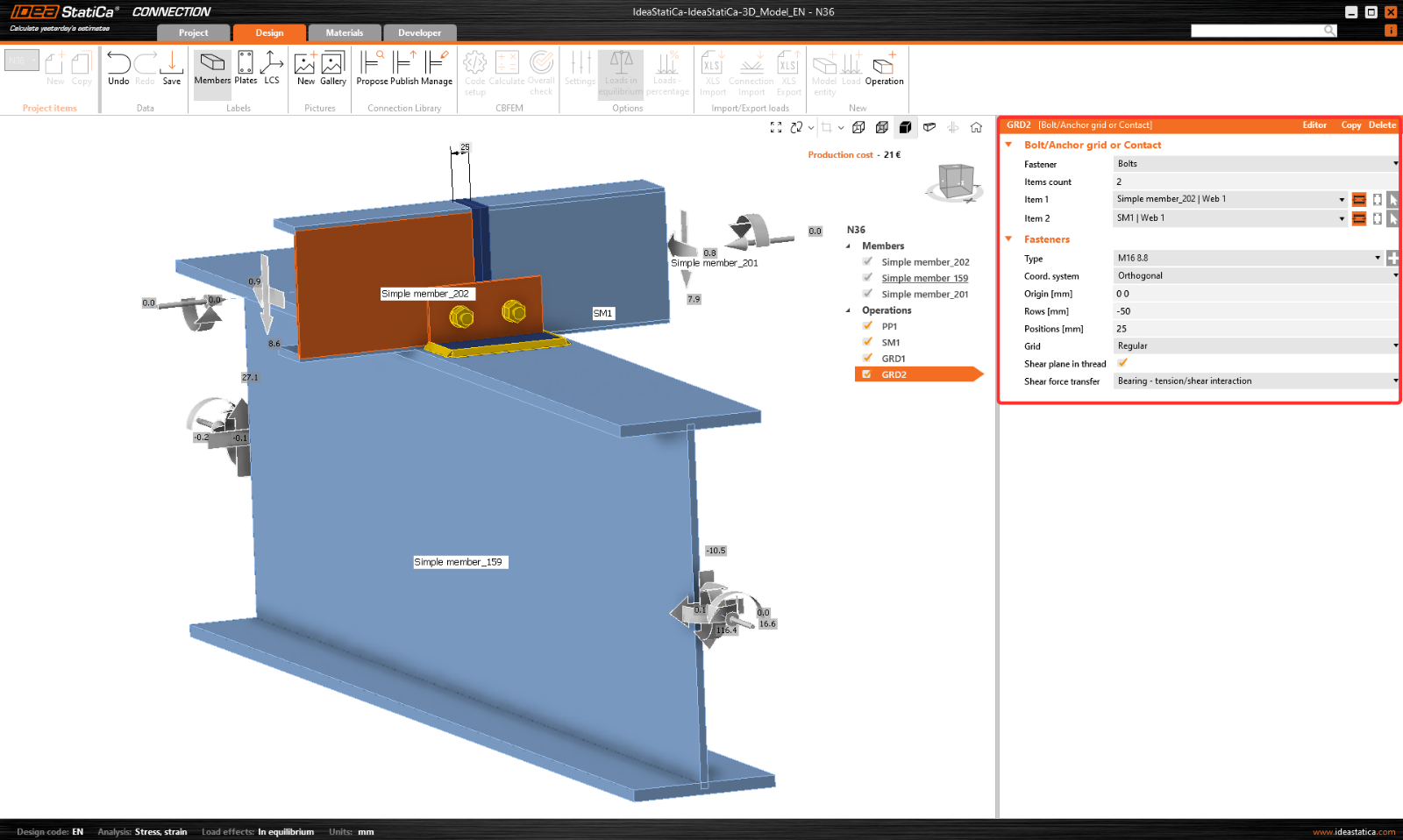

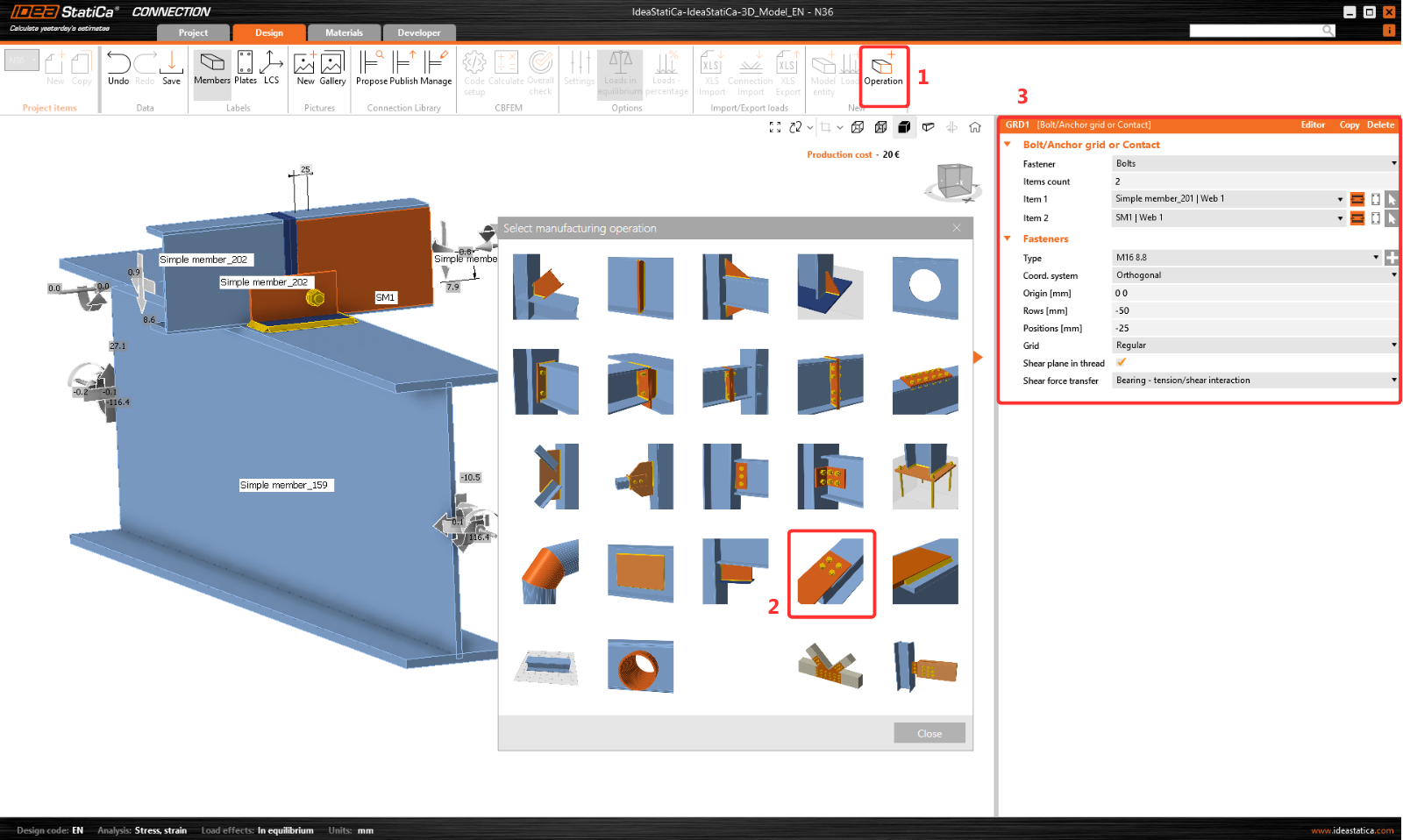

Add the operation Bolt/Anchor grid and modify the parameters.
Copy this operation and change the selected values.
Now add a Stiffening plate to the joint.

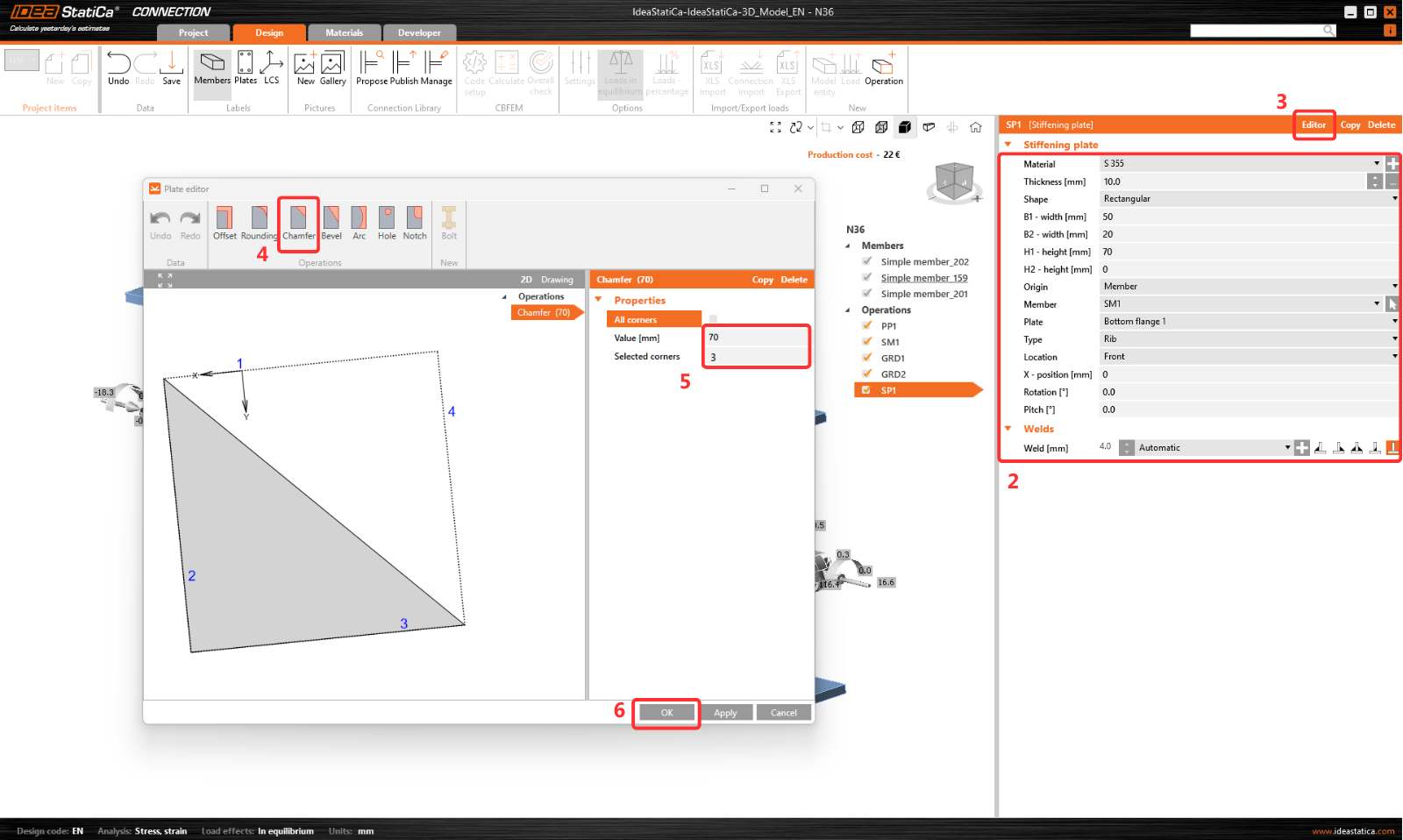

And modify its shape in the plate Editor. Here, add the Chamfer operation to cut the plate.

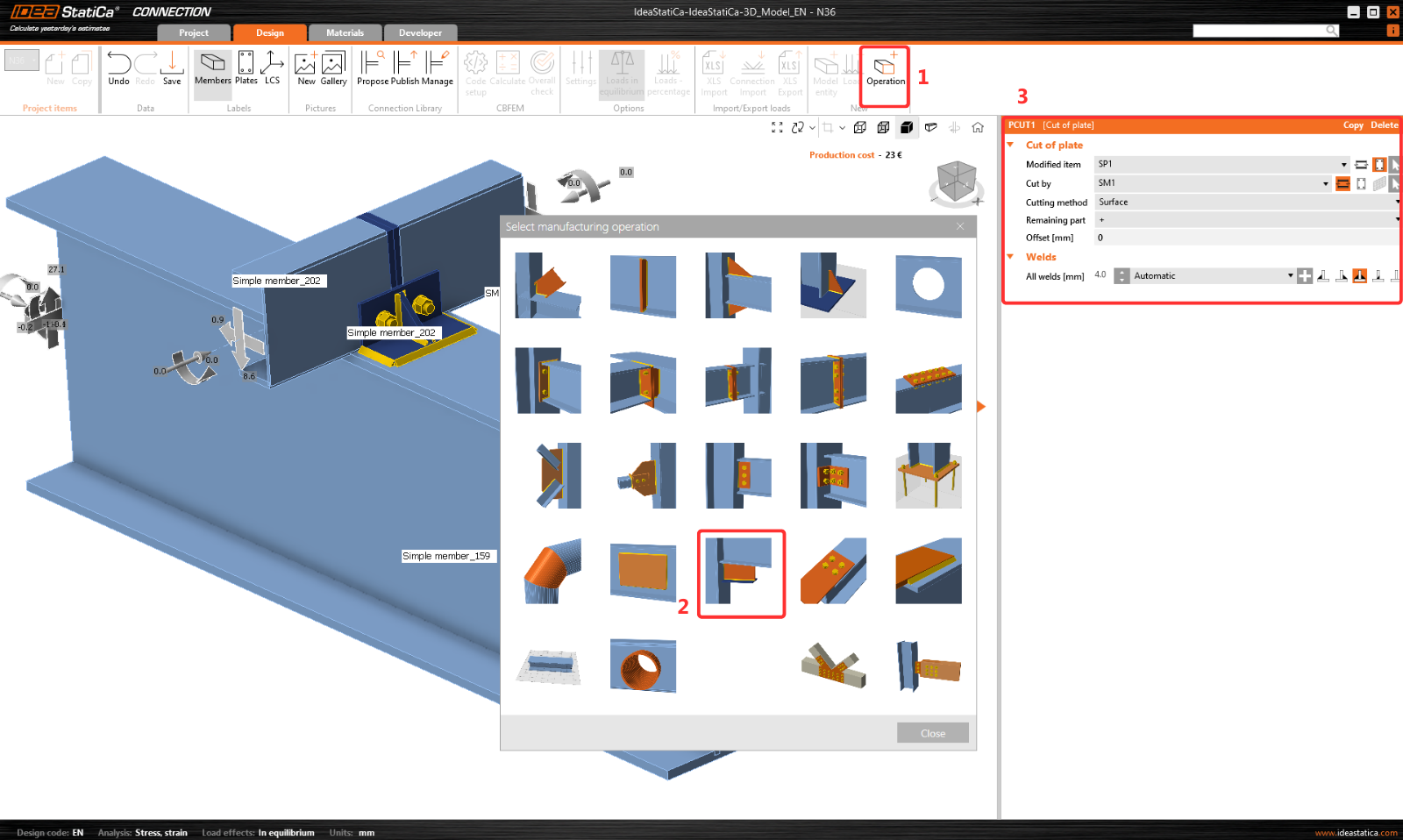

The last operation is the Cut of plate.

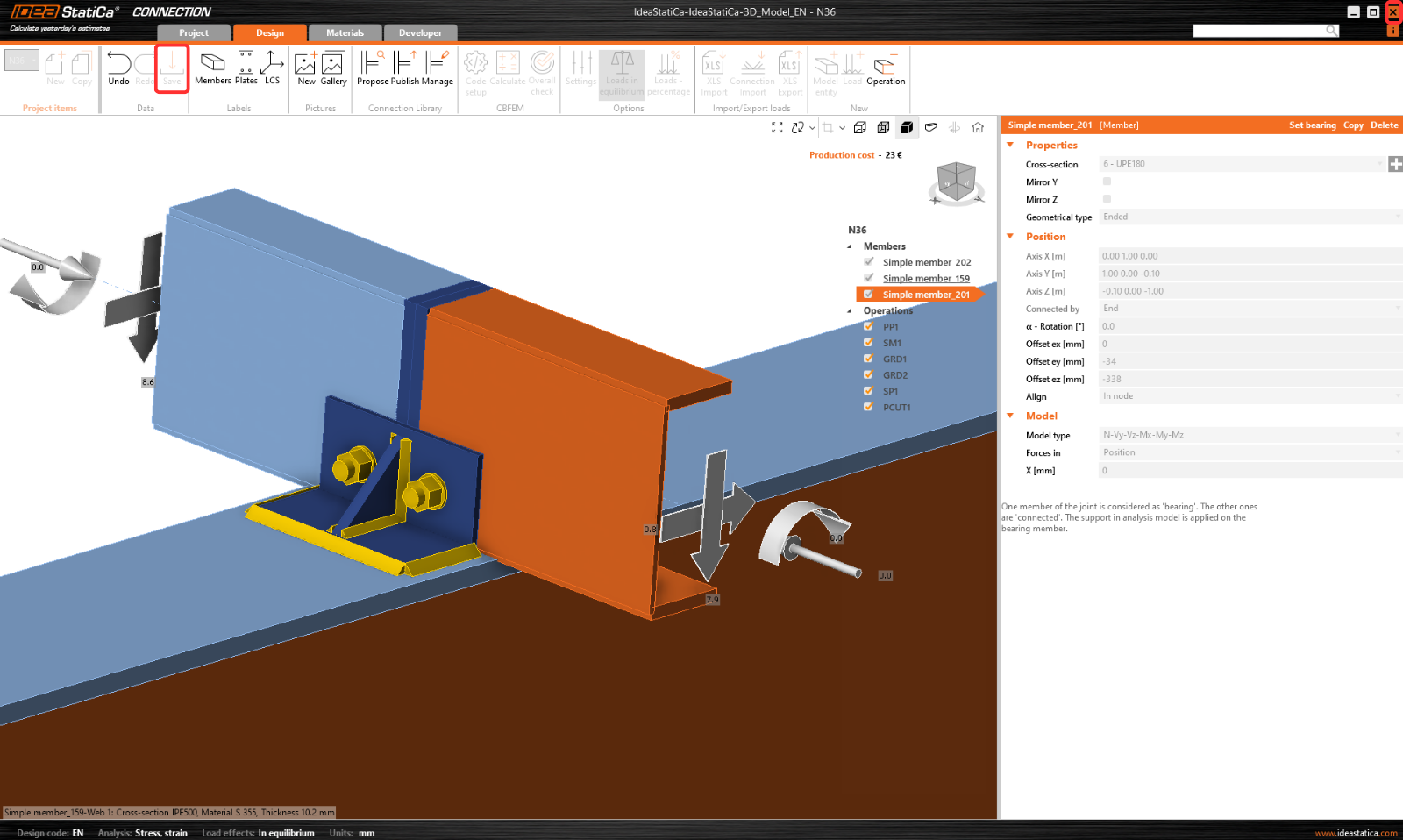

Now click on Save and close the module Connection.

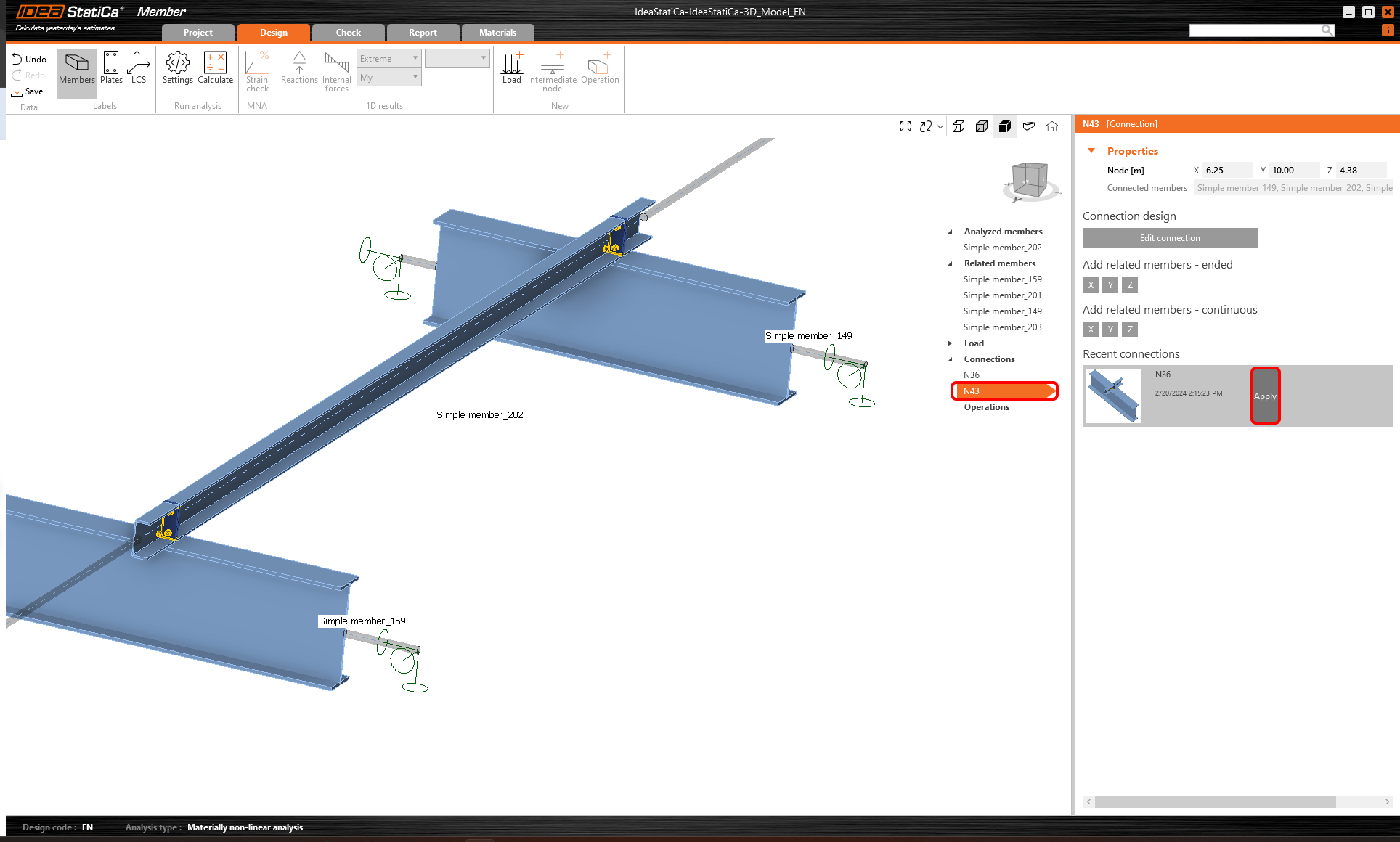

As we have a similar connection in both nodes, you can copy the finished design to node N43 by clicking Apply.

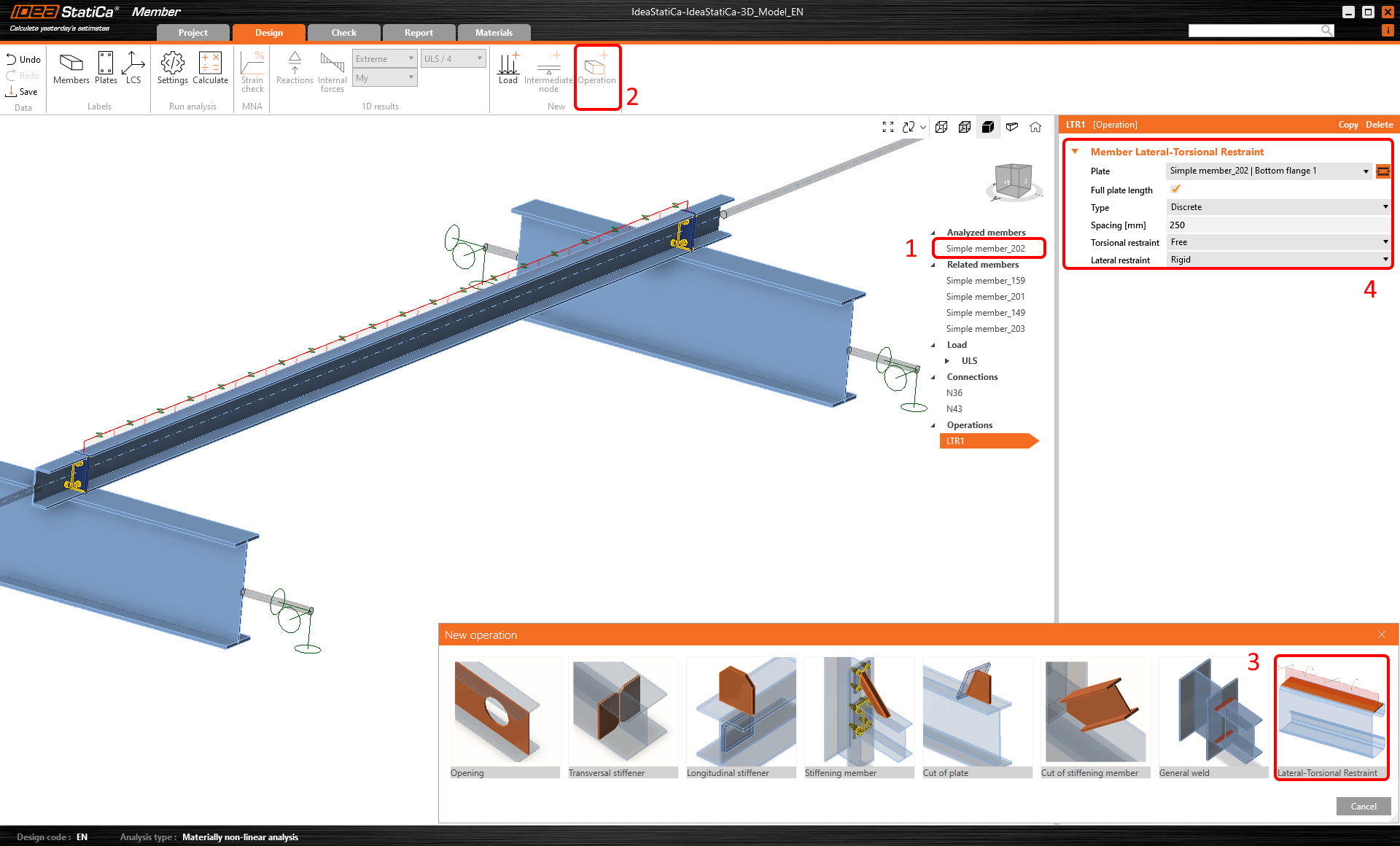

Because there are roof panels stabilizing the analyzed purlin, add the operation Lateral-Torsional Restraint to simulate it and set the parameters.

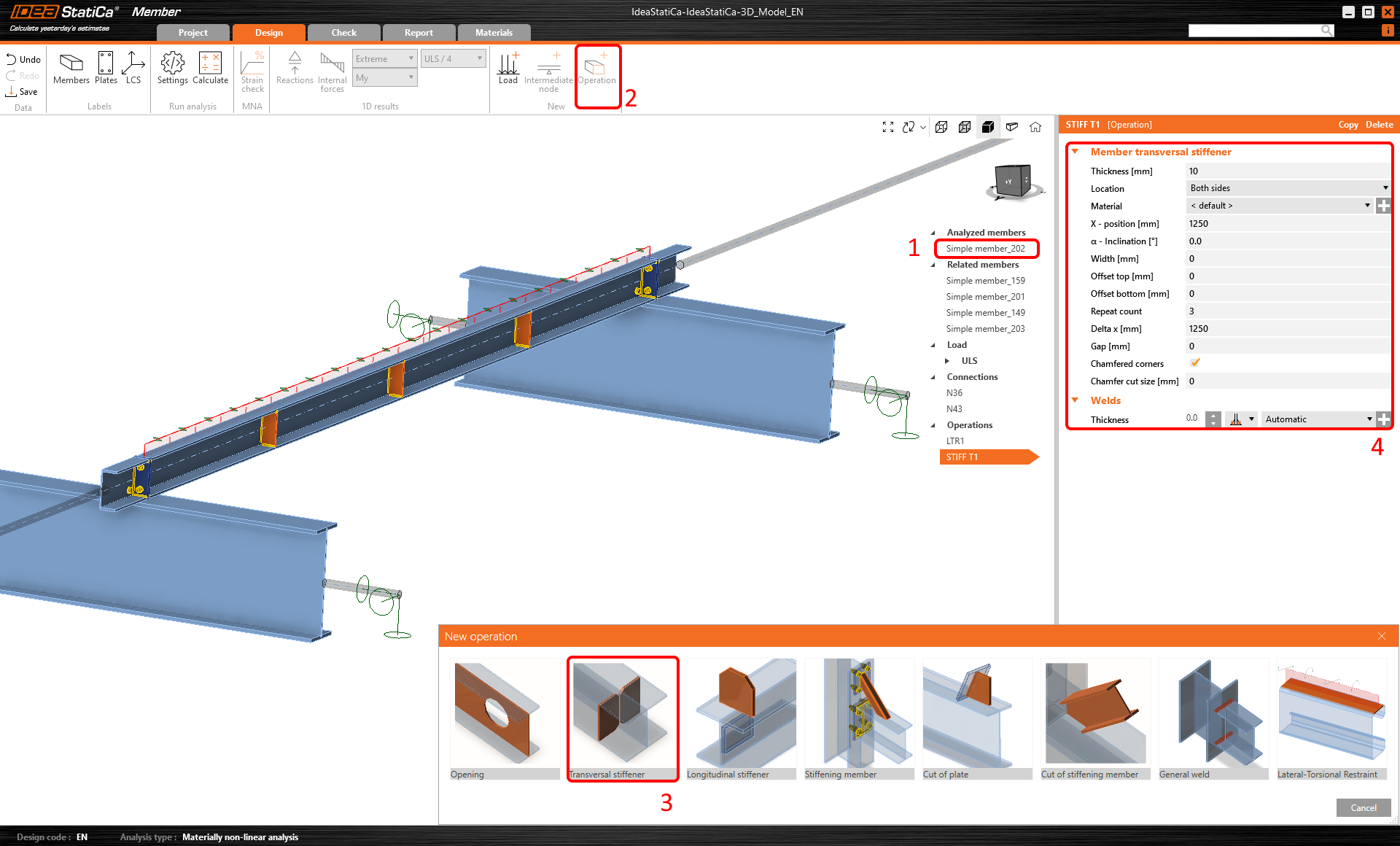

Then add the operation Transversal stiffener.

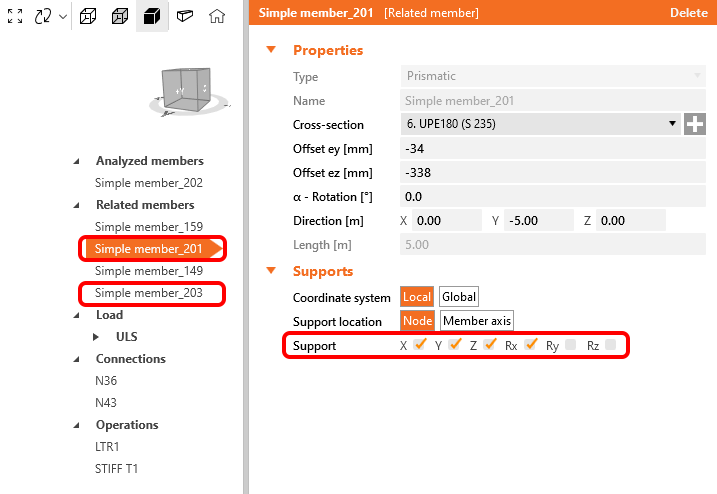

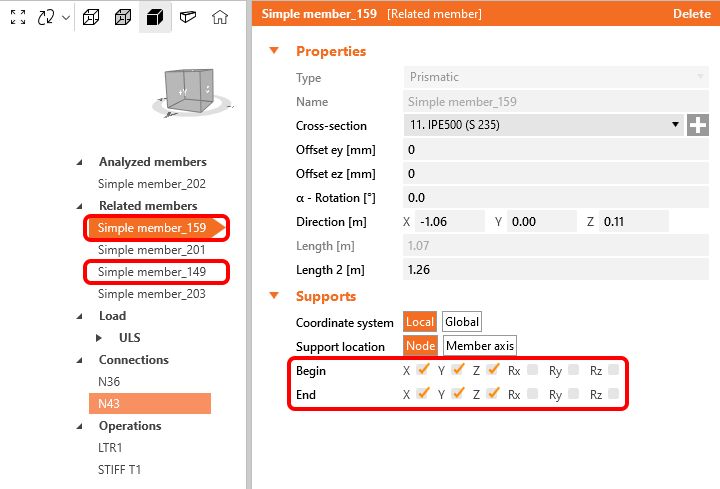

For the proper structural behavior of related members, set the supports of the connecting purlins 201 and 203 to X, Y, Z, and Rx.
As well as for the supporting members 149 and 159 set supports to X, Y, Z.
Code-check
Now, the member model is ready for the analysis.

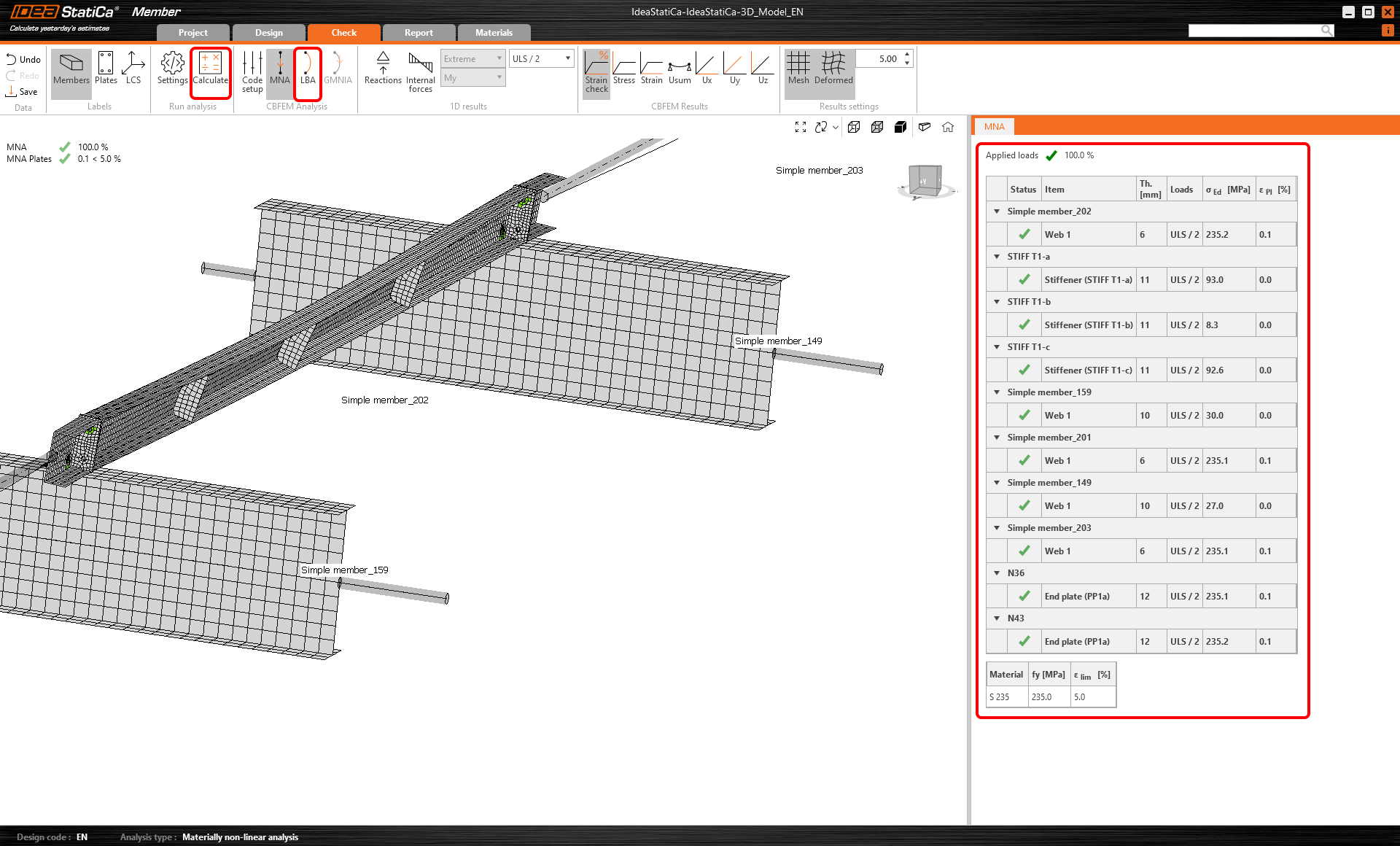

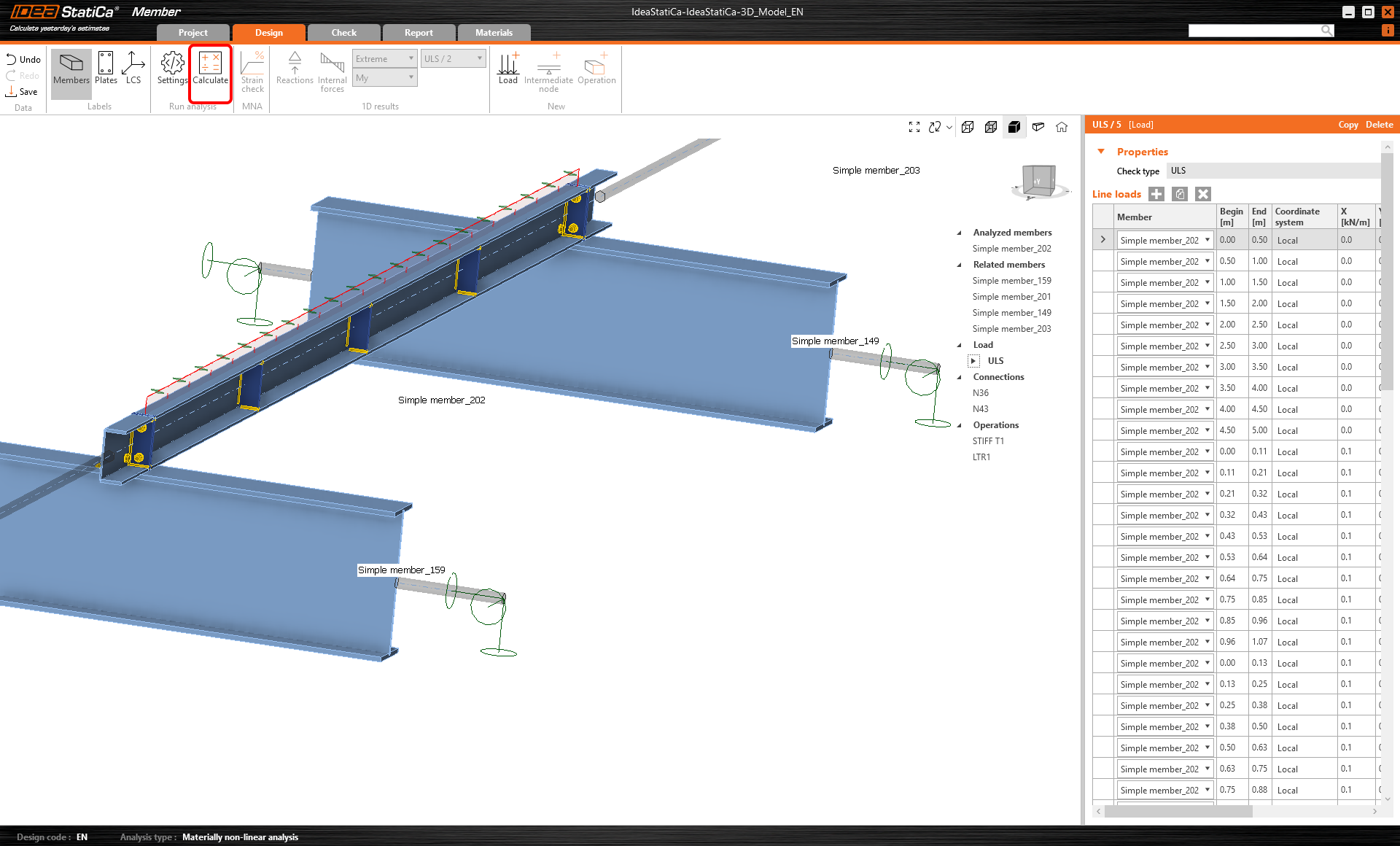

Run the MNA (materially non-linear) analysis with the Calculate button.

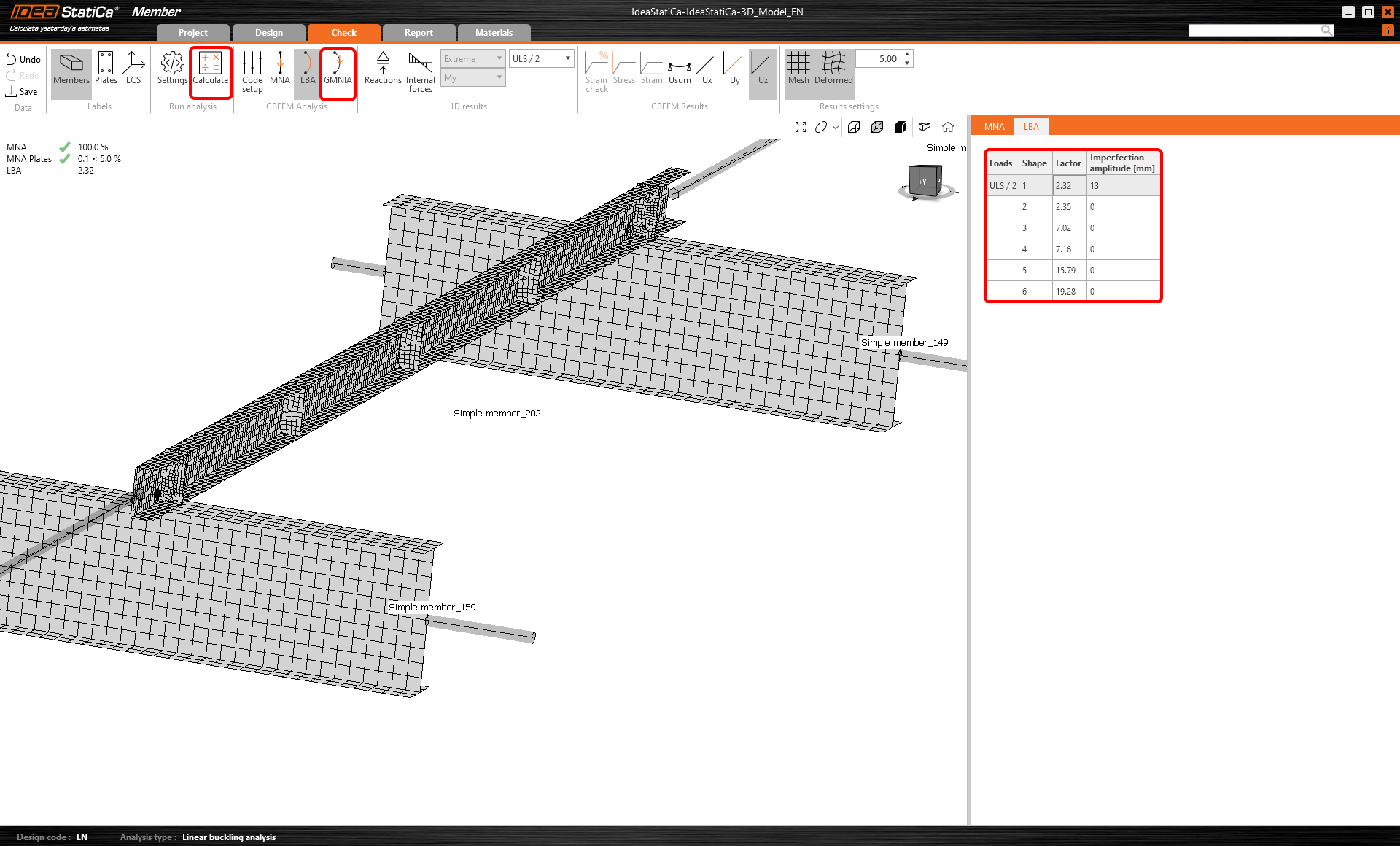

The second analysis is LBA (lateral buckling analysis), where we get a critical factor of less than 15. This result shows the necessity of running the GMNIA (geometrically and materially non-linear analysis).
Before running the GMNIA (geometrically and materially non-linear) analysis, fill in the Imperfection amplitude value. Because lateral-torsional buckling is investigated here, factor k0 = 0.5 may be used. Amplitude 0.5x5000/200 = 12,5 mm can be applied to the first buckling mode.
Read more about:
- Member stability in IDEA StatiCa Member.

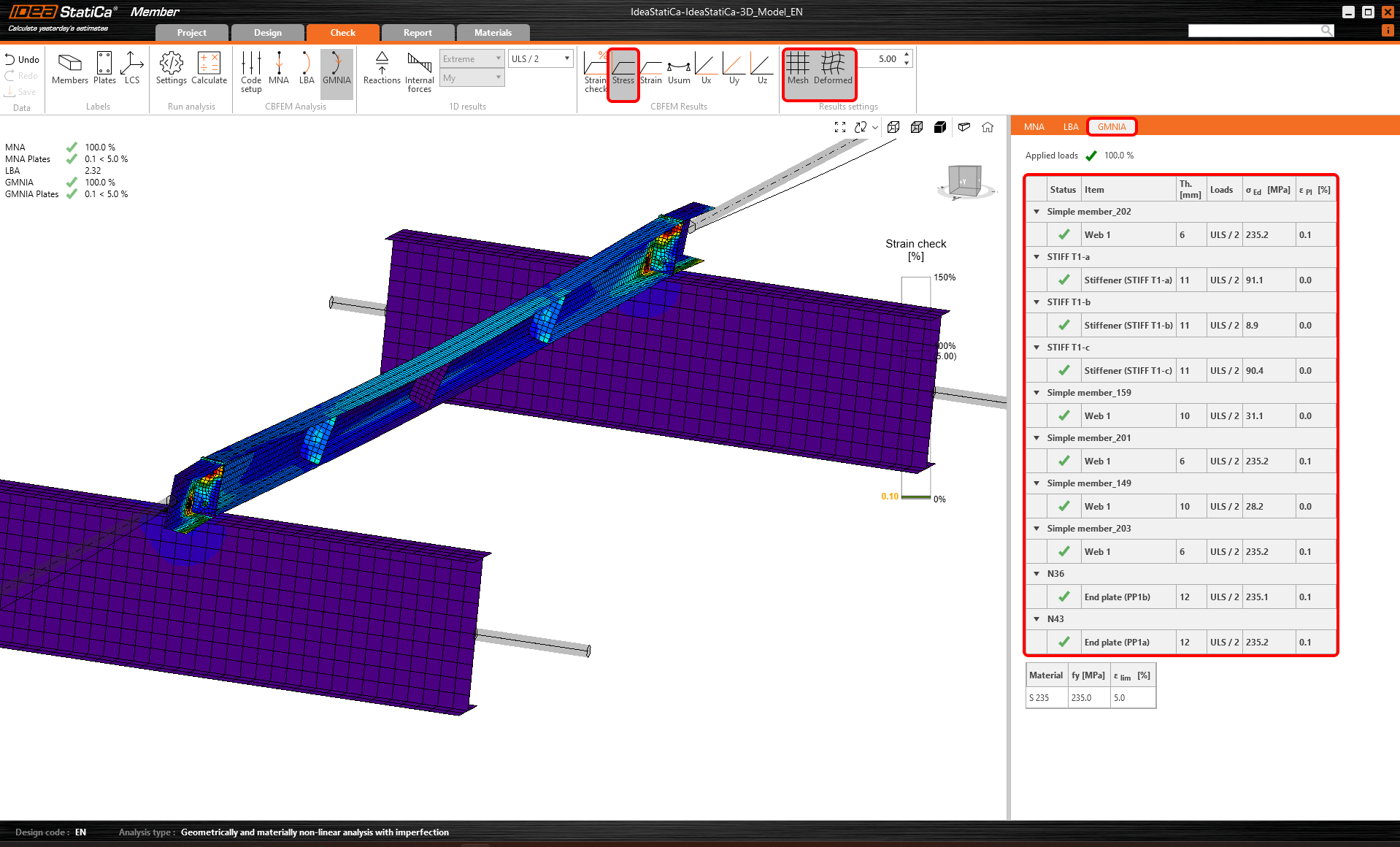

Once the analysis is finished, you can read the final code-checks, including the imperfections.
Report

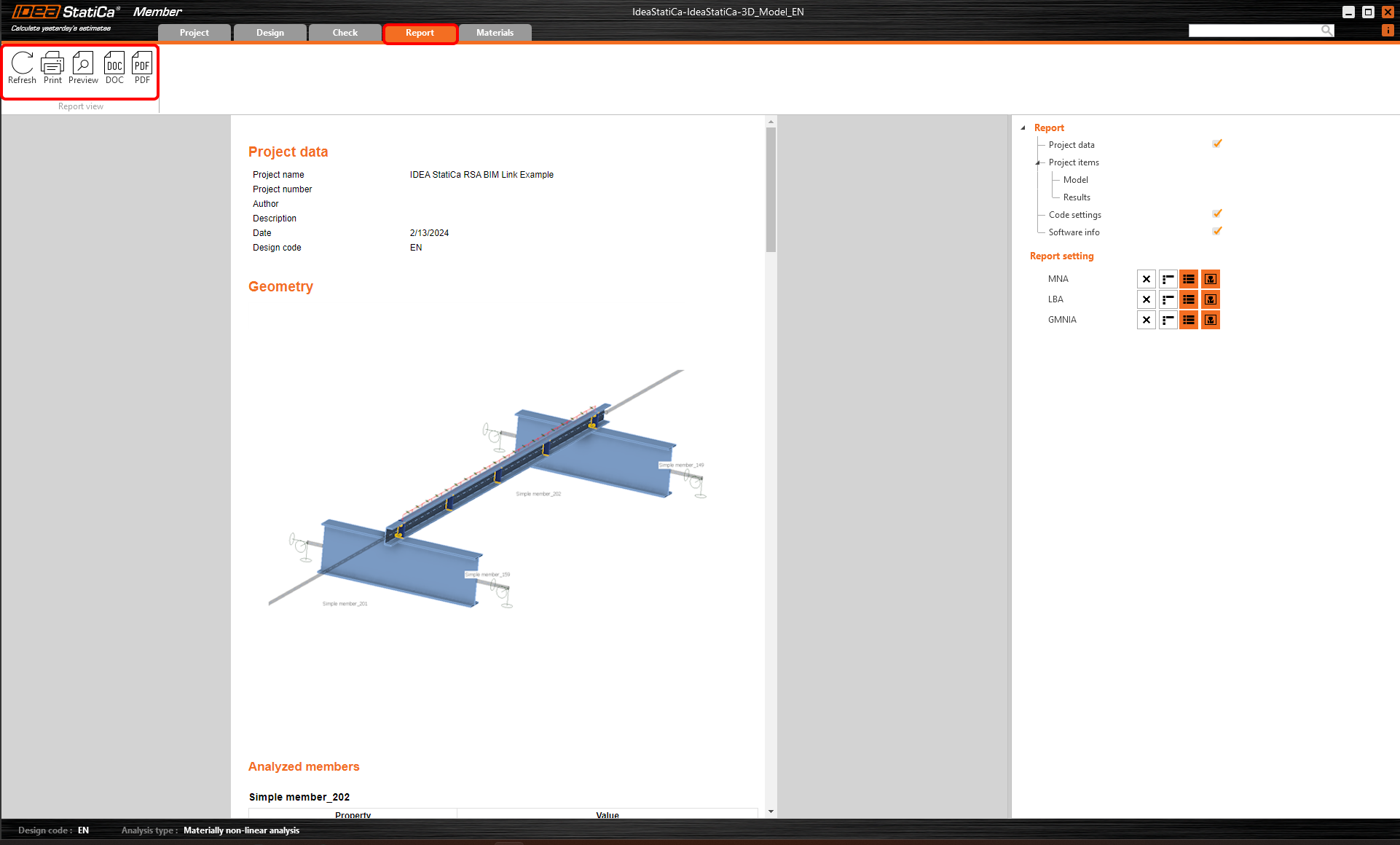

At last, go to the tab Report. IDEA StatiCa offers a fully customizable report to be printed out or saved in .doc editable format.
