1 New project

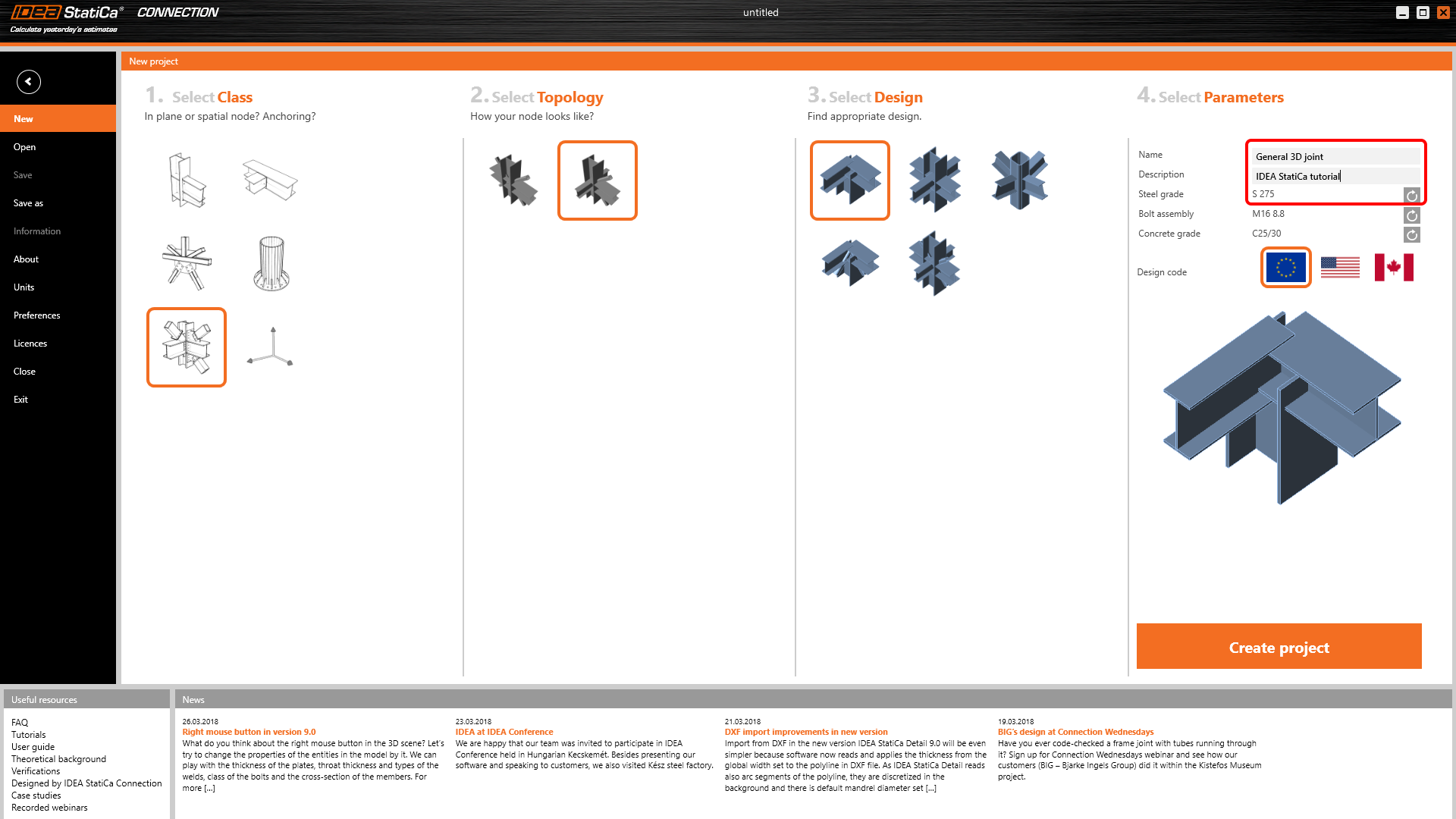

Start with launching the IDEA StatiCa Connection. Create a new project by selecting a starting template closest to the desired design, filling in the name, and choosing the design code and default material properties – S 275.
2 Geometry

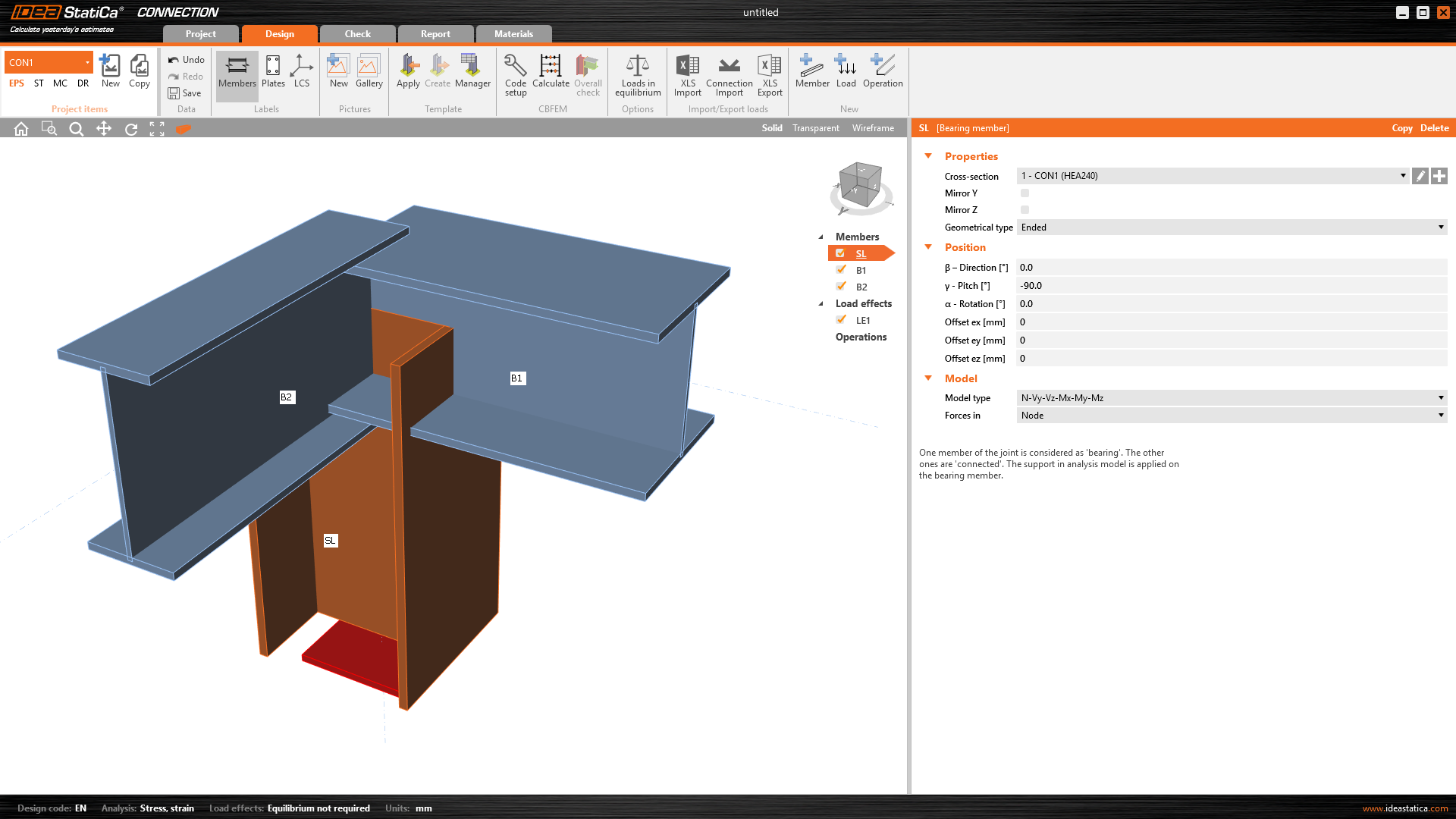

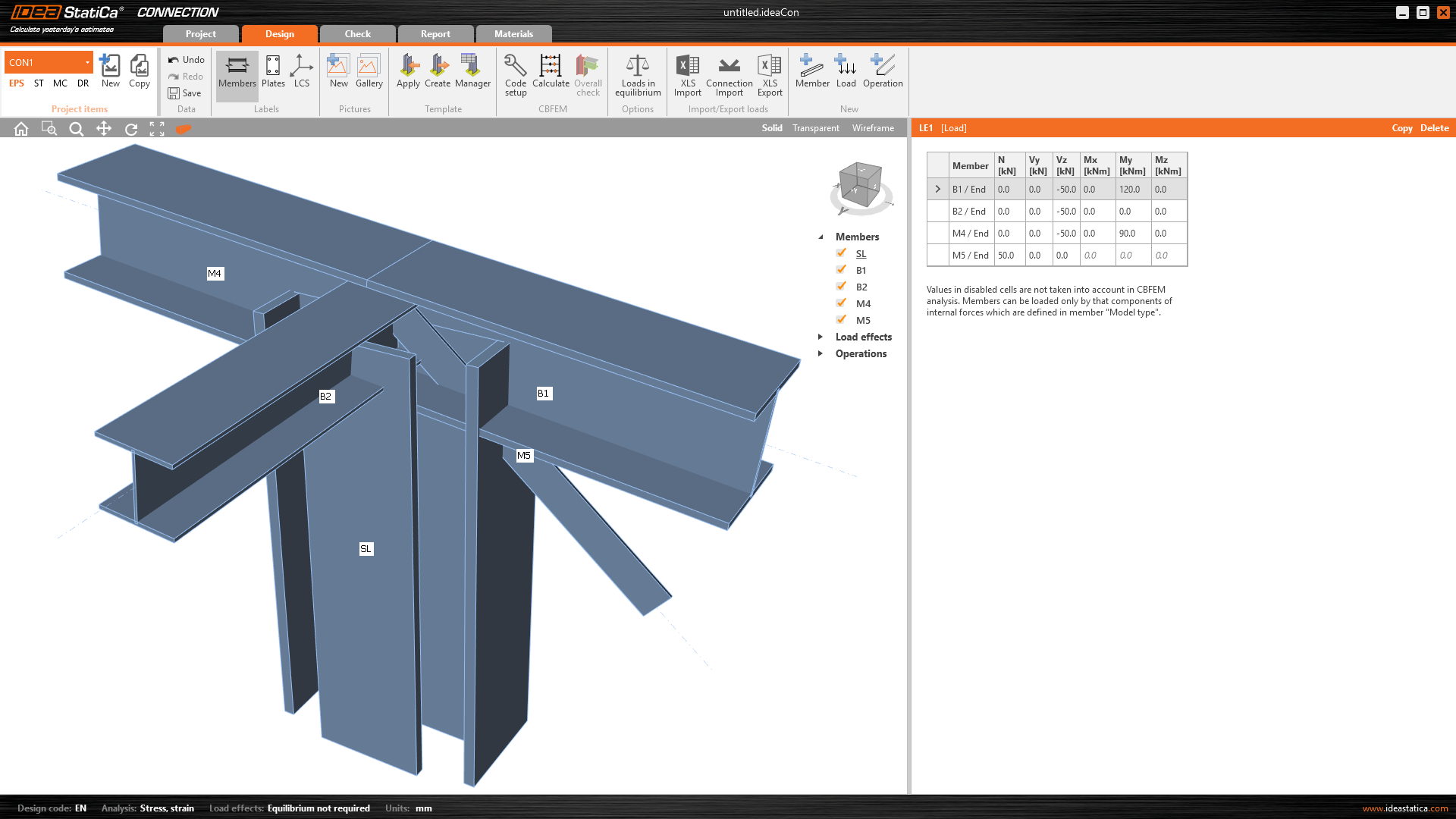

Three beams were automatically added.

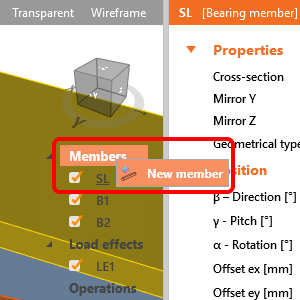

Member SL

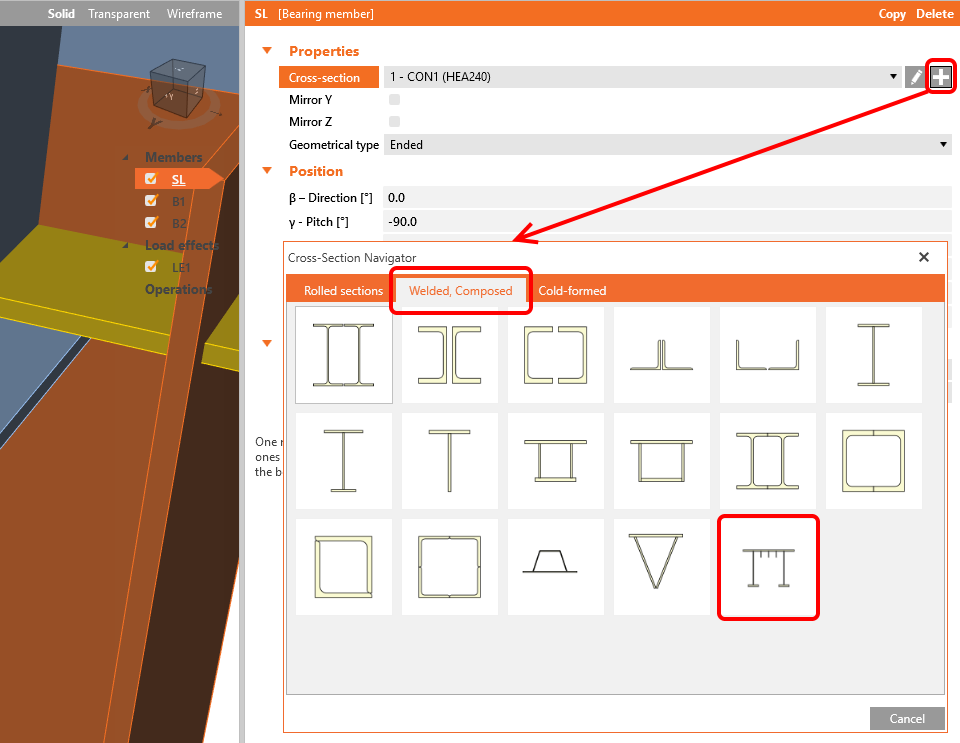

You will create a general cross-section for the column member. To do that, select Welded, Composed tab and click on General steel cross-section.

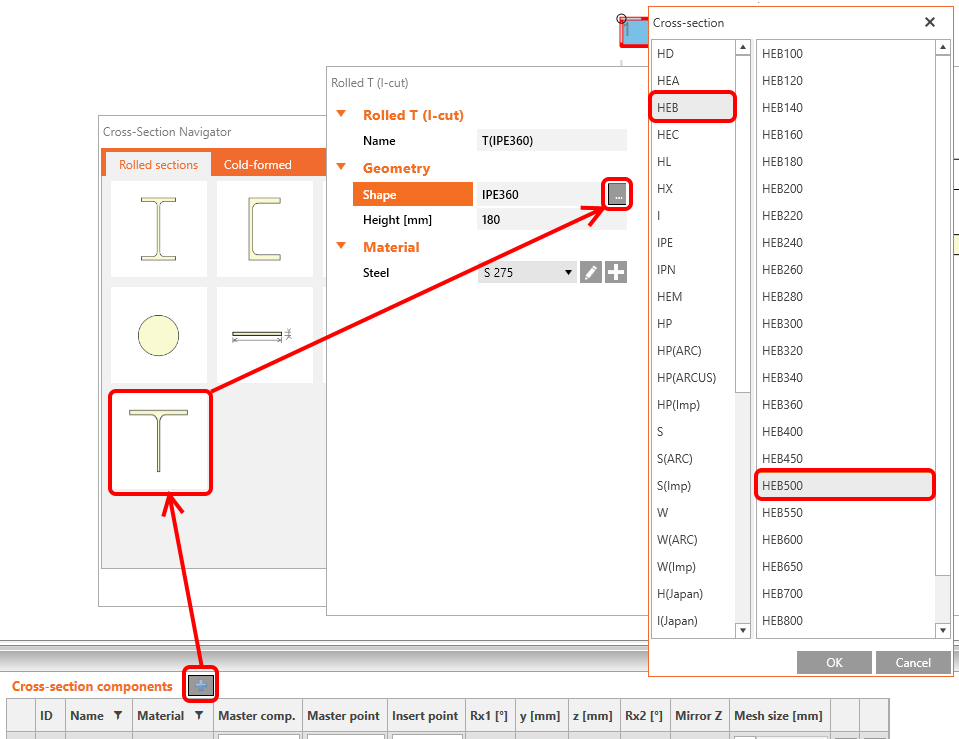

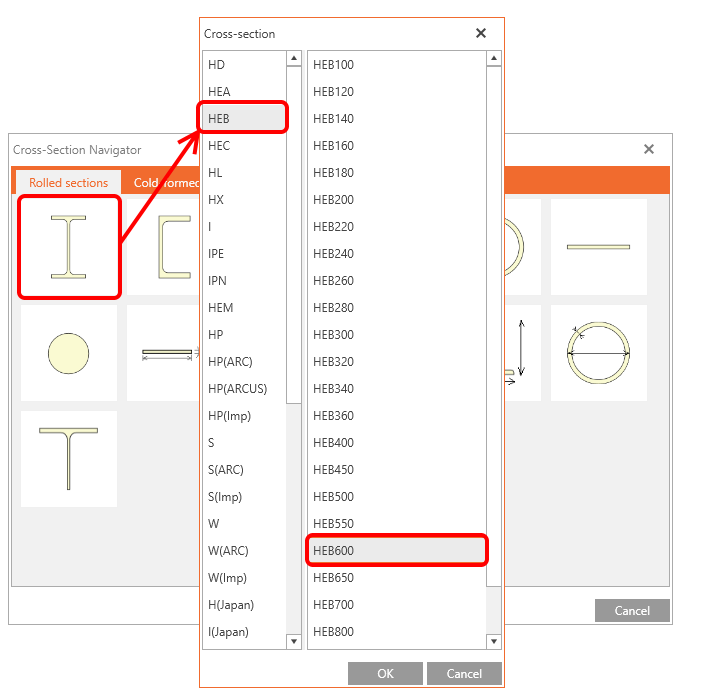

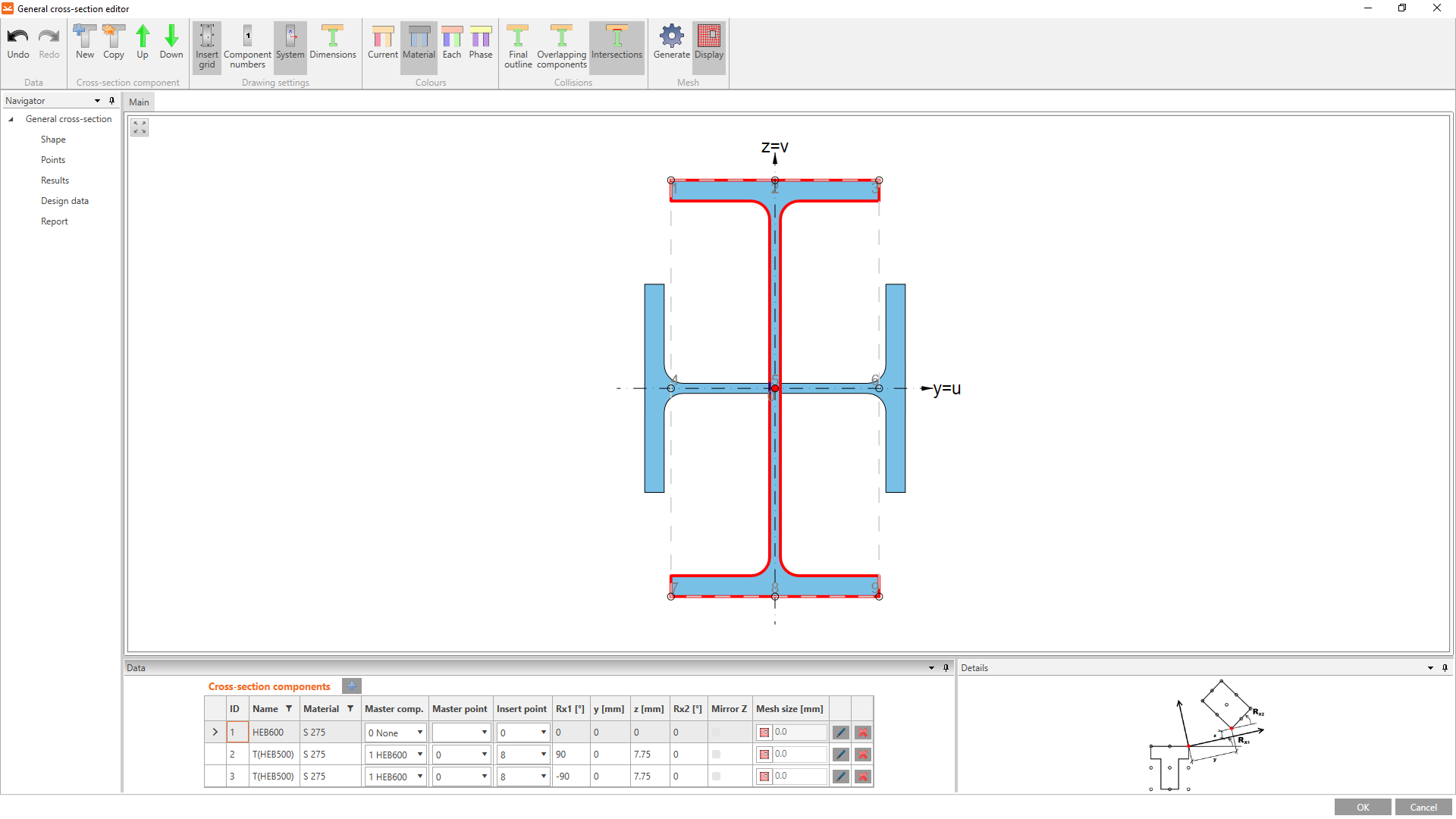

The General cross-section editor is opened, and you can start composing the cross-section by selecting the I sections in the Cross-section Navigator.

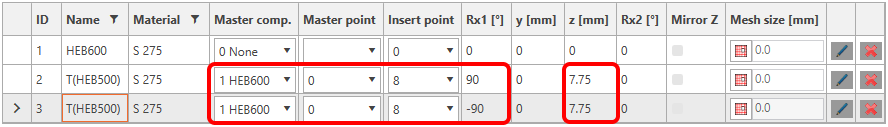

Then continue by clicking on the icon Add new entity and selecting the Sections T (I-cut). The Rolled T (I-cut) window is opened, and you can edit the shape.
