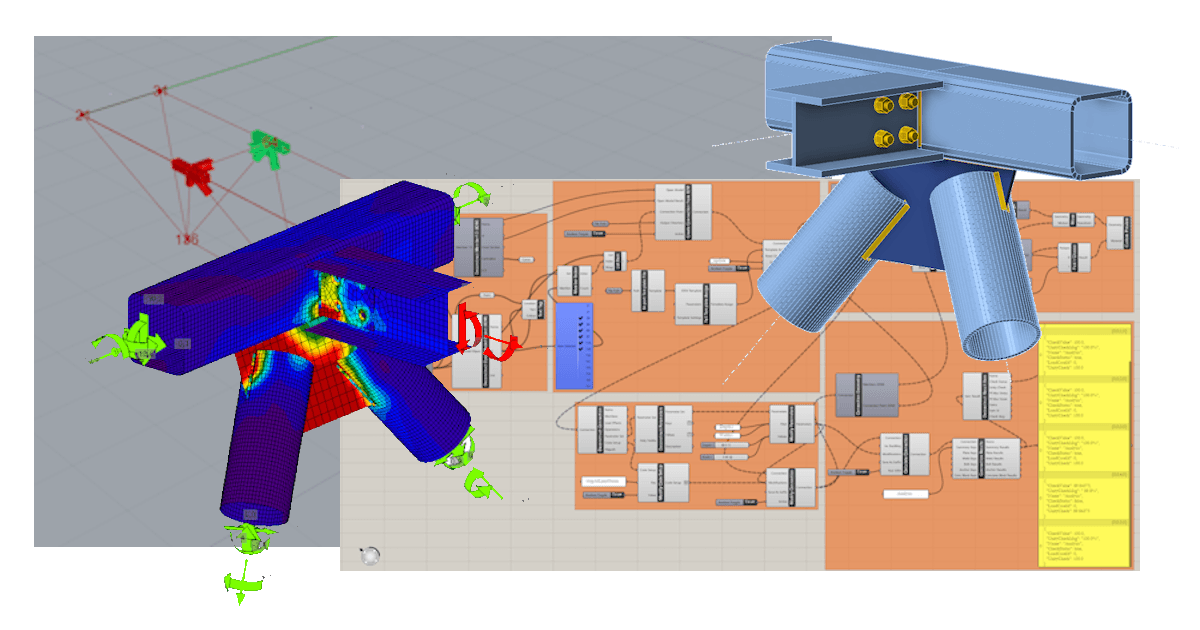

Collegamento API Grasshopper - calcolo in serie di giunti in acciaio (06) versione 24
Collegamento API Grasshopper - calcolo in serie di giunti in acciaio (06) versione 24
SteelConnection designTutorialsConnectionIDEA Open Model (API)

Collegamento API Grasshopper - calcolo in serie di giunti in acciaio (06) versione 24

Questo articolo è disponibile anche in
ENCSDEESFRITPTNLHURO
Tradotto dall'IA dall'inglese

In questo tutorial, imparerai come utilizzare un modello parametrico per il calcolo in serie di giunti in acciaio con la stessa geometria. NOTA: Questo manuale è valido per le versioni fino alla 24.1.2

Widget #NaN: support_center_article

Name: Tutorial: Grasshopper - Plugin Installation

ID: 6d5f0dc8-ee5a-4c50-aced-df94e3586763

Show Raw Data
{
  "title": {
    "name": "Main headline (H1)",
    "type": "text",
    "value": "Grasshopper - Installazione del Plugin"
  },
  "preview_image": {
    "name": "Preview image",
    "type": "asset",
    "value": [
      {
        "name": "E1-1.png",
        "description": null,
        "type": "image/png",
        "size": 68369,
        "url": "https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/fe255e56-8a4e-4dd5-8264-4c71f1dcb040/E1-1.png",
        "width": 782,
        "height": 692,
        "renditions": {}
      }
    ]
  },
  "post_date": {
    "name": "Post date",
    "type": "date_time",
    "value": null,
    "displayTimeZone": "Europe/Prague"
  },
  "perex_content": {
    "name": "Lead paragraph",
    "type": "text",
    "value": ""
  },
  "content": {
    "images": [
      {
        "description": null,
        "imageId": "210c0a21-6b2e-4cf8-96ca-37e82d4862fa",
        "url": "https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/79496c31-039f-4837-b79c-cb4138788fee/g-1.png",
        "height": 602,
        "width": 822
      },
      {
        "description": null,
        "imageId": "17b9256a-6aa1-42b7-8631-d3e7d4e045fa",
        "url": "https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/af466a09-7c9d-43da-aa86-ae8cf2e05680/g-2.png",
        "height": 265,
        "width": 492
      },
      {
        "description": null,
        "imageId": "2a7f156a-11b3-4615-bfa5-c5e91e966443",
        "url": "https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/992a6362-f26a-4ba4-9082-0da7868c65c5/E1-1.png",
        "height": 692,
        "width": 782
      },
      {
        "description": null,
        "imageId": "b957b01f-e69c-482c-841e-87a2cab6aca6",
        "url": "https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/71249ebe-9e05-4c66-bf72-1b3714c9decf/g-4.png",
        "height": 599,
        "width": 1077
      },
      {
        "description": null,
        "imageId": "8e7e6c80-c3e3-4d20-8aab-7481515ddf8d",
        "url": "https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/f0c189a8-203f-40ea-9248-7aaf4be667ec/grasshopper-idea.png",
        "height": 161,
        "width": 814
      }
    ],
    "linkedItemCodenames": [],
    "linkedItems": [],
    "links": [
      {
        "codename": "grasshopper___introduction_to_the_plugin_component",
        "linkId": "f2f373ad-9a22-499b-aced-f9520c80a37a",
        "urlSlug": "descrizione-dei-componenti-del-plugin-grasshopper",
        "type": "support_center_article"
      }
    ],
    "name": "Content",
    "type": "rich_text",
    "value": "<p>È possibile ottenere una versione di prova di Rhino3d e Grasshopper dal sito web di <a href=\"https://www.rhino3d.com/download/\" data-new-window=\"true\" target=\"_blank\" rel=\"noopener noreferrer\">Rhino3d</a>. Avviare Rhinoceros e selezionare il modello con <strong>Meters</strong>:</p>\n<figure data-asset-id=\"210c0a21-6b2e-4cf8-96ca-37e82d4862fa\" data-image-id=\"210c0a21-6b2e-4cf8-96ca-37e82d4862fa\"><img src=\"https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/79496c31-039f-4837-b79c-cb4138788fee/g-1.png\" data-asset-id=\"210c0a21-6b2e-4cf8-96ca-37e82d4862fa\" data-image-id=\"210c0a21-6b2e-4cf8-96ca-37e82d4862fa\" alt=\"\"></figure>\n<p>Nella riga di comando, inserire \"<strong>Package Manager</strong>\":</p>\n<figure data-asset-id=\"17b9256a-6aa1-42b7-8631-d3e7d4e045fa\" data-image-id=\"17b9256a-6aa1-42b7-8631-d3e7d4e045fa\"><img src=\"https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/af466a09-7c9d-43da-aa86-ae8cf2e05680/g-2.png\" data-asset-id=\"17b9256a-6aa1-42b7-8631-d3e7d4e045fa\" data-image-id=\"17b9256a-6aa1-42b7-8631-d3e7d4e045fa\" alt=\"\"></figure>\n<p>Apparirà una nuova finestra; selezionare IDEAStatiCa e fare clic su <strong>Install</strong>. Il plugin verrà scaricato e installato. Per diventare attivo, è necessario riavviare Rhinoceros.</p>\n<figure data-asset-id=\"2a7f156a-11b3-4615-bfa5-c5e91e966443\" data-image-id=\"2a7f156a-11b3-4615-bfa5-c5e91e966443\"><img src=\"https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/992a6362-f26a-4ba4-9082-0da7868c65c5/E1-1.png\" data-asset-id=\"2a7f156a-11b3-4615-bfa5-c5e91e966443\" data-image-id=\"2a7f156a-11b3-4615-bfa5-c5e91e966443\" alt=\"\"></figure>\n<p>&nbsp;Per avviare Grasshopper con il plugin IDEA StatiCa, selezionare <strong>Tools / Grasshopper </strong>nella scheda Rhinoceros.</p>\n<figure data-asset-id=\"b957b01f-e69c-482c-841e-87a2cab6aca6\" data-image-id=\"b957b01f-e69c-482c-841e-87a2cab6aca6\"><img src=\"https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/71249ebe-9e05-4c66-bf72-1b3714c9decf/g-4.png\" data-asset-id=\"b957b01f-e69c-482c-841e-87a2cab6aca6\" data-image-id=\"b957b01f-e69c-482c-841e-87a2cab6aca6\" alt=\"\"></figure>\n<p>Come si può vedere, il plugin è già incorporato.</p>\n<figure data-asset-id=\"8e7e6c80-c3e3-4d20-8aab-7481515ddf8d\" data-image-id=\"8e7e6c80-c3e3-4d20-8aab-7481515ddf8d\"><img src=\"https://assets-us-01.kc-usercontent.com:443/66e7a155-be94-0096-73e6-c55dfc7e5788/f0c189a8-203f-40ea-9248-7aaf4be667ec/grasshopper-idea.png\" data-asset-id=\"8e7e6c80-c3e3-4d20-8aab-7481515ddf8d\" data-image-id=\"8e7e6c80-c3e3-4d20-8aab-7481515ddf8d\" alt=\"\"></figure>\n<p>Per informazioni sui componenti e i comandi del plugin IDEA StatiCa per Grasshopper, consultare l'articolo <a data-item-id=\"f2f373ad-9a22-499b-aced-f9520c80a37a\" href=\"\">Descrizione dei componenti del plugin Grasshopper</a>.</p>"
  },
  "linked_items": {
    "name": "Linked items",
    "type": "modular_content",
    "value": [],
    "linkedItems": []
  },
  "regions": {
    "name": "Region",
    "type": "taxonomy",
    "value": [
      {
        "name": "AMER",
        "codename": "amer"
      },
      {
        "name": "EMEA",
        "codename": "emea"
      },
      {
        "name": "APAC",
        "codename": "apac"
      }
    ],
    "taxonomyGroup": "region"
  },
  "product_groups": {
    "name": "Product group",
    "type": "taxonomy",
    "value": [
      {
        "name": "Steel",
        "codename": "steel"
      },
      {
        "name": "Connection design",
        "codename": "connection_design"
      }
    ],
    "taxonomyGroup": "product_group"
  },
  "support_center_article_types": {
    "name": "Support center article",
    "type": "taxonomy",
    "value": [
      {
        "name": "Tutorials",
        "codename": "tutorial"
      }
    ],
    "taxonomyGroup": "support_center_article"
  },
  "expertise_levels": {
    "name": "Expertise level",
    "type": "taxonomy",
    "value": [
      {
        "name": "Intermediate",
        "codename": "intermediate"
      },
      {
        "name": "Expert",
        "codename": "expert"
      }
    ],
    "taxonomyGroup": "expertise_level"
  },
  "labels": {
    "name": "Labels",
    "type": "taxonomy",
    "value": [
      {
        "name": "IDEA Open Model (API)",
        "codename": "idea_open_model__api_"
      },
      {
        "name": "Connection",
        "codename": "connection"
      }
    ],
    "taxonomyGroup": "labels"
  },
  "attachments__files": {
    "name": "Attachments",
    "type": "asset",
    "value": []
  },
  "content_priority__value": {
    "name": "Content priority value",
    "type": "number",
    "value": null
  },
  "options": {
    "name": "Options",
    "type": "multiple_choice",
    "value": []
  },
  "url_slug": {
    "name": "Url slug",
    "type": "url_slug",
    "value": "grasshopper-plugin-installation"
  },
  "unique_url_slug": {
    "name": "Unique URL slug",
    "type": "custom",
    "value": "[\"grasshopper-plugin-installation\",\"[autogenerated]\"]"
  },
  "content_settings__sitemap": {
    "name": "Show in sitemap",
    "type": "multiple_choice",
    "value": []
  },
  "content_settings__robots": {
    "name": "Search engine indexing",
    "type": "multiple_choice",
    "value": []
  },
  "content_settings__is_hidden": {
    "name": "Hidden nested content",
    "type": "multiple_choice",
    "value": []
  },
  "content_settings__is_topped": {
    "name": "Topped",
    "type": "multiple_choice",
    "value": []
  },
  "metadata__page_title": {
    "name": "Page title",
    "type": "text",
    "value": ""
  },
  "metadata__page_description": {
    "name": "Page description",
    "type": "text",
    "value": ""
  },
  "metadata__page_keywords": {
    "name": "Page keywords",
    "type": "text",
    "value": ""
  },
  "metadata__canonical_url": {
    "name": "Canonical URL",
    "type": "text",
    "value": ""
  },
  "metadata__og_title": {
    "name": "OG:title",
    "type": "text",
    "value": ""
  },
  "metadata__og_description": {
    "name": "OG:description",
    "type": "text",
    "value": ""
  },
  "metadata__og_image": {
    "name": "OG:image",
    "type": "asset",
    "value": []
  },
  "translation__translation_connector": {
    "name": "Translation Connector",
    "type": "taxonomy",
    "value": [],
    "taxonomyGroup": "languages"
  },
  "translation__force_translation": {
    "name": "Force translation",
    "type": "multiple_choice",
    "value": []
  },
  "translation__translate_standalone_nested_content_items": {
    "name": "Translate standalone nested content items",
    "type": "multiple_choice",
    "value": []
  },
  "translation__last_translation": {
    "images": [],
    "linkedItemCodenames": [],
    "linkedItems": [],
    "links": [],
    "name": "Last translation",
    "type": "rich_text",
    "value": "<p>Translation info:</p>\n<ul>\n  <li>cs-CZ: Never translated</li>\n  <li>de-DE: Never translated</li>\n  <li>en-US: Never translated</li>\n  <li>es-ES: Never translated</li>\n  <li>fr-FR: Never translated</li>\n  <li>hu-HU: Never translated</li>\n  <li>it-IT: Translated on 16.4.2026 08:42</li>\n  <li>nl-NL: Never translated</li>\n  <li>pt-PT: Never translated</li>\n  <li>ro-RO: Never translated</li>\n  <li>ru-RU: Never translated</li>\n</ul>\n<p>Publish info:</p>\n<ul>\n  <li>Publish info is available only in the main language</li>\n</ul>"
  },
  "translation__ai_translated": {
    "name": "AI translated",
    "type": "multiple_choice",
    "value": [
      {
        "name": "Translated",
        "codename": "translated"
      }
    ]
  },
  "page_tree_settings__page_label": {
    "name": "Page label",
    "type": "text",
    "value": ""
  },
  "page_tree_settings__path_segment": {
    "name": "Path segment",
    "type": "text",
    "value": ""
  },
  "page_tree_settings__breadcrumb_style": {
    "name": "Breadcrumb style",
    "type": "multiple_choice",
    "value": []
  },
  "page_tree_settings__hide_in_breadcrumbs": {
    "name": "Hide in breadcrumbs",
    "type": "multiple_choice",
    "value": []
  }
}

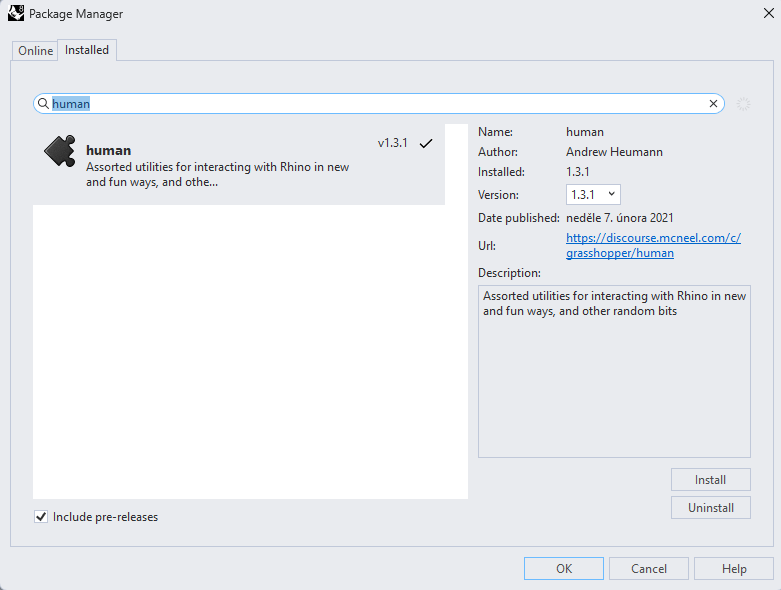

Plugin HUMAN

In questo esempio, è necessario selezionare una parte della struttura e, a tale scopo, è necessario installare un altro plugin - HUMAN, che verrà utilizzato in questo tutorial.

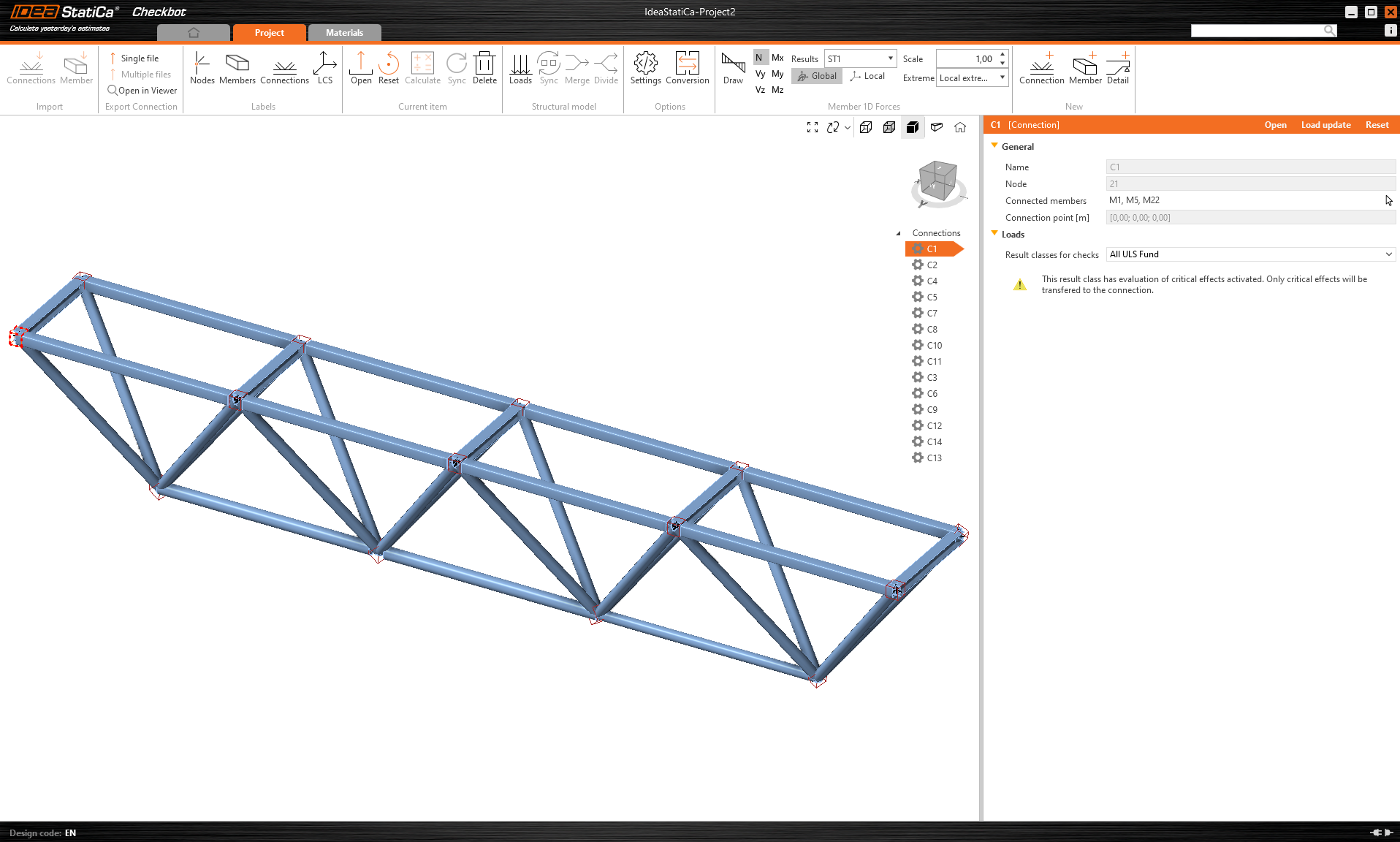

IDEA StatiCa Checkbot – importazione di una struttura, progettazione di un giunto

Aprire la cartella allegata con una struttura importata da software di terze parti. Le forze interne sono incluse.

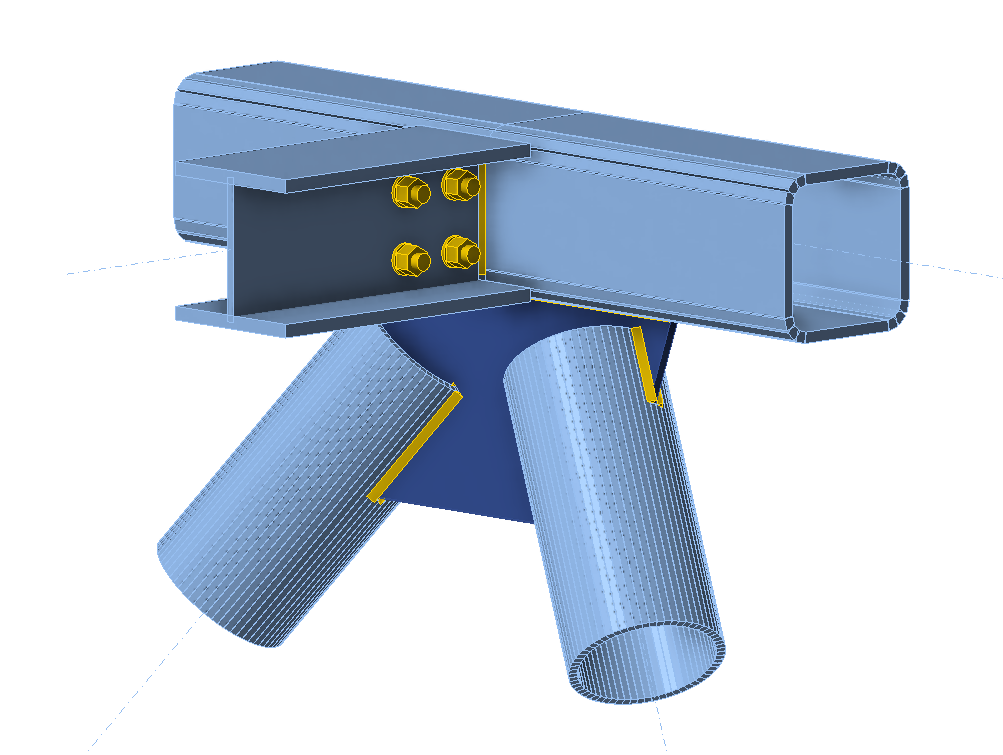

Selezionare uno dei giunti centrali nella cintura superiore (ad es., C11) e aprirlo in IDEA StatiCa Connection.

È possibile progettarlo correttamente in base alle proprie esigenze oppure utilizzare il giunto già preparato qui.

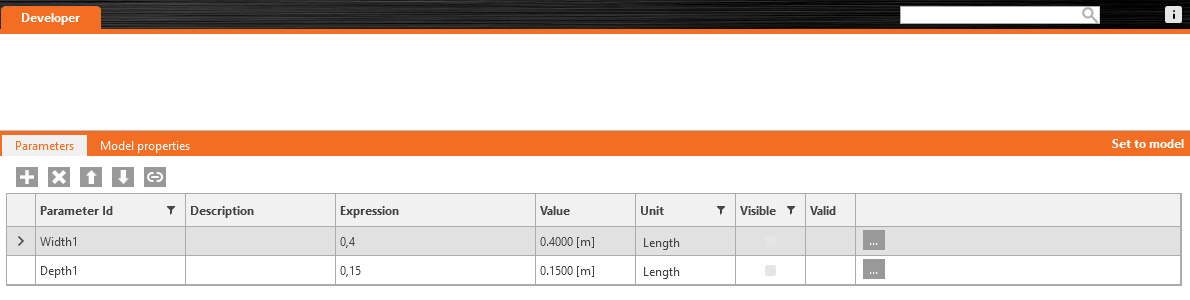

Andare alla scheda Sviluppatore, impostare i parametri e collegarli all'operazione appropriata seguendo le immagini successive:

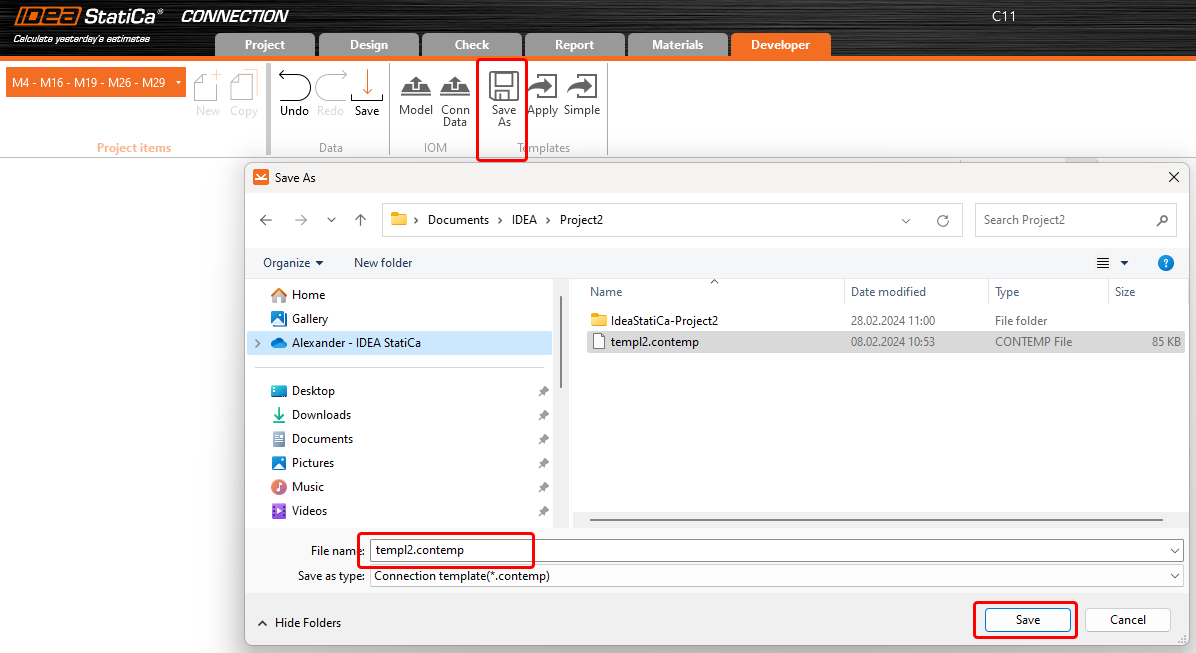

Infine, salvare l'intero giunto come modello *.contemp, da utilizzare successivamente in Grasshopper.

Grasshopper - importazione del file XML, applicazione del modello

Creare un nuovo documento, selezionare la scheda Params nella barra multifunzione superiore e posizionare il componente File Path sul Canvas.

Fare clic con il tasto destro sul componente e selezionare il file import.xml, che si trova nella cartella Checkbot. Questo file contiene tutti i dati della struttura importata.

Aggiungere ora i seguenti componenti al canvas e collegarli come mostrato nell'immagine.

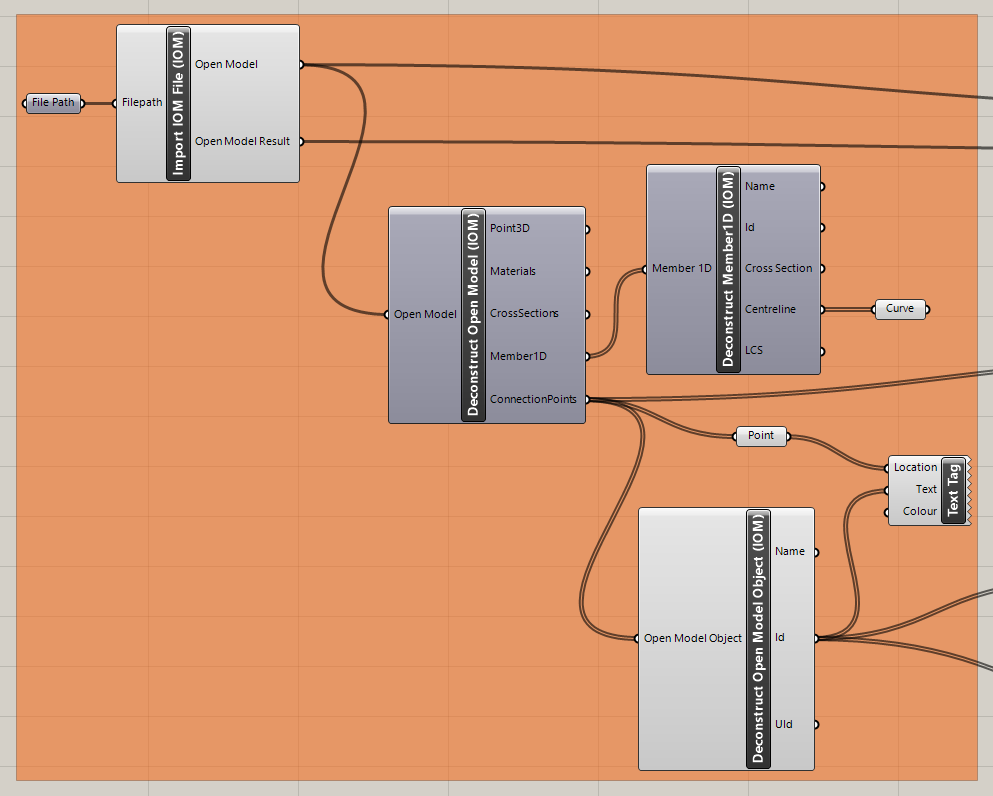

Importazione del file e visualizzazione della struttura, inclusa la descrizione dei giunti in Rhino:

IDEA StatiCa / Open Model / Import IOM File
IDEA StatiCa / Open Model / Deconstruct Open Model
IDEA StatiCa / Open Model / Deconstruct Open Model Object

Params / Geometry / Curve
Params / Geometry / Point
Display / Dimensions / Text Tag

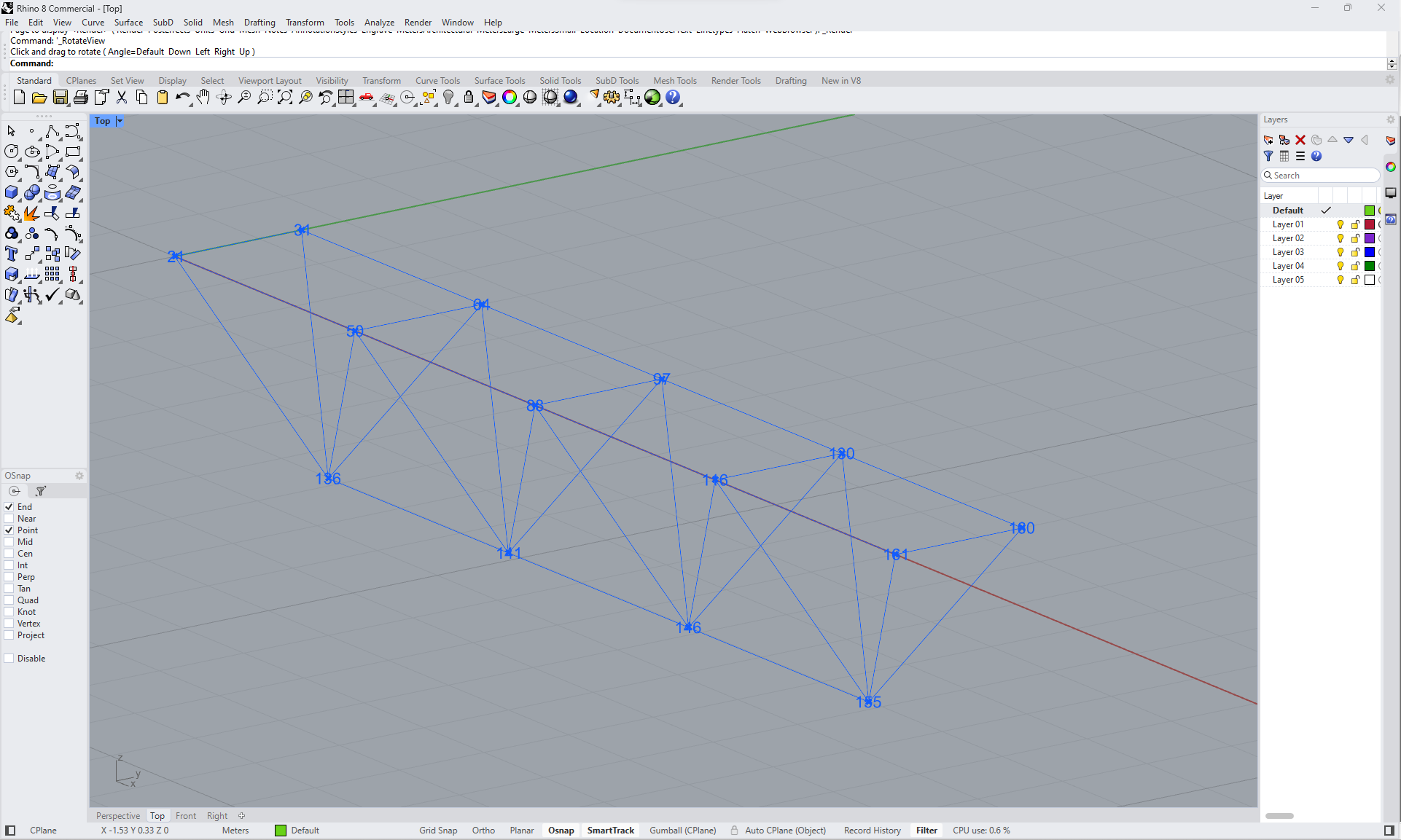

Ora è possibile visualizzare la struttura in Rhino:

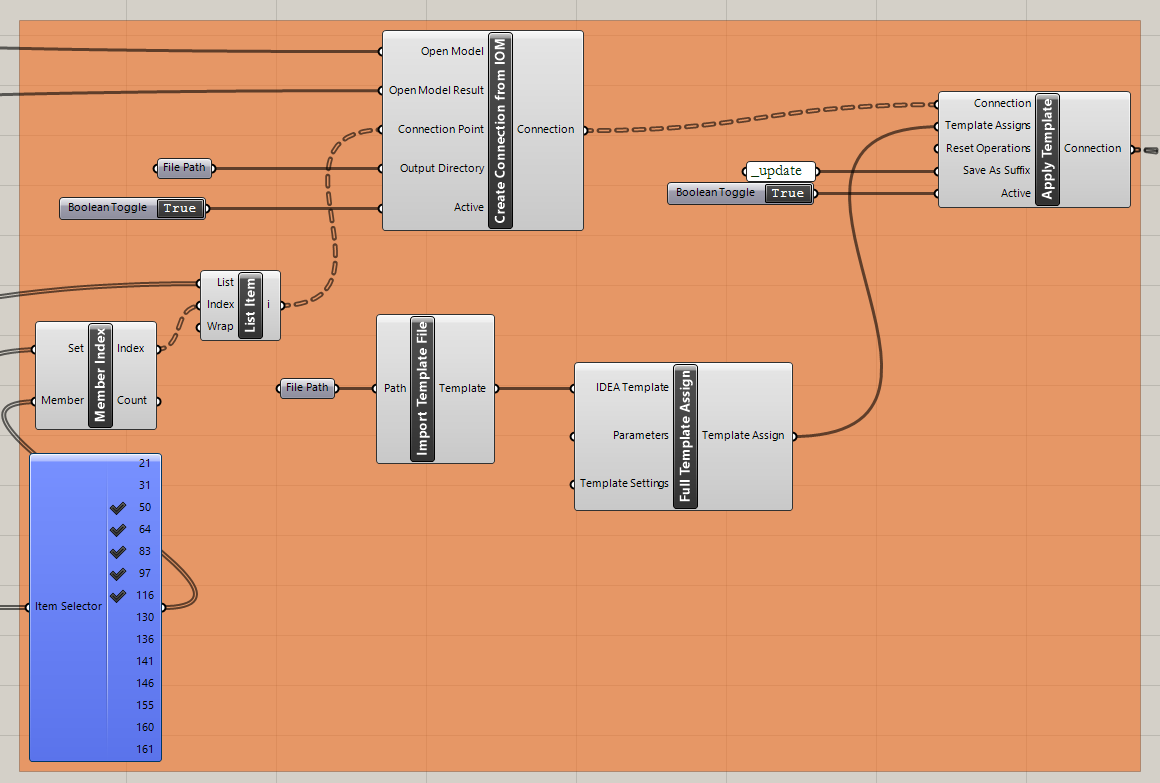

Importare il modello e applicarlo ai giunti selezionati:

IDEA StatiCa / Connection / Create Connection from IOM
IDEA StatiCa / Connection / Import Template file
IDEA StatiCa / Connection / Full template Assign
IDEA StatiCa / Connection / Apply Template

Human / Misc / Item Selector
Sets / Sets / Member Index
Sets / Lists / List item

Params / Primitive / File path (importare il modello)
Params / Primitive / File path (cartella in cui salvare i giunti)

Params / Input / Boolean Toggle (2x)
Params / Input / Panel (per la creazione di versioni aggiornate del giunto)

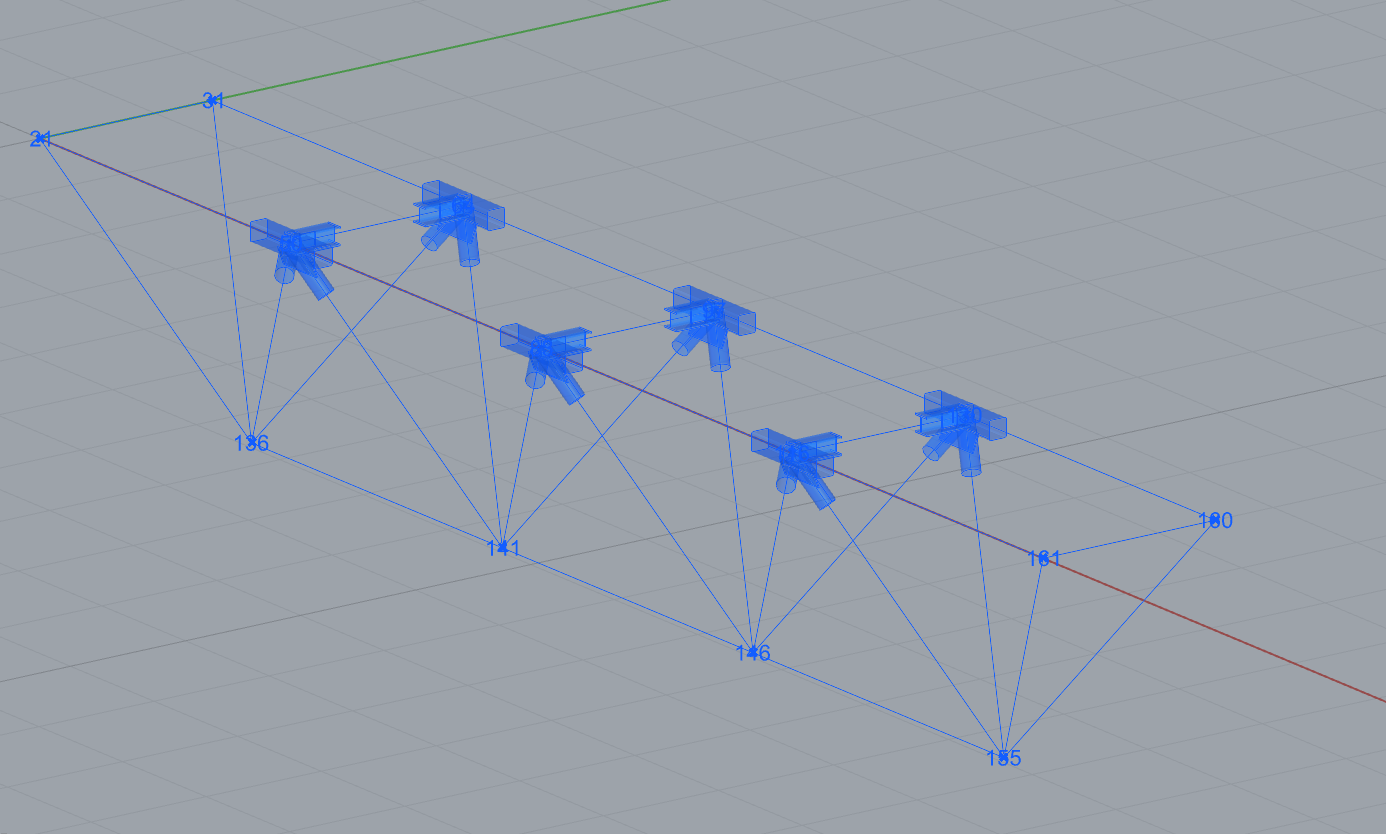

Ora è possibile visualizzare la struttura con i giunti selezionati a cui è stato applicato il modello:

Grasshopper - modifica dei parametri ed esecuzione del calcolo

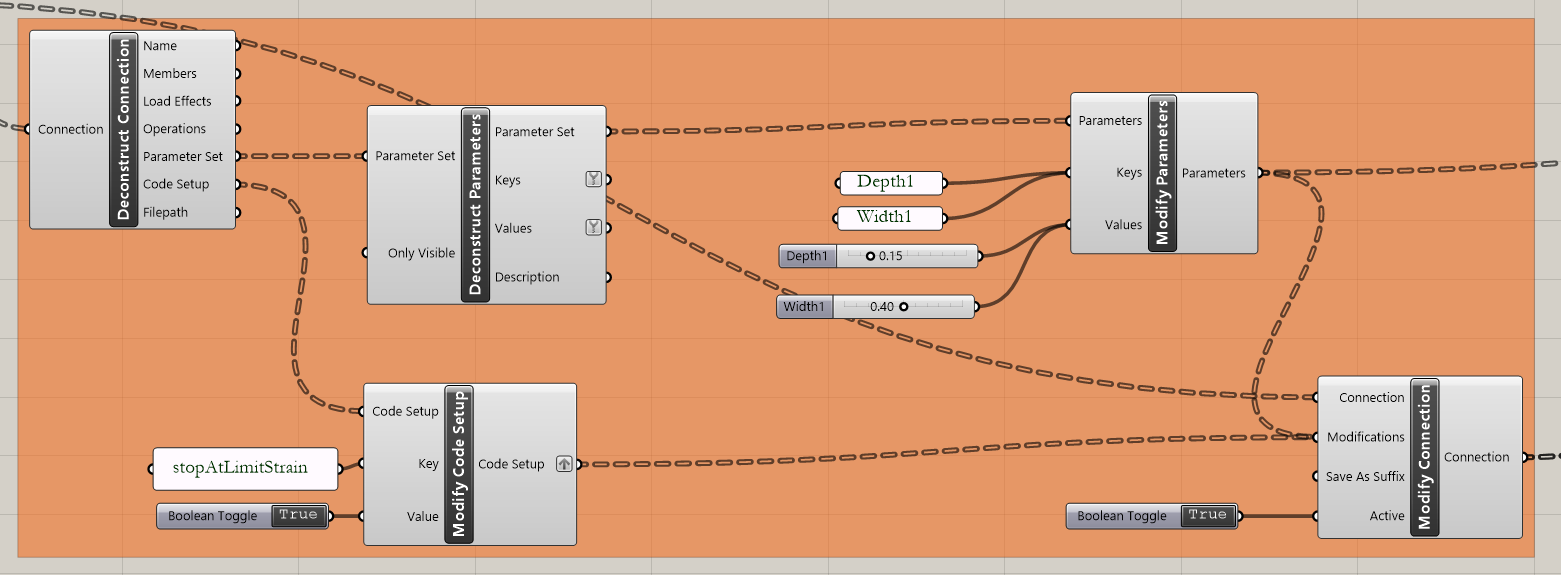

Modifica dei parametri:

IDEA StatiCa / Connection / Deconstruct Connection
IDEA StatiCa / Connection / Deconstruct Parameters
IDEA StatiCa / Connection / Modify Code Setup (per semplificare la tabella di output)
IDEA StatiCa / Connection / Modify Parameters

Params / Input / Panel (2x Nome dei Parametri)
Params / Input / Panel
Params / Input / Boolean Toggle (2x)
Params / Input / Number Slider

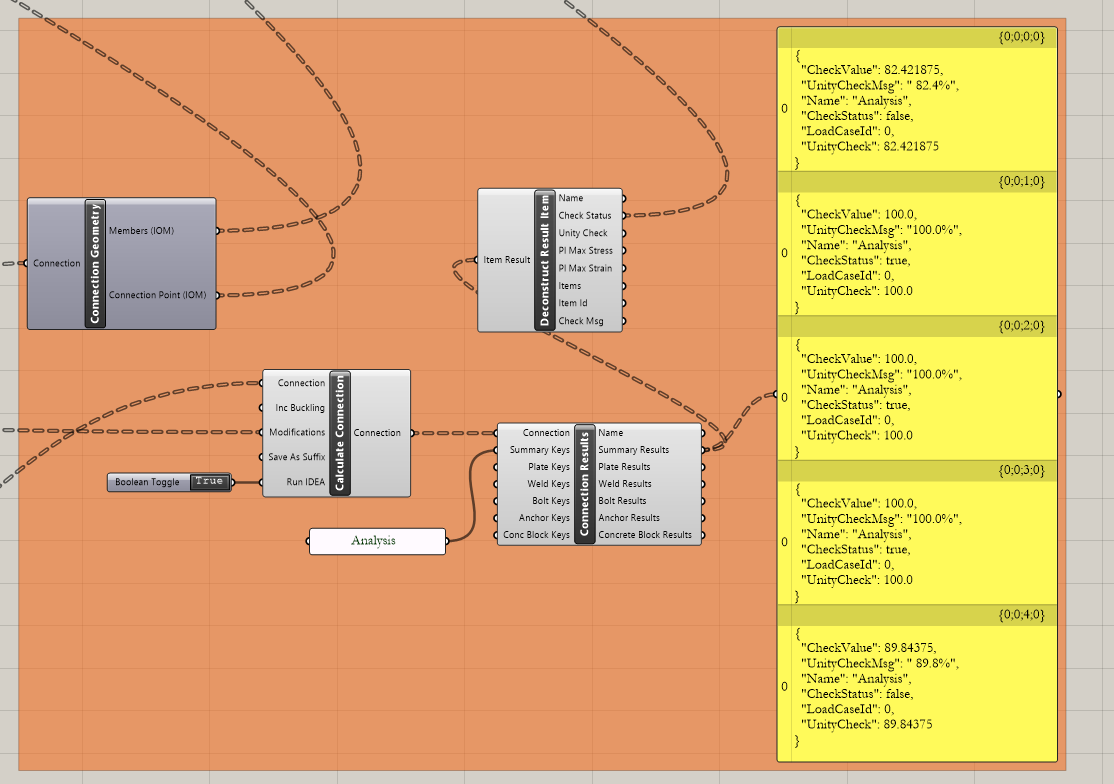

Calcolo dei giunti:

IDEA StatiCa / Connection / Calculate Connection
IDEA StatiCa / Connection / Connection Results
IDEA StatiCa / Connection / Connection Geometry (trasmissione dei dati ai componenti per la visualizzazione)
IDEA StatiCa / Connection / Deconstruct Results (trasmissione dei dati ai componenti per la visualizzazione)

Params / Input / Panel (Analysis - per semplificare la tabella di output)
Params / Input / Panel (Results)
Params / Input / Boolean Toggle

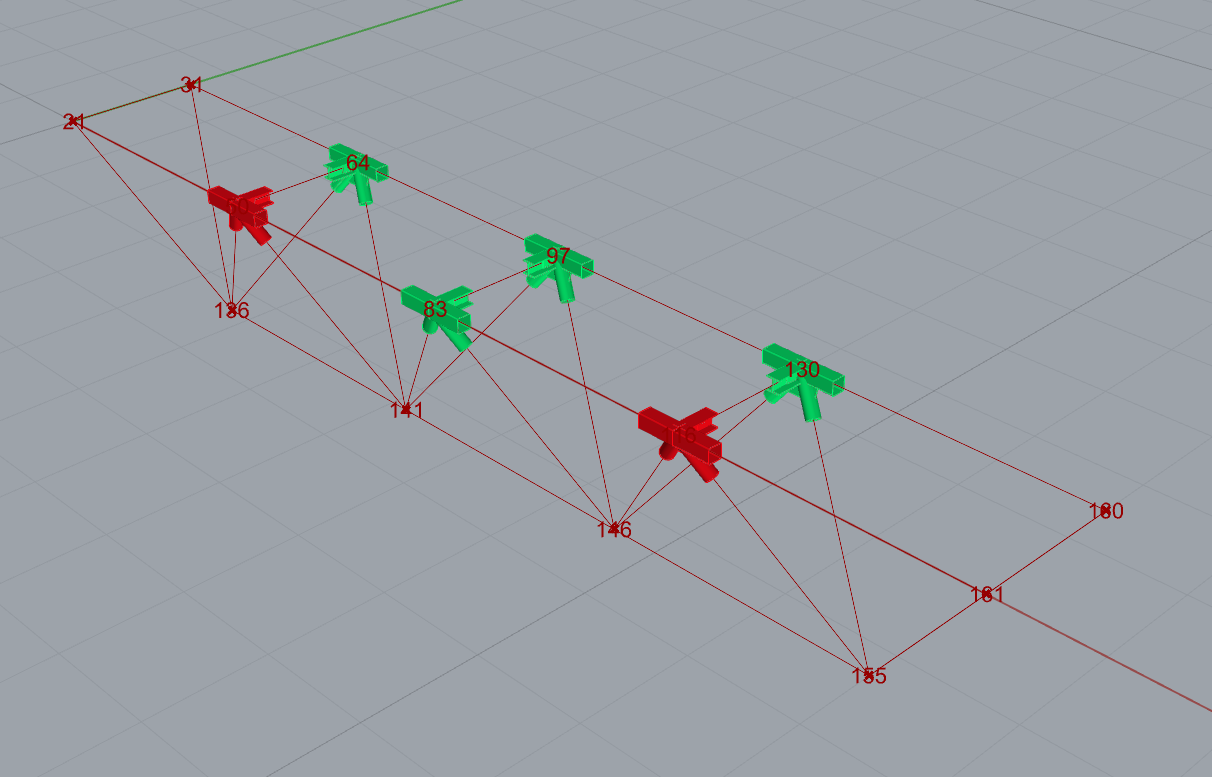

Visualizzazione dei risultati:

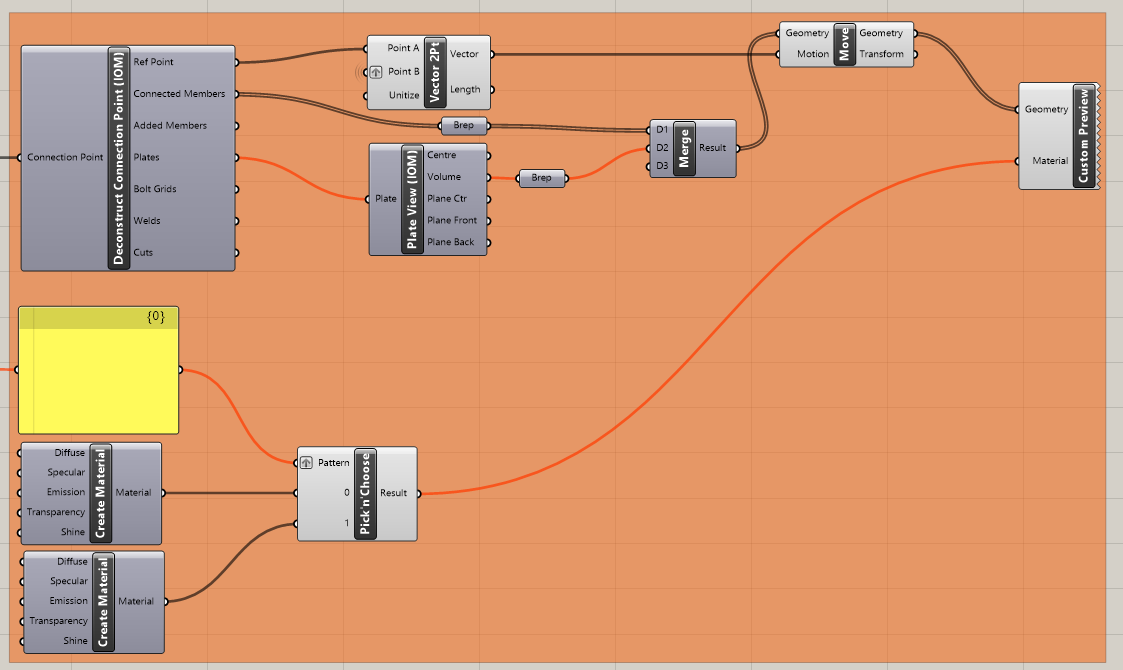

Grasshopper consente di arricchire i risultati con una visualizzazione grafica. I componenti mostrati nell'immagine successiva permettono di visualizzare in verde i giunti verificati; quelli che non superano le verifiche vengono invece visualizzati in rosso.

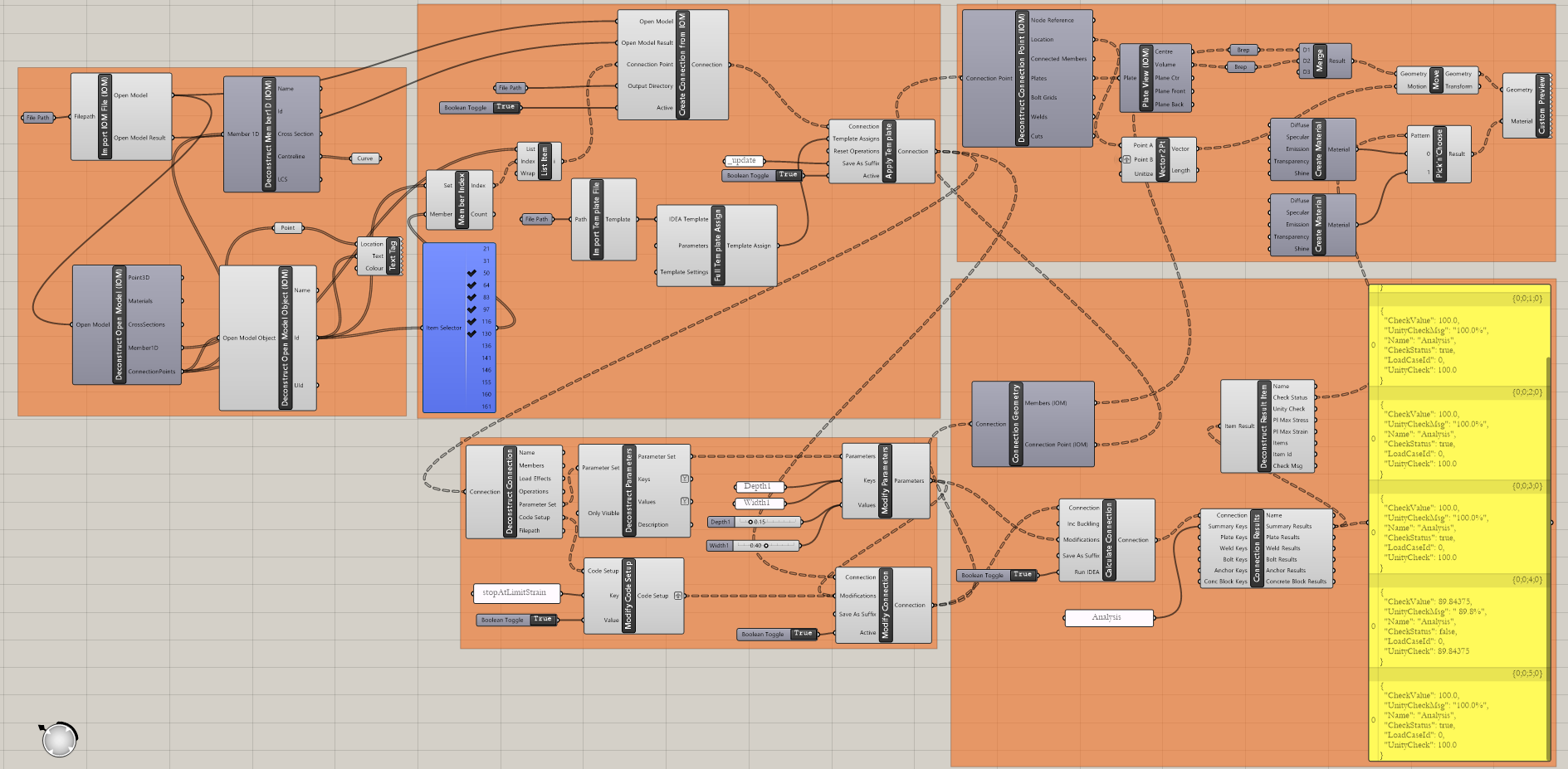

Di seguito è riportata l'immagine completa del file Grasshopper per visualizzare i collegamenti tra i componenti:

Esempi più complessi sono disponibili nella cartella

"%appdata%\McNeel\Rhinoceros\packages\7.0\IDEAStatiCa\0.1.1\Examples.zip"
