IDEA StatiCa Member Theoretical background

Introduction

IDEA StatiCa Member is a software for design of single or at maximum several steel members including their joints and necessary surrounding members.

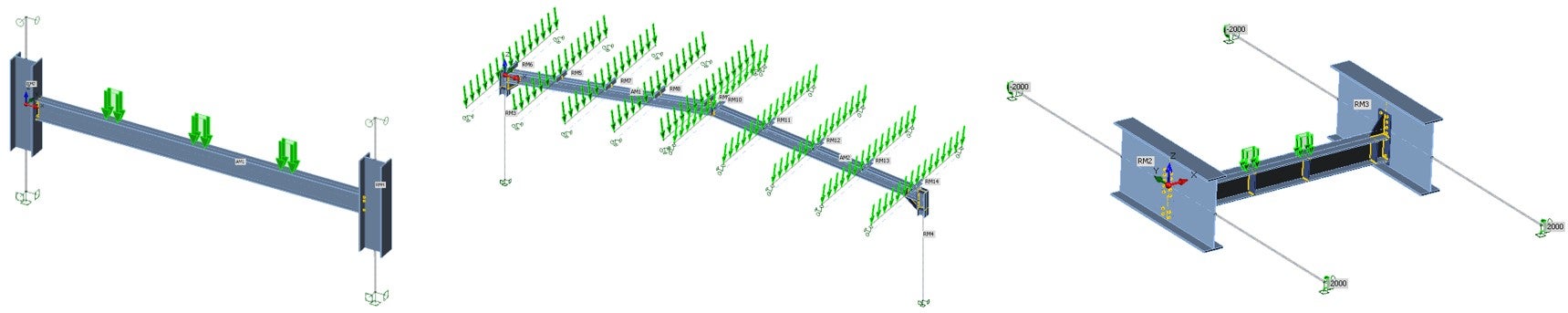

Typical examples of not common steel members

There are many great tools for the design of 3D steel frames – SAP2000, Robot Structural Analysis, SCIA Engineer., etc.
They cover almost all requirements of structural steel designers. But still, there are issues with many question marks. Mainly in:

• Connections, details, nodes
• Stability and buckling

IDEA StatiCa is focused on more complex parts of steel structures and offers:

1. IDEA StatiCa Connection for checking of nodes and connections of any topology
2. IDEA StatiCa Member for resolving all unclear topics of stability and buckling

Every structural engineer usually calculates the steel structure in some 3D FEA software. Then, he needs to take steel members one by one and do 2 main checks for steel member:

• Section check
• Stability check

He uses calculated internal forces and applies analysis formulas mostly defined in national design code.

The same approach is applied in Steel Member.

Structural engineer calculates steel structure (frame) in 3D FEA software. The analyzed member and all members related to it are separated from the modeled 3D structure and are resolved using CBFEM.

• Global analysis of steel frame is done in 3D FEA software.
• All analyzed members are modeled by CBFEM.
• A simpler model is used for all related members (connected in nodes). Related members can be supported at the ends.
• Nodes and connections are designed in IDEA StatiCa Connection UI.

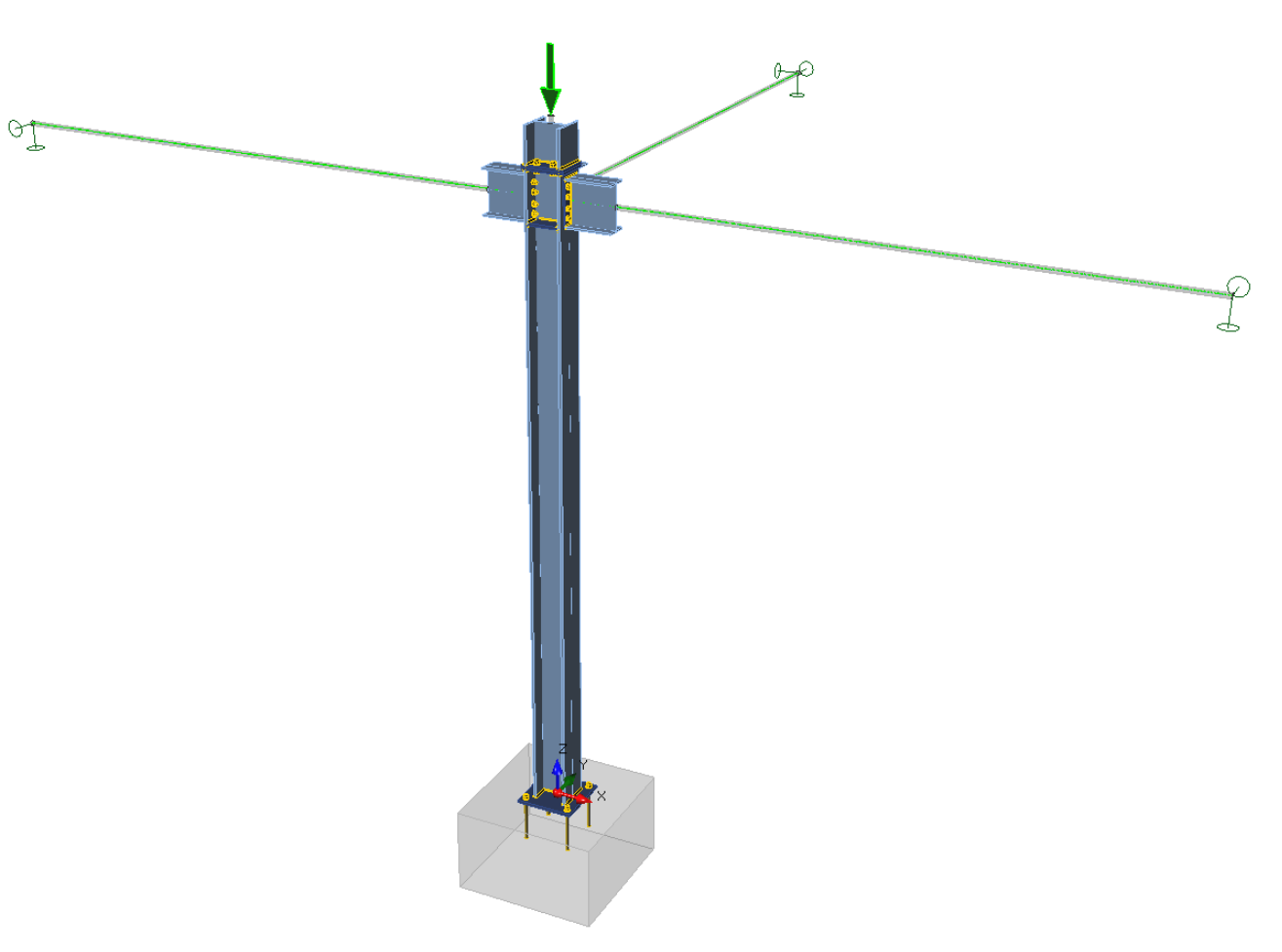

CBFEM model of a column. One analyzed column, four related members and precise model of anchoring

CBFEM model of a castellated beam between two columns

The analysis model of Member is created by CBFEM. Member provides 3 types of analysis:

• MNA – Materially Non-linear Analysis.
• LBA – Linear Buckling Analysis (stability)
• GMNIA – Geometrically and Materially Non-linear Analysis with Imperfections

Structural engineer can do in Member on much higher level the same check as in standard workflows:

• Section check: MNA is used. Strain check of 5 % is applied.
• Stability check: LBA tells the shape of stability collapse and advises how imperfection should be defined. GMNIA is used afterward. Strain check of 5 % is applied or attainment of maximum load (end of convergence).

The same model as in IDEA StatiCa Connection – Component Based Finite Element Method – is used:

IDEA StatiCa Connection Theoretical Background

Model description

Application IDEA StatiCa Member works with a multi-level model of the structure with combined loads. The goal is a proper investigation and check of selected members of a structure – “analyzed” members.

Other parts of the model are:

• Related member(s) – all members which are connected to the analyzed member(s)
• Connection(s) – CBFEM connection(s) of analyzed and related members
• End supports on related members
• Loads on analyzed member

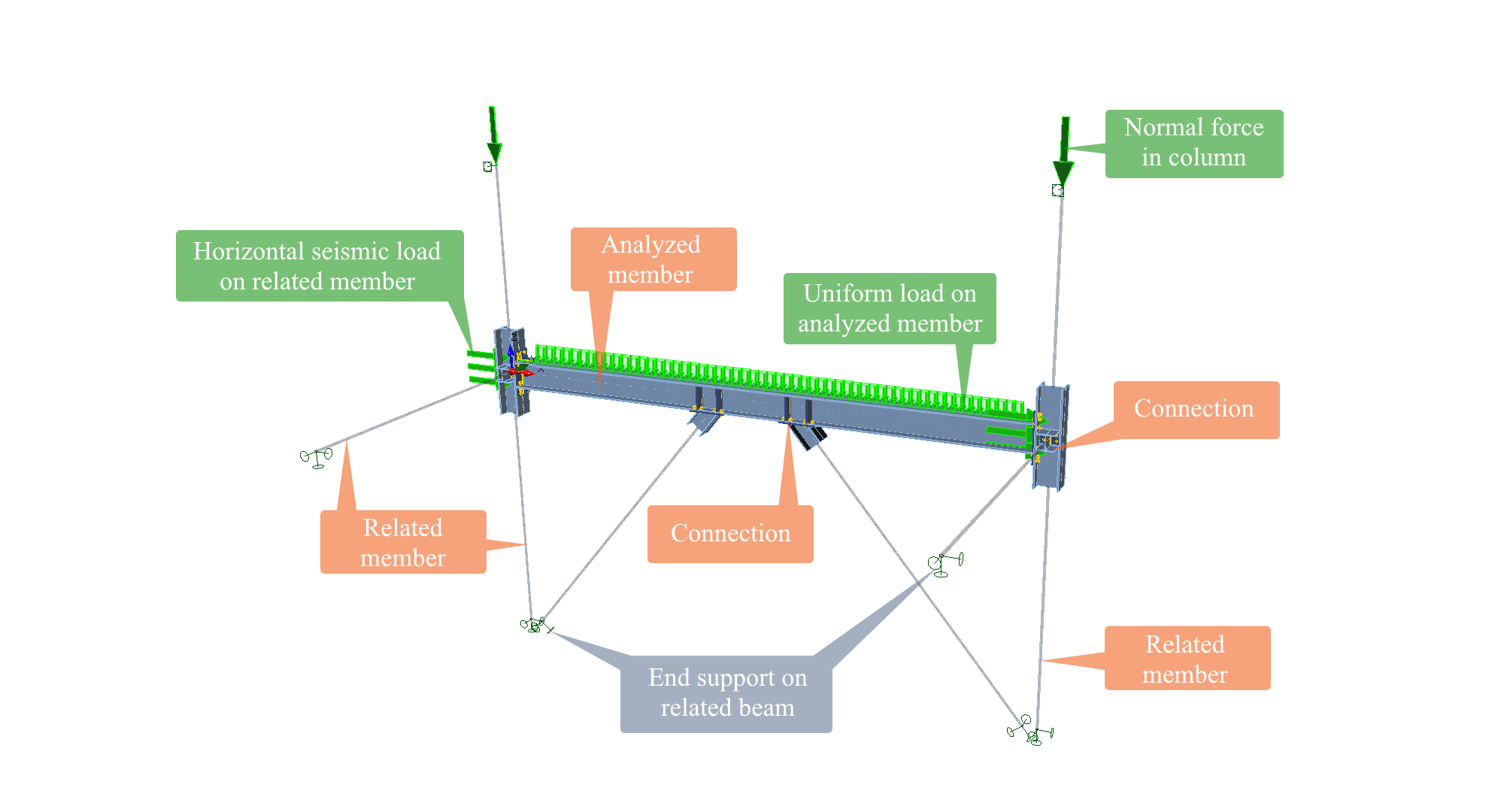

CBFEM model of member as a part of seismic bracing system

Analyzed member is “cut-off” of the structure and investigated separately. All loads on the analyzed member and related members have to be applied as in 3D model of the whole structure. In the places of “cut”, which is done at the ends of related members, the internal forces are applied as actions on members. The cut-off structure loaded in such way is in equilibrium. It means that theoretically no supports are needed for the analytical model. CBFEM model is more precise than a standard member model. It is a benefit but it also causes the partial infraction of equilibrium. Therefore, it is useful to apply supports at the ends of related beams. Supports should be defined to allow the same behavior of cut-off structure as it is in the whole structure. The program lets it on a judgment of a structural engineer.

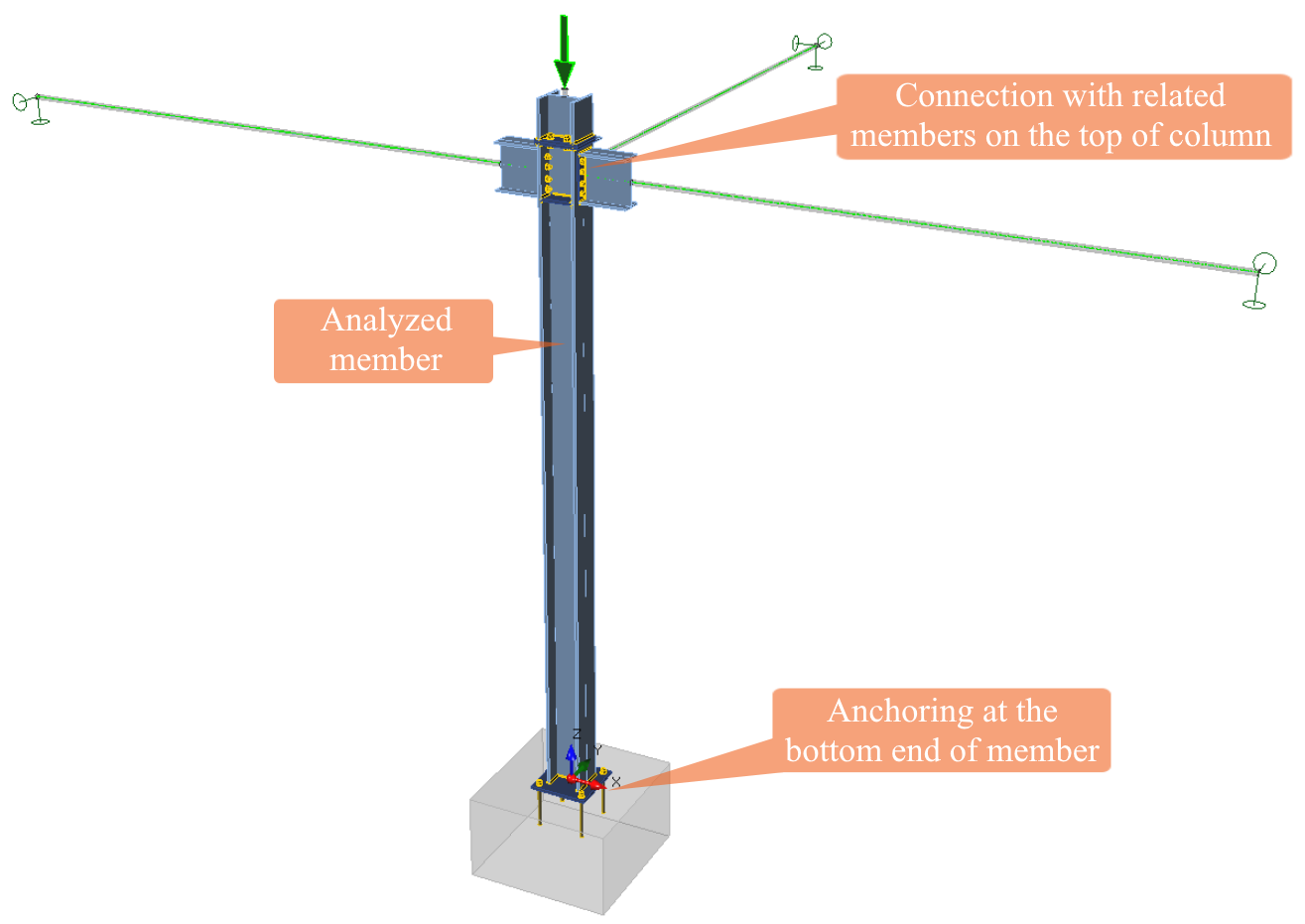

Analyzed member

The analyzed member is an investigated member upon which loads are directly applied. The loads on the analyzed member can be applied to the member centerline or directly to the individual plates of the member with the real area of loading. Analyzed members are modeled fully with shell elements.

Model of analyzed member

Related members

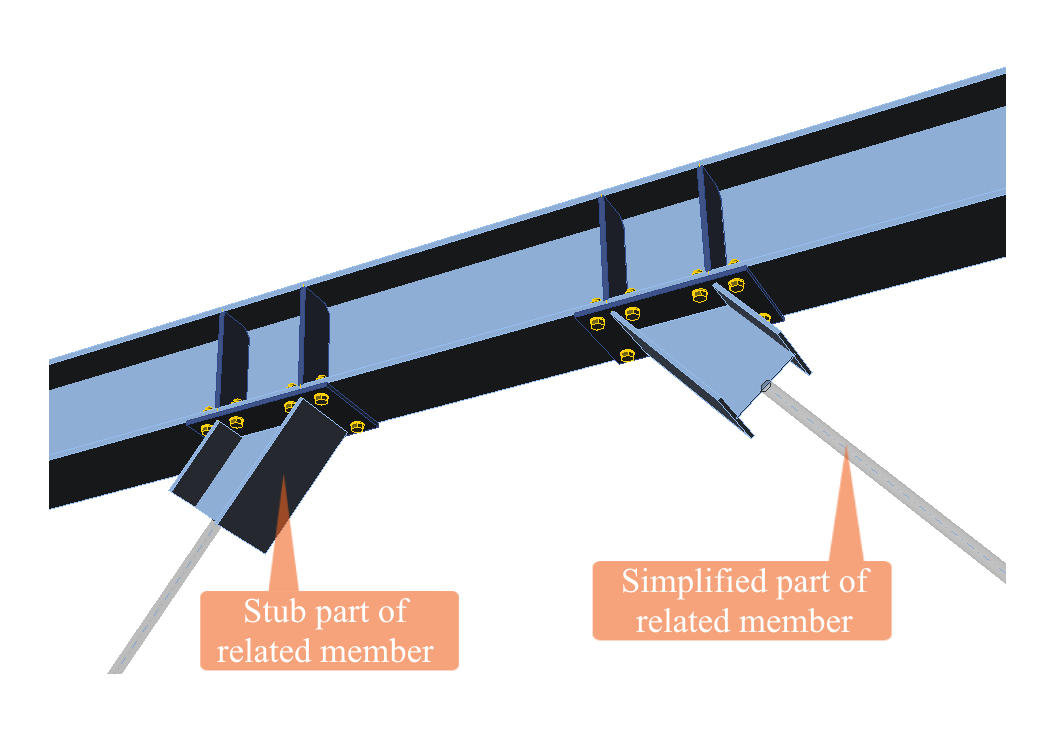

Related members are divided into stub part adjacent to the analyzed member and simplified part at the rest of the related member. Stub is modeled by shell elements (full CBFEM model) and simplified parts by simple 1D beam elements with six degrees of freedom. Only the necessary part close to the joint with analyzed member (the stub) is modeled by shell elements to speed up the calculation. The ends of related members are supported by user-defined restriction of translation or rotation in arbitrary direction in local coordinates of the related member.

Model of related beams

Connections

Connections between analyzed and related members are properly defined in the way they are modeled in IDEA StatiCa Connection. Note that they are not checked in IDEA StatiCa Member, because this application work with loads critical for the member, not for connections. The proper check of connections shall be done in IDEA StatiCa Connection.

Supports

IDEA StatiCa Member adds the second level of FEA analysis of the selected member(s). The first level is done in the standard 3D FEA program. The second level uses internal forces calculated in the first level. The structure loaded in such way is in equilibrium.

More precise model (e.g. local eccentricities of members, real lengths of members...) and especially imposed imperfections for the GMNIA analysis cause that the equilibrium is not kept. Reasonable supporting based on structural engineer judgment is recommended.

Standard supports can be defined at the ends of related members. All 3 translation and 3 rotations can be eliminated by support. Supports are defined in the local coordinate system of the member.

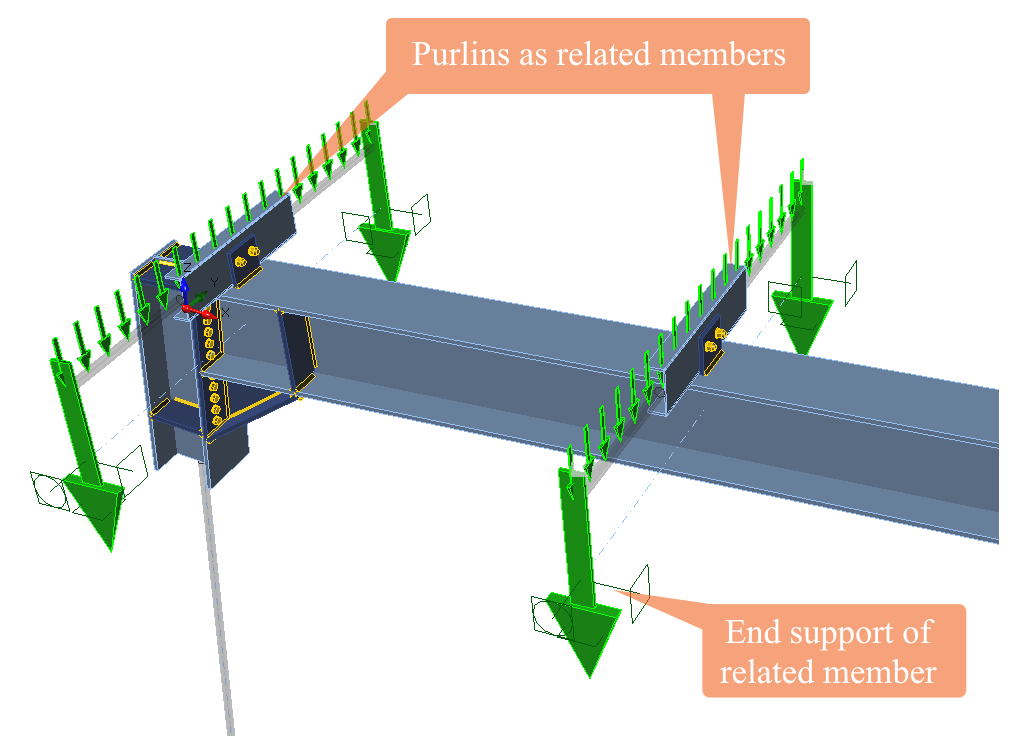

End supports on related member – purlin; x-direction and all 3 rotations are supported

Loads

The analyzed member (or piece of a structure) must be loaded like it is loaded in the whole structure. Self-weight is not applied automatically; only the user-defined loads are considered. Following loads are applied:

• Line loads on analyzed and related members
• Internal forces in end sections of related members

Line loads

Structural engineer knows very well line loads and point loads from 3D FEA software. Such loads are idealized for the purpose of 1D members. They do not exist in real life. The real loads are usually planar or surface loads or members are loaded through the connections of other members.

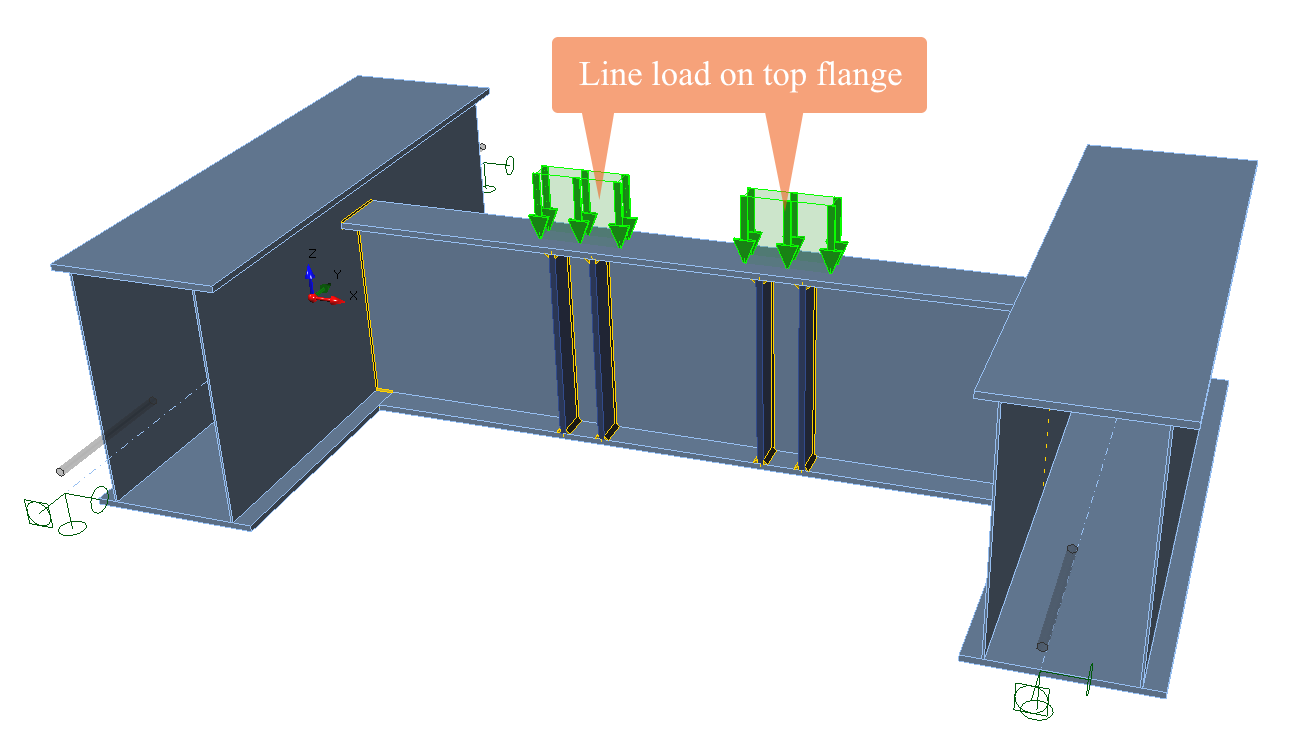

The user can apply line loads on analyzed members, but he must add more details – on which flange or web is the load applied, the width of loaded area, etc. Also, point loads are better to input as planar loads of specific length and width.

Line loads on related members are applied in the standard way as in 3D FEA software.

Point load is input as line load with a specific width

End forces

Internal forces at the end sections of related members. They are applied as actions on related members. It is very similar to loading of members in models of connections in IDEA StatiCa Connection.

Internal forces as load actions at the end of related member

Practical example

The process of CBFEM model assembly is shown on the following example.

Designer needs to check lateral-torsional buckling resistance of a girder in a frame. If the standard approach is used, the whole frame is calculated in 3D FEA software. Then the girder is checked separately. Boundary conditions are decided; codes usually use assumption of rigid or pinned supports. Generally, even a spring of semi-rigid joint may be selected. The decision is a key factor in the assessment of lateral-torsional buckling resistance and is fully dependent on the designer's estimation. The calculated internal forces are compared to the resistance of lateral-torsional buckling determined by analytical formulas.

Application Member uses completely the same principles. Analyzed member is cut from the full model of the structure. The boundary conditions are not estimated but all the connecting parts are exactly modeled. The problem of boundary conditions is not completely solved due to the need to support the ends of related members. Supports of related members depend on the designer's decision but their influence on the load resistance of the analyzed member is smaller by several magnitudes than compared to the standard approach.

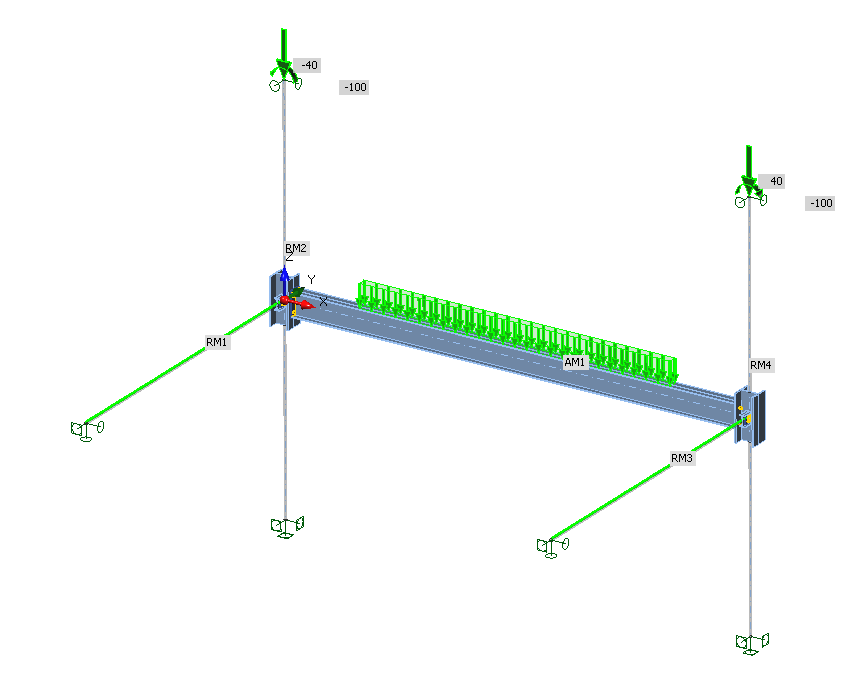

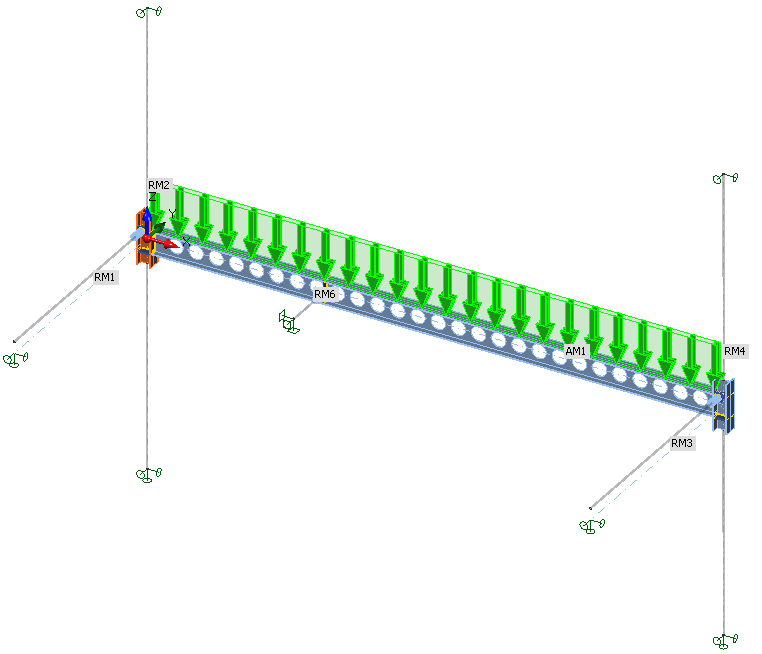

Example of the model of girder with joints, related members, and loads

The analyzed member AM1 – the girder – is loaded by continuous load acting on the upper flange. The joints are modeled and checked in IDEA StatiCa Connection.

Columns are the related members at the model. They are fixed at the bottom. At the top, they are supported only in transverse direction (y, z). That allows loading the columns by the weight of the rest of the structure – by normal force and bending moment in this example. Their magnitudes correspond to the internal forces solved on 3D model in FEA software. There is no other load acting on the columns.

Other related members are the secondary beams. They are simply supported and the real loads are applied to them along their whole length. At their ends, simple supports are applied with added restriction of rotation around longitudinal axis x.

Of course, CBFEM model is also somehow simplified. Nevertheless, it describes the behavior of analyzed member more precisely than the standard approach based on analytical formulas and estimation of boundary conditions and bending moment diagram.

Following figures show the expected behavior of the girder.

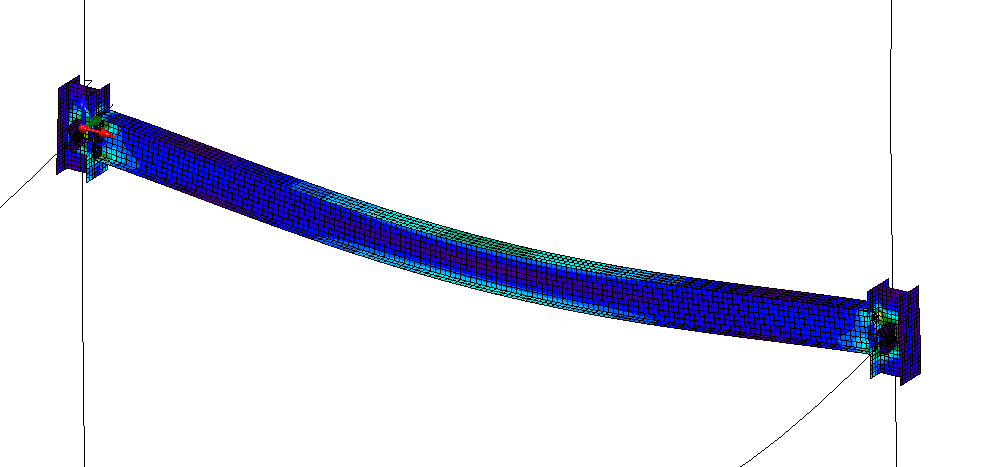

Deformation of the girder determined by MNA

Buckling mode shape determined by LBA

Analysis

IDEA StatiCa Member is able to perform three types of analysis:

1. Materially Nonlinear Analysis
2. Linear Buckling Analysis
3. Geometrically and Materially Nonlinear Analysis with Imperfections

The first two analyzes can be used for code checks of members, e.g. using General method (EN 1993-1-1, Cl. 6.3.4), but mostly they are used for the preparation of the third, most precise, analysis.

Materially Nonlinear Analysis (MNA)

Materially nonlinear and geometrically linear static analysis is sufficient for stocky members without any buckling issues. The aim of application IDEA StatiCa Member is to solve complicated members so MNA analysis is usually not sufficient for complete assessment. This analysis is required to perform other analysis types.

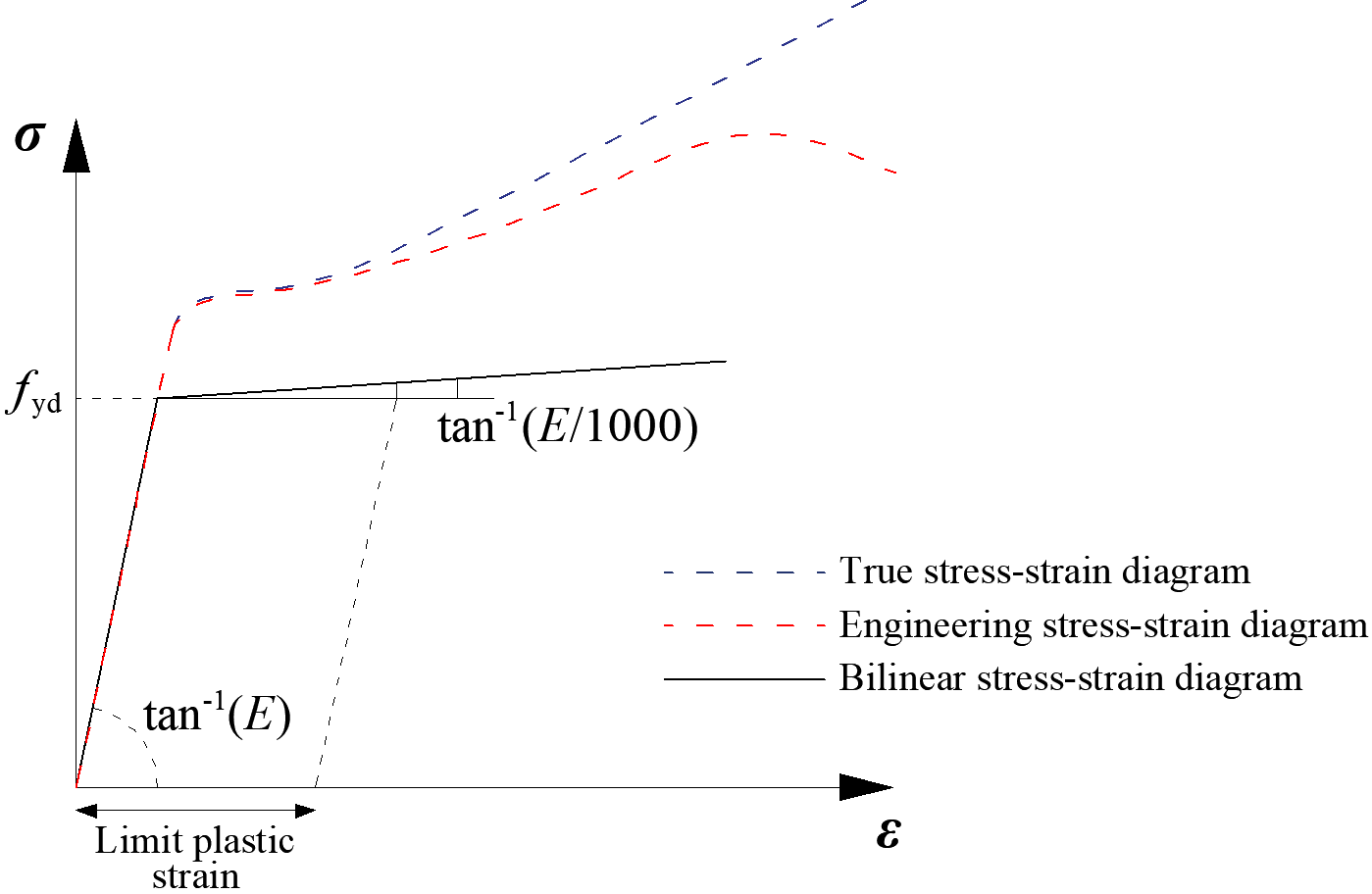

Material diagrams of steel in numerical models

Linear Buckling Analysis (LBA)

The structure is considered perfect without any geometrical or material imperfections and the material is elastic in this analysis type. Linear buckling analysis provides factor α_cr – minimum amplifier for design loads to reach the elastic critical resistance of the structural component. The factor determines the load when Euler's critical buckling load is reached. The real buckling load of a real, imperfect structure may be much lower and therefore high safety margin is recommended:

• α_cr > 15 – use MNA
• α_cr < 15 – use GMNIA

Another result of LBA with the same importance is the buckling mode shape. It provides information which part of the modeled structure loses stability. User should check all the buckling modes and select the important ones for application of imperfections. The important buckling mode shapes are usually causing sinusoidal half-wave bow deflection of the analyzed member or local buckling of slender plates.

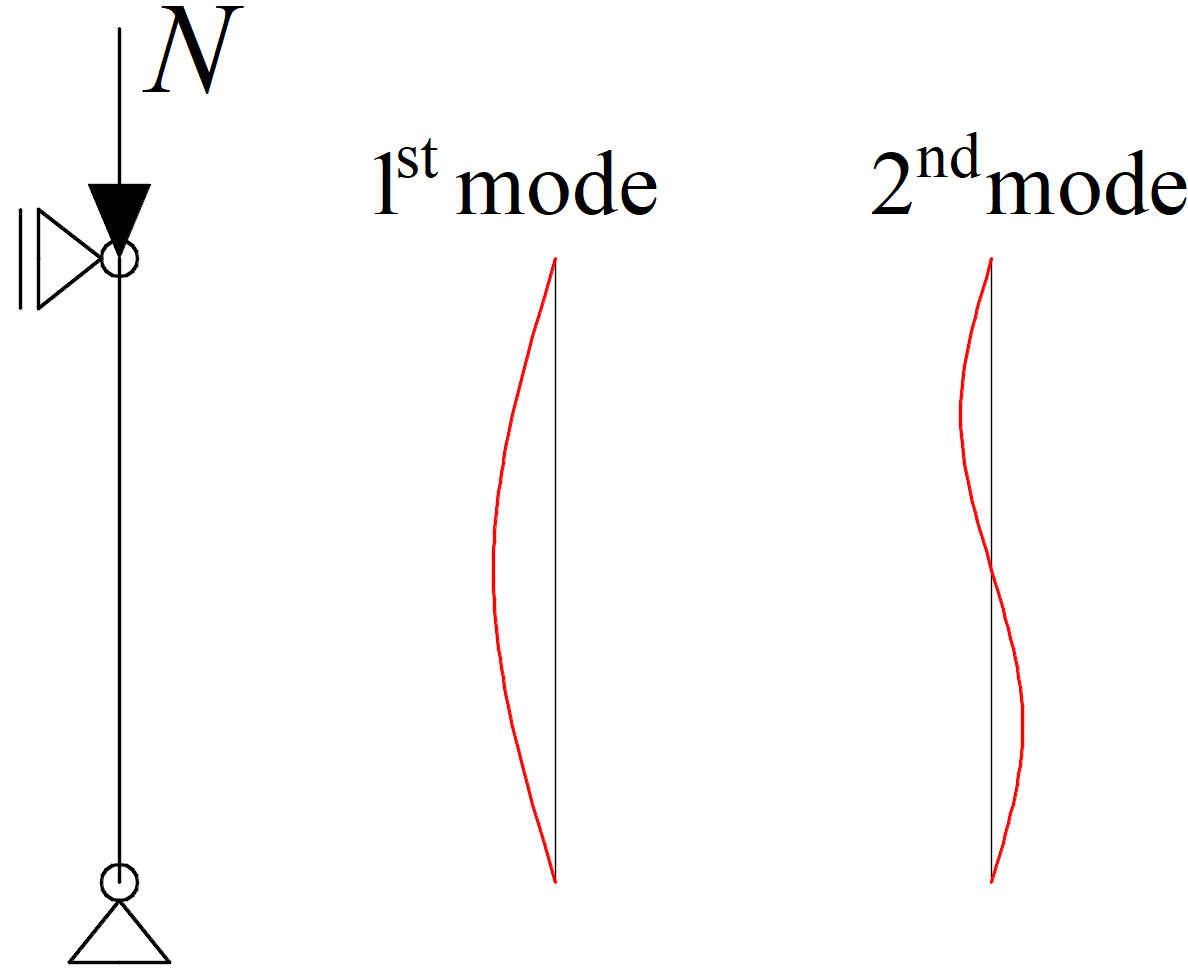

Buckling mode shapes

The buckling mode shape also provides us with the information whether the member fails in flexural buckling around weaker or stronger axis, torsional buckling (axially loaded columns) or lateral-torsional buckling (bended beams) or local buckling (members with slender plates). Note that for complicated structures, buckling mode shapes may combine buckling of several members with various shapes. Also, if a whole frame is modeled, the frame will buckle as a whole and not columns and the girder separately.

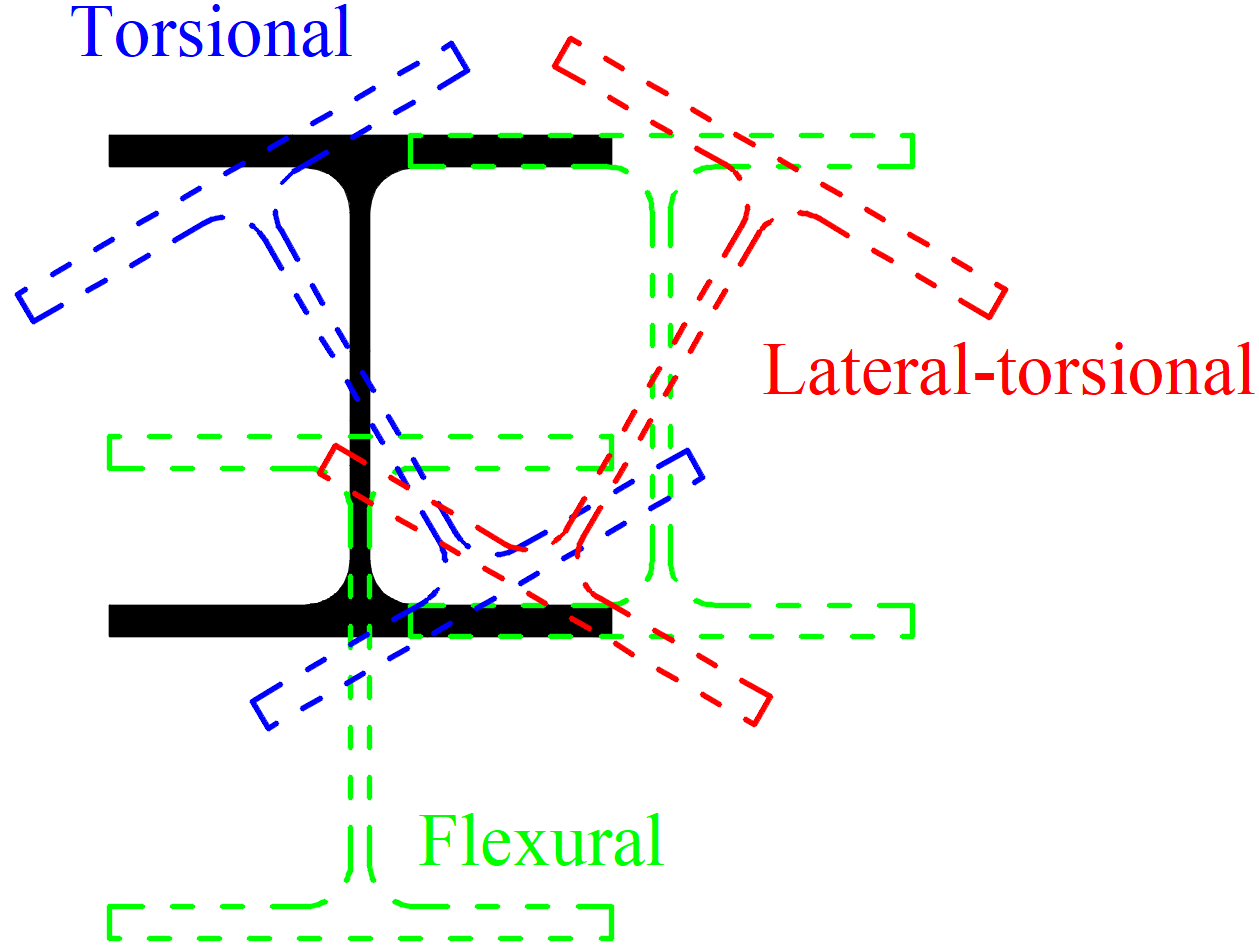

Flexural, torsional, lateral-torsional buckling

Buckling mode shapes are directly used for application of imperfections in the most sophisticated analysis type – GMNIA.

Geometrically and Materially Nonlinear Analysis with Imperfections (GMNIA)

Geometrically and materially nonlinear analysis with imperfections is the most sophisticated analysis type for static loading. All the imperfections (varying thickness of plates, out-of-straightness, residual stresses, non-homogeneities in material, misalignment of supports...) are substituted by equivalent geometrical imperfections and can be set using buckling mode shapes calculated by LBA. User selects the maximum amplitude of buckling mode shape used for imperfection. The description of imperfections is in the next chapter.

Interpretation of results

Most design codes recognize two limit states – serviceability and ultimate.

Serviceability limit state

Design codes provide limits of deflection of members. These can be checked by comparing the deflection of analyzed member to the limits.

Ultimate limit state

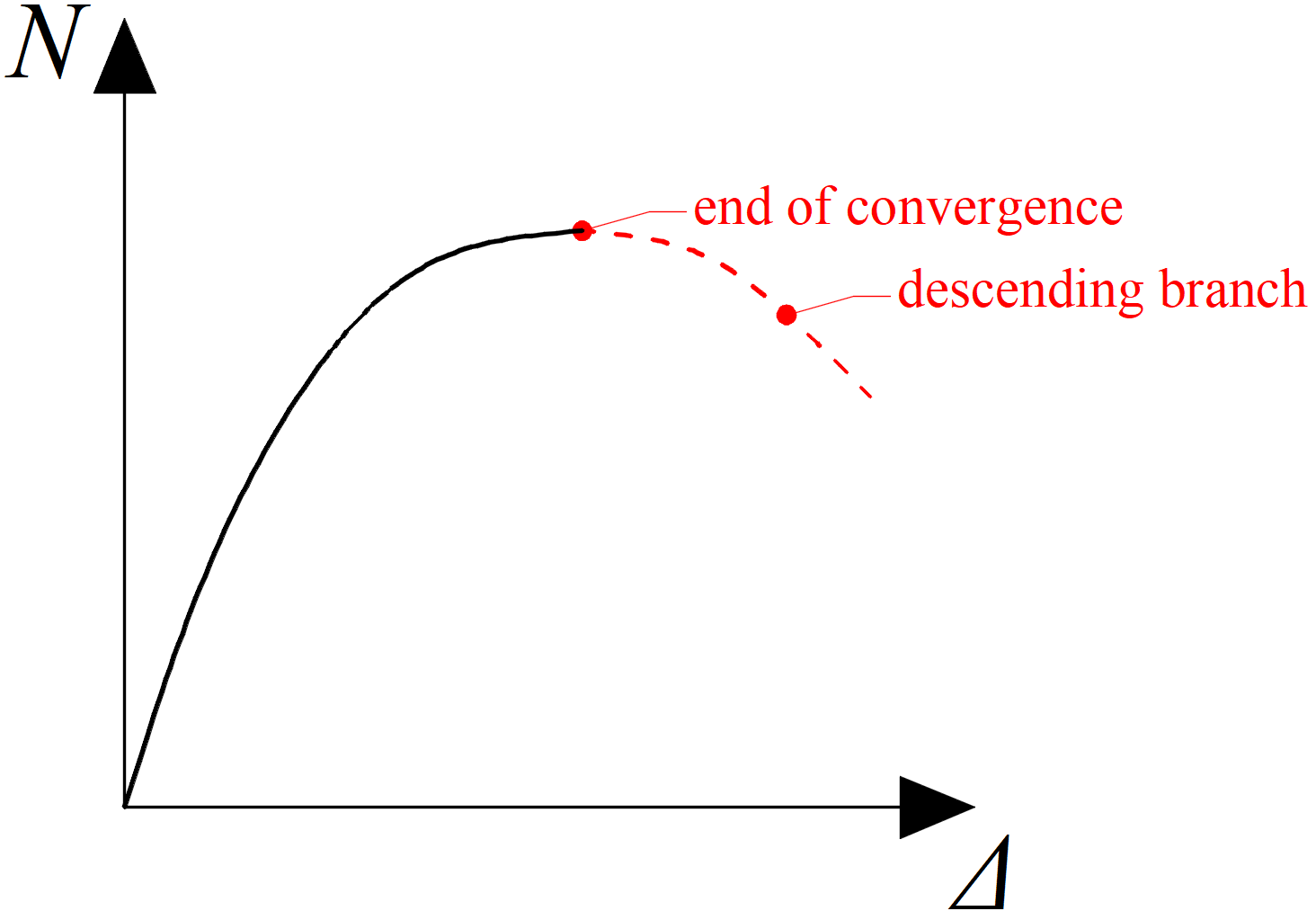

Ultimate limit state may be reached by attainment of a limiting value of the principal membrane strain – recommended as 5 % or attainment of the maximum load for members susceptible to buckling. Maximum load is reached when the solver stops converging (because the model is loaded by forces and not by displacements). End of convergence means that no load increment may be applied to the model and the analysis may stop below 100 % of defined load. Descending branch of the load-deformation diagram cannot be captured.

End of convergence in GMNIA

Imperfections

The imperfections are inaccuracies in supports, residual stresses in members, variable thicknesses of plates, out-of-straightness of members, etc. All these imperfections are simulated by equivalent geometrical imperfection. Three geometrical imperfection types may be considered:

1. Global imperfections of the structure
2. Local imperfections of members
3. Local imperfections of slender member plates

There are guidelines in e.g. EN 1993-1-1 and EN 1993-1-5 for each imperfection type.

Global imperfections

Global imperfections of the structure are described in EN 1993-1-1, Cl. 5.3.2 (3). The structure should be inclined in the form of equivalent sway imperfection according to the following figure.

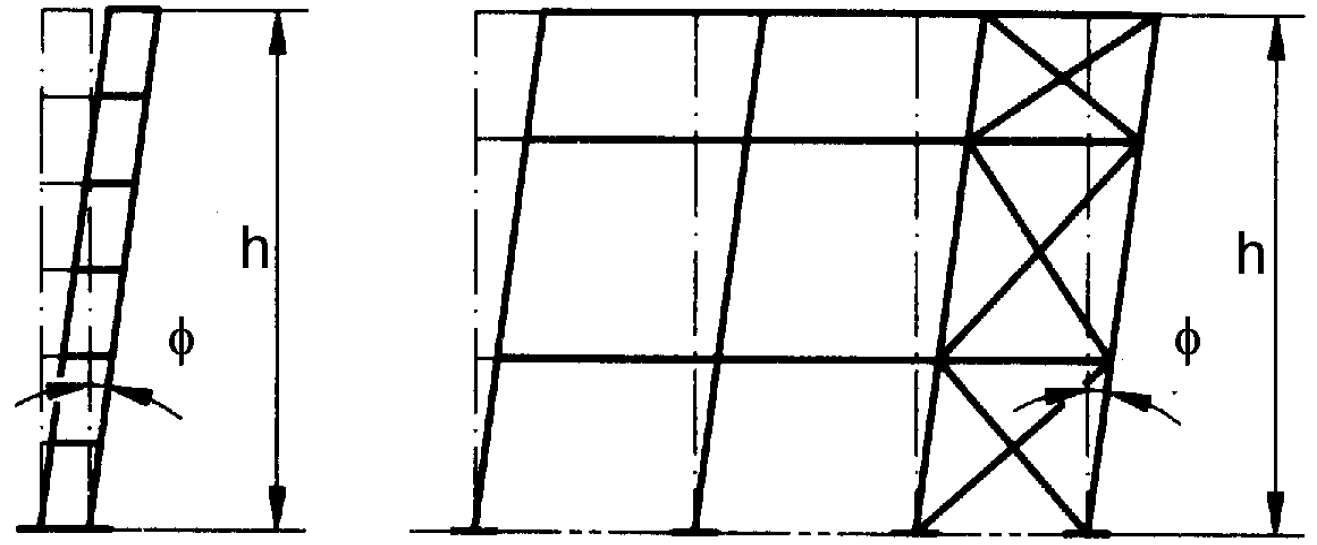

Equivalent sway imperfection (from EN 1993-1-1 – Figure 5.2)

The angle of imperfection is:

\[ \phi = \phi_0 α_h α_m \]

where:

• ϕ₀ = 1/200 – basic value of imperfection
• \( 2/3 \le α_h = \frac{2}{\sqrt{h}} \le 1.0 \) – reduction factor for height h applicable to columns
• h – height of the structure in meters
• \( \alpha_m = \sqrt{0.5 \left ( 1+\frac{1}{m} \right )} \) – reduction factor for the number of columns in a row

The global imperfections should be applied to the structure in the global analysis model to obtain correct loads. The global imperfections need not be applied also to the model in application IDEA StatiCa Member if e.g. only one beam is analyzed.

Local imperfections of members

Local imperfections of members are described in EN 1993-1-1, Cl. 5.3.2 (3). The imperfections are considered in the shape of local bow imperfection with the amplitude e₀/L, where L is the member theoretical length (node-to-node distance).

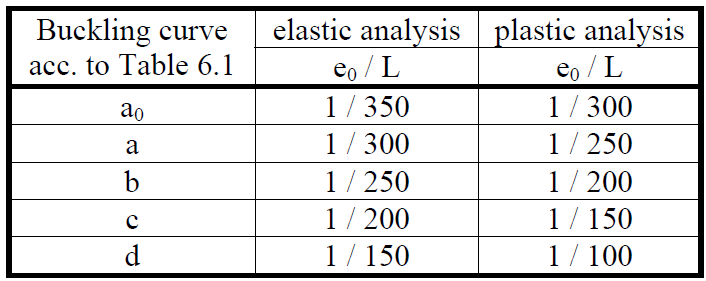

Design values of initial local bow imperfections (from EN 1993-1-1 – Table 5.1)

The plastic analysis is used so the right column of the table should be used. The amplitude e₀ should be chosen according to the table above for predominantly compressed member where flexural, torsional or torsional-flexural buckling is expected. If the member is predominantly bended and main failure mode is lateral-torsional buckling, the amplitude e₀ may be decreased by factor k = 0.5 according to EN 1993-1-1, Cl. 5.3.4 (3).

Two examples are shown:

Example 1: Column

Column with the length 4 m is loaded by axial force and has α_cr = 1.4 for buckling around stronger axis and α_cr = 1.5 around weaker axis. Other values are significantly higher. Two cases should be checked:

1. Buckling around stronger axis: According to Table 6.2, buckling curve a is selected which corresponds to amplitude of imperfection e₀ / L = 1 / 250 for plastic analysis. Therefore, amplitude 4000 / 250 = 16 mm is applied to the first buckling mode shape. GMNIA is run and the limit states are evaluated.
2. Buckling around weaker axis: According to Table 6.2, buckling curve b is selected which corresponds to amplitude of imperfection e₀ / L = 1 / 200 for plastic analysis. Therefore, amplitude 4000 / 200 = 20 mm is applied to the second buckling mode shape. GMNIA is run and the limit states are evaluated.

Minimal load resistance should be used. Alternatively, both buckling modes may be used at the same time, which leads to safer result and faster calculation time.

Example 2: Beam

Beam with the theoretical span (node to node distance) of 6 m is loaded by transverse load. LBA shows that the first buckling mode shape is lateral-torsional buckling with α_cr = 1.9. Other buckling mode shapes are with significantly higher values of α_cr. According to Table 6.4, buckling curve a is selected which corresponds to amplitude e₀ / L = 1 / 250. Because lateral-torsional buckling is investigated, factor k₀ = 0.5 may be used. Amplitude 0.5 • 6000 / 250 = 12 mm is applied to the first buckling mode. GMNIA is run and the limit states are evaluated

Local imperfections of slender member plates

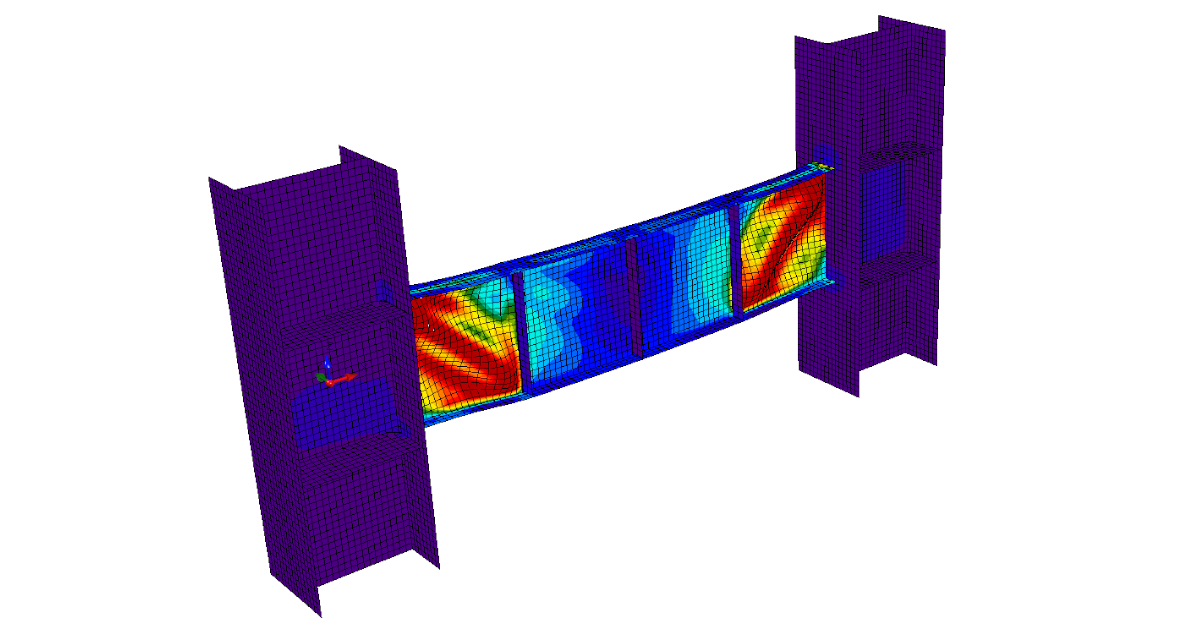

If members are class 4, local imperfections of plates should be also applied. The panel imperfection amplitude should be a / 200 where a is the shorter panel span according to EN 1993-1-5, Cl. C.5.

Local buckling of slender plates

While GMNIA should be a suitable analysis for the assessment of slender members, currently, not enough verifications and validations were made to confirm that the model is safe. Therefore, it is not recommended to use IDEA StatiCa Member for slender members (class 4) for now.

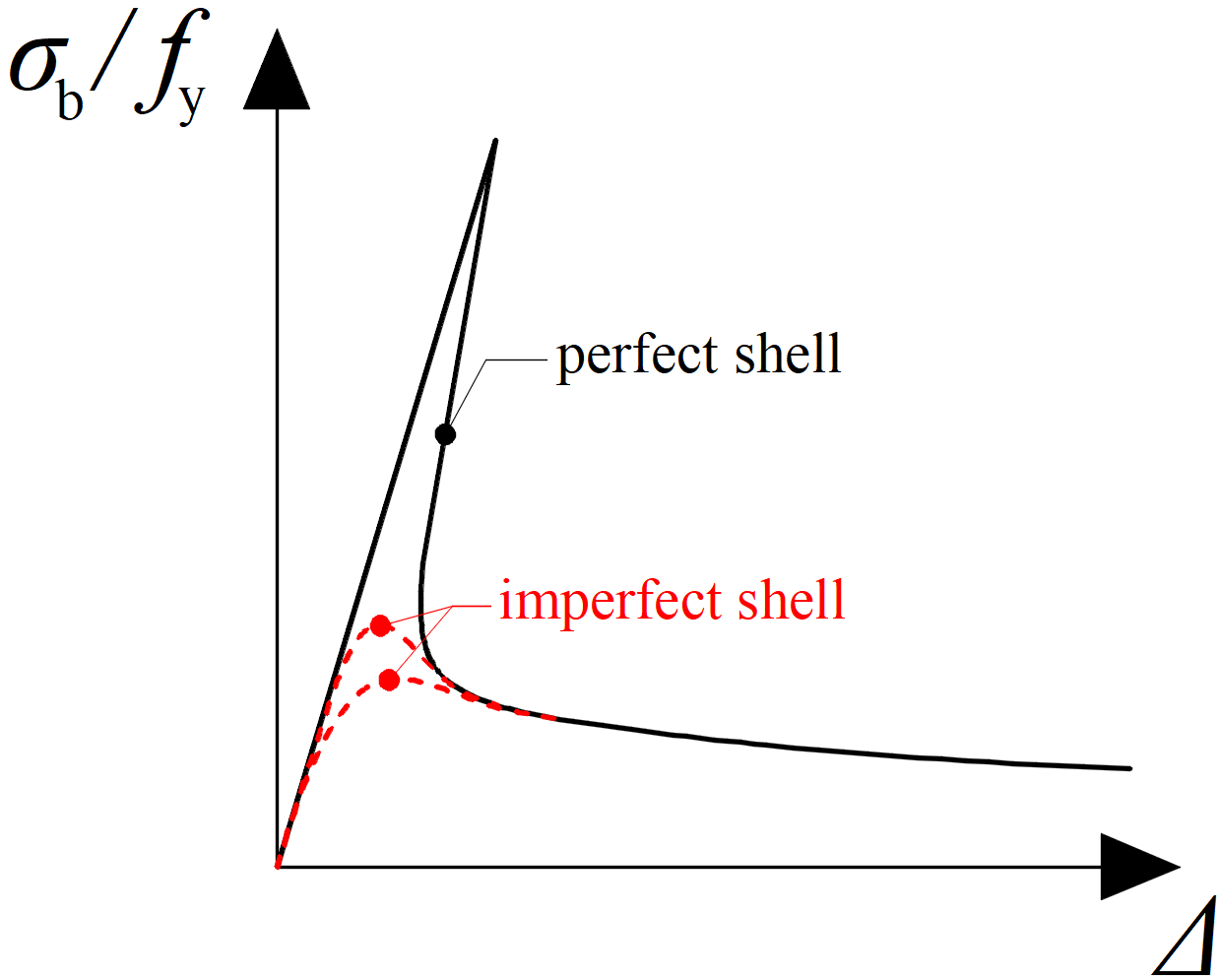

Influence of imperfections on the numerical analysis of slender plates

Applying imperfections in IDEA StatiCa Member

IDEA StatiCa Member allows applying imperfections in the buckling mode shapes with maximal amplitude chosen by user in absolute value. Usually, the first buckling mode shape with the maximum amplitude according to Table 5.1 in EN 1993-1-1 is enough. For members with cross-section class 4, more buckling mode shapes must be considered and a combination of at least two buckling modes used. Especially for model with more analyzed members, several buckling mode shapes has to be selected.

Advanced design according to AISC 360-16

AISC 360-16 does not directly refer to the design of members by a finite element analysis using shell elements so it is recommended to use much more detailed guide in EN 1993-1-5. Comm. 1.3.3b refers to ECCS: Ultimate Limit State Calculation of Sway Frames with Rigid Joints (1984) where the concept of equivalent geometrical imperfection is used. The design by inelastic analysis is covered in Appendix 1.3. The inelastic analysis shall take into account:

• flexural, shear, axial and torsional member deformations, and all other component and connection deformations that contribute to the displacements of the structure – covered by use of GMNIA and member consisting of shell elements
• second-order effects (including P-Δ, P-δ, and twisting effects) – covered by use of GMNIA
• geometric imperfections – set by user by using buckling mode shape from LBA analysis
• stiffness reductions due to inelasticity, including partial yielding of the cross section that may be accentuated by the presence of residual stresses – it is not possible to set residual stress in the member. However, using Appendix 1.3.3c, residual stress modeling may be replaced by reduction of the elastic modulus, , and modulus in shear, , by 0.8.

Appendix 1.3.3b states: "In all cases, the analysis shall directly model the effects of initial imperfections due to both points of intersection of members displaced from their nominal locations (system imperfections), and initial out-of-straightness or offsets of members along their length (member imperfections). The magnitude of the initial displacements shall be the maximum amount considered in the design; the pattern of initial displacements shall be such that it provides the greatest destabilizing effect."

Geometric imperfections are described in Comm. C2.2: "Initial geometric imperfections are conservatively assumed equal to the maximum material, fabrication and erection tolerances permitted in the AISC Code of Standard Practice (AISC, 2016a): a member out-of-straightness equal to L / 1000, where L is the member length between brace or framing points, and a frame out-of-plumbness equal to H / 500, where H is the story height."

It is recommended to apply out-of-plumbness in the 3D FEA software and out-of-straightness in IDEA StatiCa Member application.

Summary:

If it is decided to use the AISC approach, apply out-of-plumbness H / 500 in 3D FEA software, out-of-straightness L / 1000 in Member and reduce the modulus of elasticity in tension/compression and shear by factor 0.8. Note that this procedure does not cover complicated issues with several buckling mode factors close to each other.
