}How to use the link
Download the attached project, open it in SCIA Engineer, and run the linear analysis to get the internal forces over the structure.

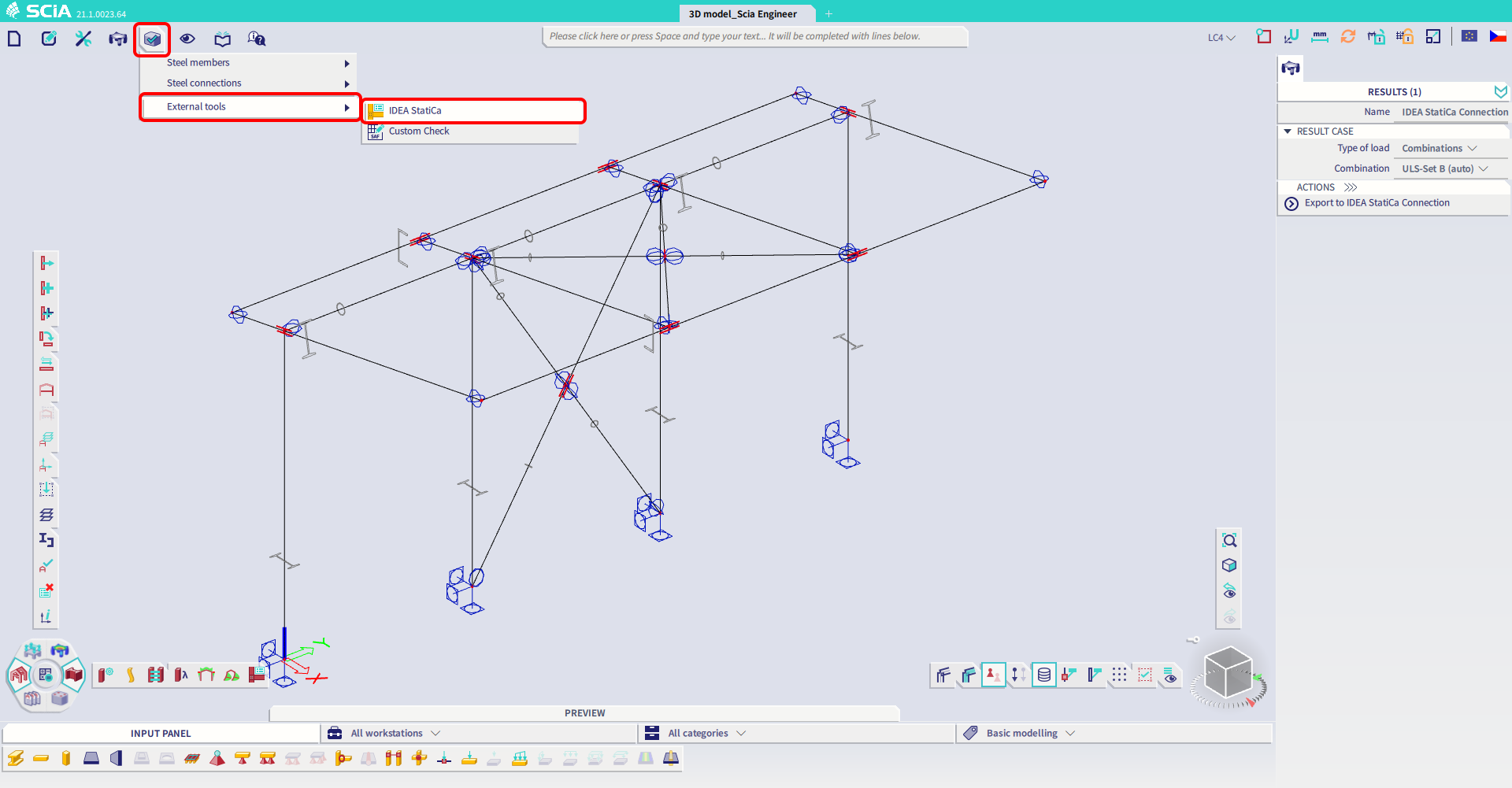

The BIM link is automatically integrated. You can find it in the top ribbon under Design -> External tools -> IDEA StatiCa.

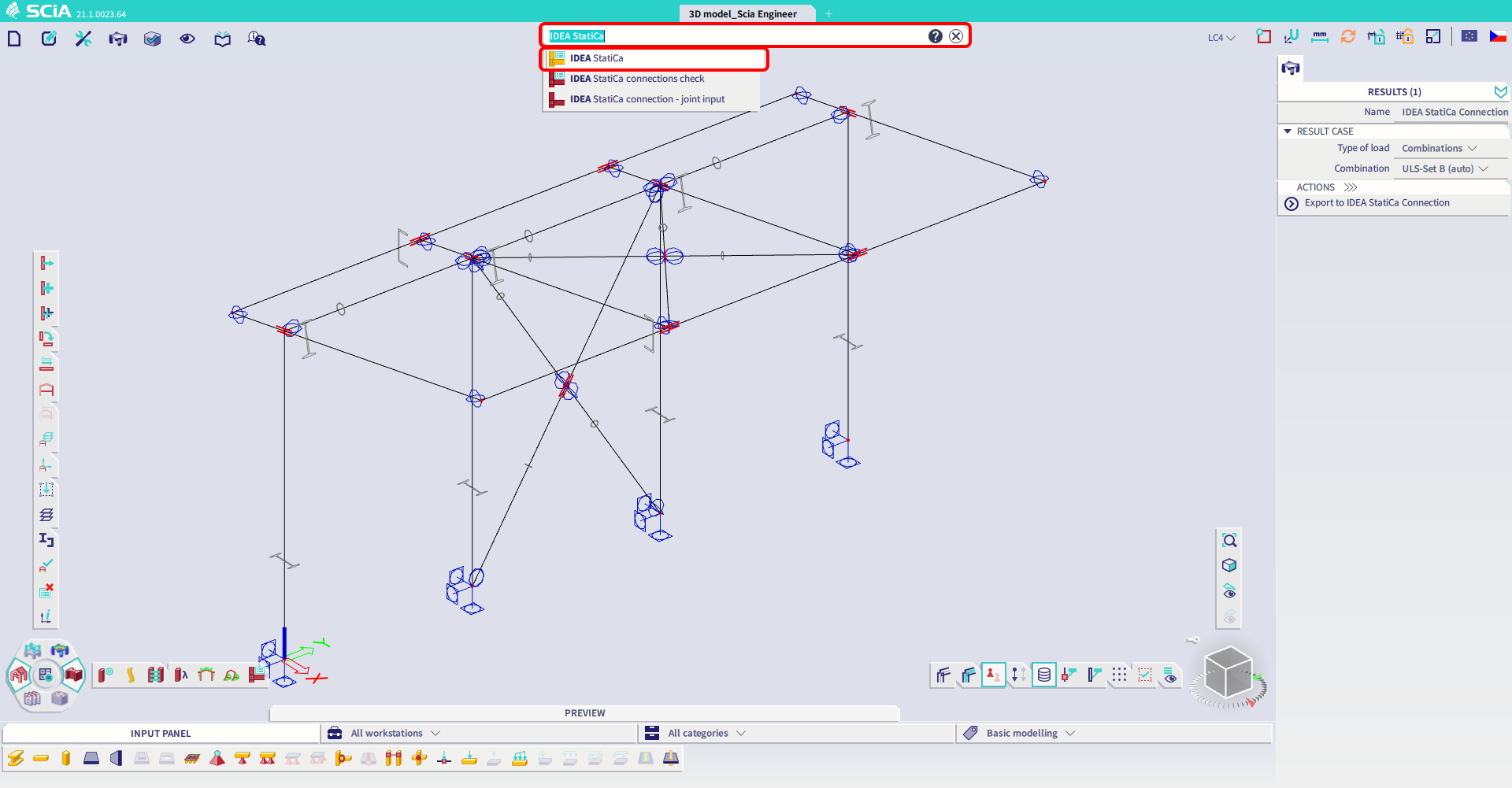

Or run the "IDEA StatiCa" command in the top command line.
Both of these options will open the Checkbot application.

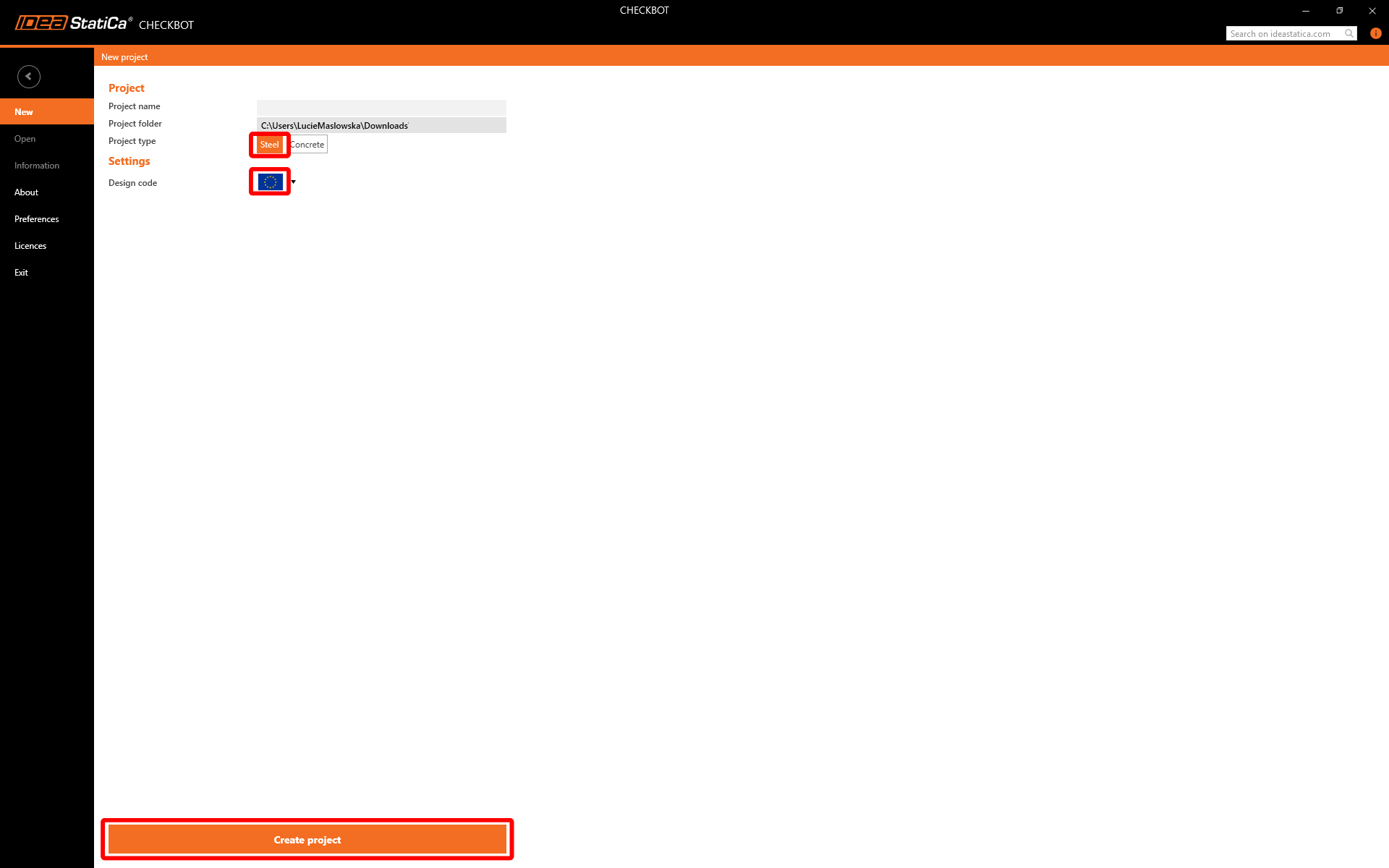

Select the New option with project type Steel and design code EN. Then select Create project.

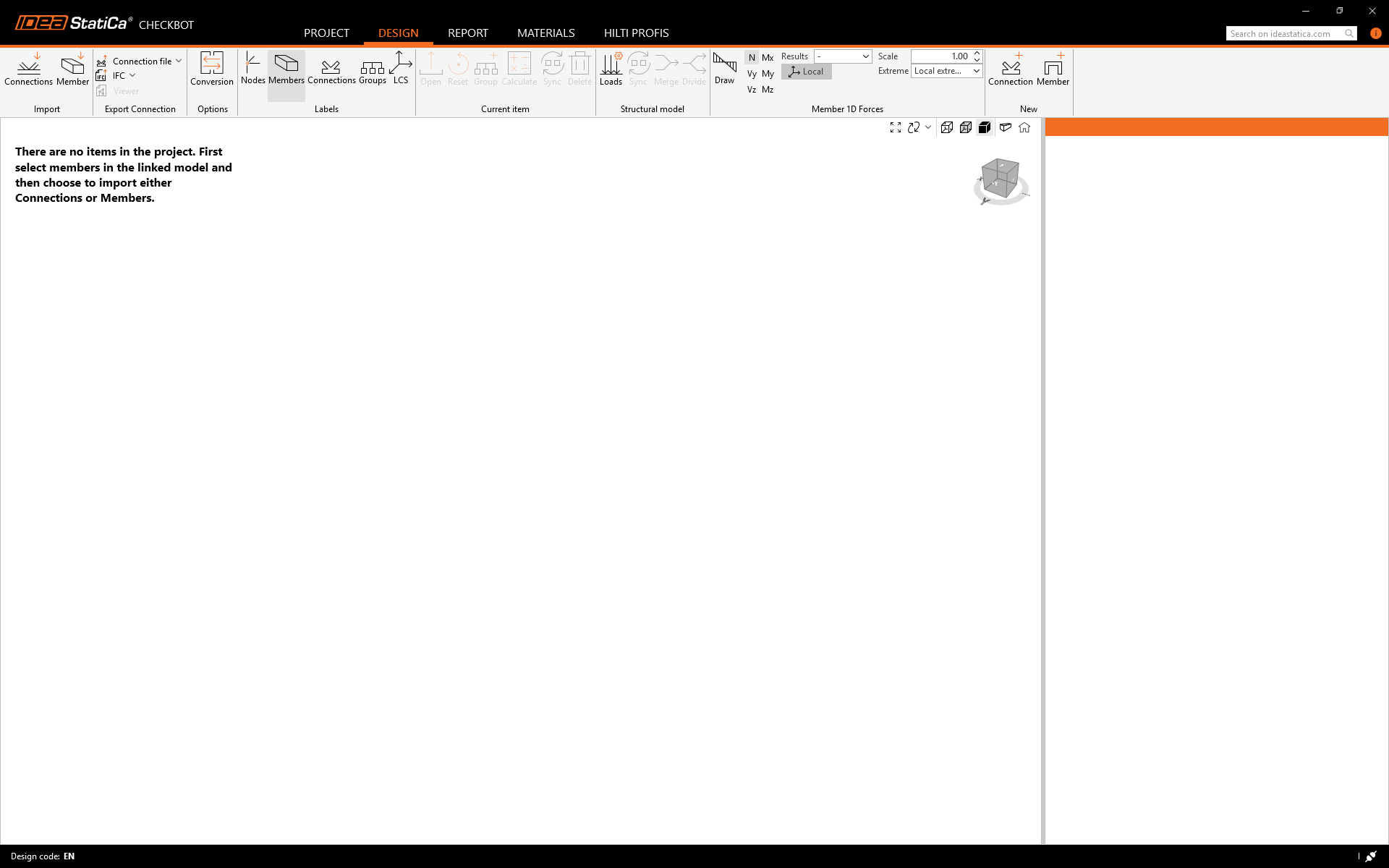

The new Checkbot project is ready to import connections from SCIA Engineer.

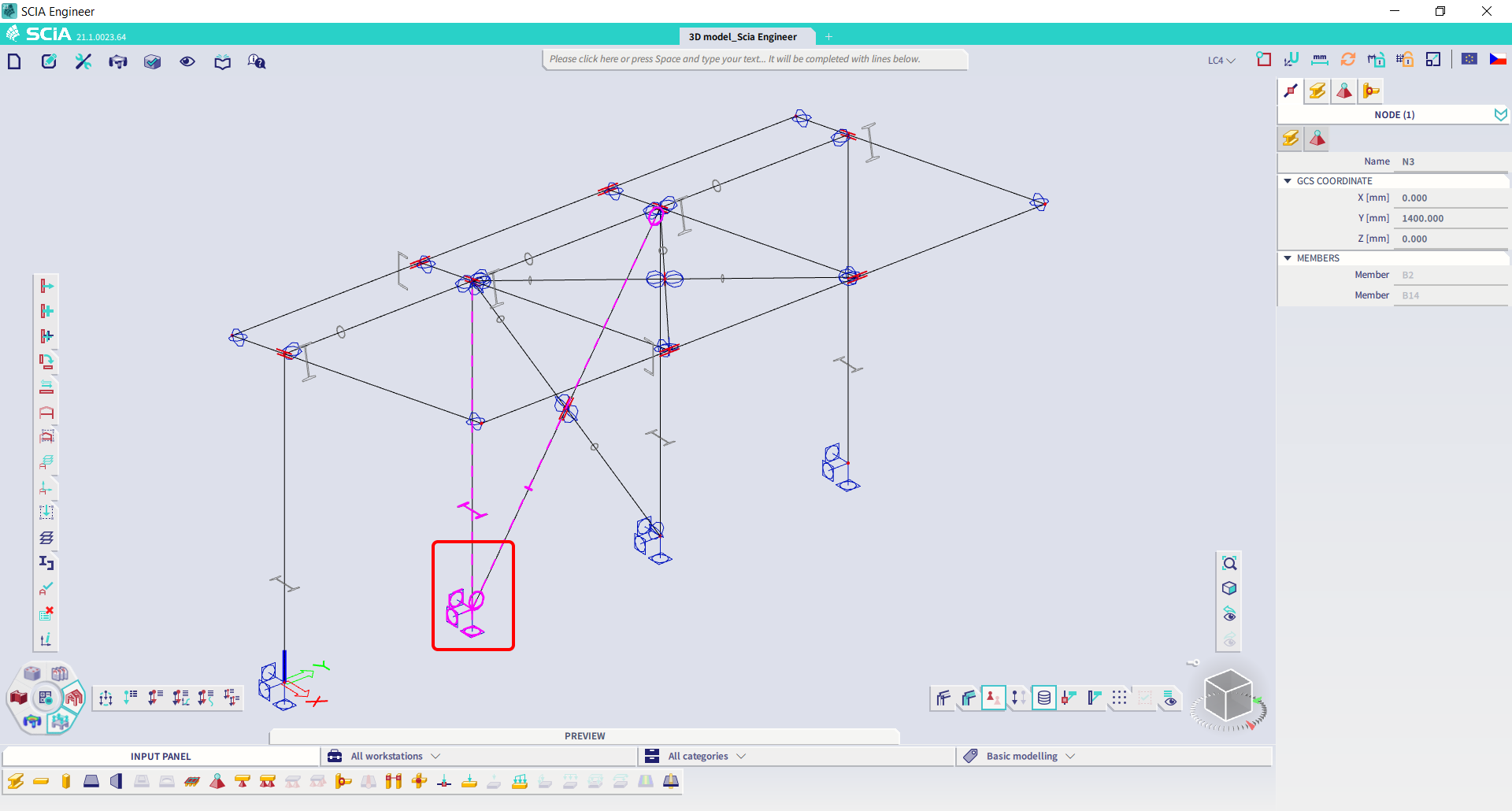

In SCIA Engineer, select one of the inside columns with bracing making sure you also select the lowest node.
