Het onderstaande diagram is op basis van het volgende voorbeeld.

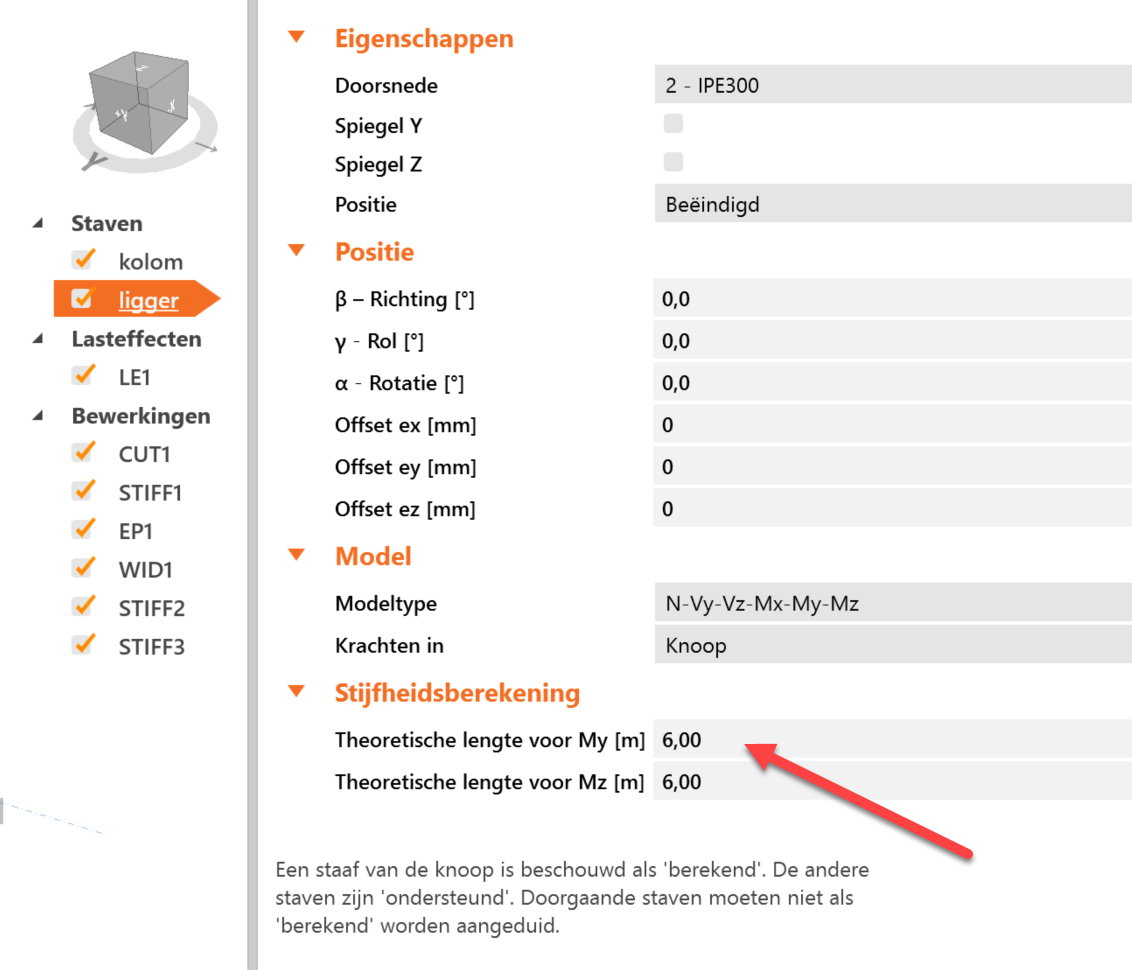

De theoretische lengte voor de stijfheidsberekening van de ligger-staaf is 6 meter.
De rekenwaarde van het buigend moment My is 95 kNm.

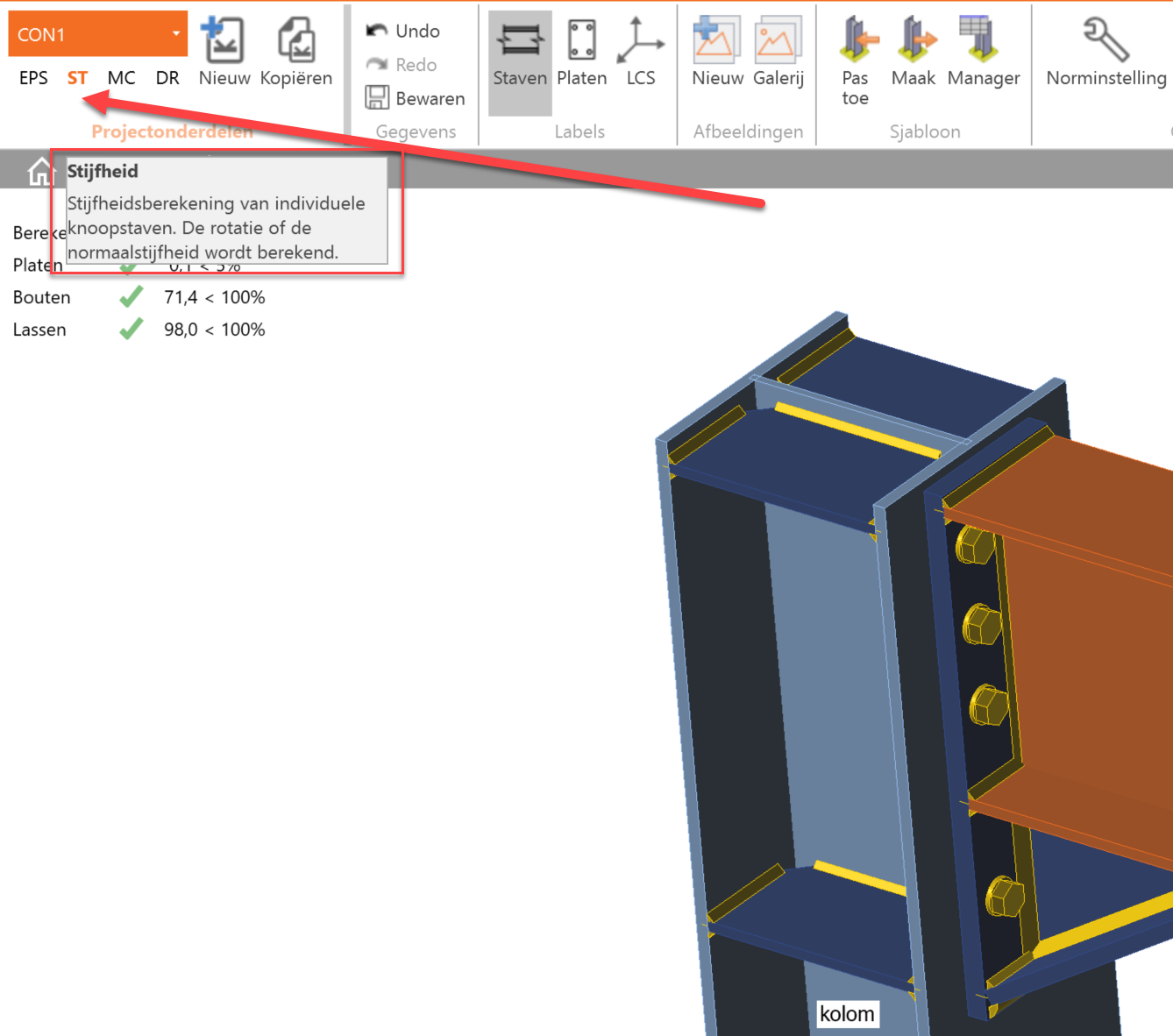

Het berekeningstype staat ingesteld op 'stijfheid'.

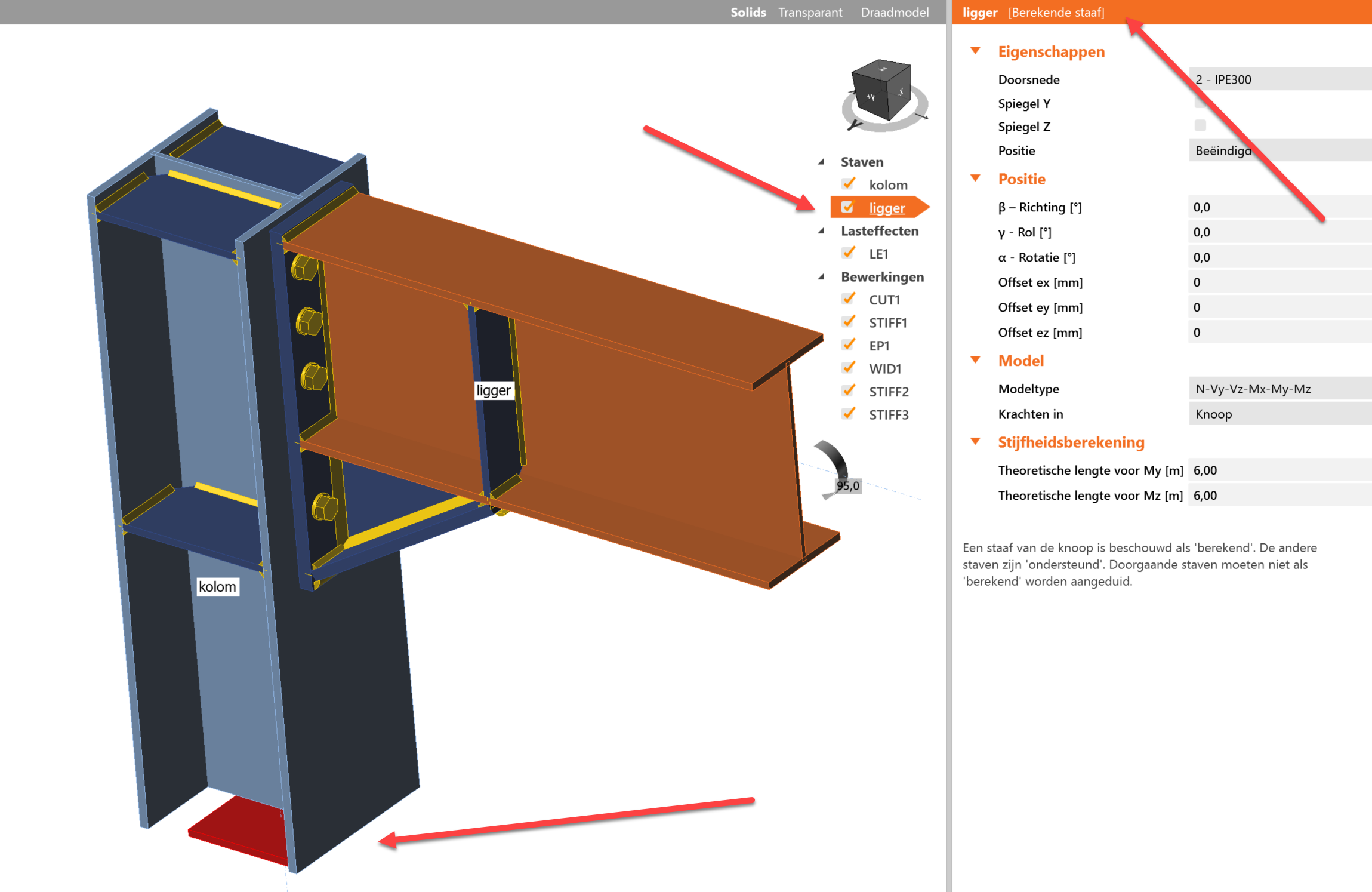

Het ligger-staafeinde is ingesteld op 'berekende staaf'. Dat betekent dat de stijfheid van de ligger (= berekende staaf) gecontroleerd gaat worden.

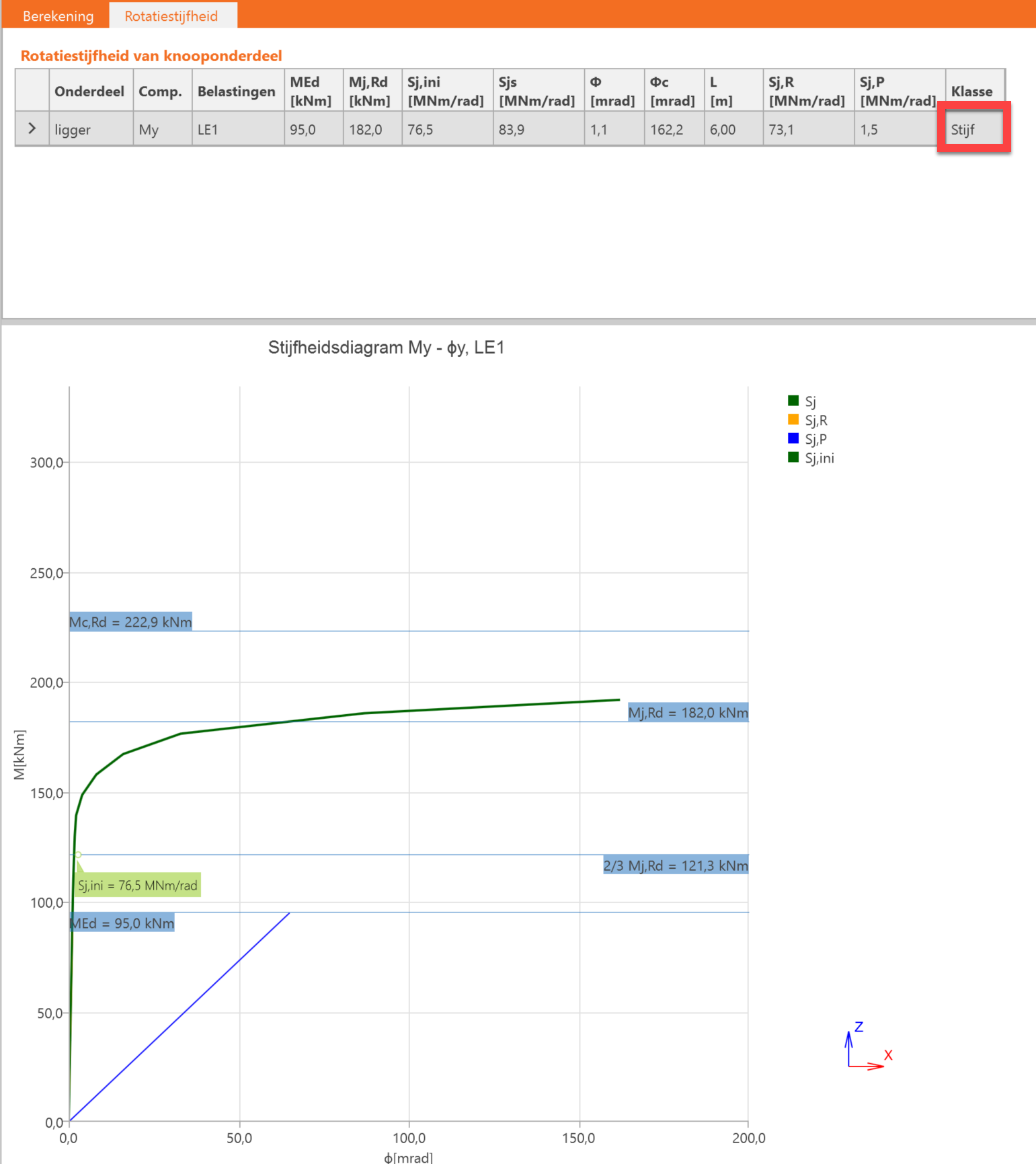

Het door IDEA CONNECTION berekende moment-rotatie diagram volgens de Eurocode 3 is als volgt:

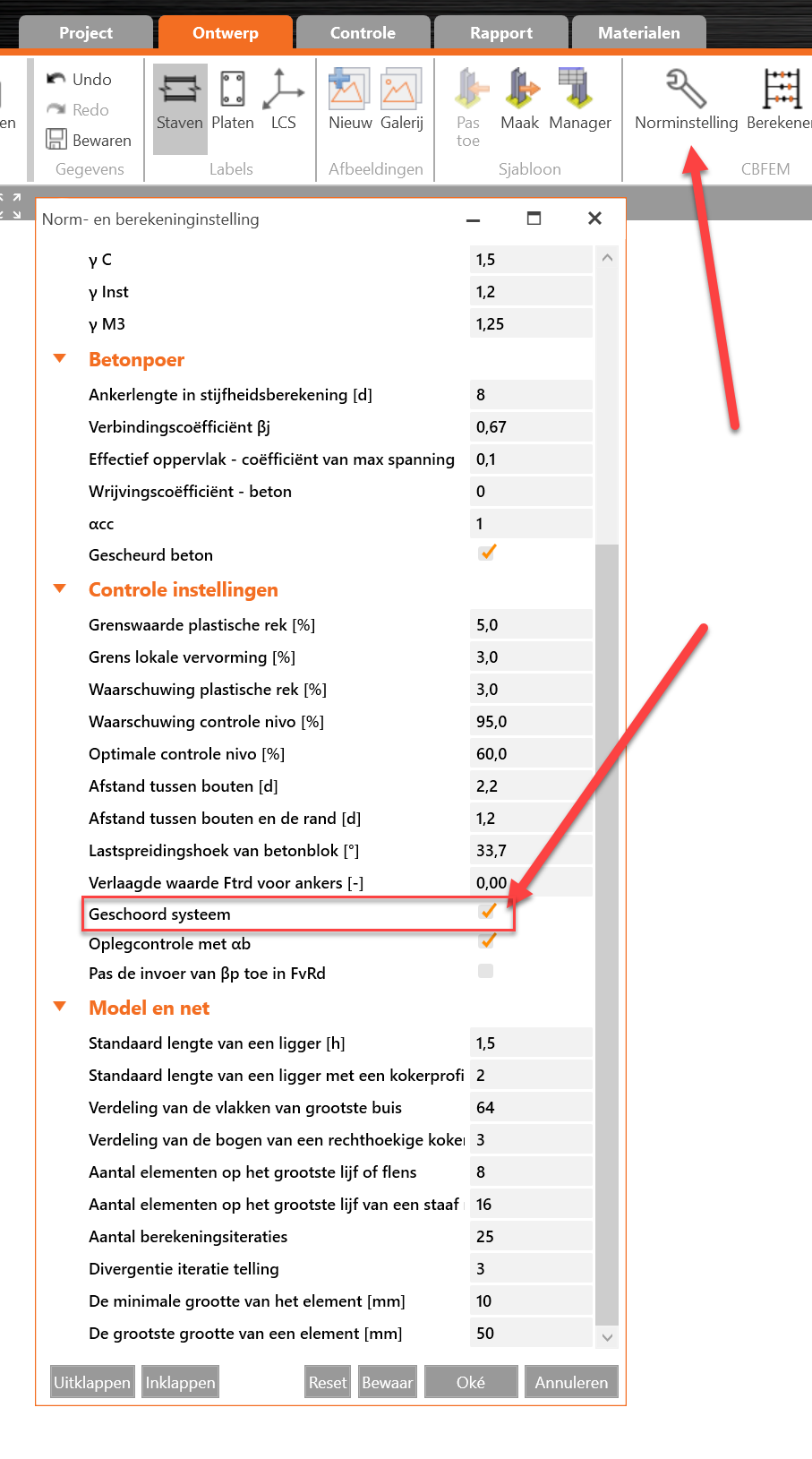

Je kunt in IDEA Connection de verbinding als geschoord of ongeschoord instellen bij NORMINSTELLING.
De weergegeven tabel heeft een aantal kolommen. Hierbij geven wij een uitleg omtrent de waardes zoals weergegeven in de kolommen.
| Onderdeel | Naam van de berekende staaf |
| Comp. | Voor welke snedekracht wordt de stijfheid berekend? In dit geval het buigend moment My |
| Belastingen | Voor welk lasteffect wordt het diagram berekend? |
| MEd | De rekenwaarde van het optredende moment. (hier 95 kNm) |
| Mj,Rd | Het maximaal opneembare moment van de totale verbinding van de enkele staaf. ( 182kNm) |
| Sj,ini | De veerstijfheid op basis van 2/3 Mj,Rd en de bijbehorende rotatie. 2 / 3 Mj,Rd = 182 × 2 / 3 = 121,3 [kNm] |
| Sjs | De secant stijfheid behorend bij het optredende moment, MEd en de berekende rotatie. |
| f | De berekende rotatie behorend bij MEd |
| fc | De maximale rotatie behorend bij Mj,Rd |
| L | De lengte van de staaf benodigd voor het bepalen van de grens: scharnierend of star. Deze waarde wordt bij de staaf ingegeven (theoretische lengte) |
| Sj,R | De grens tussen starre en flexibele verbindingen. Een verbinding met een hogere stijfheid voor Sj,ini is star. R = Rigid (Star) Bij norminstellingen kan worden aangegeven of een verbinding geschoord of ongeschoord is. (dit is in te stellen bij Norminstellingen) De formule voor de berekening van Sj,R,geschoord = 8 × E × I(ligger) / Lengte De formule voor de berekening van Sj,R,ongeschoord = 25 × E × I(ligger) / Lengte De stijfheid van Sj,R wordt aangeven als een oranje lijn in bovenstaande grafiek. |
| Sj,P | De grens tussen scharnierende en flexibele verbindingen. Een verbinding met een hogere stijfheid voor Sj,ini is flexibel. P = Pinned (Scharnierend) De formule voor de berekening van Sj,P = 0,5 × E × I(ligger) / Lengte De stijfheid van Sj,R wordt aangeven als een blauwe lijn in bovenstaande grafiek. |
| Klasse | De klassificatie van de verbinding: SCHARNIEREND, FLEXIBEL of STIJF In dit geval is de verbinding STIJF, want de berekende stijfheid van Sj,ini valt boven de grenslijn van de Sj,R, |
| Mc,Rd (grafiek) | Is de berekende moment op basis van het plastisch weerstandsmoment Mpl van de berekende staaf en de vloeispanning. In dit geval is het 6,28 * 10^5 × (s)355= 222,9 [kNm]. |
De Sj,ini is de stijfheid op basis van 2/3 Mj,Rd, op basis van de berekening in de eurocode EN 1993-1-8 – Hoofdstuk 5.2.2
