Als vuistregel kan worden aangenomen dat een excentriciteit dat resulteert in tussenafstand tussen staven van meer dan de profiel hoogte beschouwd moet worden als 2 aparte verbindingen.

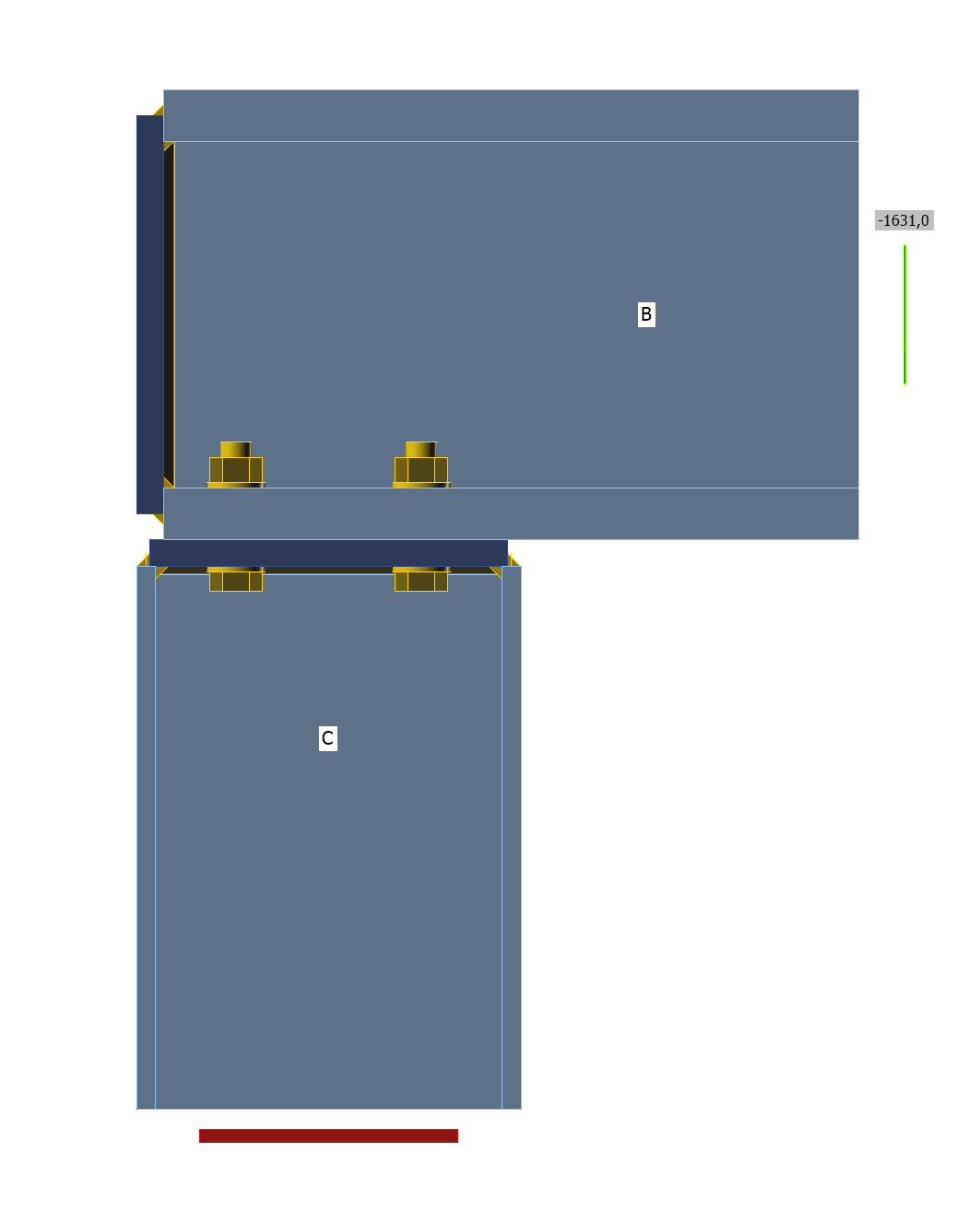

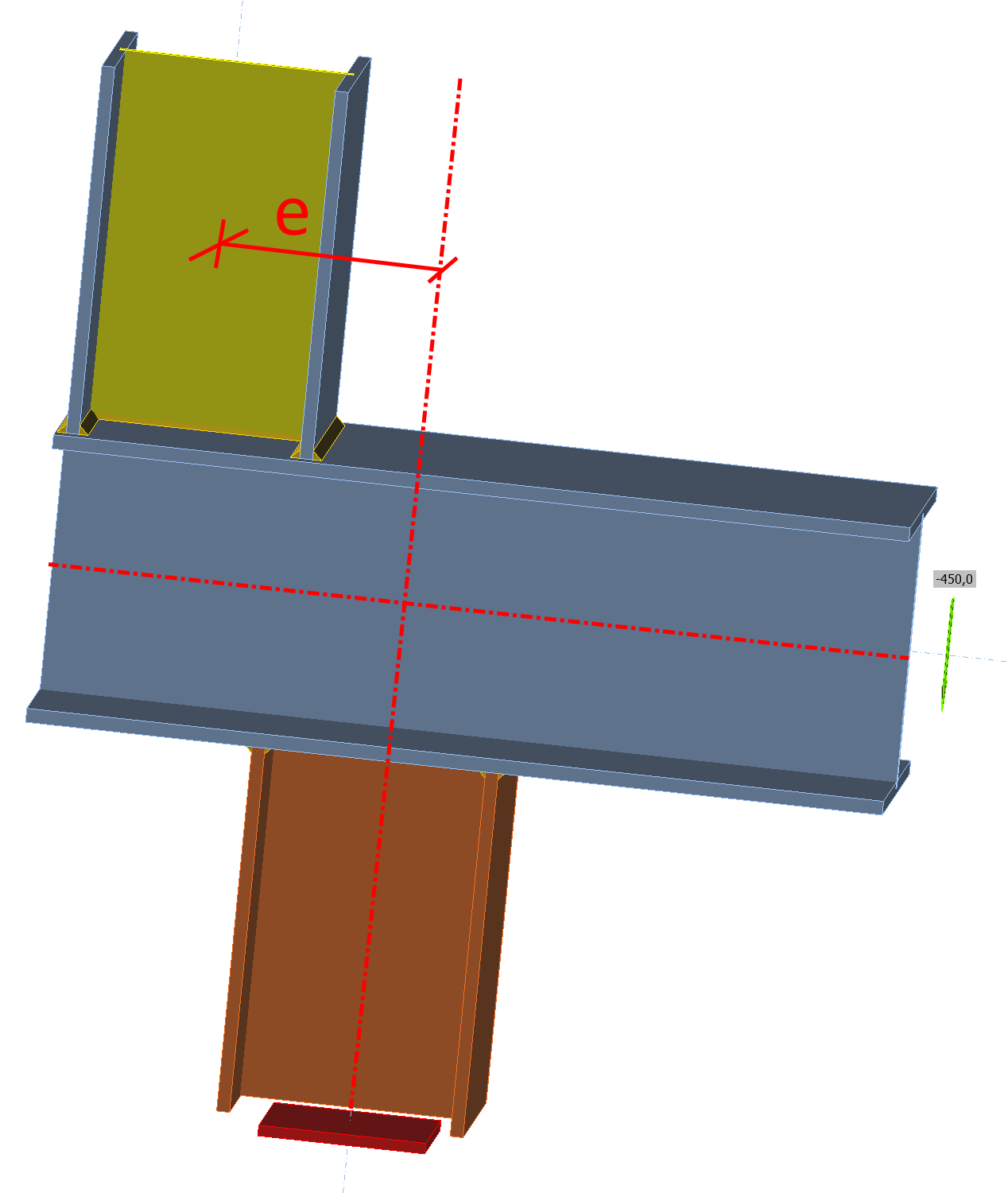

in het onderstaand plaatje als 'e' weergegeven.
Dit is een redelijke mate van excentriciteit. In dit voorbeeld staat een kleine last van 200kN op de bovenste kolomdeel. En de excentriciteit valt binnen de waarde 'e'. Het model rekent netjes en laat netjes de vervormingen, rekken en spanningen zien.

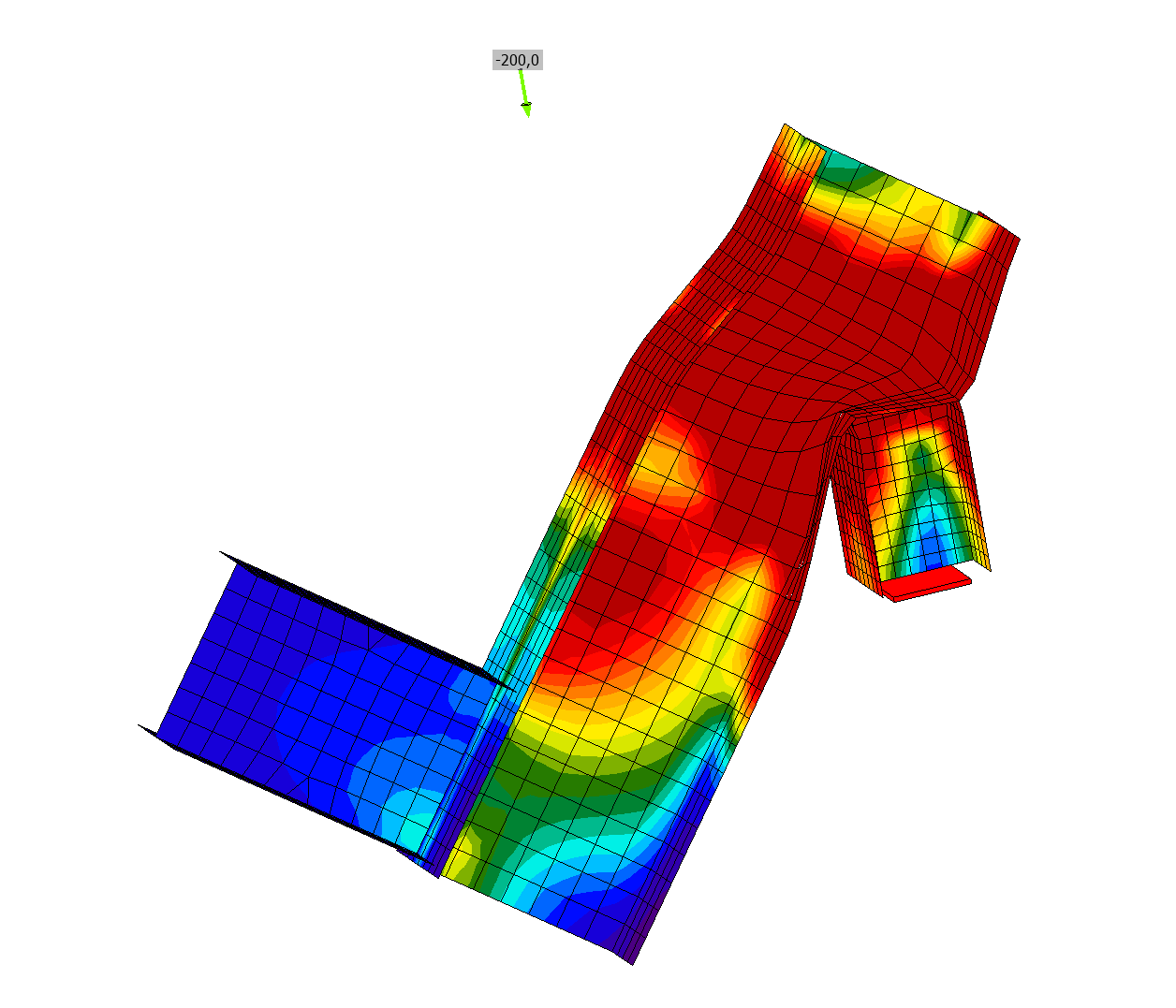

Wanneer we dit voorbeeld iets veranderen en de excentriciteit 'e' groter maken dan de profielhoogte (van 1 van de 2 profielen. Zien we dat bij dezelfde belasting het hele model faalt.

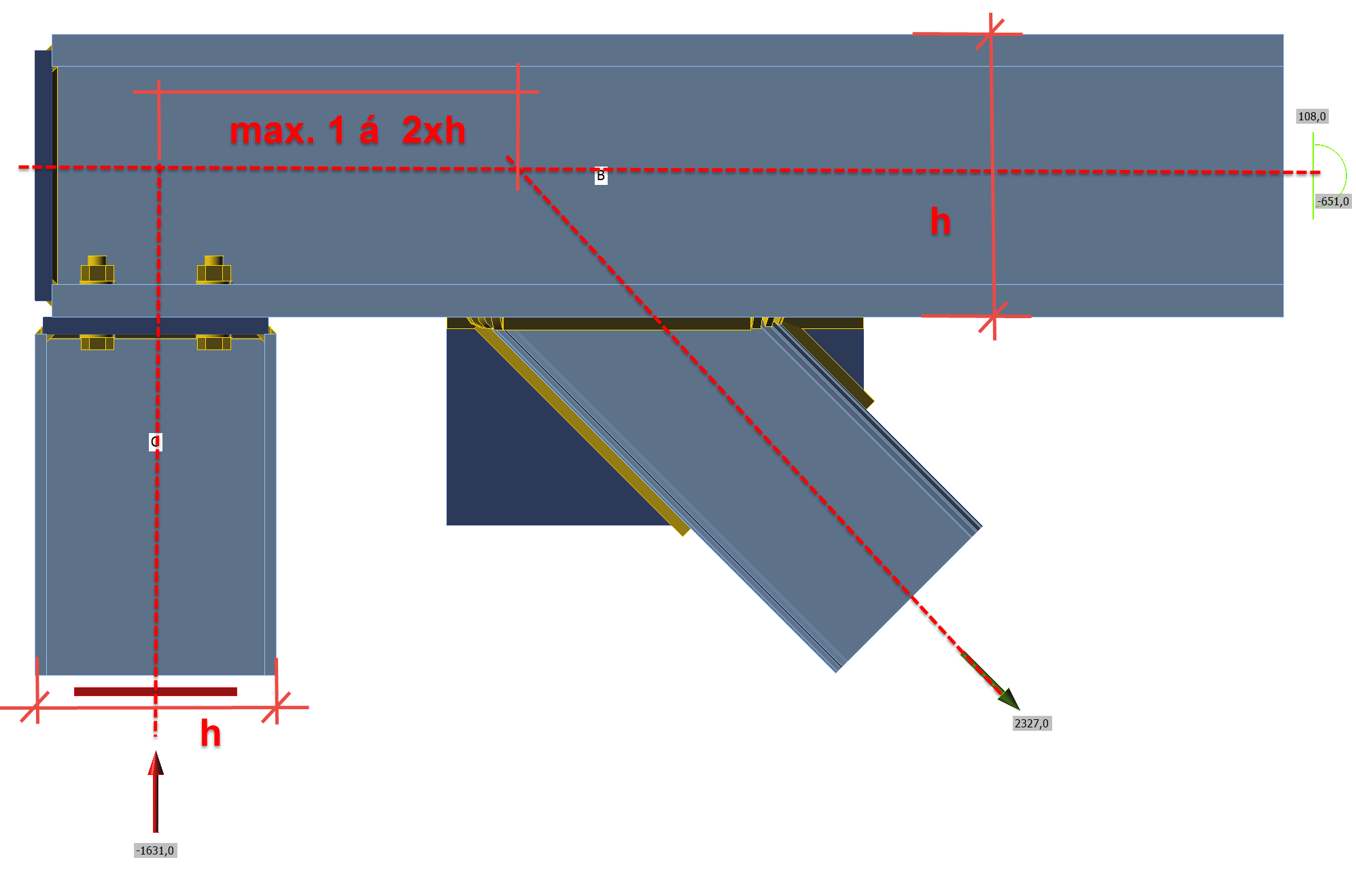

Een andere manier van aangeven wat er toelaatbaar is in IDEA Connection is als volgt.

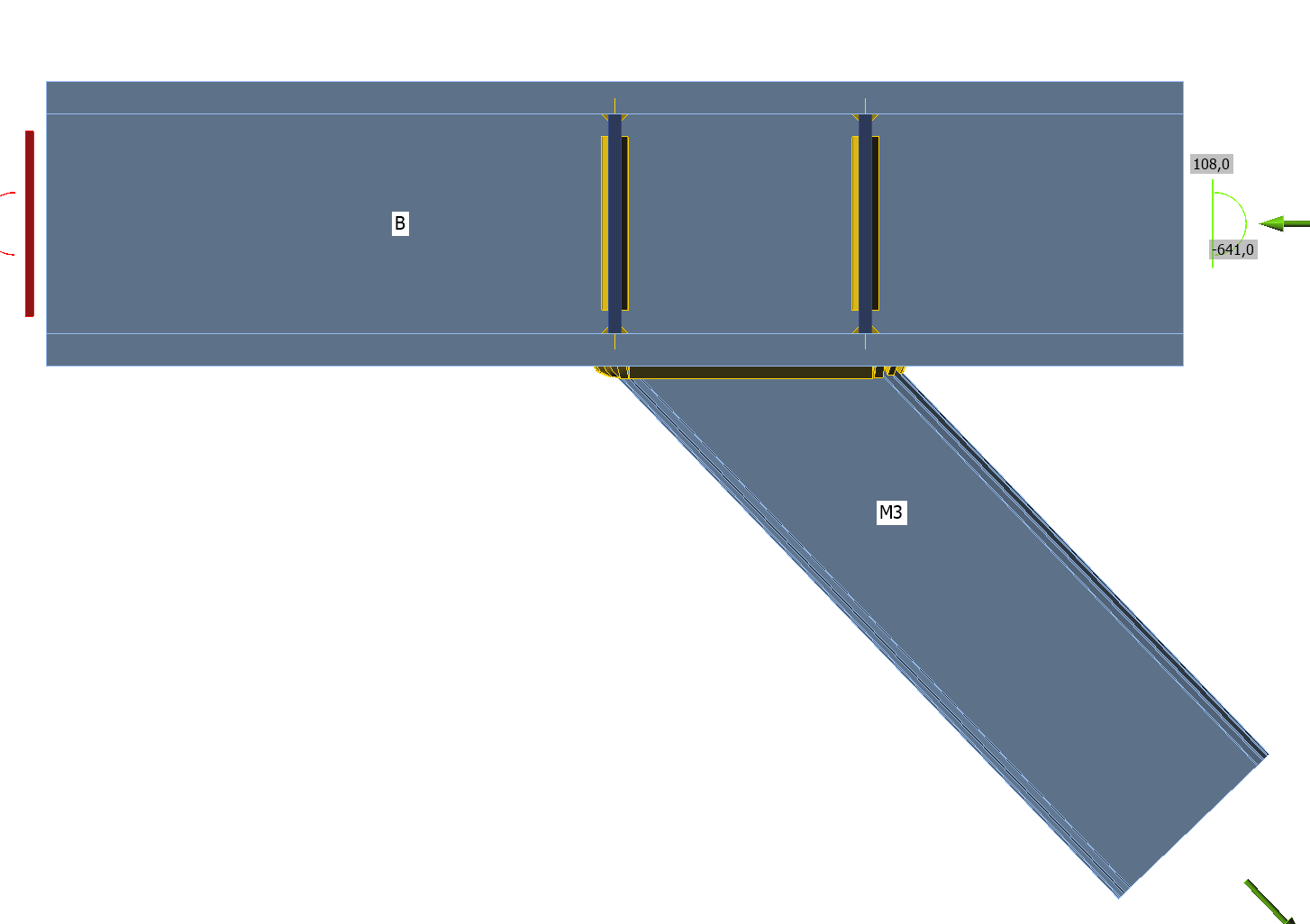

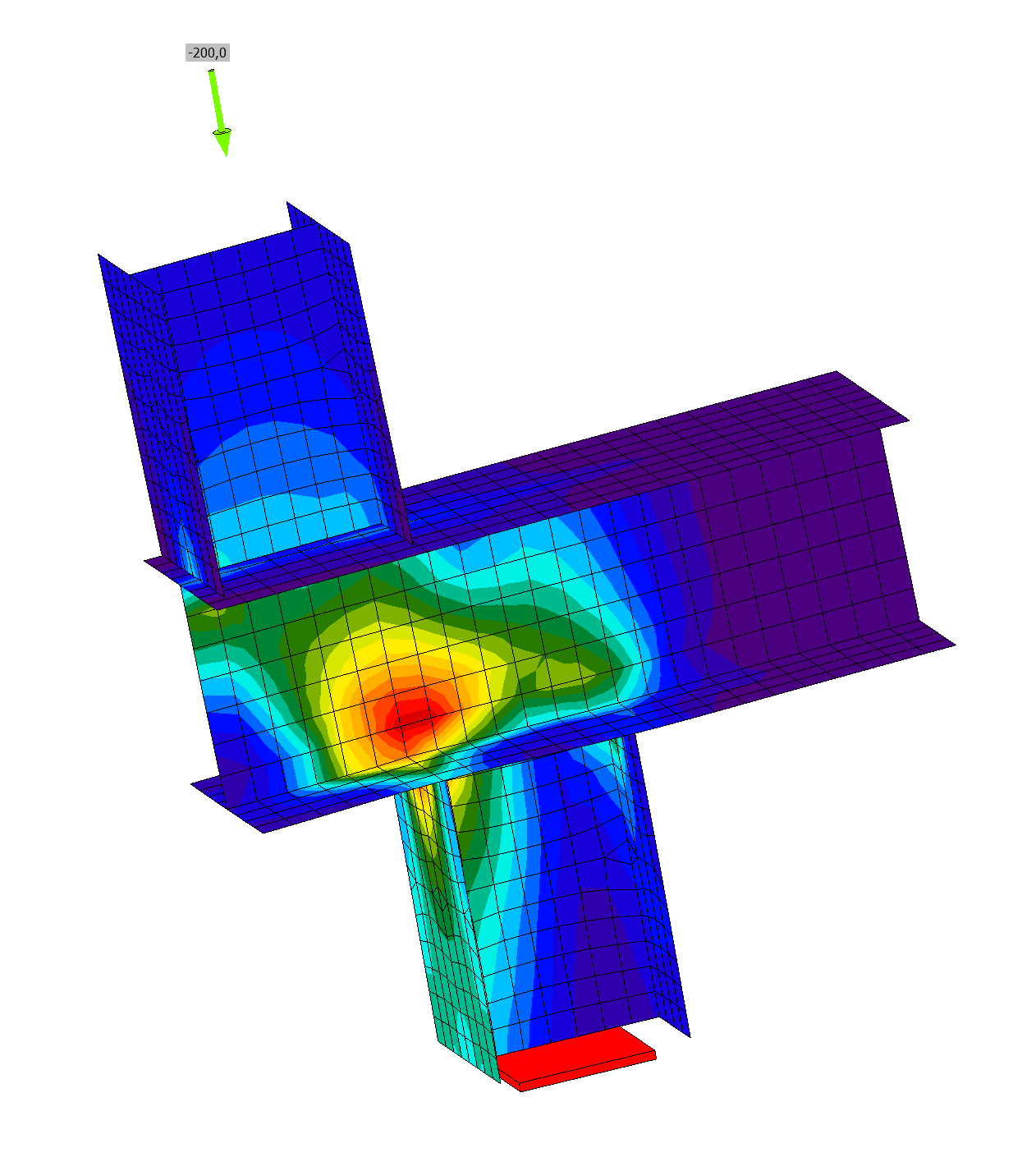

Wanneer de aansluitende staven/members nog binnen 1 á 2 x de hoogte van het profiel vallen, zou het als 1 verbinding beschouwd kunnen worden. Uiteraard zal dan ook gekeken moeten worden naar het equilibrium / evenwicht in de knoop en dit zal gecompenseerd moeten worden.
