Huge improvements were done at result interpretation in IDEA StatiCa Member for Concrete

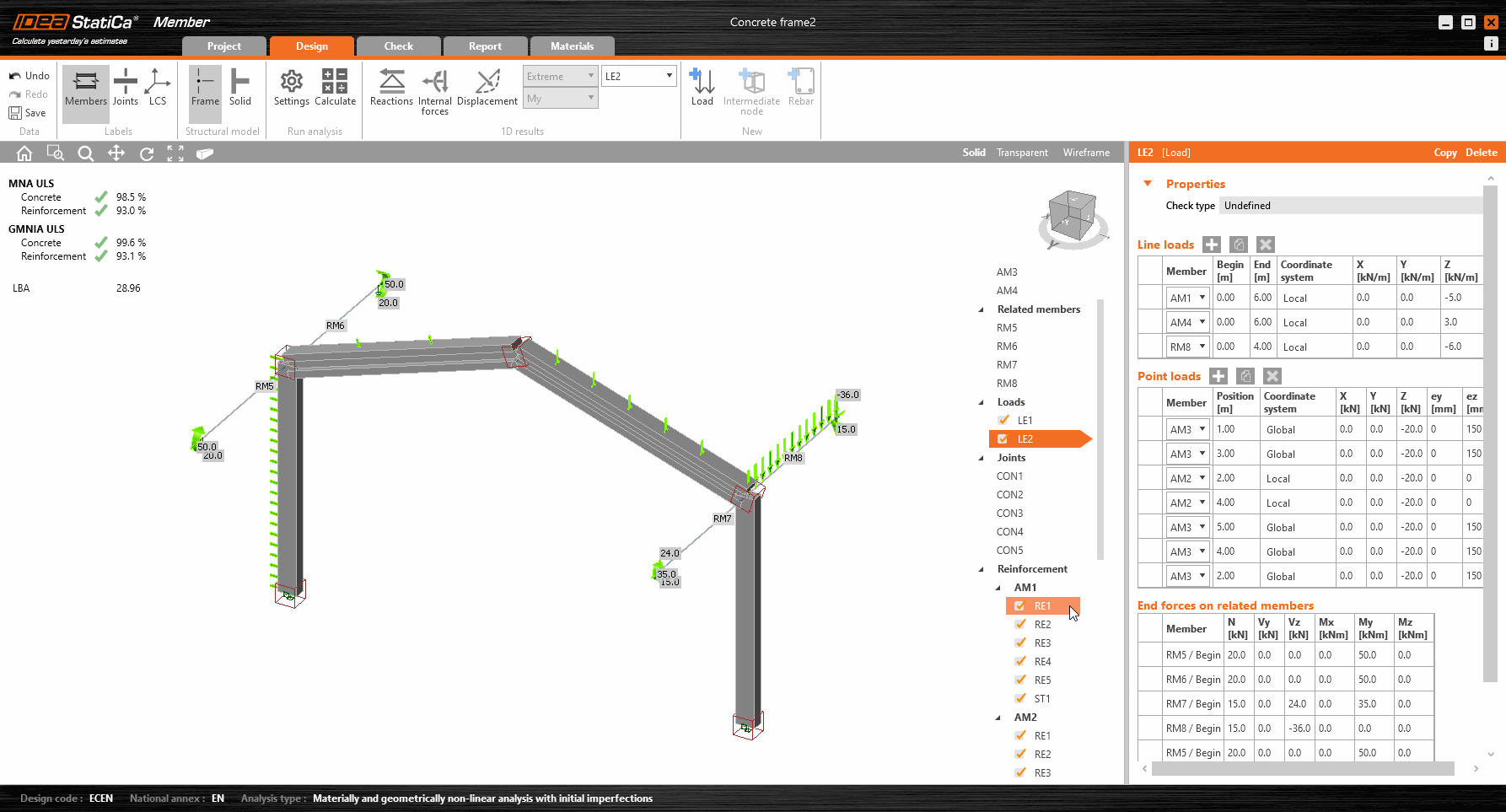

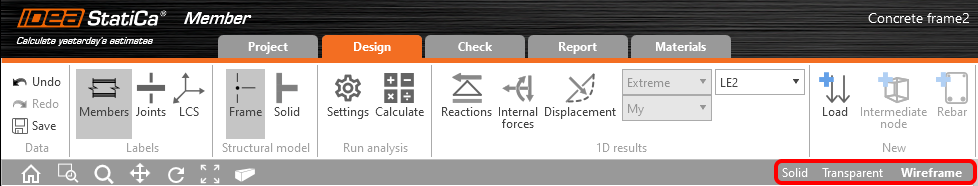

- Structure view has been added - Wireframe view. Now you can observe the structure in a solid, transparent, or wireframe view.

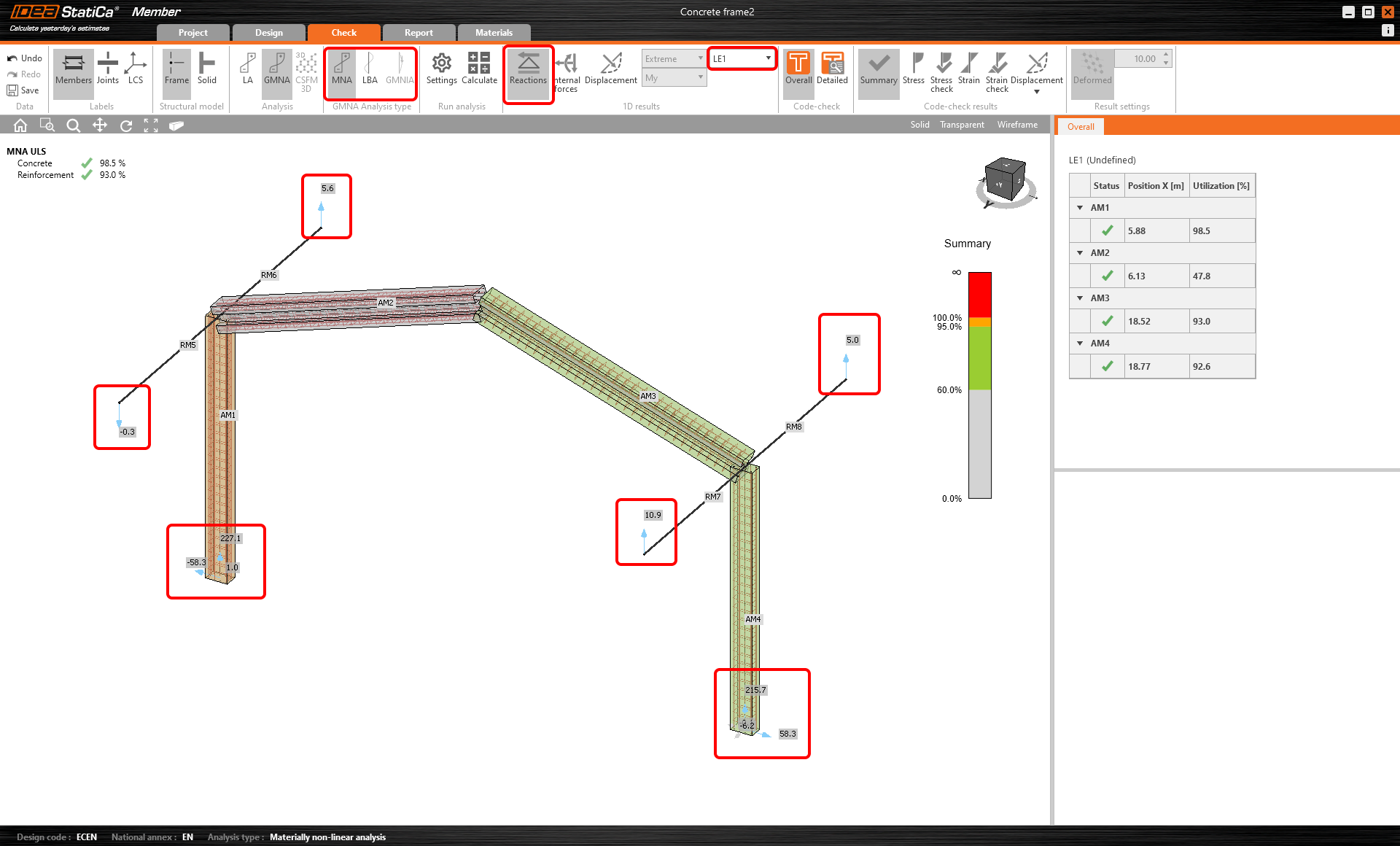

- Reactions displayed in the 3D scene according to selected Load case or Combination

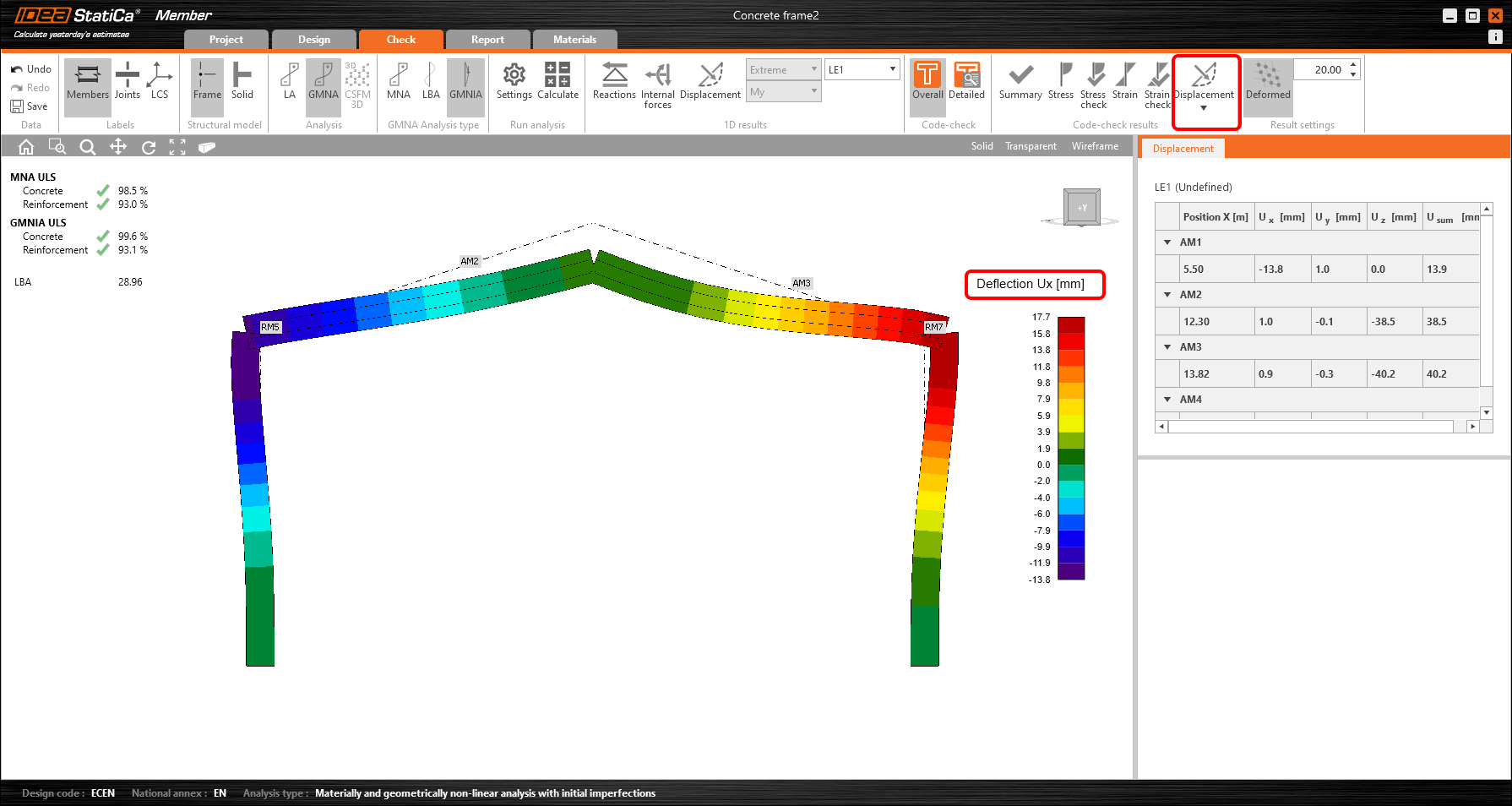

- 3D visualization of the deformed structure. You can observe the total displacement (Usum) or the particular components in directions x,y and z (Ux, Uy, Uz).
Available in all editions of IDEA StatiCa Concrete and Prestressing.
