Cross-section
- Concrete grade C30/37

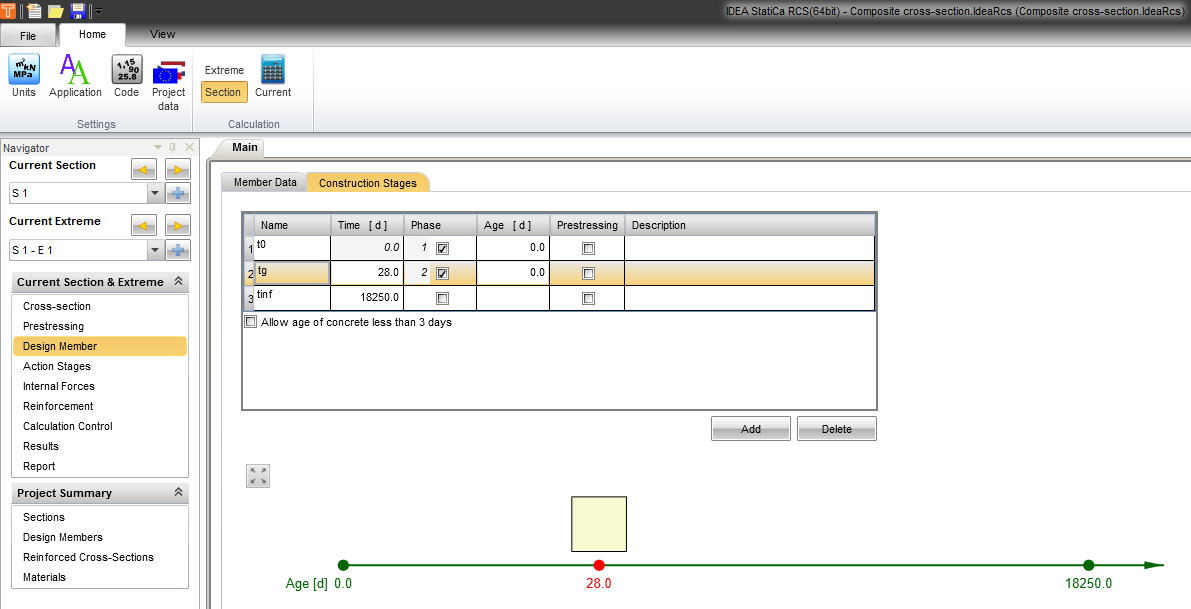

Construction stages
Internal forces
- Internal forces received from the third-party software for each part of the section separately

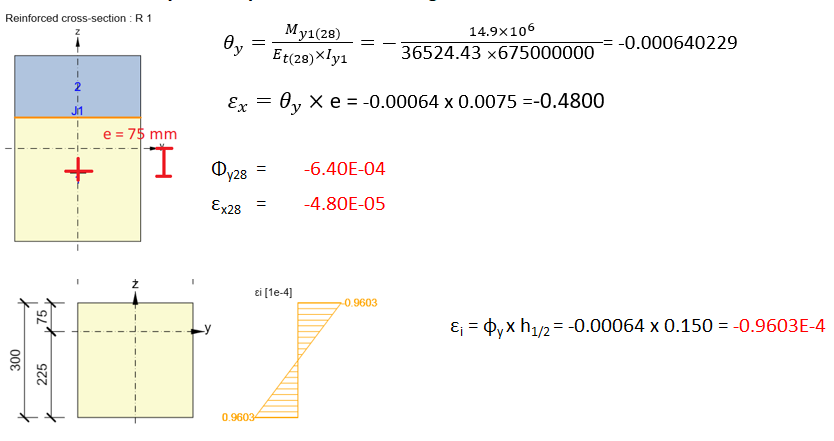

Plane of the strain at 28 days for component 1
- Tangent modulus of elasticity is used for calculation. The tangent modulus is equaled to 1.05 · \(E_{cm}\).
- Internal forces are recalculated to the center of gravity of whole cross-section (with concrete slab)

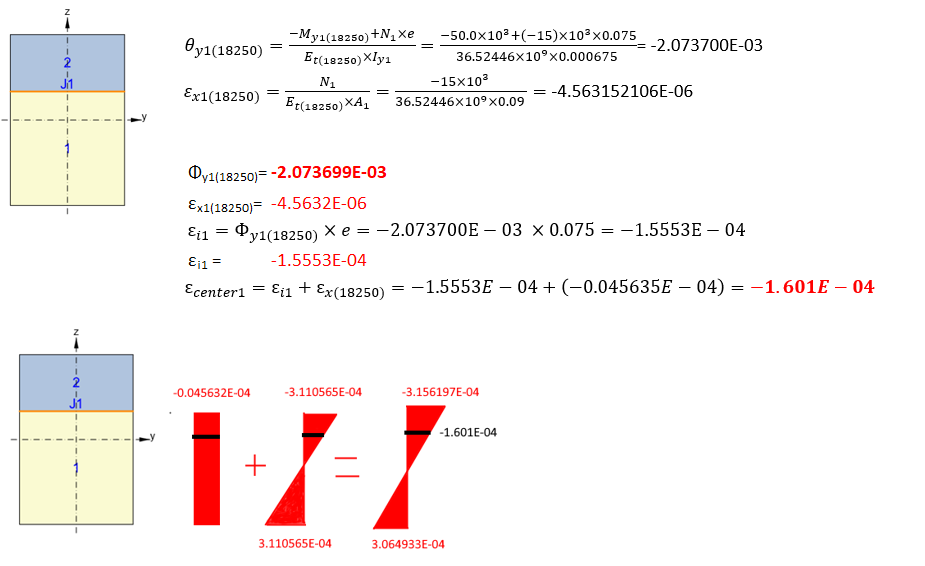

Plane of the strain at 18,250 days for component 1 - prefabricated part
- The curvature is recalculated to the center of gravity of the total cross-section (with a concrete slab). The normal force acting in the center of gravity of the lower (prefabricated) part is located eccentrically to the center of gravity of the total cross-section (with a concrete slab) and causes an additional bending moment.
- An axial strain \(ε_{x1}\) at the center of gravity of the total cross-section (with concrete slab) defines the displacement of the plane of the strain calculated on the prefabricated part relative to the center of gravity of the total cross-section (with concrete slab).

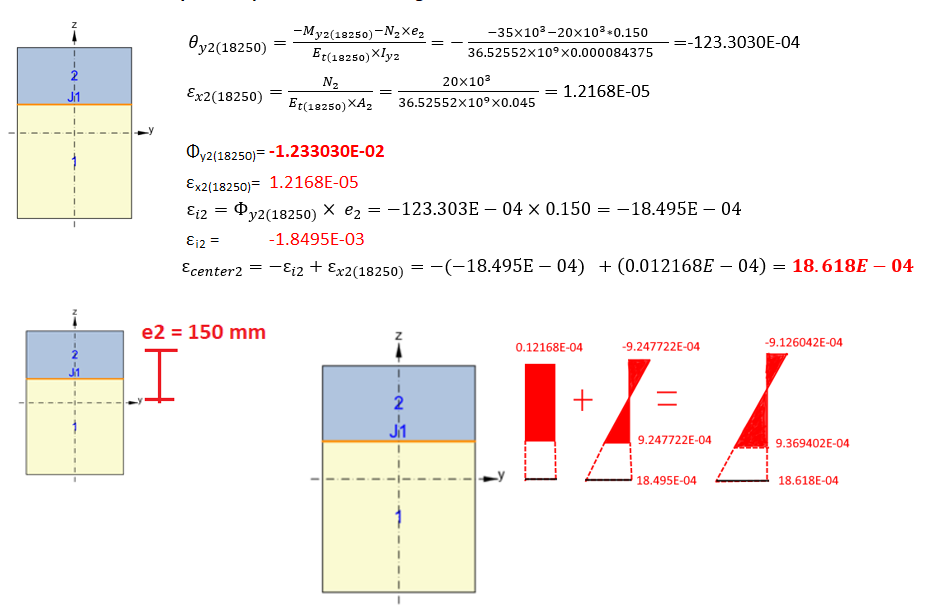

Plane of the strain at 18,250 days for component 2 - composite slab
- The curvature is recalculated to the center of gravity of the total cross-section (with a concrete slab). The normal force acting in the center of gravity of the upper part (concrete slab) is located eccentrically to the center of gravity of the total cross-section (with a concrete slab) and causes an additional bending moment.
- An axial strain \(ε_{x2}\) at the center of gravity of the total cross-section (with concrete slab) defines the displacement of the plane of the strain calculated on the prefabricated part relative to the center of gravity of the total cross-section (with concrete slab).
Calculated plane of strains
