Version 8 is the next chapter in simplifying and improving your design process of concrete members.
The new version comes one year after the previous version 7 and brings many new features and improvements. The majority of them were inspired by our users, resellers, and partners.

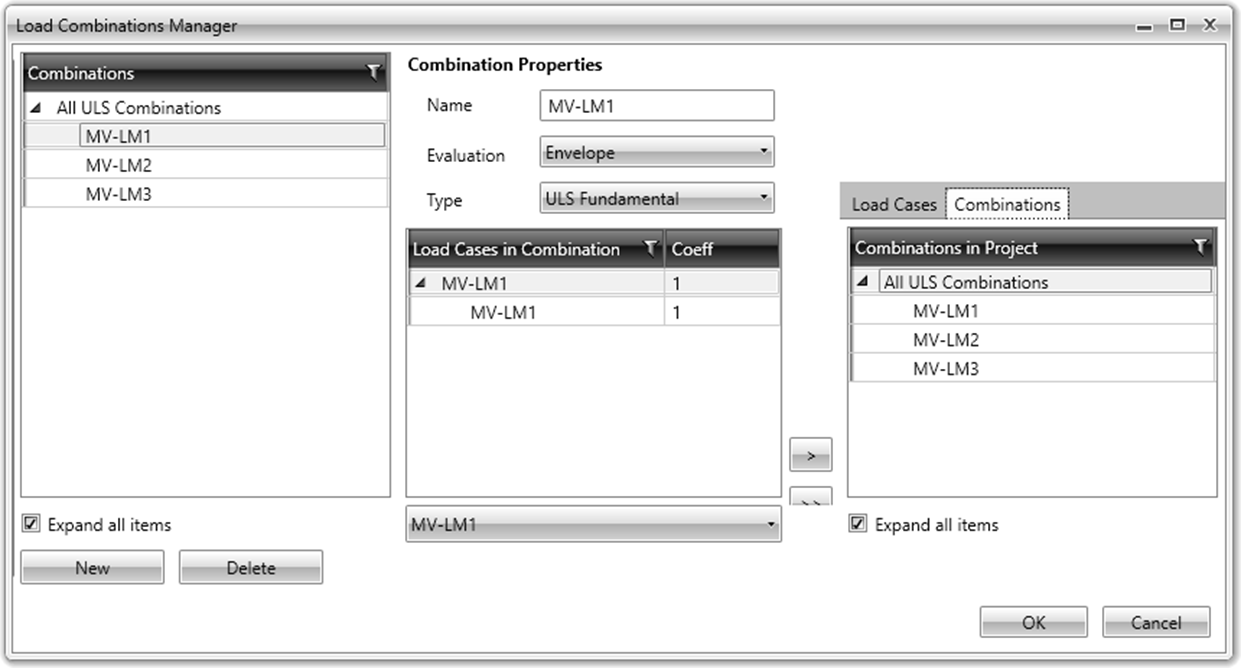

A possibility to add combinations into combinations has been implemented. This option is available through new tab in Load combinations manager.

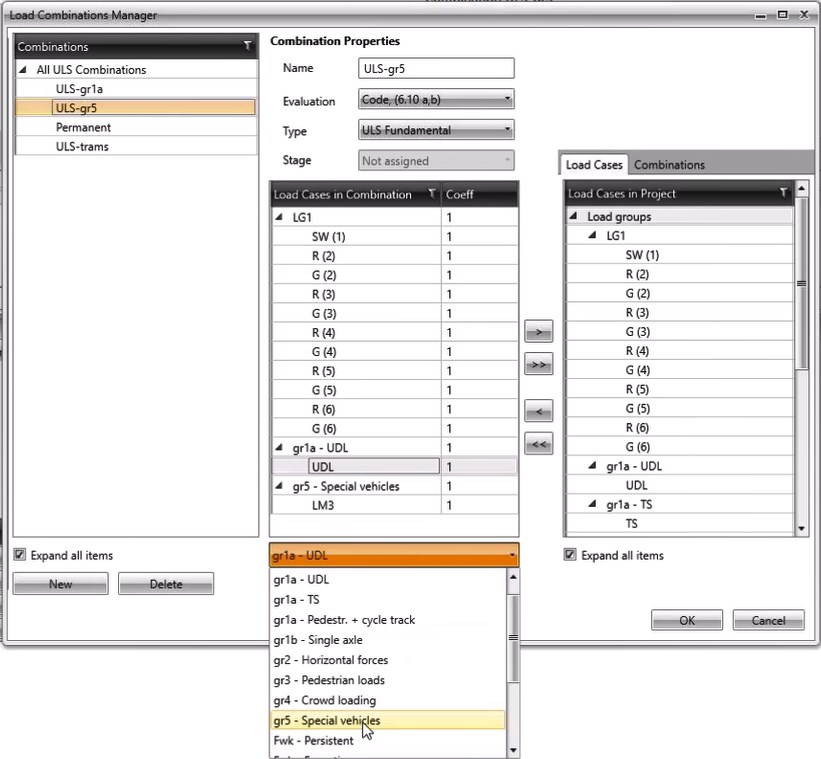

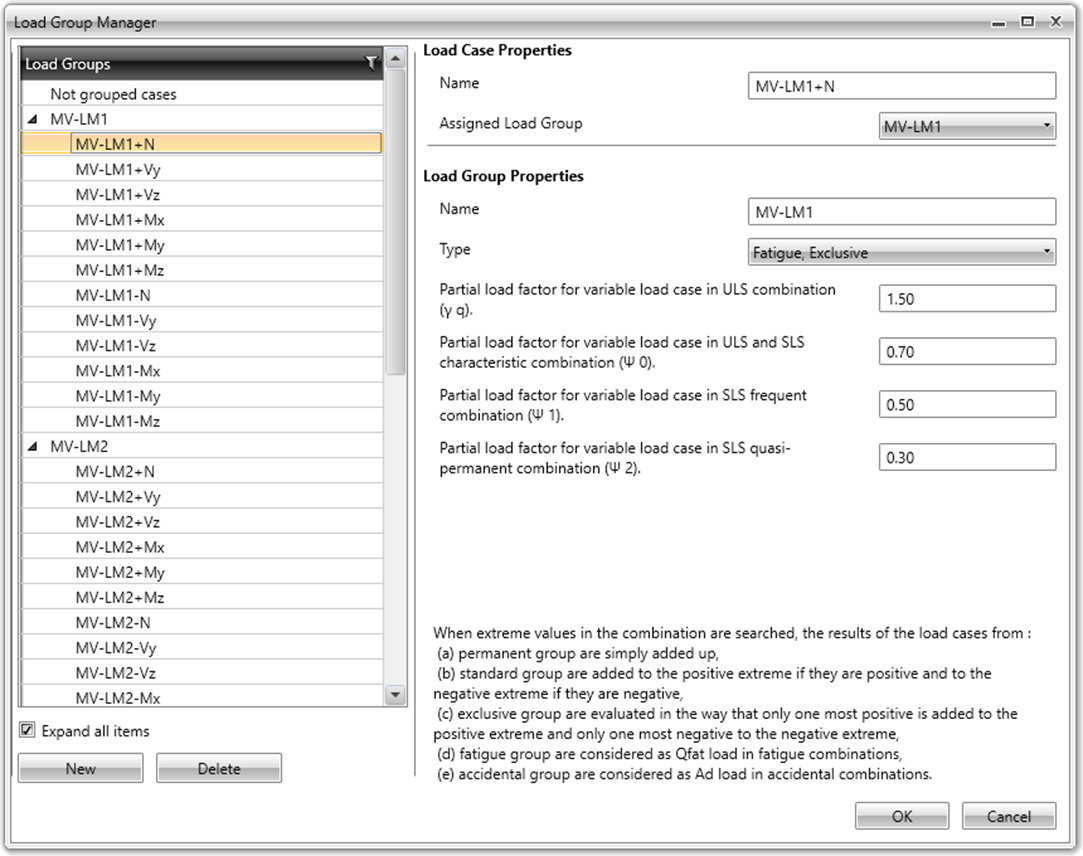

Sometimes it comes as handy to assign load cases into different load groups as it is considering different coefficients (psi, gamma, …) in different combinations.

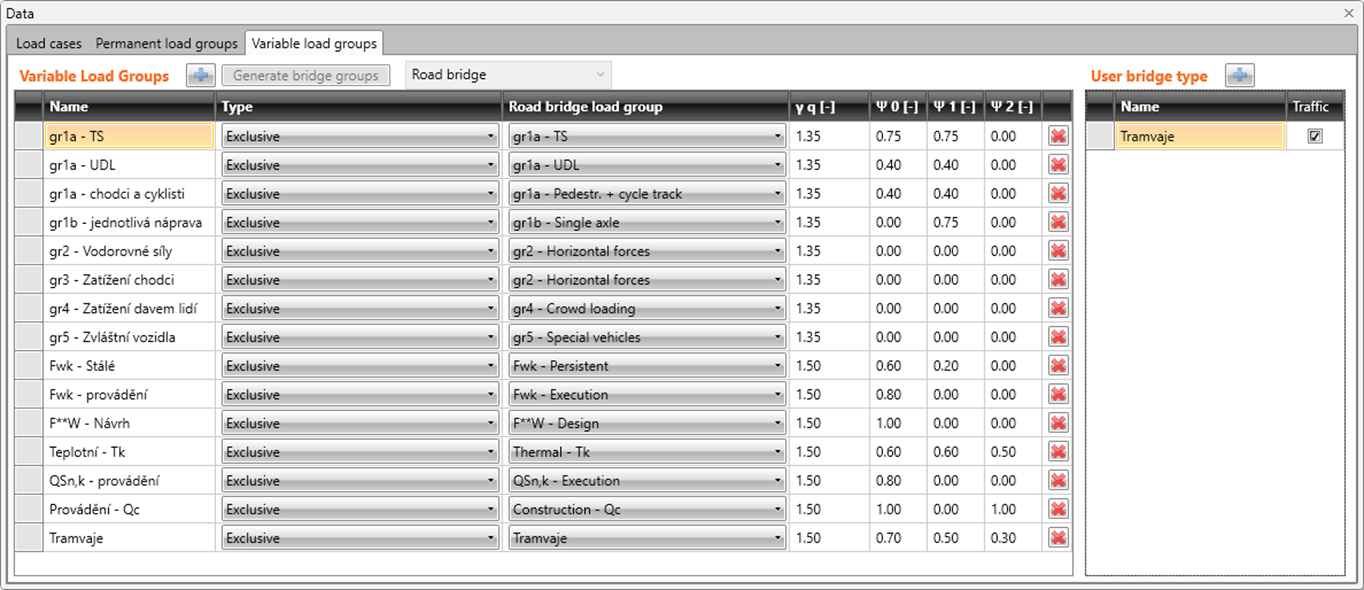

The user can now define his own load types for bridge constructions. For example trams, oversized convoys, metro cars etc. These groups can be included/excluded from bridge load rating checks due to Traffic checkbox.

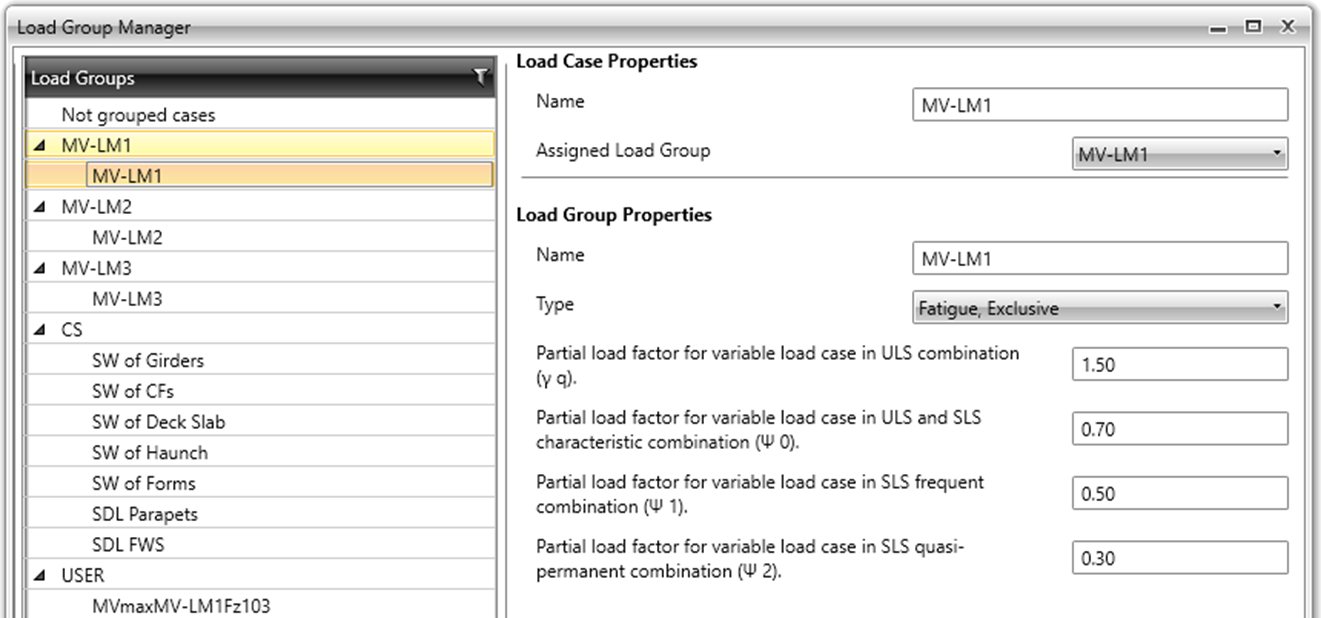

We have been given 12 separate load cases for imported moving load cases from Midas Civil. In newest version it comes to improvement by merging these cases into one to simplify your workflow. E.g. LM1+N, LM1-N, LM1+Vy, … is now replaced by MV-LM1.

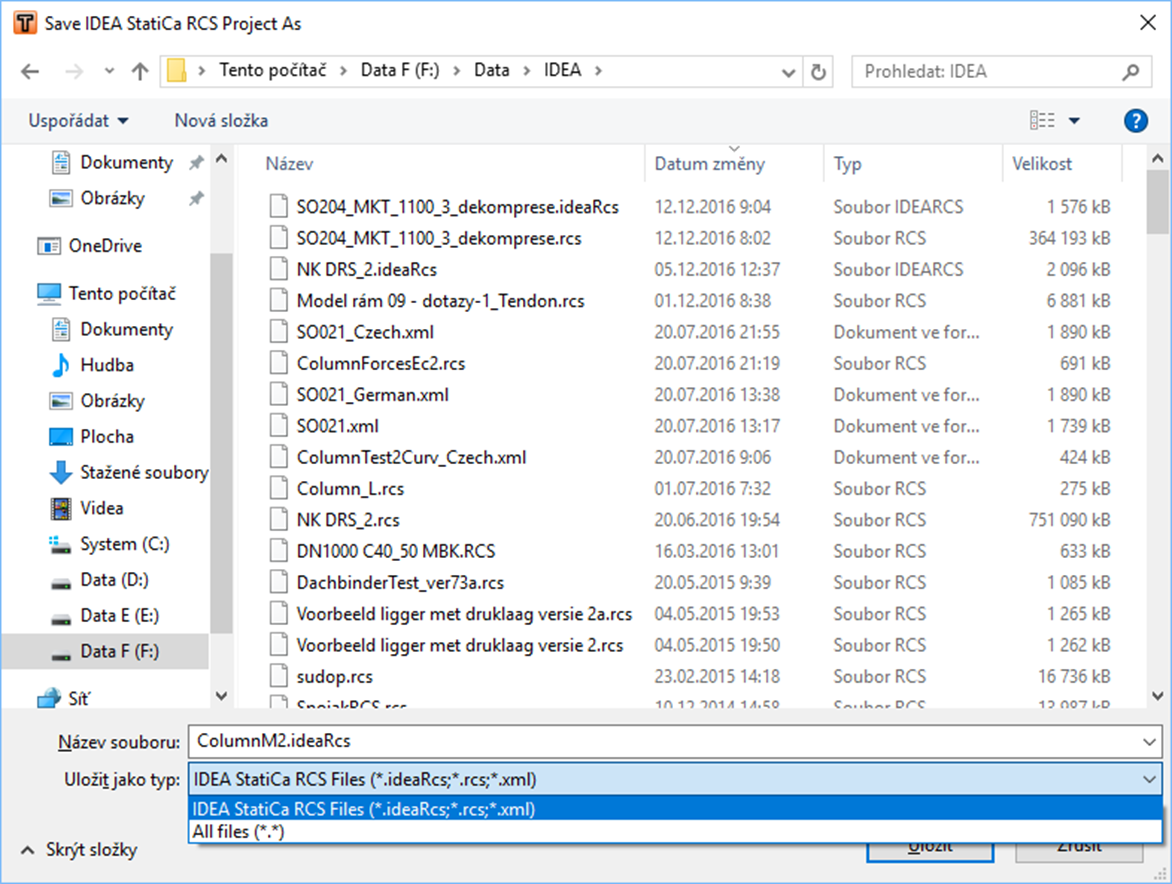

New option to save in RCS as a binary file has been added. Option to save in XML format is still available.

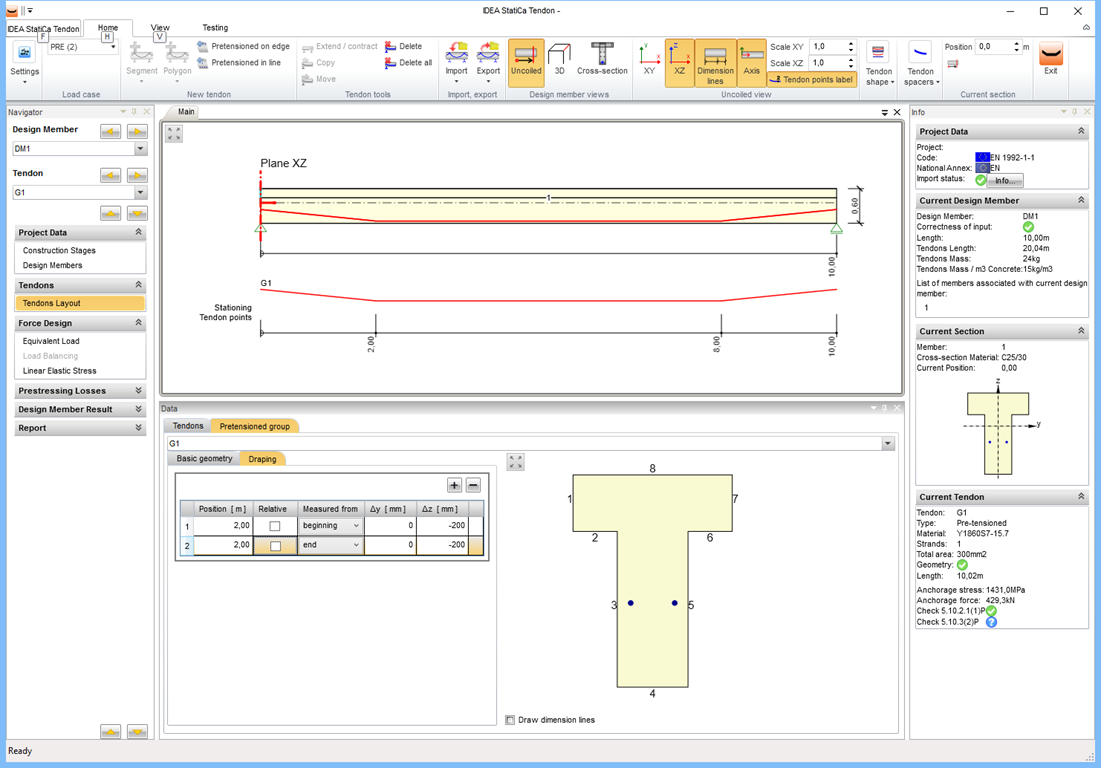

Draped strands are now added into Tendon designer. We have a possibility to change eccentricity along the length of prestressed strands.
IOM – tests of input values is mainly developed as new extension for those customers and partners, who use IOM interface to run non-linear analysis and design of IDEA StatiCa.

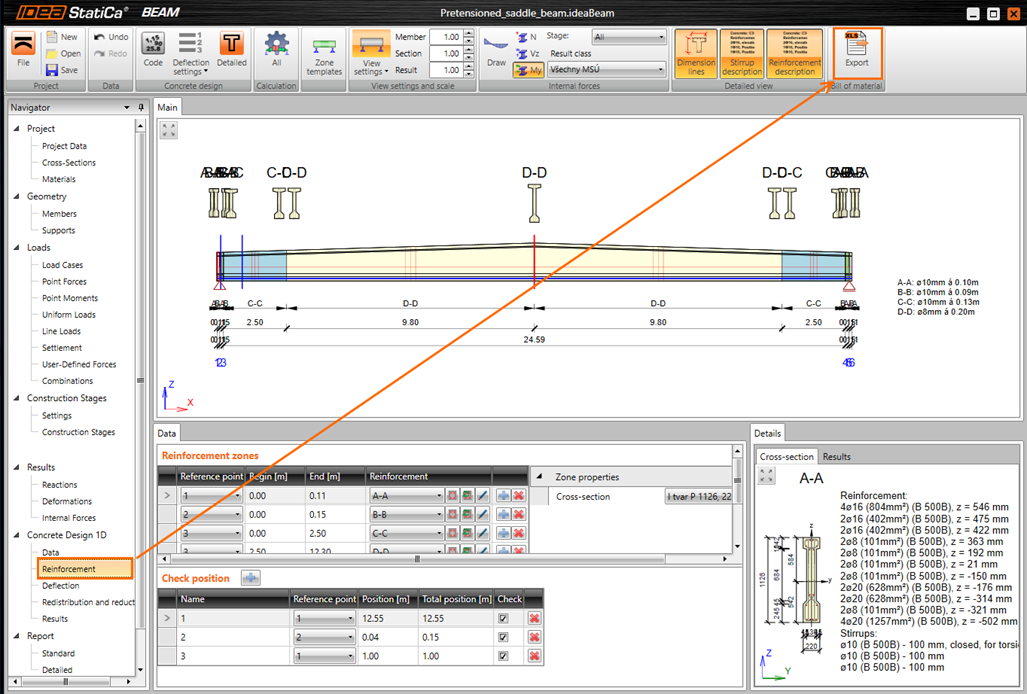

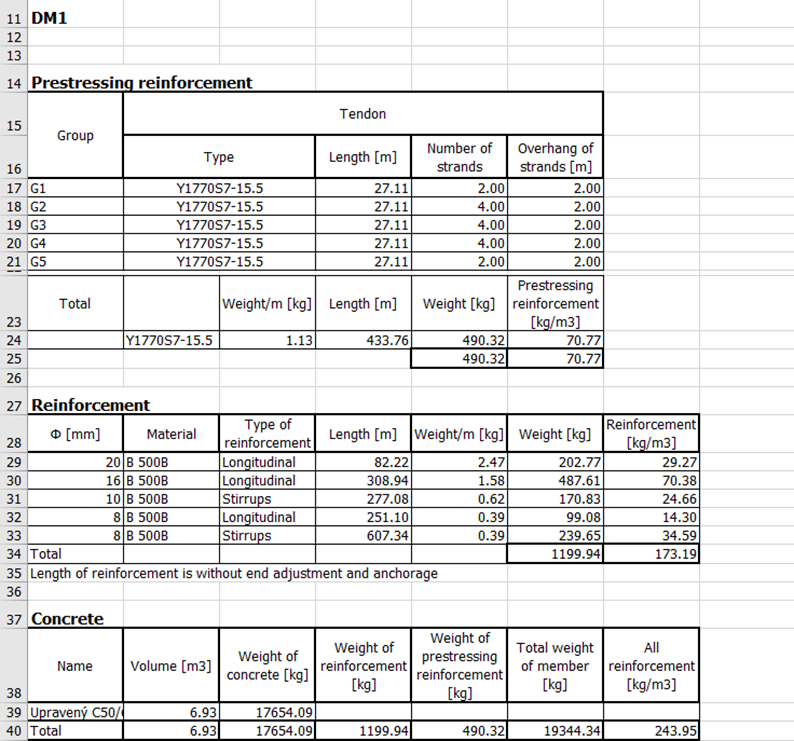

The export of bill of material including tendons into XLS format has been added to your workflow.

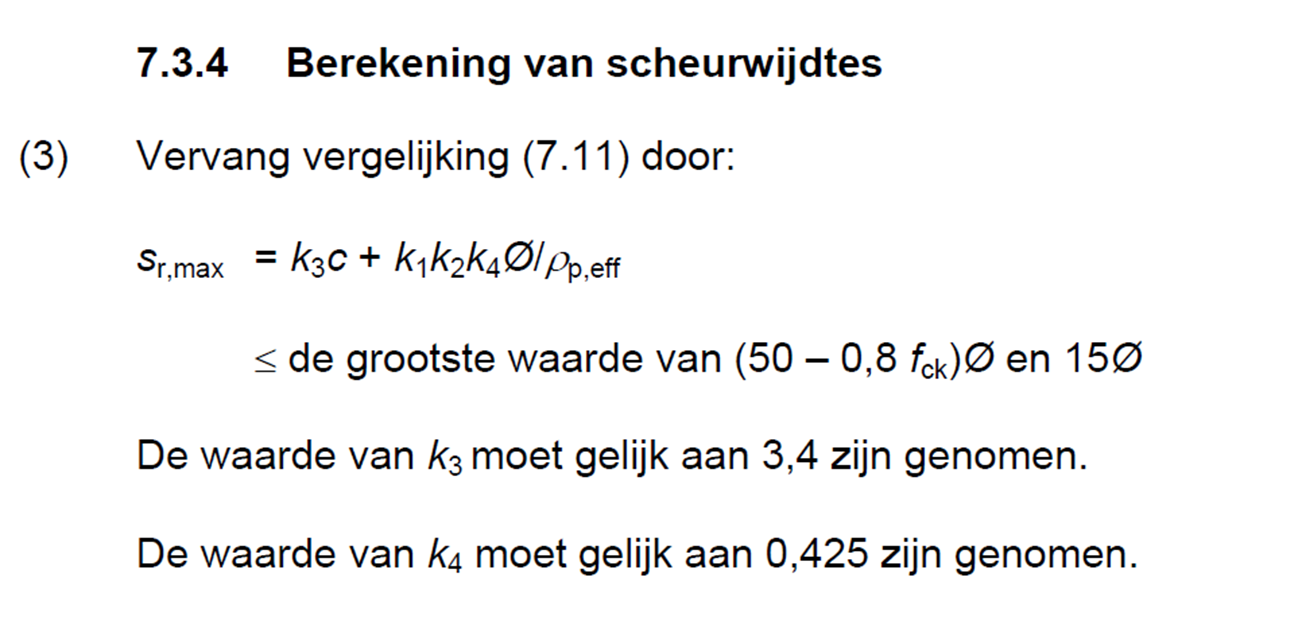

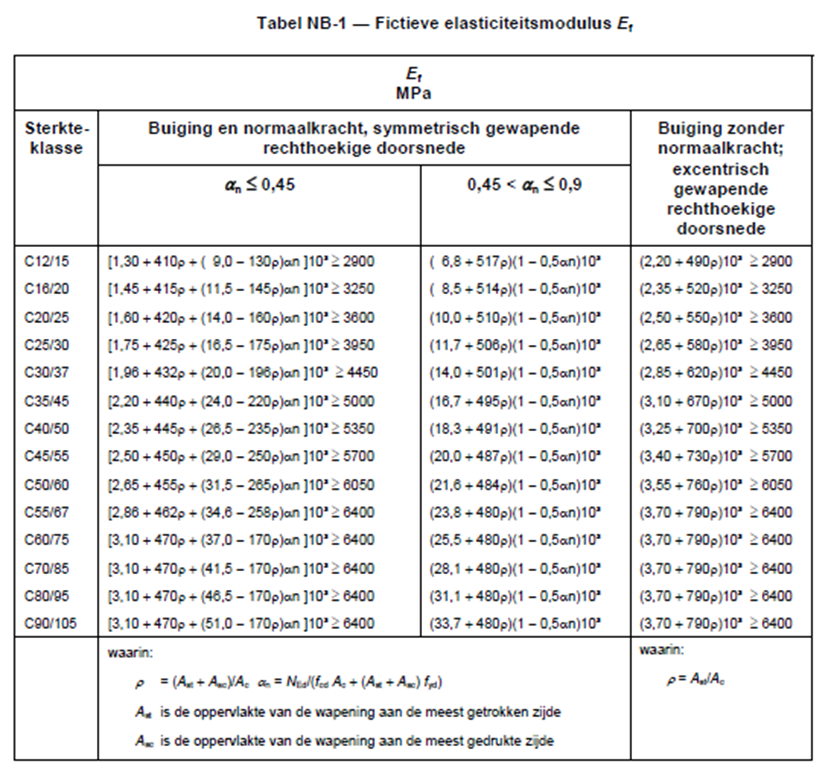

We implemented latest NEN annex for our Dutch customers. The design of reinforcement should respect code dependent calculations.
We moved some general settings to the ribbon to make our module RCS more user-friendly. You can find newly added buttons in right section of ribbon.

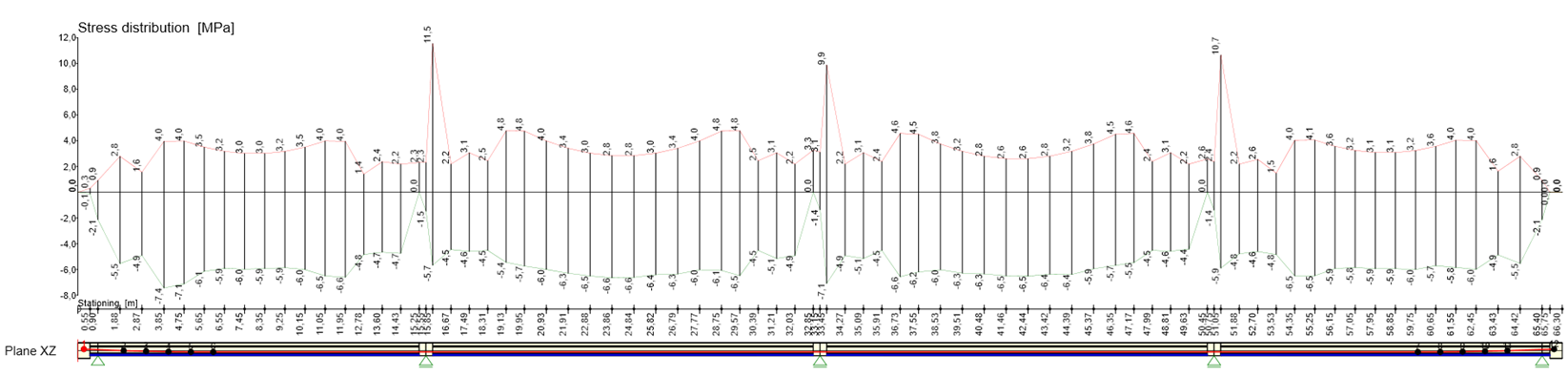

New functionality in Tendon designer calculates linear stresses along the tendons. A very helpful feature while tuning the tendon´s forces and layout during the design process. New way of the design of tendon in IDEA StatiCa.

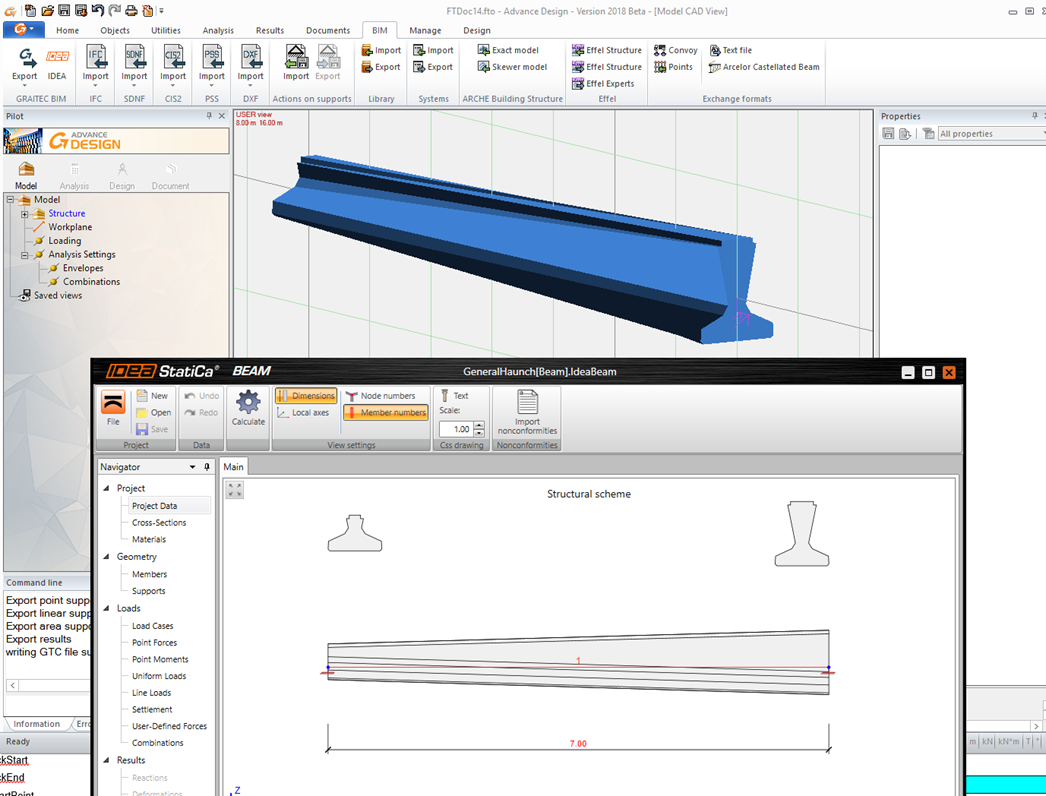

New BIM link with Graitec´s Advance Design with the possibility to import beams into IDEA Beam.
Haunched beam of general section imported into IDEA StatiCa

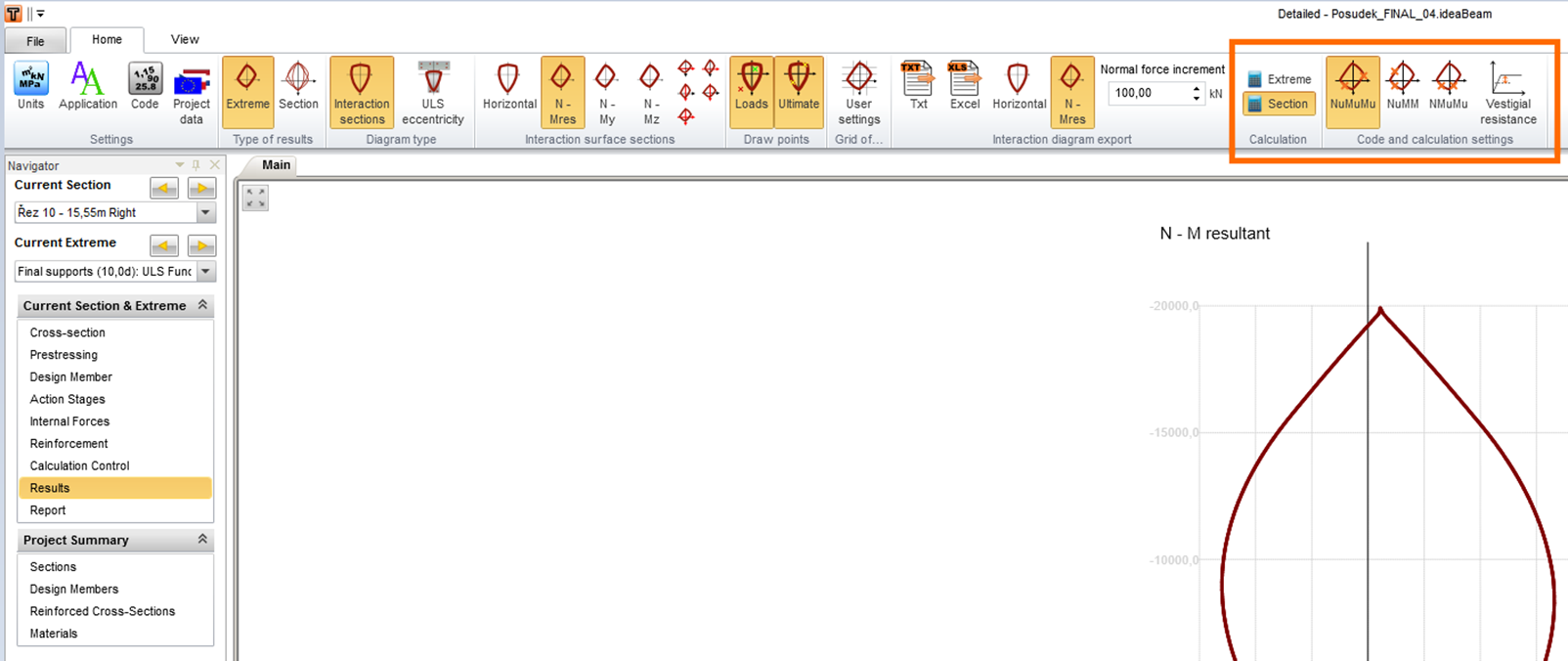

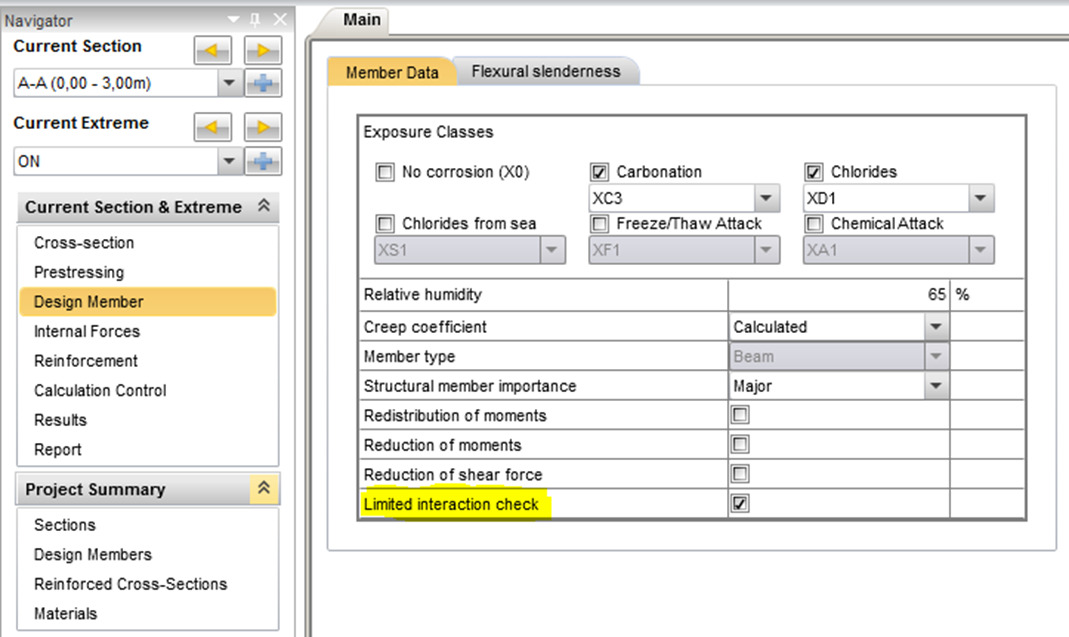

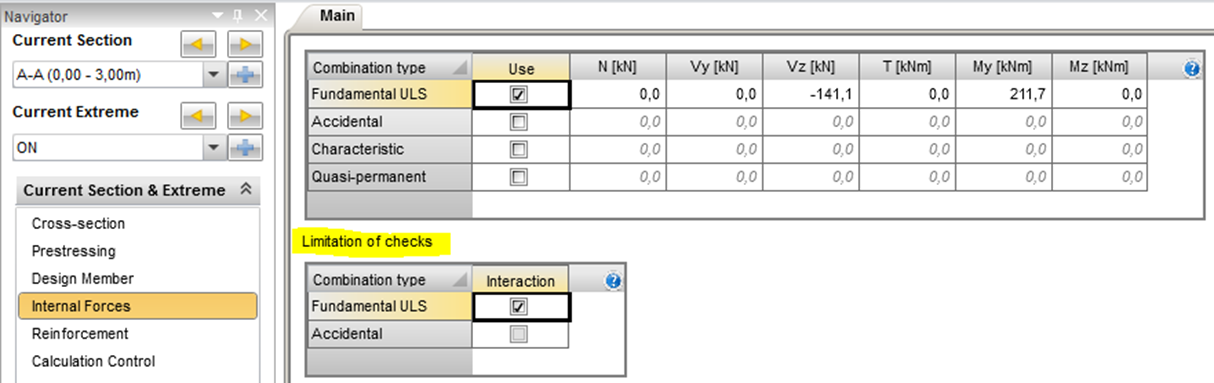

We added limited interaction check also to RCS. In previous versions, this was possible only in Beam module. To access this check, please find it in Current Section & Extreme -> Design Member -> Member data and check the checkbox. After this, you should be able to decide in which type of combination it should be considered in Internal forces Tab.
